1. Summary

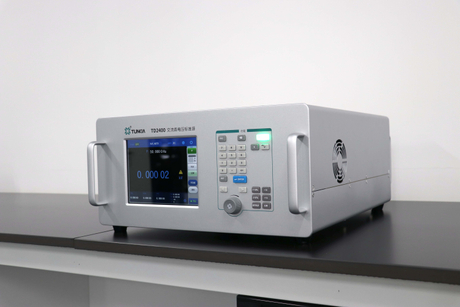

TD2400 is a high precision and multi-function AC standard high voltage source with wide rang. It’s applied for calibrating AC high voltage meter, withstanding voltage testers, high voltage probe etc.
2. Features
• AC voltage output: 100 V～5 kV / 10 kV / 15kV.
• Accuracy class: 0.02, 0.05.
• Frequency: 45 Hz～65 Hz.
• 2nd~11th harmonic output.
• Short-circuit and overload protection.
• LCD touch screen.
• Setting the ACV values by keys.
• RS232 interface.
3. Application
• Meter manufacturer
• The power grid
• Metrology and calibration
☆ Calibration for AC HV meter or Probe |
|
• AC voltage ( ACV ) output: 100 V～5 kV / 10 kV / 15kV • Apply to the calibration of AC high voltage meter, high voltage probe etc. |
4. Characteristics
☆ Multiple Output Mode |
|
• “Direct output”mode，User can set output value by physical key or touch screen. |
|
• Touch “Verification point”of screen for “% setting”. |
☆ Multiple Output Mode |
|
• “Rotary Knob”mode，User can setting in clockwise direction or anticlockwise direction. |
☆ Harmonics function | |
| |
S/N | Function description |
| It can output 2nd~11th harmonic, and set harmonic amplitude. |
| Users can select the harmonics and set up harmonic parameter. |
| Oscilloscope function，display waveform of the output voltage. |
5. Specifications
Range | Resolution | Stability (%/min) | Uncertainty (k=2) (ppm of reading + ppm of range) [1] | Distortion ( % ) | |
Class 0.05 | Class 0.02 | ||||
2 kV | 10 mV | 0.01 | 300 + 200 | 120 + 80 | ≤ 0.5 |
5 kV | 10 mV | 0.01 | 300 + 200 | 120 + 80 | ≤ 0.5 |
10 kV[2] | 100 mV | 0.01 | 300 + 200 | 120 + 80 | ≤ 0.5 |
15 kV[2] | 100 mV | 0.01 | 600 + 400 | 300 + 200 | ≤ 0.5 |
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%). Note [2] : 10 kV、15 kV is optional. | |||||
• Output range: 100V～5 kV / 10 kV / 15kV，6 digits true RMS, max burden: 60 VA
• Frequency range：45.000 Hz～65.000 Hz，uncertainty：0.01Hz
• Harmonic: 2nd~11th harmonic, 0～25% adjustable
• Short-circuit and overload protection
6. General Specifications
Power Supply | AC (220 ± 22) V，(50 ± 2) Hz |
Temperature | Working temperature：0℃~45℃； Storage temperature：-20℃~70℃ |
Humidity | Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing |
Interface | RS232 interface |
