High Voltage Testing: Ensuring Safety and Reliability with Advanced Solutions

What is high voltage

The term high voltage does not carry a single universal definition. Its meaning depends largely on the application context. In the power industry, voltages above 1 kV AC or 1.5 kV DC are commonly classified as high voltage. By contrast, in laboratory and safety standards, any potential exceeding 60 V DC or 30 V AC (rms) may already be considered hazardous and must be treated as high voltage.

Regardless of the threshold, the significance of high voltage lies in its role as the driving force of modern power systems and electronic devices. It is essential for efficient power transmission, the operation of electrical equipment, and the safety verification of industrial and consumer products. This is why high voltage testing has become a cornerstone in ensuring both reliability and human safety.

Where is High Voltage Testing Needed?

High voltage testing spans a wide range of applications across industries, from large-scale energy infrastructure to daily-use electronics.

Power industry: Transmission and distribution rely on equipment such as transformers, switchgear, cables, and surge arresters. To ensure long-term performance, these devices undergo rigorous high voltage testing, including dielectric withstand tests, partial discharge measurements, and impulse tests that simulate lightning strikes or switching surges.

Industrial and consumer products: Every electrical device that enters the market must pass safety certifications. Household appliances, IT equipment, electric vehicle batteries, and charging systems all require high voltage testing to verify insulation integrity, measure leakage current, and ensure compliance with international safety standards such as IEC, IEEE, and UL.

Research and materials science: In laboratories, high voltage sources are indispensable for particle accelerators, X-ray generators, and advanced materials research. Dielectric strength tests, for instance, help evaluate the performance of insulating materials under extreme electrical stress.

In summary, high voltage testing touches every stage of the electrical value chain—from power generation and transmission to industrial applications and consumer electronics.

The Challenge of High Voltage Testing

Despite its importance, high voltage testing presents several unique challenges that require advanced solutions:

Accuracy and traceability

Measurements at high voltage levels are highly sensitive to signal distortion, noise, and electromagnetic interference. Ensuring reliable and traceable results that conform to national and international standards is a constant challenge for testing laboratories.

Wideband performance

Modern power electronics, particularly in renewable energy systems and variable frequency drives, operate across a wide frequency range. Capturing voltage, current, and power accurately under these dynamic conditions requires test equipment with exceptional bandwidth and stability.

Safety and insulation

High voltage testing inherently involves risk. Without robust insulation design and protection mechanisms, operators and equipment face potential hazards. Safe test systems must combine advanced insulation technologies with user-friendly safety controls.

Standards and compliance

Global markets demand compliance with multiple standards, from IEC to IEEE to UL. High voltage testing equipment must be versatile and adaptable to meet the diverse requirements of various regions and industries.

TUNKIA's Solution Introduction

AC/DC High Voltage Standard Sources and Meters

Deliver traceable and stable voltage standards for calibration laboratories and test facilities. They are essential for verifying the accuracy of high voltage measurement systems and ensuring compliance with metrological standards.

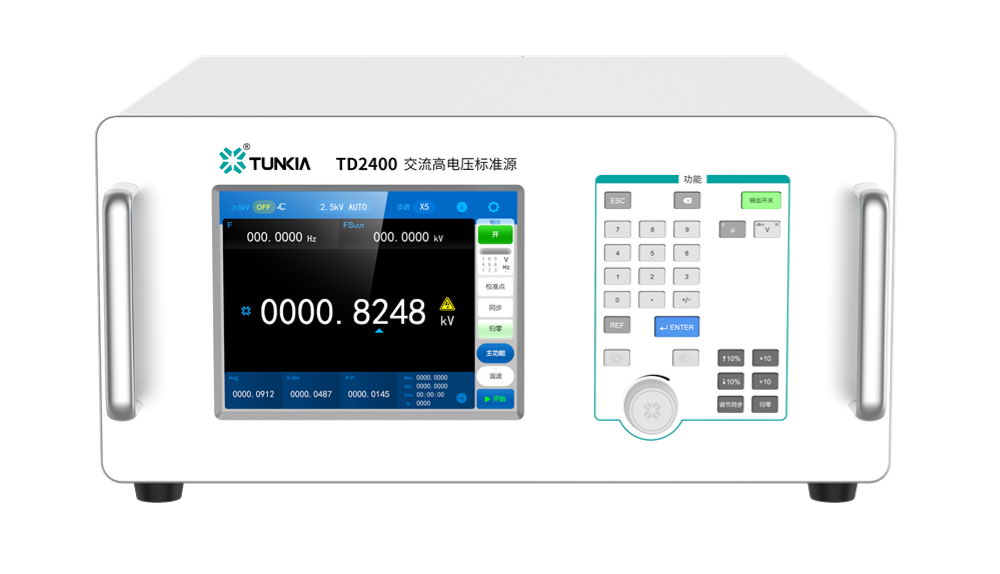

TD2400 AC High Voltage Standard Source

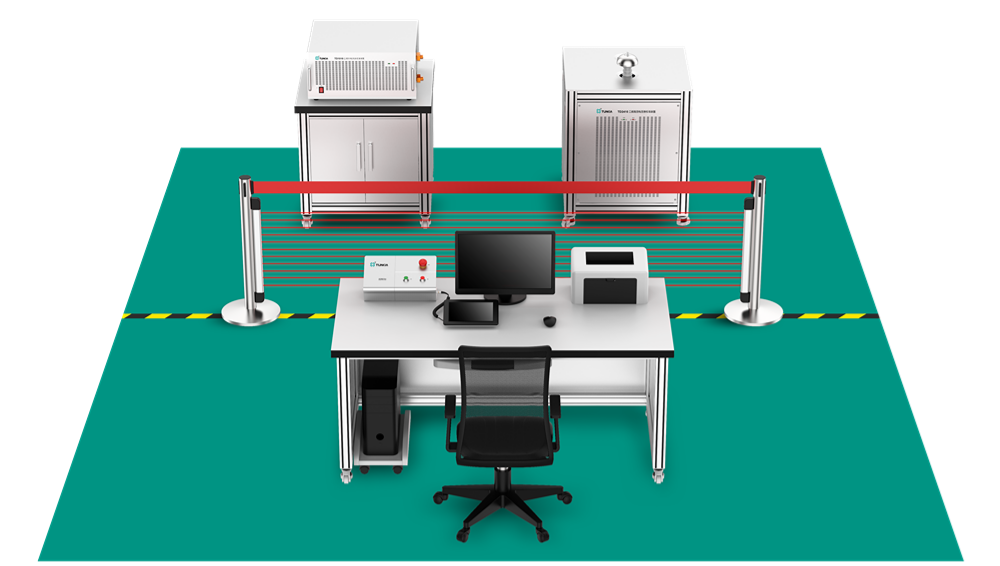

TD2410 High Voltage Meters Calibration Device

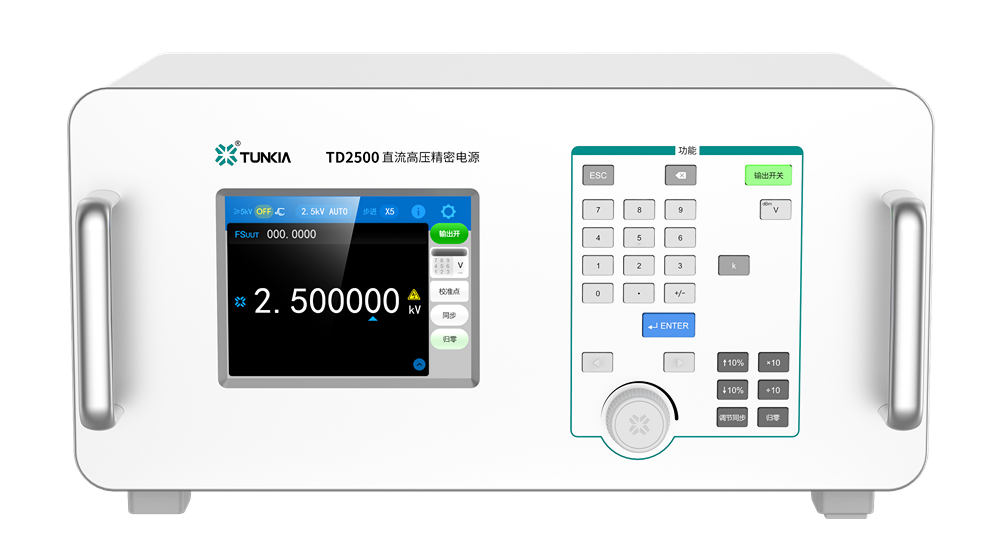

TD2500 DC High Voltage Standard Source

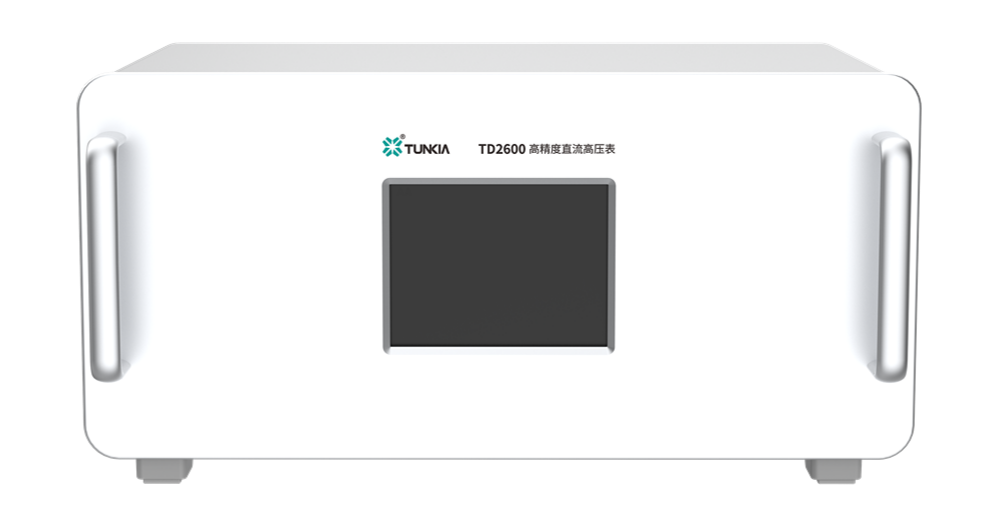

TD2600 Precision DC High Voltage Meter

Electrostatic Voltage Measurement Systems

Tailored for static electricity monitoring and materials testing, these devices allow users to evaluate electrostatic potential in sensitive environments, ensuring safety and reliability in both industrial and research contexts.

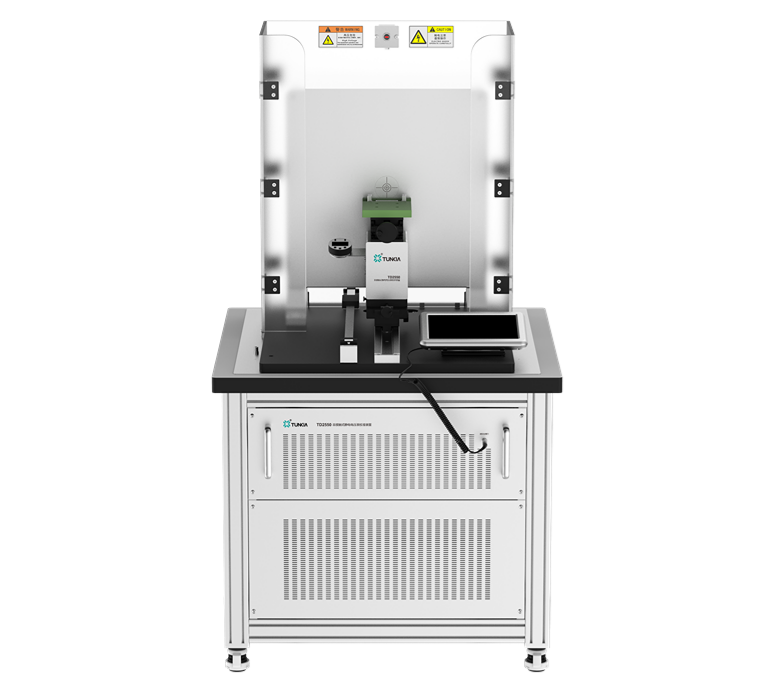

TD2550 Non-touch Static Voltmeters Calibration Device

Withstanding Voltage Tester Verification Systems

Used to verify dielectric strength and insulation performance, these systems support compliance with international safety standards. They are widely applied in household appliances, IT equipment, EV components, and other industrial products requiring rigorous safety testing.

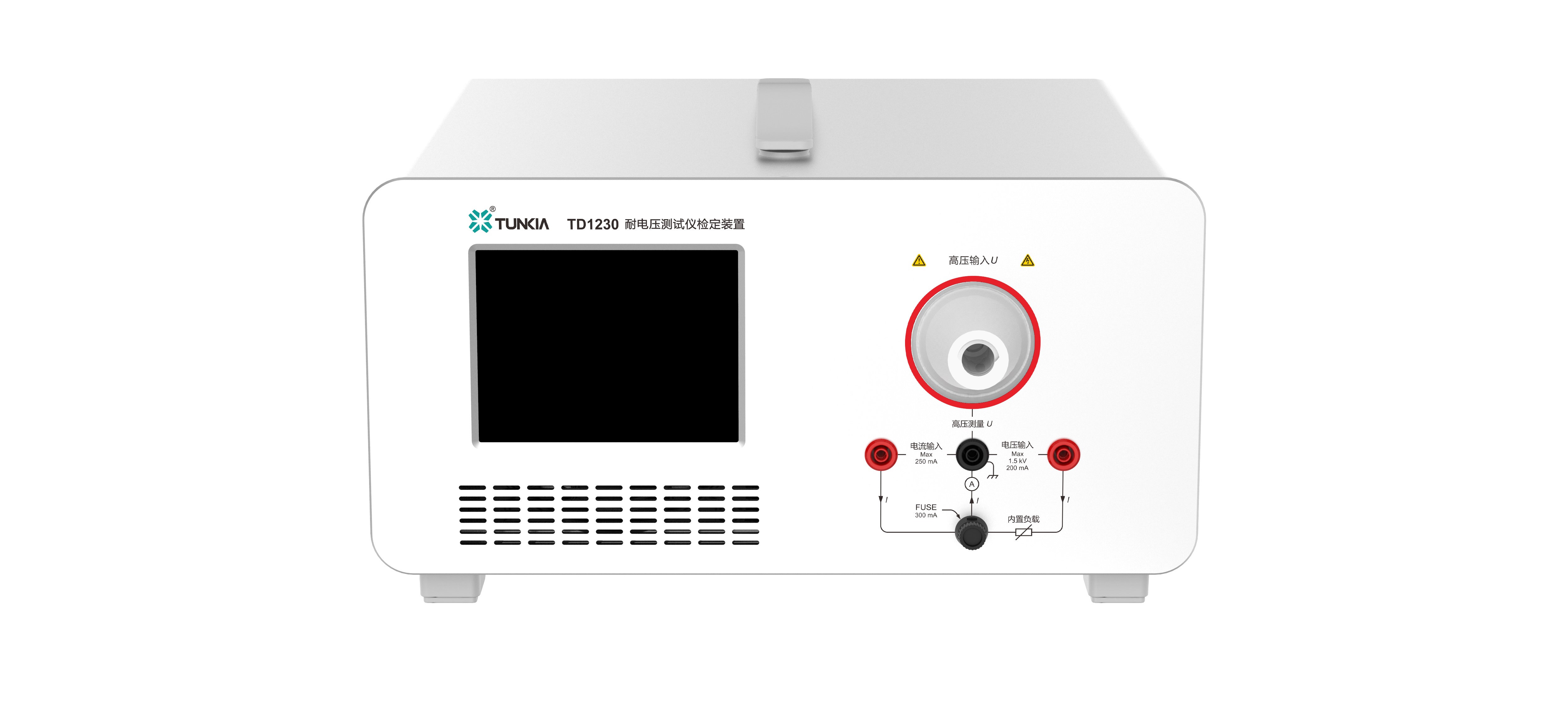

TD1230 Verification Device for Withstanding Voltage Tester

Conclusion

High voltage testing is more than a technical requirement—it is the foundation of electrical safety and reliability. From power utilities to industrial products and scientific research, its applications are broad and indispensable.

By offering a complete suite of advanced high voltage testing instruments, our company empowers laboratories, manufacturers, and utilities to meet today’s challenges with precision and confidence. With continuous innovation and commitment to excellence, we are dedicated to becoming a trusted global supplier of high voltage testing and measurement solutions.
