How To Choose The Right Harmonic Testing Solution

As harmonic-related requirements continue to evolve, reliable harmonic testing has become increasingly important across power quality analysis, electrical metrology, and energy metering applications. But "reliable testing" does not mean the same thing in every context — the equipment that works for one application may be entirely unsuitable for another. Choosing a harmonic testing system starts with understanding what you need to test, not by comparing product specifications.

This article will help you:

• Understand the difference between harmonic voltage testing and harmonic energy accuracy verification.

• Identify which testing method matches your application.

• Select the most suitable testing solution based on your testing objectives.

Start with one question: When selecting a harmonic testing system, it is tempting to compare specifications such as output accuracy, harmonic order, or waveform quality.

However, these specifications only become meaningful after one fundamental question has been answered: What are you trying to test?

Although both applications are commonly referred to as harmonic testing, they serve different purposes and require different testing methods. Choosing the wrong approach may lead to inefficient testing, unnecessary investment, or results that do not reflect real operating conditions.

The table below provides a quick starting point.

Harmonic Voltage Testing

Harmonic voltage testing is used to evaluate how accurately a device generates, measures, or analyzes harmonic voltage waveforms.

The focus is on waveform quality, harmonic amplitude, phase accuracy, and measurement performance rather than energy calculation.

Typical applications include:

• Calibration of power quality analyzers

• Verification of harmonic voltage sources

• Performance testing of voltage measurement instruments

• Research and development of power electronic equipment

• Calibration laboratories

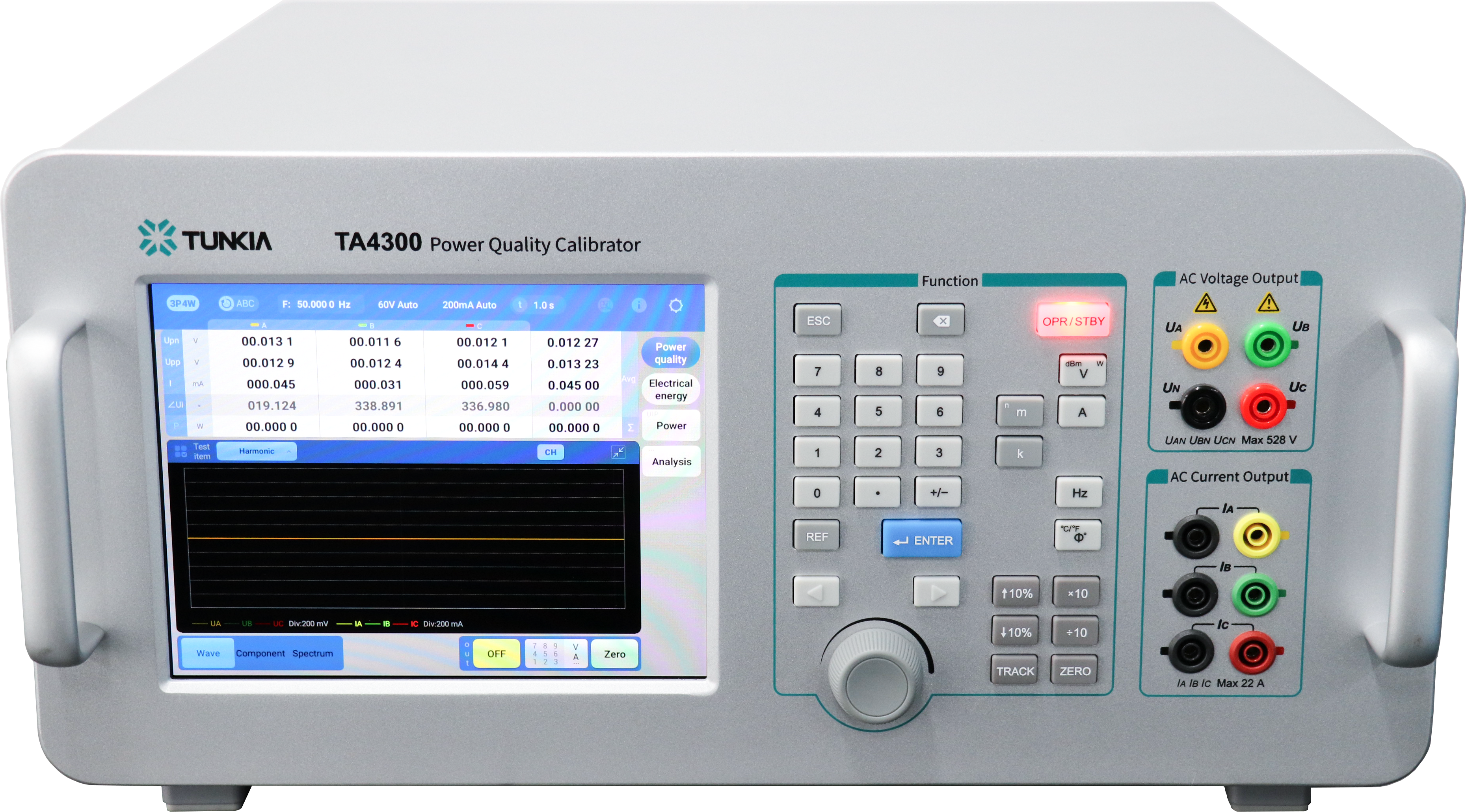

For applications requiring high-accuracy harmonic voltage generation and testing, TA4300 Power Quality Calibrator provides a dedicated solution designed for laboratory calibration, product development, and performance verification.

Harmonic Energy Accuracy Verification

Harmonic energy accuracy verification evaluates whether an electricity meter can maintain accurate energy measurement when voltage and current contain harmonic components.

Unlike harmonic voltage testing, this application requires synchronized generation of harmonic voltage and harmonic current, together with a high-accuracy reference system for evaluating energy measurement errors.

Typical applications include:

• Type testing of electricity meters

• Meter verification and calibration

• Utility metrology laboratories

• Electricity meter manufacturers

• Third-party testing laboratories

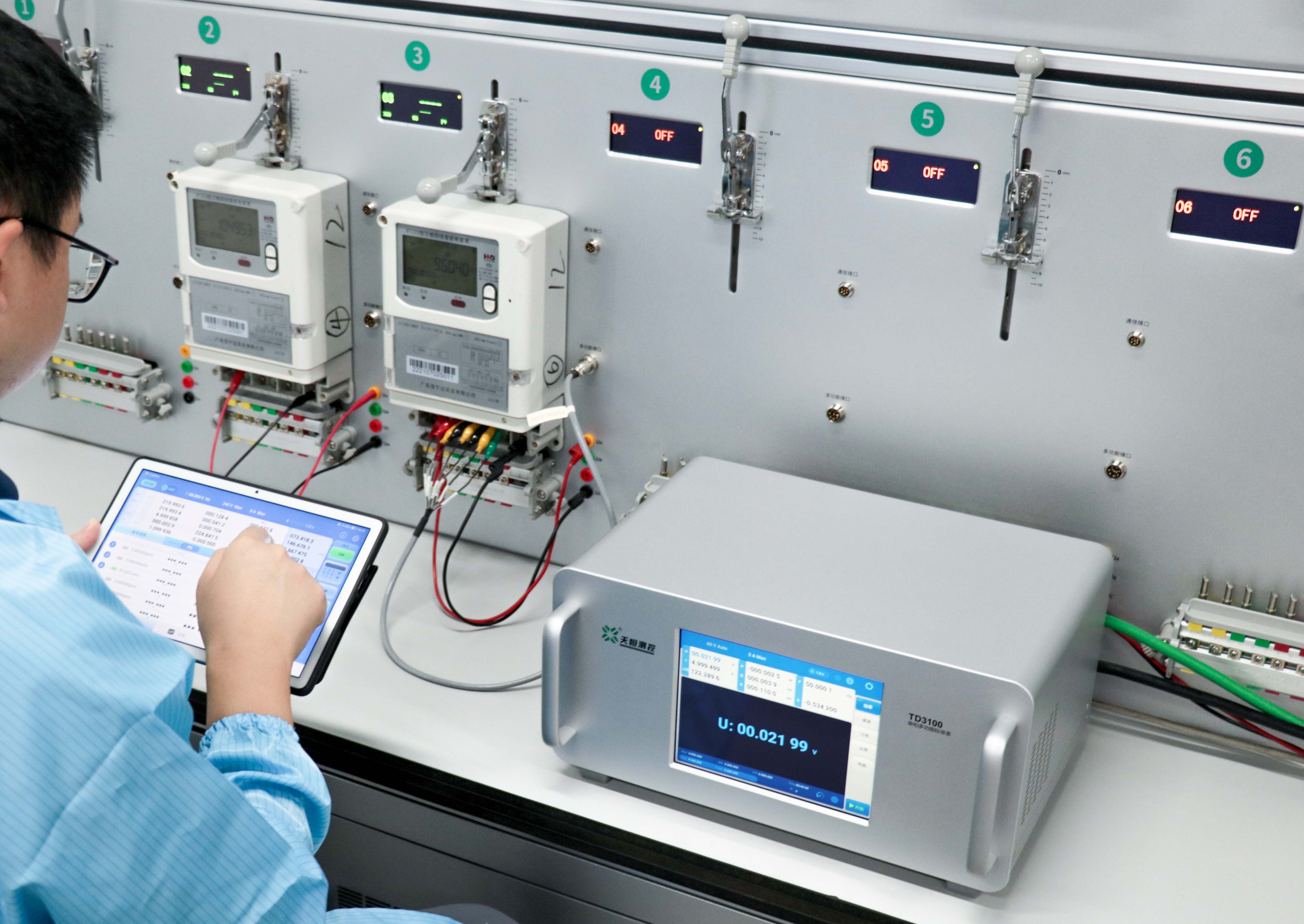

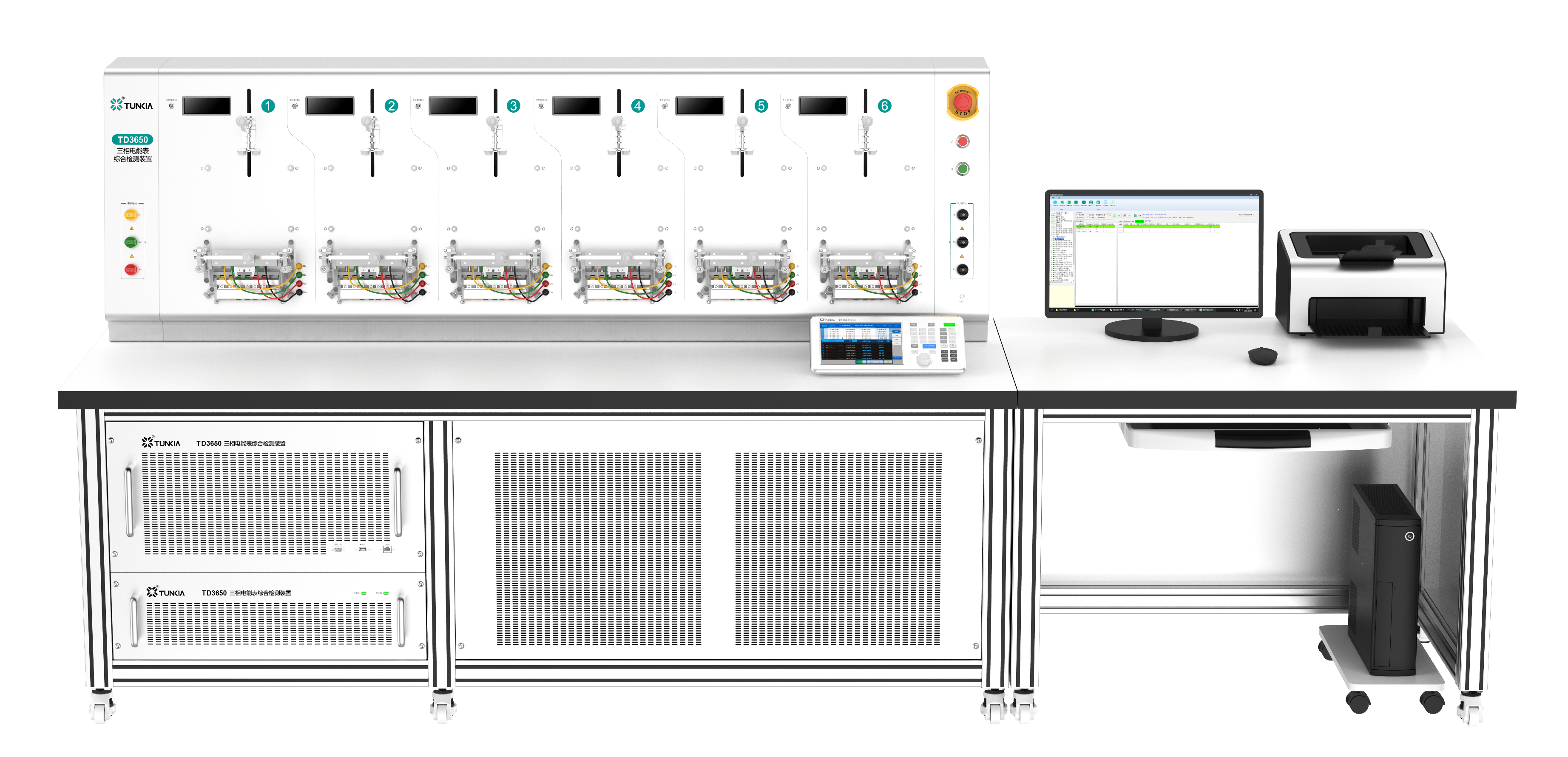

TD3650 Three-phase Energy Meters Verification Device is specifically designed for harmonic energy accuracy verification, providing a reliable platform for evaluating electricity meter performance under harmonic operating conditions.

Side-by-Side Comparison

Which Scenario Matches Your Application?

The following examples can help you identify the most suitable testing approach.

Frequently Asked Questions

Can any harmonic voltage source be used for harmonic energy accuracy verification?

Not necessarily.

Harmonic energy accuracy verification requires synchronized control of both harmonic voltage and harmonic current, together with a reference measurement system capable of evaluating energy measurement errors. A system designed only for harmonic voltage generation may not satisfy these requirements.

Can one system perform both types of testing?

It depends on the system architecture and testing objectives. For high-accuracy laboratory applications, dedicated solutions are generally preferred to ensure reliable and traceable test results.

Conclusion

Although harmonic voltage testing and harmonic energy accuracy verification are both related to harmonics, they address different testing objectives.

Identifying your testing target before comparing technical specifications is the most effective way to select the right testing solution. Whether your goal is waveform verification or energy metering evaluation, choosing the appropriate testing method helps improve testing efficiency and confidence in the results.

Need More Information?

Whether you are evaluating harmonic voltage performance or verifying electricity meter accuracy under harmonic conditions, selecting the right testing method is only the first step.

TUNKIA provides comprehensive resources to support your evaluation, including: Harmonic testing solution guides, product brochures, application demonstration videos, and other function of TA4300 Power Quality Calibrator and TD3650 Three-phase Energy Meters Verification Device

If you would like to discuss your testing requirements or identify the most suitable solution for your application, our technical team is ready to help.
