How to Measure Current Sensor Response Time Using Tunkia TK2650 Pulse Current Source

1. Overview of TK2650 Pulse Current Source

TK2650 is a pulsed current source device with a maximum output of 500 A pulse current, and its pulse amplitude and pulse width can be set and adjusted. The rise and fall time of pulse is less than 10 μs, and the step response performance is faster. The communication interface of the device can realize computer program control operation, which is suitable for measuring the response time of current sensor, Roche coil and other equipment, or calibrating pulse shunt, etc.

2. Features of TK2650 Pulse Current Source

• Pulse current output: 500 A

• Pulse width: 1 ms ~ 100 ms

• Rise time: ≤10 μs

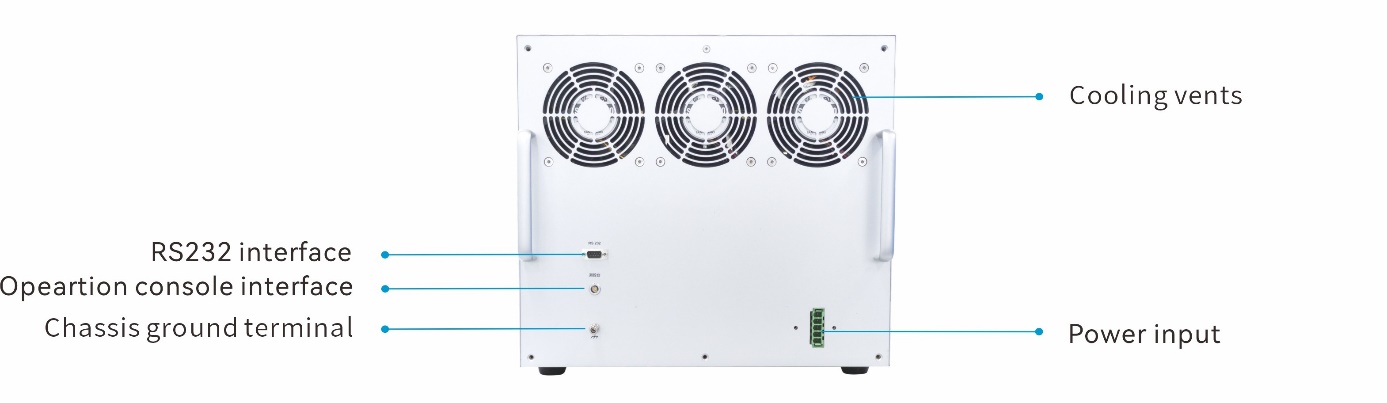

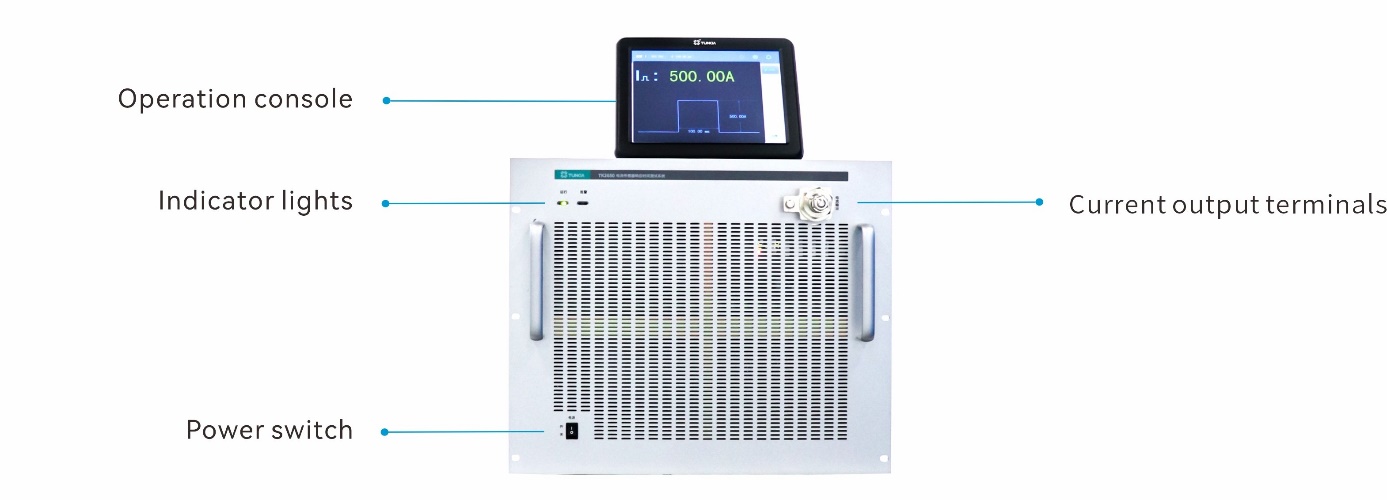

3. Appearance of TK2650 Pulse Current Source

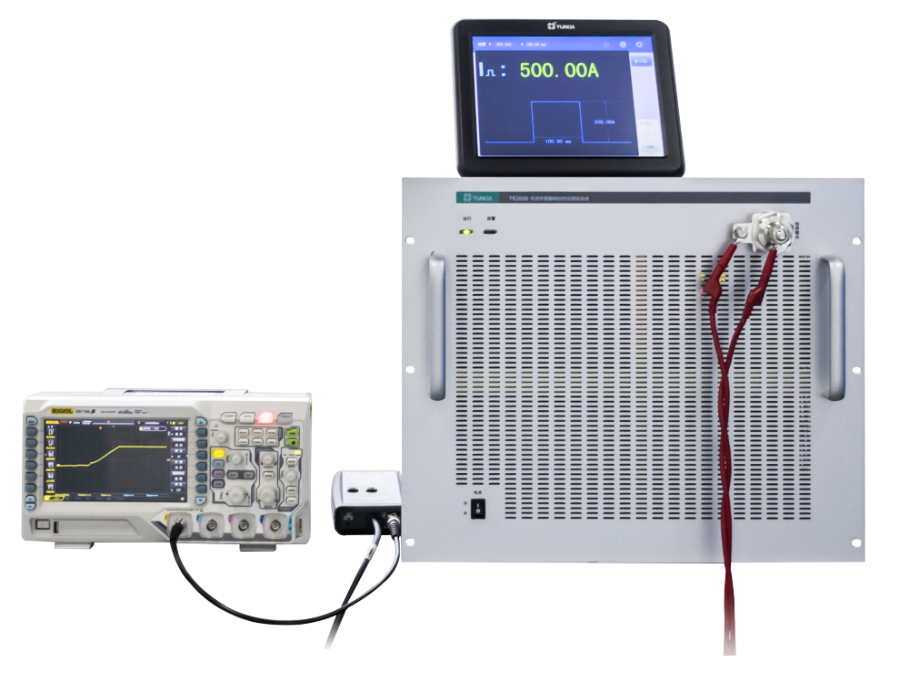

4. Applications of TK2650 Pulse Current Source

5. Operation of TK2650 Pulse Current Source

Watch the demonstration video to see how to use TK2650 to measure the current sensor response time.
