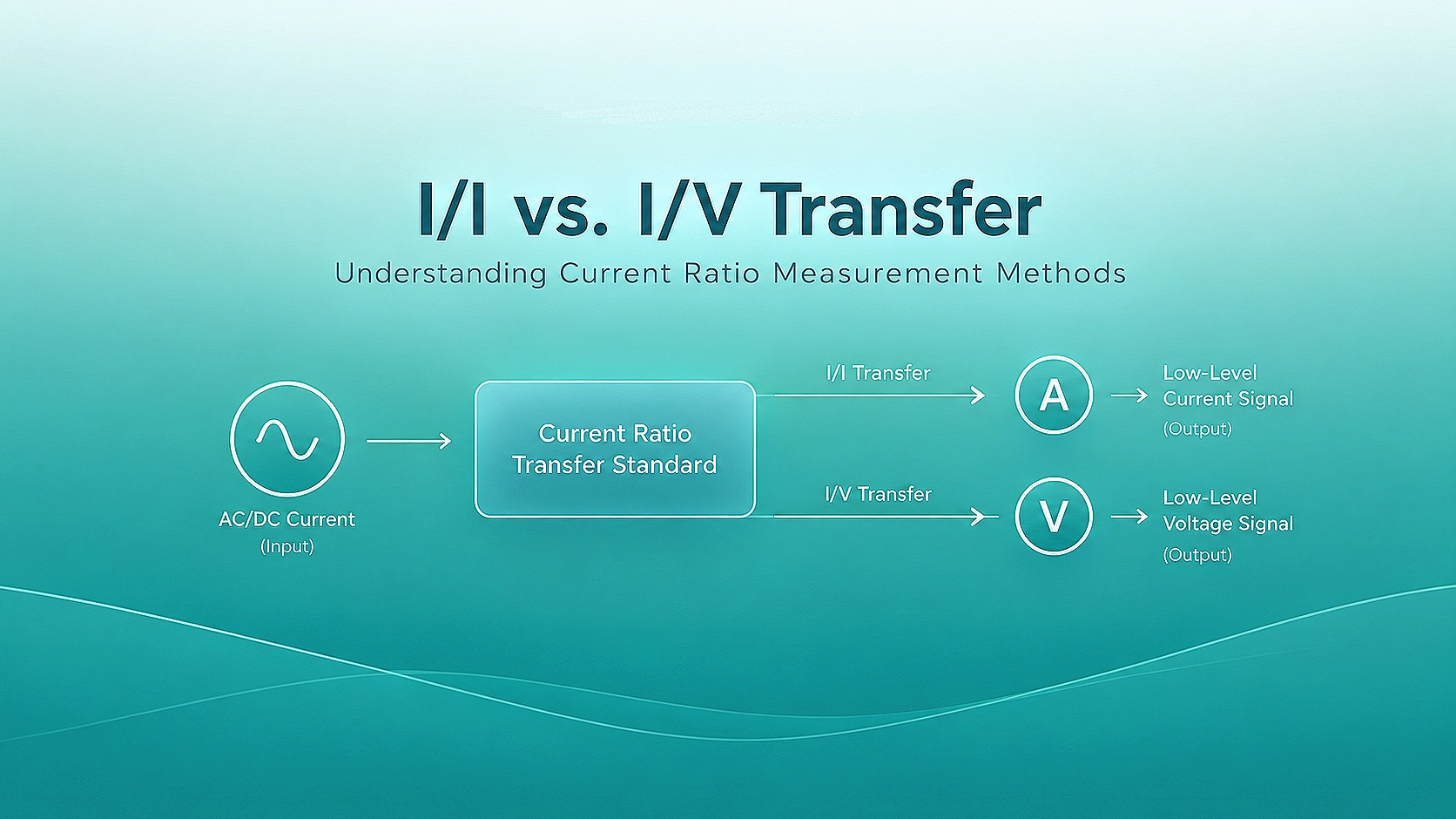

I/I vs. I/V Transfer: Understanding Current Ratio Measurement Methods

Current ratio measurement is an important part of the calibration and characterization of current transformers, current sensors, and other current measurement devices.

A current ratio standard can use different transfer methods depending on how the current signal is converted and measured. Two commonly used approaches are I/I transfer and I/V transfer.

Although both methods are designed for current ratio measurement, they provide different signal outputs and measurement paths. Understanding these differences can help users select an appropriate current ratio standard for their application.

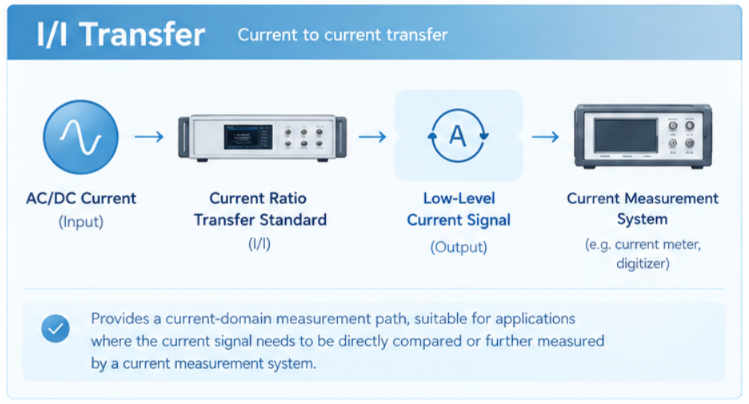

What Is I/I Transfer?

In I/I transfer, the input current is transferred to a proportional low-level current signal.

The current ratio standard converts the input AC or DC current into a low-level current signal. The input and reference current signals can then be measured and compared to determine the current ratio and related measurement errors.

Since the output remains a current signal, I/I transfer provides a current-domain measurement path. It is suitable for applications where the current signal needs to be directly compared or further measured by a current measurement system.

What Is I/V Transfer?

In I/V transfer, the input current is converted into a proportional voltage signal.

The current ratio standard converts the input AC or DC current into a low-level voltage signal. The voltage signal can then be measured using a high-precision voltage measurement system or digital acquisition system.

Compared with I/I transfer, I/V transfer provides a voltage output that can be more easily integrated with voltage-based measurement equipment and digital acquisition systems.

I/I vs. I/V Transfer

The key difference between the two methods is the type of low-level signal provided by the current ratio standard.

The choice between I/I and I/V transfer does not simply depend on which method is more accurate. The overall measurement performance also depends on the current ratio standard, signal acquisition equipment, measurement range, and measurement uncertainty.

How to Choose Between I/I and I/V Transfer?

Several factors should be considered when selecting a current ratio transfer method.

1. Current Range

The current ratio standard should support the required input current range while providing the specified transfer performance.

For high-current applications, the current path and connection method also need to be considered as part of the overall measurement setup.

2. Output Signal

The required output signal is an important factor.

If the measurement system is designed to acquire current signals directly, I/I transfer can provide a suitable signal path. If the system is based on voltage measurement or digital voltage acquisition, I/V transfer can provide a more convenient interface.

3. Measurement Uncertainty

For precision current ratio measurement, the uncertainty of the complete measurement chain needs to be considered.

For I/I transfer, the performance of the current ratio standard and current measurement system contributes to the overall measurement uncertainty.

For I/V transfer, the conversion from current to voltage and the subsequent voltage measurement also need to be taken into account.

Therefore, the transfer method should be evaluated together with the complete measurement system rather than considered independently.

4. Measurement and Analysis Requirements

Some applications require more than current ratio measurement. For example, users may need to analyze the waveform, noise, distortion, or frequency characteristics of the current signal.

In such cases, the signal output method and the capabilities of the acquisition system become important factors when selecting a current ratio standard.

Current Ratio Standards with Integrated Digital Measurement

Modern current ratio measurement systems can integrate multiple functions into a single instrument.

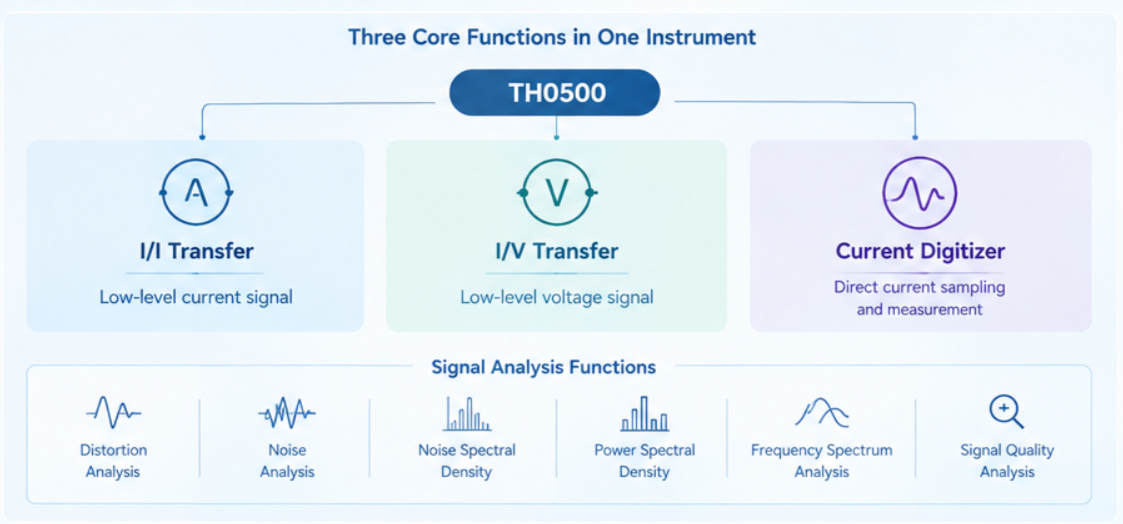

For example, TUNKIA TH0500 integrates an I/I current ratio standard, an I/V current ratio standard, and a current digitizer in one instrument.

As a current ratio standard, TH0500 can convert AC and DC current into low-level current or voltage signals for ratio measurement. As a current digitizer, it can directly sample and measure current signals and perform analysis functions such as distortion analysis, noise analysis, noise spectral density, power spectral density, frequency spectrum analysis, and signal quality analysis.

This integrated configuration allows users to select the appropriate transfer method while also providing direct digital sampling and signal analysis within the same instrument.

Conclusion

I/I transfer and I/V transfer are two approaches used in current ratio measurement.

I/I transfer provides a low-level current signal, while I/V transfer provides a low-level voltage signal. The appropriate method depends on the required current range, output signal, measurement equipment, measurement uncertainty, and analysis requirements.

For applications that require multiple transfer methods together with direct current sampling and signal analysis, an integrated current ratio standard and current digitizer can provide a more comprehensive measurement solution.
