Introduction of TD8160: A Magnetic Properties Measuring System

High-Precision Measurement, Empowering Magnetic Material R&D and Production

In modern power electronics and magnetic material R&D, amorphous materials are widely used in transformers, inductors, and high-efficiency motors due to their low loss and high saturation magnetic induction. Accurately and efficiently measuring the magnetic properties of these materials has become a critical challenge. TD8160 Magnetic Properties Measuring System for Single Sheet Amorphous delivers a precise, fast, and user-friendly solution.

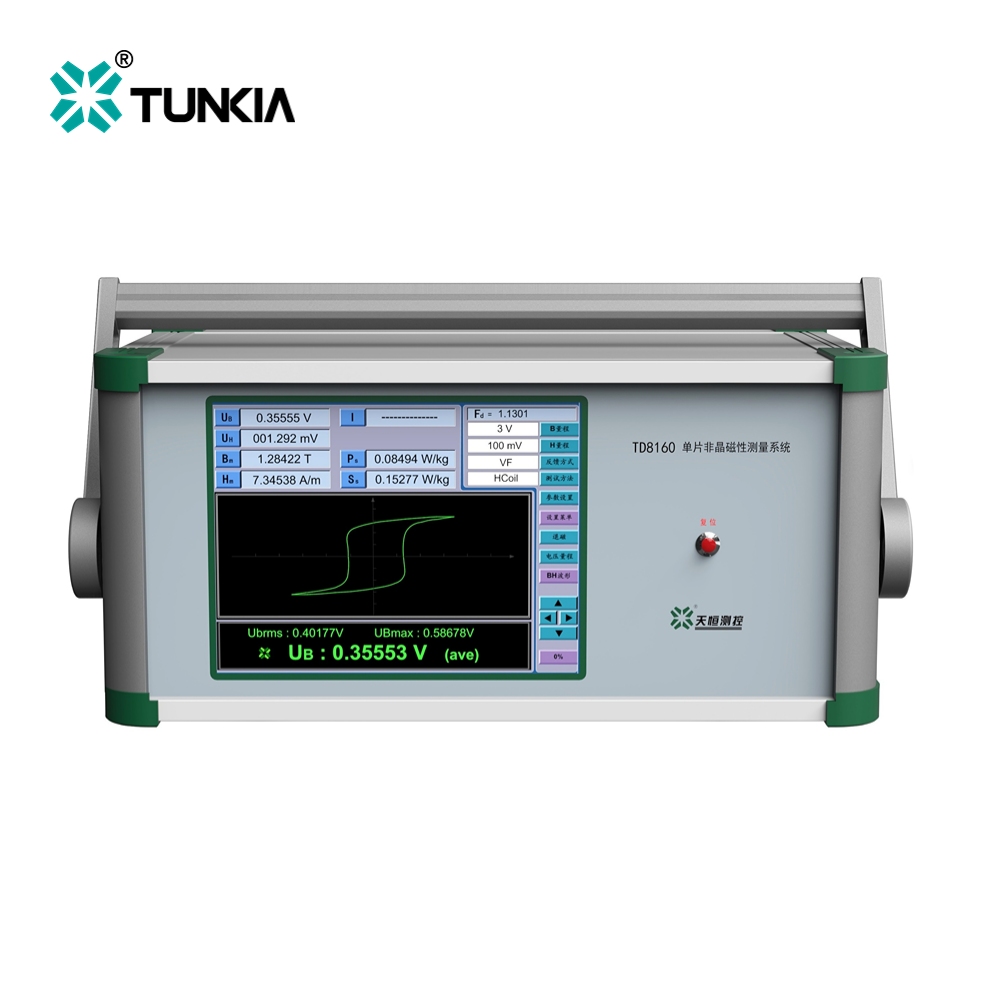

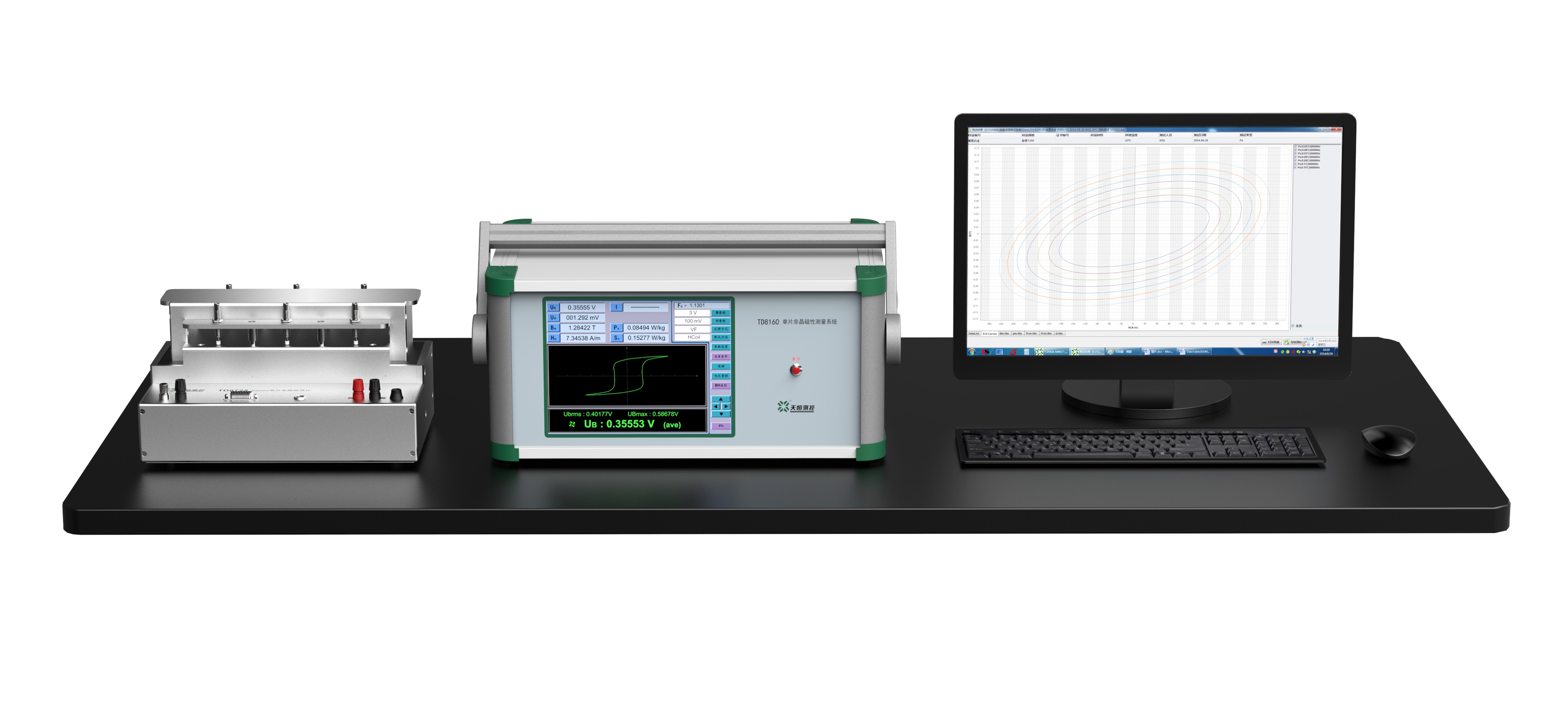

TD8160 consists of a precision excitation and measurement unit (40 Hz–65 Hz, customizable up to 400 Hz), a single sheet tester, and fully automated measurement software. This system enables comprehensive optimization of your products in terms of energy consumption, efficiency, material uniformity/consistency, reliability, and total lifecycle cost.

Why choose TUNKIA TD8160 Magnetic Properties Measuring System for Single Sheet Amorphous?

High-Precision Measurement

The system includes an independent electrical parameter calibration function, ensuring long-term consistency and reliability of measurement data for both research and quality control.

Flexible Adaptation

TD8160 Magnetic Properties Measuring System for Single Sheet Amorphous offers single-sheet testers in various sizes, accommodating different specimen types.

Optimized Double-Yoke Magnetic Circuit

The system adopts a double-yoke permeometer structure, which can demagnetize the yoke and test piece, effectively reducing residual magnetism and improving measurement accuracy.

Reliable Demagnetization

Using the slow-decreasing demagnetization method with preset saturation induction and frequency, TD8160 ensures an ideal demagnetization state before measurement for stable test results.

Fully Automated Software

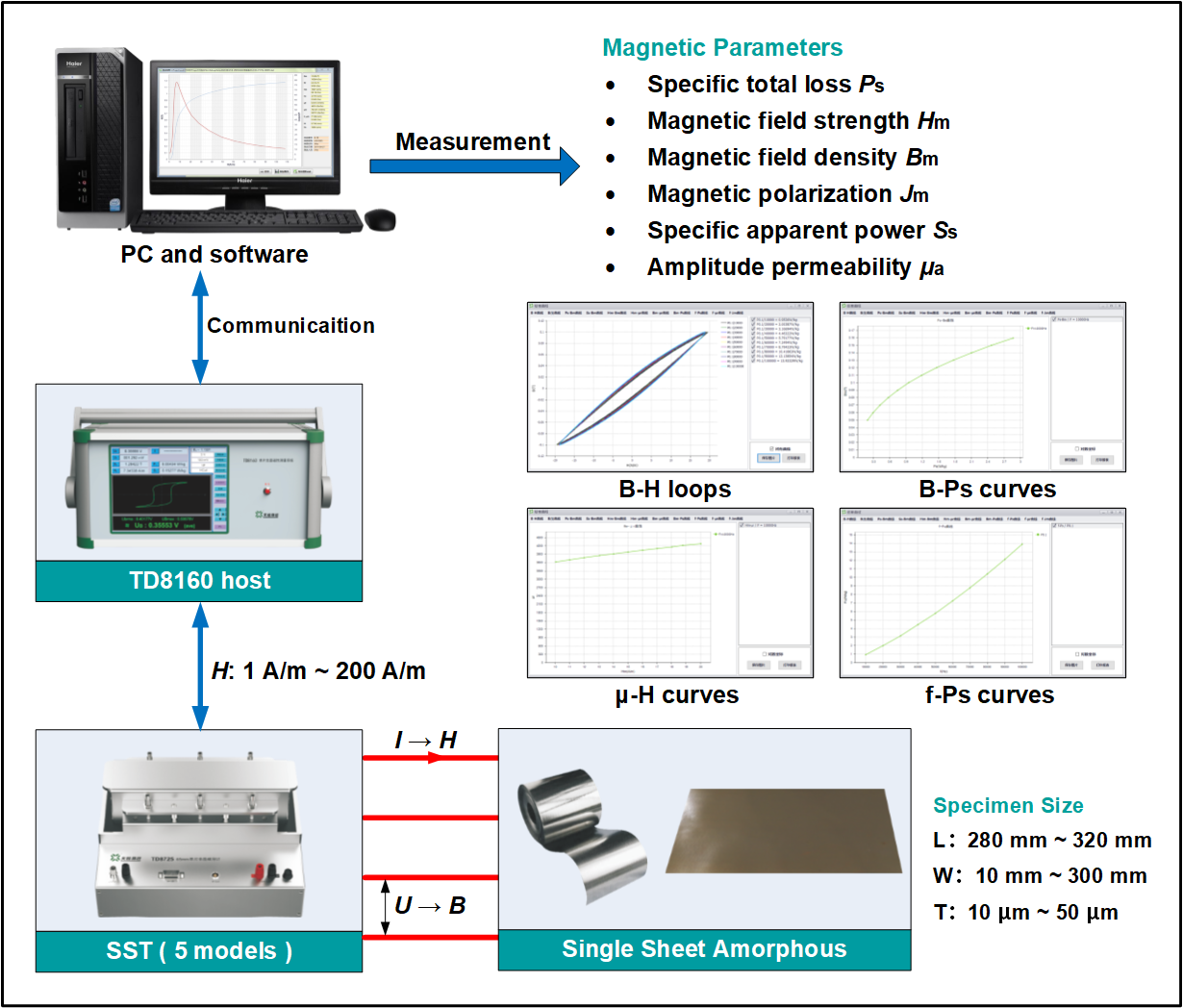

The system is equipped with professional software for fully automatic magnetic property measurement. It automatically calculates magnetic parameters, plots characteristic curves, and manages data with easy export options, significantly reducing manual work.

Modular Host Design

TD8160 Magnetic Properties Measuring System for Single Sheet Amorphous host adopts a modular design, making system upgrades and maintenance simple, ensuring long-term adaptability in evolving technical environments.

Application

• R&D Labs: Evaluate key parameters of amorphous magnetic materials to optimize formulations and processes.

• Production QC: Check specimen consistency to ensure stable performance.

• Power Electronics & Smart Motors: Provide precise testing data for core materials used in transformers, inductors, and motors.

Single Sheet Testers (Optional)

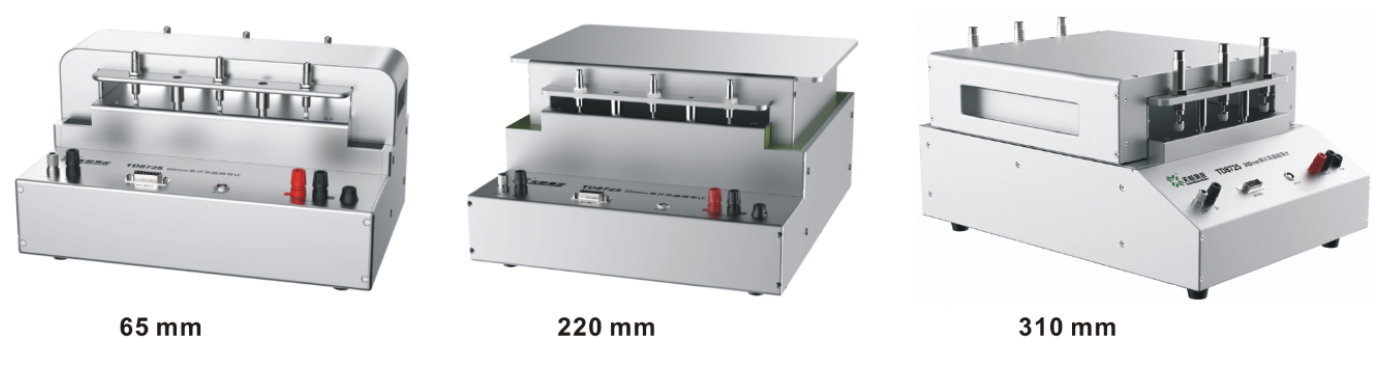

• Various models of SST are optional, depending on specimen width.

• Yoke structure: single yoke or double yoke is used for magnetic property measurement.

• Double yokes are used to demagnetize the yoke and test its loss.

• Single yoke is used to measure the single sheet amorphous, in order to avoid deterioration of the material's magnetic properties by stressing the specimen due to the weight of yoke.

• SST contains frame, primary winding, secondary winding, demagnetization coil, and H coil.

• Magnetic field measurement: compatible with current measurement (M.C method) and magnetic field Coil method (H-coil method).

Developed by the TUNKIA precision instruments team, the TD8160 is backed by years of expertise in magnetic measurement. We provide professional training, customized solutions, and comprehensive after-sales service, ensuring a smooth and worry-free measurement and R&D experience.

Choose TD8160 for more precise, efficient, and intelligent magnetic property measurement. Contact us today to schedule a demo or request a technical solution.
