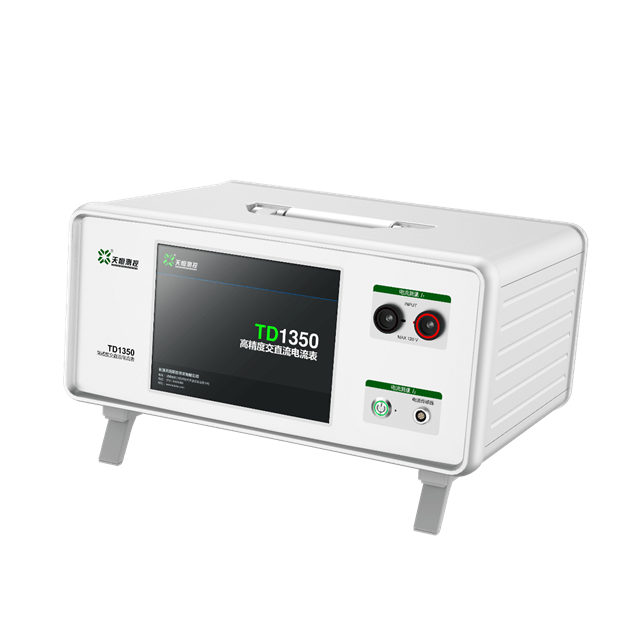

TD1350 High-Precision AC/DC Ammeter

Availability:
Quantity:

Introduction

  • TD1350, a reference AC/DC ammeter with an ultra-wide current measurement range. The accuracy is up to class 0.005% and 0.01%, and the measurement accuracy of DC current above 1 A and AC current is much better than 8½ digital meters.

  • Instead of 8½ digital meters, TD1350 is applied to measure aperiodic signals (e.g. ripple) or complex waveform signals and calibrate AC/DC current sources (e.g. Fluke 5500A/5520A) and multimeter calibrators which the accuracy classes are 0.02% and below.


Features

  • Wide range of direct current measurement: a pair of terminals can be used to measure the DC current of 10 μA ~ 120A, which solves the top problem of automatic range switching of ultra-wide range DC current.

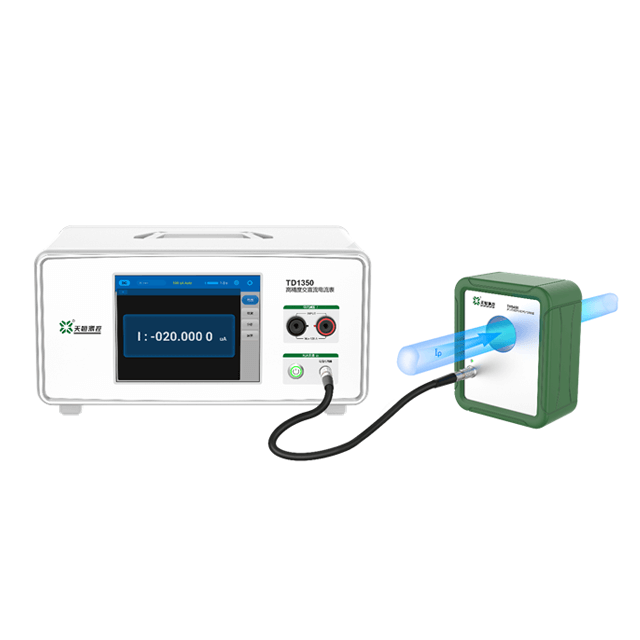

  • Current expansion measurement: it is equipped with a special measurement interface for the sensor, which can be connected with a through current sensor to expand the measurement range to 500 A, 1 kA, etc.

  • High Reliability: Not easy to damage when overloaded.

  • Other Measurements: Ripple, harmonic, distortion, waveform monitoring, etc.

  • Multiple measurement modes: DC, AC, DC + AC three modes, fundamental frequency: 10 Hz ~ 1 kHz, and measure periodic or aperiodic signals.

  • Excellent Human-computer Interaction: LCD touch screen, more intuitive of value display and easier operation. it is equipped with RS232, USB, RJ45 interfaces, which is convenient to set up a full-automatic measurement system.

Specification


DC Current Measurement DCI

Range

Resolution

0.01%

0.005%

Accuracy

ppm*RD +ppm*RG   or A

Temperature   Coefficient

ppm*RD /℃

Accuracy

ppm*RD +ppm*RG or A

Temperature   Coefficient

ppm*RD /℃

24   Hours

90   Days

1   Year

24   Hours

90   Days

1   Year

100 μA

0.1 nA

60 + 50

40 + 50

60 + 50

5 + 1 n

30 + 50

40 + 50

60 + 50

3 + 0.5 n

300 μA

0.1 nA

60 + 50

40 + 50

60 + 50

5 + 2 n

30 + 50

40 + 50

60 + 50

3 + 1.5 n

1 mA

1 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

3 mA

1 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

10 mA

10 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

30 mA

10 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

100 mA

100 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

300 mA

100 nA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

1 A

1 μA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

3 A

1 μA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

10 A

10 μA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

30 A

10 μA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

100 A

100 μA

30 + 30

40   + 30

60 + 40

5 + 1.5

15 + 15

20 + 15

30 + 20

2.5 + 1

  • Measuring Range: ± (10 μA ~ 120 A)

  • Range Switching: Automatic or Manual

  • Ripple measurement: 1 Hz ~ 10 kHz

  • Accuracy: 0.02%*RG, effective value


AC Current Measurement

Range

Resolution

0.01%

0.005%

Accuracy (k = 2)

ppm*RD +ppm*RG

Temperature Coefficient

ppm*RD /℃

Accuracy (k = 2)

ppm*RD +ppm*RG

Temperature Coefficient

ppm*RD /℃

40Hz≤F≤200Hz

200Hz≤F≤10kHz

40Hz≤F≤200Hz

200Hz≤F≤10kHz

100 μA

0.1 nA

250 + 150

300 + 200

5 + 5

200 + 100

250 + 150

3 + 5

300 μA

0.1 nA

250 + 150

300 + 200

5 + 5

200 + 100

250 + 150

3 + 5

1 mA

1 nA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

3 mA

1 nA

100 + 60

120 + 80

3 + 2

60 + 40

100 + 50

2.5 + 1

10 mA

10 nA

100 + 60

120 + 80

3 + 2

60 + 40

100 + 50

2.5 + 1

30 mA

10 nA

100 + 60

120 + 80

3 + 2

60 + 40

100 + 50

2.5 + 1

100 mA

100 nA

100 + 60

120 + 80

3 + 2

60 + 40

100 + 50

2.5 + 1

300 mA

100 nA

100 + 60

120 + 80

3 + 2

60 + 40

100 + 50

2.5 + 1

1 A

1 μA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

3 A

1 μA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

10 A

10 μA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

30 A

10 μA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

100 A

100 μA

250 + 150

300 + 200

3 + 2

200 + 100

250 + 150

2.5 + 1

  • Measuring Range: 10 μA ~ 120 A

  • Range Switching: Automatic or Manual; Display: 7 digits

  • Ripple measurement: 10 Hz ~ 1 kHz
