TE3000
TUNKIA
| Availability: | |
|---|---|

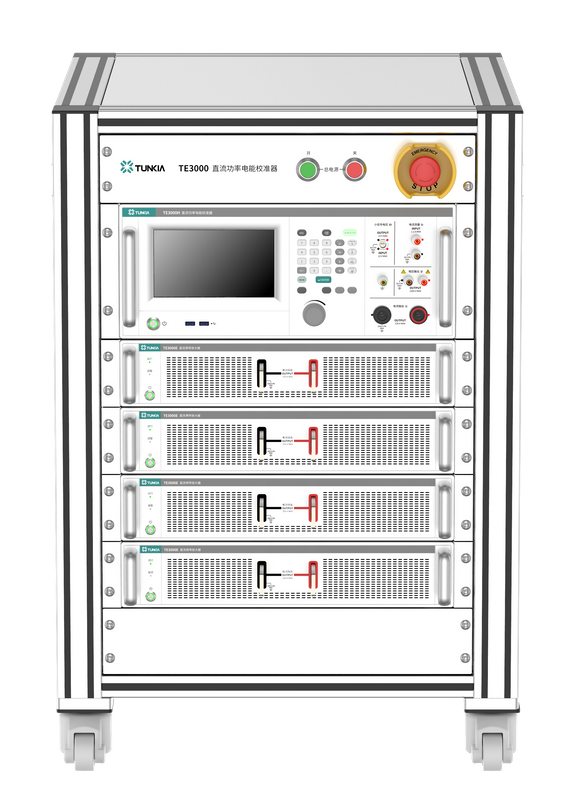

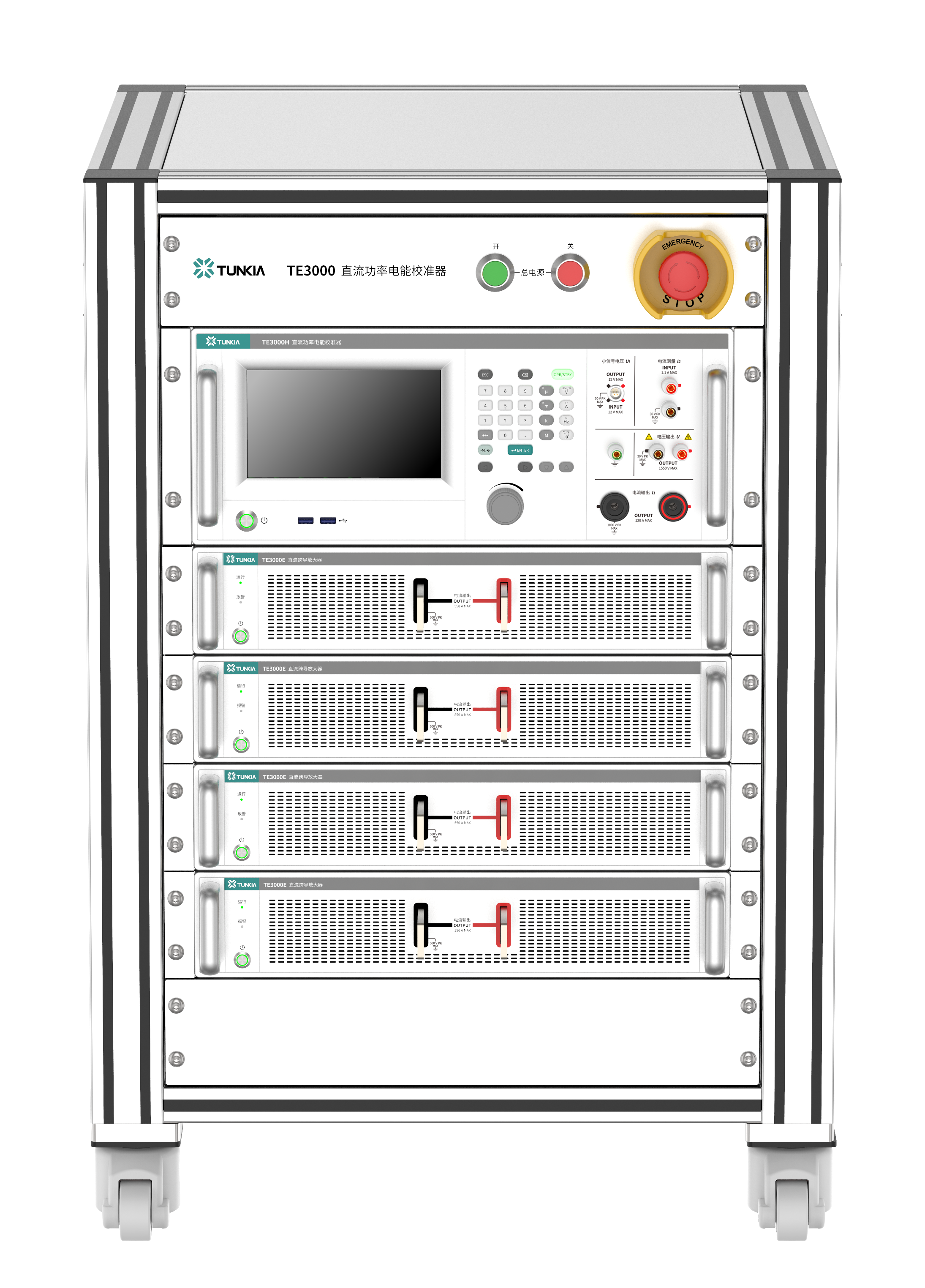

(This diagram is for reference only and may differ from the actual delivered product.)

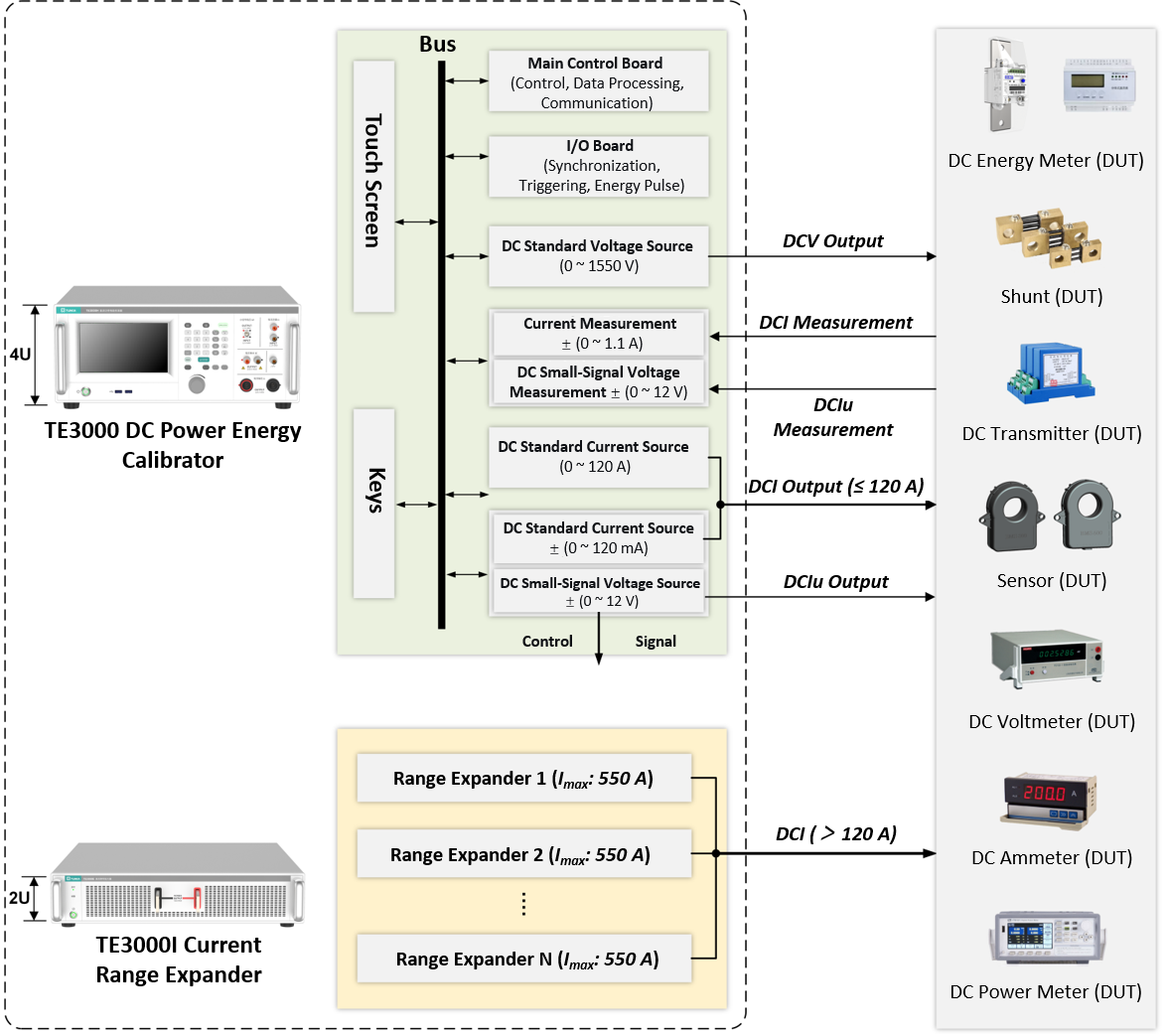

The TE3000 is designed based on TUNKIA's latest IPMA(1) technology. The complete system consists of a main unit, a current range expander (optional), and supporting software. The main unit is comprised of a main control board, an I/O board (optional), a standard voltage source board, a current source and small-signal voltage source board, and a small-signal measurement board (optional). The accuracy for DC voltage and DC current is of Class 0.005 / 0.01.
(Note IPMA (1): — a proprietary technology trademark of TUNKIA, is the abbreviation for Integrated Precision Measurement Architecture. IPMA is a new generation of high-precision, modular, and highly reliable measurement instrument architecture introduced by TUNKIA. It integrates precision electromagnetic measurement technology with high-speed bus technology, effectively addressing the challenges of achieving ultra-precision measurement with conventional modular instruments.)
Main Applications (2):
Calibration of DC voltmeters, DC ammeters, and DC power meters
Calibration of direct-connection and indirect-connection DC energy meters (optional)
Calibration of voltage-type and current-type sensors (optional)
Calibration of DC shunts (optional)
Calibration of transmitters (optional)
(Note (2): Application functions are configurable according to requirements. The full-performance version includes all capabilities.)
① Standard Source Functions:
DC Standard Voltage Source: 0 ~ 1550 V (bipolar output for ranges of 10V and below)
DC Standard Current Source: The main unit outputs 0 ~ 120 A (bipolar output for ranges of 100mA and below). The current output range can be expanded by configuring dedicated current range expander(s), with each expansion module capable of adding 550A. Flexible configuration is available according to requirements.
DC Small-Signal Standard Voltage Source: ±(0 ~ 12 V)
② Secondary Signal Measurement Functions for Sensors and Shunts:
DC Small-Signal Voltage Measurement: ±(0 ~ 12 V)
Current Measurement: ±(0 ~ 1.1 A)
③ Power and Energy Testing:
By installing the I/O board (optional), the system can perform energy metering, supporting both pulse method and accumulated energy method.
Power/energy accuracy: Class 0.02 / 0.01.
Features a standard second pulse measurement function for testing the daily timing error of energy meters.
④ Other Features and Characteristics:
Modular design allows for flexible customization based on different current requirements and device under test, facilitating future upgrades or replacements.
Voltage short-term stability: 10 μV/V / 2min (max), 5 μV/V / 2min (typ.).
Current short-term stability: 10 μA/A / 2min (max), 5 μA/A / 2min (typ.).
Key characteristics include a wide measurement range, high accuracy, high stability, and quiet operation (acoustic noise of main unit ≤ 50dBA @ 60% Pmax).

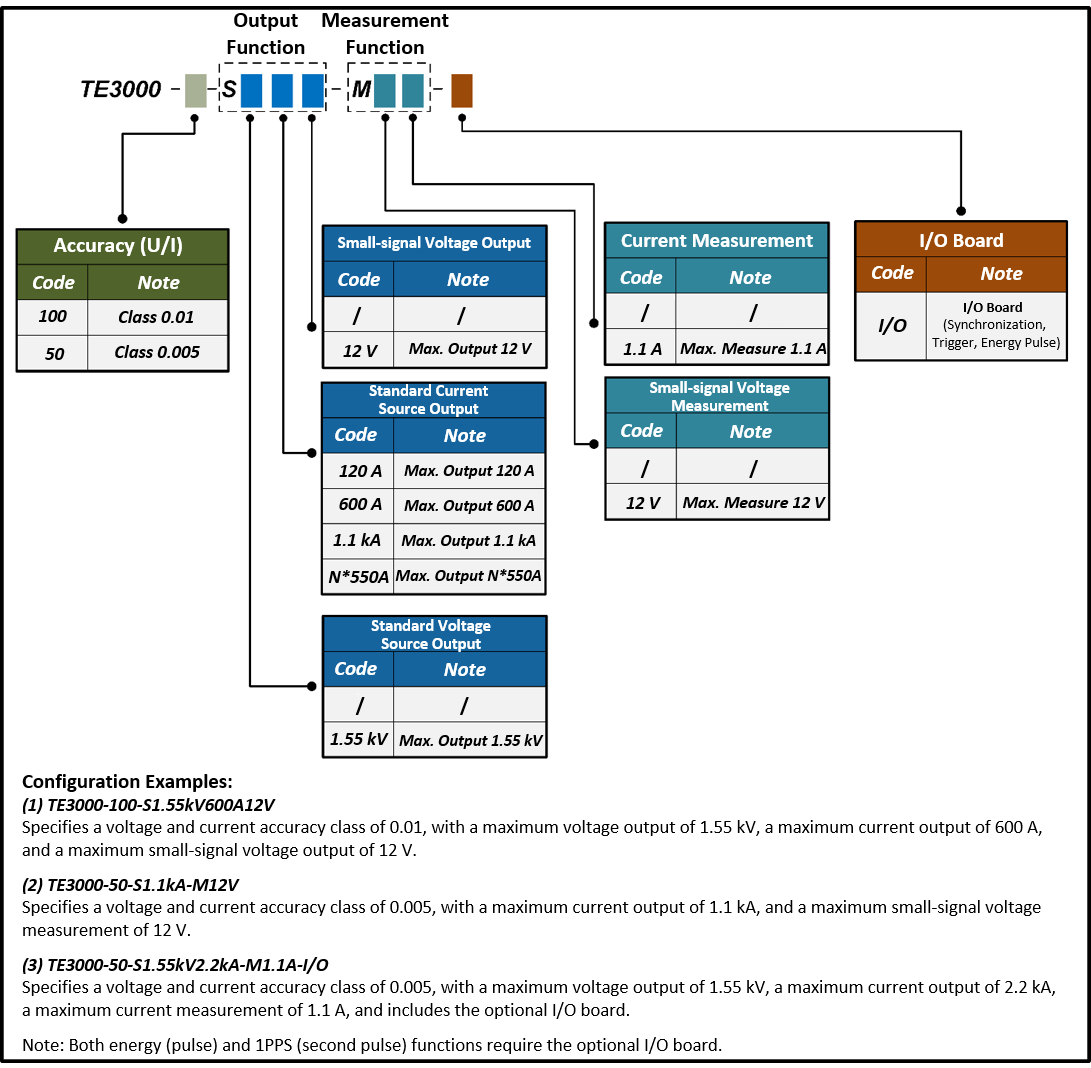

(Note (3): Specific applications and supported test instruments vary depending on the selected configuration. For detailed specifications, please refer to Section 6: Ordering Information.)
(Note (4): All technical specifications and parameters in this document are pre-release preliminary estimates. The actual delivered specifications are subject to the final product release.)
Range | Output Range | Minimum Resolu-tion | Stability Tcal±5°C 1-hour | Absolute Measurement Uncertainty (k=2) Tcal±5°C 1-year | Maximum Load Current | Ripple Coefficient ( % ) | ||
Class 0.005 | Class 0.01 | Class 0.005 | Class 0.01 | |||||
±( μV/V of output + μV/V of range ) | ||||||||
100 mV | ± (0 ~ 120.000 00) mV | 10 nV | TBD | TBD | TBD | TBD | 50 mA | < 0.2 |
300 mV | ± (0 ~ 360.000 00) mV | 10 nV | TBD | TBD | TBD | TBD | 100 mA | < 0.2 |
1 V | ± (0 ~ 1.200 000 0) V | 0.1 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 150 mA | < 0.2 |
3 V | ± (0 ~ 3.600 000 0) V | 0.1 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 150 mA | < 0.2 |
10 V | ± (0 ~ 12.000 000) V | 1 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 150 mA | < 0.2 |
30 V | 5.000 000 V ~ 36.000 000 V | 1 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 80 mA | < 0.2 |
100 V | 20.000 00 V ~ 120.000 00 V | 10 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 80 mA | < 0.2 |
300 V | 50.000 00 V ~ 360.000 00 V | 10 μV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 60 mA | < 0.2 |
1000 V | 200.000 0 V ~ 1 550.000 0 V | 0.1 mV | 7 + 3 | 14 + 6 | 40 + 10 | 80 + 20 | 15 mA | < 0.2 |
Supports automatic or manual range switching, with a display resolution of 7½ digits. Settling Time: ≤ 2 s; add 1 s when switching ranges. Protection Functions: Short-circuit protection, overload protection. | ||||||||
Range | Output Range | Minimum Resolu-tion | Stability Tcal±5°C 1-hour | Absolute Measurement Uncertainty (k=2) Tcal±5°C 1-year | Maxi-mum Load Voltage | Ripple Coeffici-ent ( % ) | ||
Class 0.005 | Class 0.01 | Class 0.005 | Class 0.01 | |||||
±( μA/A of output + μA/A of range ) | ||||||||
30 μA | ± (0 ~ 36.000 000) μA | 1 pA | TBD | TBD | TBD | TBD | 10 V | < 0.2 |
100 μA | ± (0 ~ 120.000 00) μA | 10 pA | TBD | TBD | TBD | TBD | 10 V | < 0.2 |
300 μA | ± (0 ~ 360.000 00) μA | 10 pA | TBD | TBD | TBD | TBD | 10 V | < 0.2 |
1 mA | ± (0 ~ 1.200 000 0) mA | 0.1 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
3 mA | ± (0 ~ 3.600 000 0) mA | 0.1 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
10 mA | ± (0 ~ 12.000 000) mA | 1 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
30 mA | ± (0 ~ 36.000 000) mA | 1 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
100 mA | ± (0 ~ 120.000 00) mA | 10 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
300 mA | 0 ~ 360.000 00 mA | 10 nA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
1 A | 0 ~ 1.200 000 0 A | 0.1 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
3 A | 0 ~ 3.600 000 0 A | 0.1 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
10 A | 0 ~ 12.000 000 A | 1 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 10 V | < 0.2 |
30 A | 0 ~ 36.000 000 A | 1 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 5 V | < 0.2 |
100 A | 0 ~ 120.000 00 A | 10 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 5 V | < 0.2 |
500 A | 0 ~ 600.000 00 A | 10 μA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 2 V | < 0.2 |
N*500 A | 0 ~ N * 550.000 0 A | 0.1 mA | 7+3 | 14 + 6 | 40 + 10 | 80 + 20 | 2 V | < 0.2 |
Supports automatic or manual range switching; Display resolution: 7½ digits. Settling time: ≤ 2 seconds (adds 1 second when switching ranges). Protection functions: Short-circuit protection, overload protection. | ||||||||
Range | Output Range | Minimum Resolution | Stability Tcal±5°C 1-hour | Absolute Measurement Uncertainty (k=2) Tcal±5°C 1-year | Maximum Load Current | Ripple Coefficient ( % ) | ||
Class 0.005 | Class 0.01 | Class 0.005 | Class 0.01 | |||||
±( μV/V of output + μV/V of range ) | ||||||||
1 mV | ± (0 ~ 1.200 000 0) mV | 0.1 nV | 10 + 4 | 20 + 8 | 50 + 20 | 100 + 40 | — | — |
3 mV | ± (0 ~ 3.600 000 0) mV | 0.1 nV | 10 + 1.5 | 20 + 6 | 50 + 15 | 100 + 30 | — | — |
10 mV | ± (0 ~ 12.000 000) mV | 1 nV | 10 + 2 | 20 + 4 | 50 + 10 | 100 + 20 | — | — |
30 mV | ± (0 ~ 36.000 000) mV | 1 nV | 9 + 2 | 18 + 4 | 45 + 10 | 90 + 20 | — | < 0.2 |
100 mV | ± (0 ~ 120.000 00) mV | 10 nV | 8 + 2 | 16 + 4 | 40 + 10 | 80 + 20 | — | < 0.2 |
300 mV | ± (0 ~ 360.000 00) mV | 10 nV | 8 + 2 | 16 + 4 | 40 + 10 | 80 + 20 | ≤ 10 mA | < 0.2 |
1 V | ± (0 ~ 1.200 000 0) V | 0.1 μV | 8 + 2 | 16 + 4 | 40 + 10 | 80 + 20 | ≤ 10 mA | < 0.2 |
3 V | ± (0 ~ 3.600 000 0) V | 0.1 μV | 8 + 2 | 16 + 4 | 40 + 10 | 80 + 20 | ≤ 10 mA | < 0.2 |
10 V | ± (0 ~ 12.000 000) V | 1 μV | 8 + 2 | 14 + 4 | 35 + 10 | 70 + 20 | ≤ 10 mA | < 0.2 |
Supports automatic or manual range switching; display resolution: 7½ digits. Settling time: ≤ 2 s; add 1 s when switching ranges. Protection functions: short-circuit protection, overload protection. Note: The small-signal voltage output function is primarily used for testing indirect-connection energy meters. The small-signal voltage measurement function (optional) is primarily used for testing shunts / voltage-type sensors. | ||||||||
Range | Measurement Range | Minimum Resolution | Absolute Measurement Uncertainty (k=2) Tcal±5°C 1-year | Temperature Coefficient /℃ @ (5~45)℃ | ||
±( μA/A of reading + μA/A of range ) | ||||||
100 μA | ± (0 ~ 120.000 00) μA | 10 pA | 50 + 20 | 2.5 + 1 | ||
1 mA | ± (0 ~ 1.200 000 0) mA | 0.1 nA | 50 + 20 | 2.5 + 1 | ||
10 mA | ± (0 ~ 12.000 000) mA | 1 nA | 50 + 10 | 2.5 + 0.5 | ||
100 mA | ± (0 ~ 120.000 00) mA | 10 nA | 40 + 10 | 2 + 0.5 | ||
1 A | ± (0 ~ 1.100 000 0) A | 0.1 μA | 40 + 10 | 2 + 0.5 | ||
Supports automatic or manual range switching; display resolution: 7½ digits. Settling time: ≤ 2 seconds; add 1 second when switching ranges. Measurement repeatability (standard deviation): < 10 ppm. | ||||||
DC Power / Energy | Output Range | A combination of DC voltage and DC current (or DC small-signal voltage). |
Measurement Uncertainty | Voltage measurement uncertainty + current measurement uncertainty (or DC small-signal voltage measurement uncertainty). | |
Energy Pulse | Standard Energy Pulse Output | High-frequency full-scale value corresponds to 120 kHz |
Pulse Output Frequency | Output frequency jitter <10 μs | |
Standard Energy Pulse Input | Signal amplitude is 5 V, TTL level; Can directly receive optical energy pulses from the device under test FH = 120 kHz × power value ÷ voltage range value ÷ current range value FL = 120 kHz × power value ÷ voltage range value ÷ current range value ÷ 10000 | |
Energy Error Display | Automatically displayed, resolution is 0.000 01% |
Second Pulse Measurement | Pulse signal input: Square wave signal, amplitude: 0 - 5 Vpk |
Measurement range: 0.1 Hz to 1 MHz | |
Annual measurement uncertainty (k = 2): 2.0×10-7 | |
Standard Second Pulse Output | Frequency: Standard 1 second pulse |
Annual measurement uncertainty: 2.0×10-7 | |
Input level: ≤ 5 V | |
Clock (Optional) | Satellite time synchronization, real-time clock display. |
Daily Timing Error supports two error display modes: s/d and ppm/ppb. | |
Power Supply | Total power consumption ≤ 3.5 kVA | Single-phase, 175 V ~ 265 V, 47 Hz ~ 63 Hz |
Total power consumption > 3.5 kVA | Three-phase five-wire, 305 - 460 Vac, 47 Hz~63 Hz | |
Maximum Power Consumption | ①Main Unit | Power consumption 800 VA |
②Current Range Expander | Capacity: 550 A per unit Power consumption per unit: 1.6 kVA (3.2 kVA per unit optional) | |
Total power consumption = ①+② (Note: Power consumption per 550A module is calculated at 1.6 kVA in this example) Example: If 2 range expanders are selected (i.e., maximum current output of 1.1 kA), the total system power consumption = 800 VA + 2 × 1.6 kVA = 4 kVA. | ||
Warm-up Time | 30-minute | |
Temperature Performance | Operating temperature: 5°C ~ 45°C; Storage temperature: -10°C ~ 55°C; Calibration temperature (Tcal = 23 ± 2 °C) | |
Humidity Performance | Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C; Storage humidity: (20% ~ 80%) R.H., non-condensing | |
Communication Interface | CAN×1, LAN×1, RS232×1, USB×1 | |

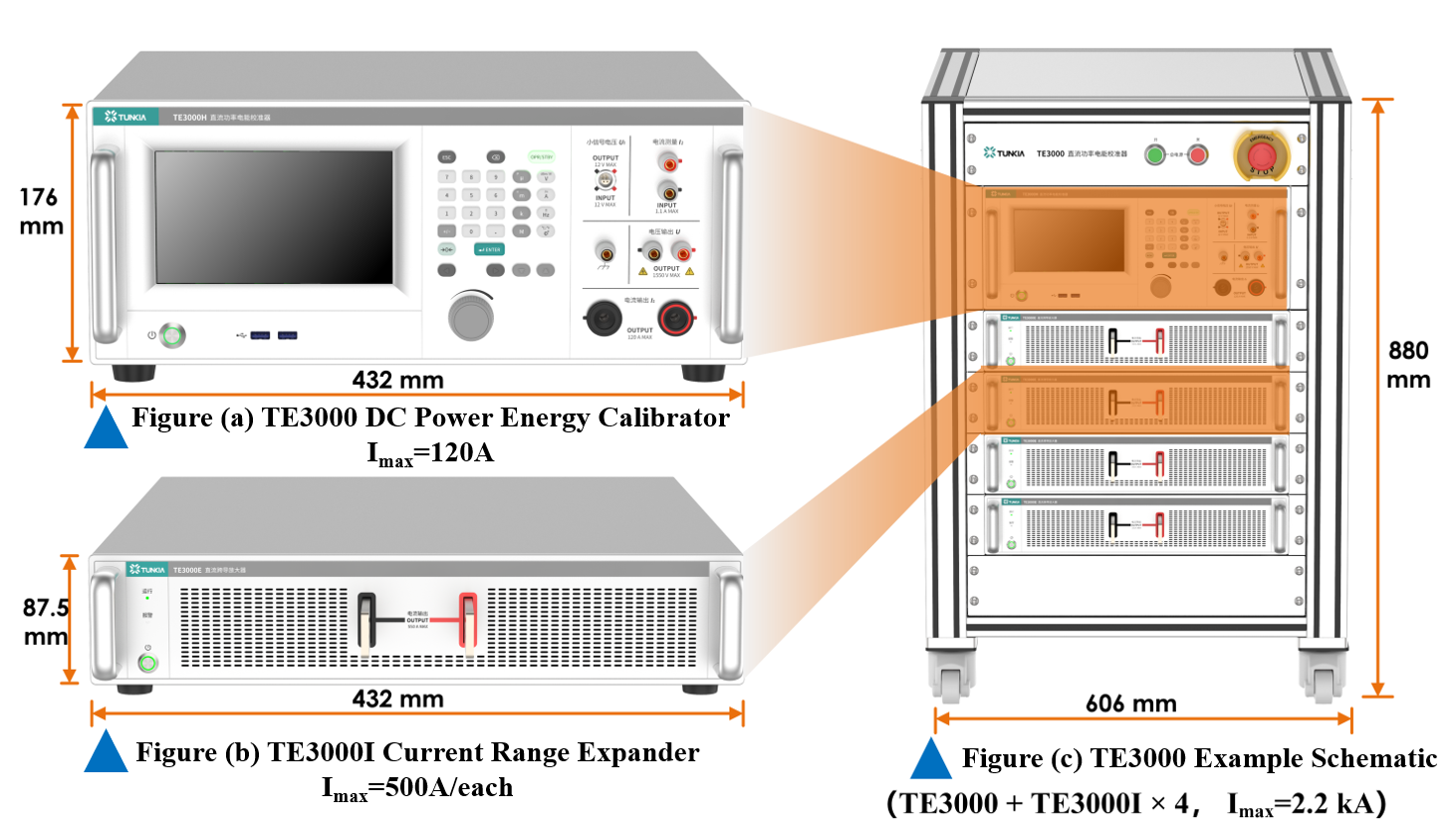

Dimensions | TE3000 | 4U height |
TE3000I | 2U height / unit | |
