TM2300 / TM2330 Helmholtz Coil

The TM2300 / TM2330 is a series of Helmholtz coils. The generated magnetic field has good linearity with the current, and the standard DC magnetic field can be generated with the precise excitation current source.
Availability:
Quantity:
  • TM2300 / TM2330

  • TUNKIA

TM2300 / TM2330 Helmholtz Coil

TM2300 / TM2330 Helmholtz Coil

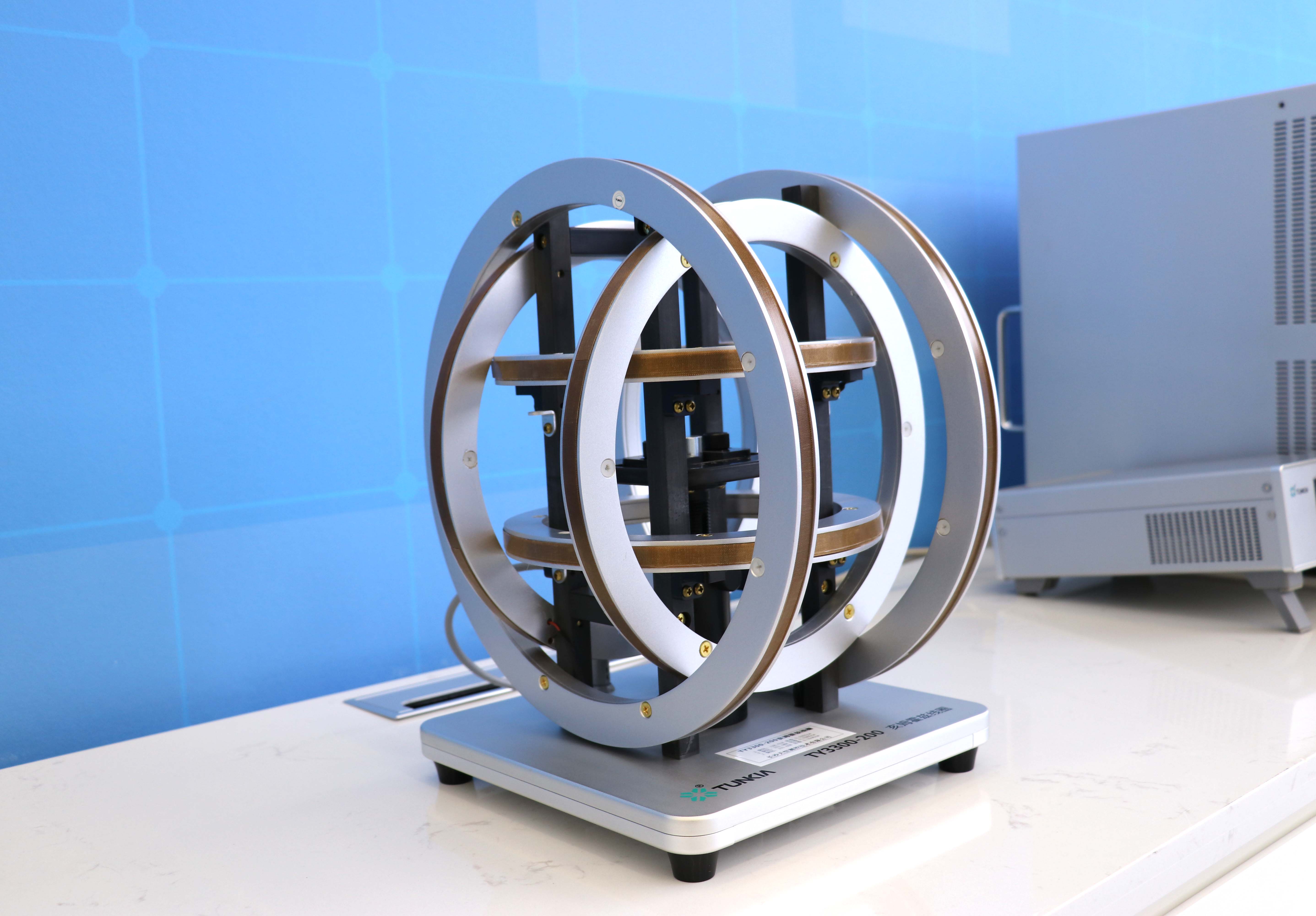

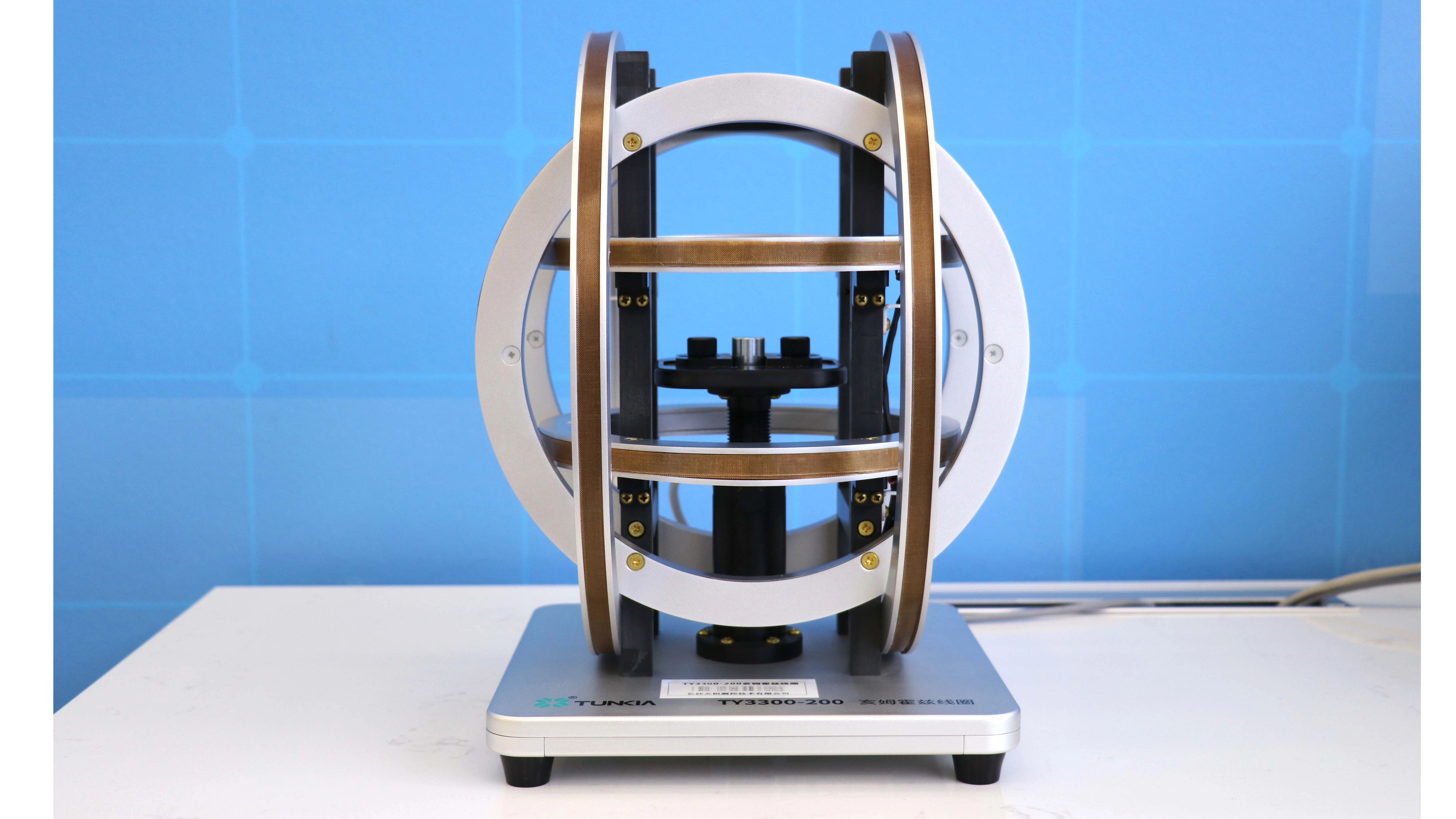

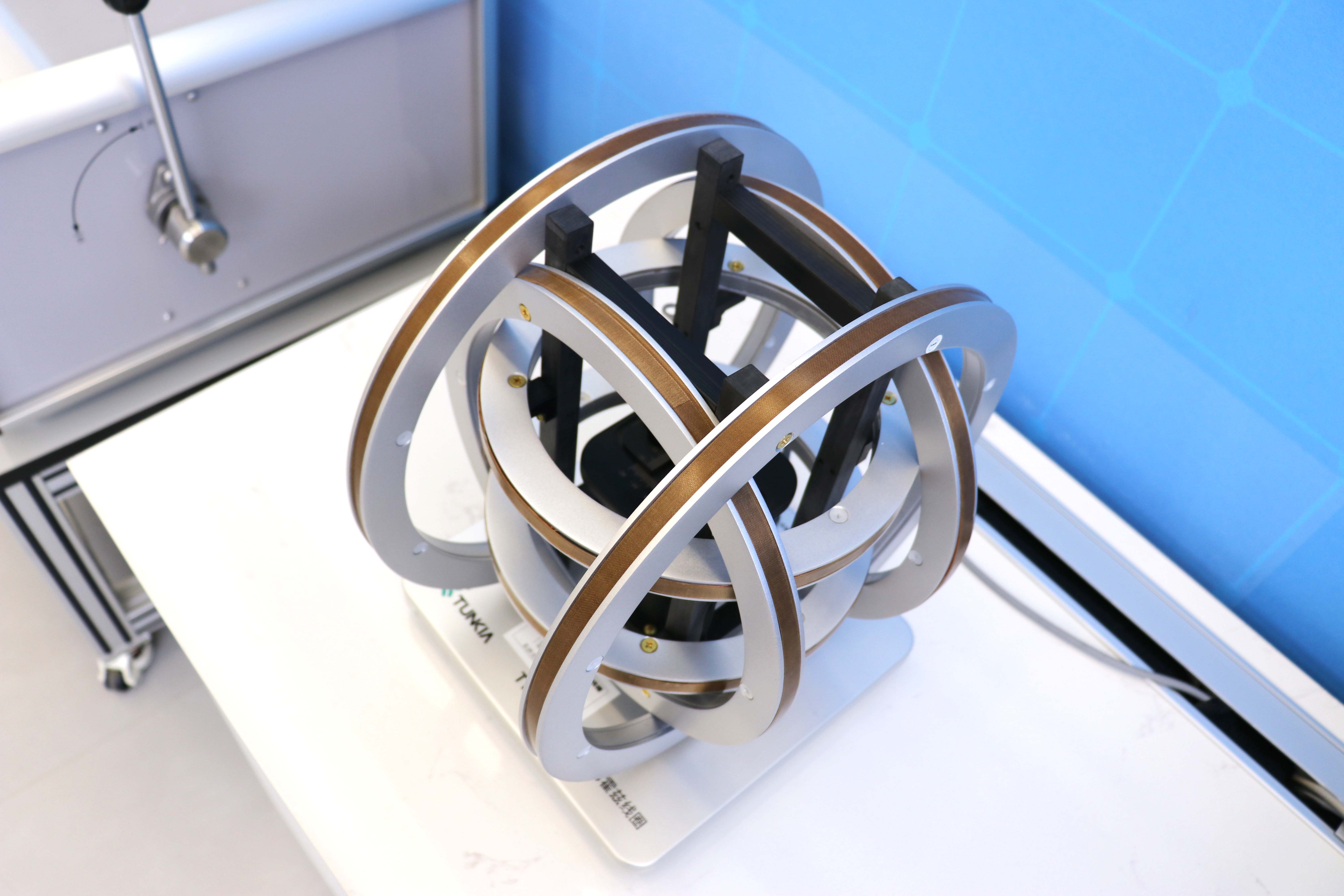

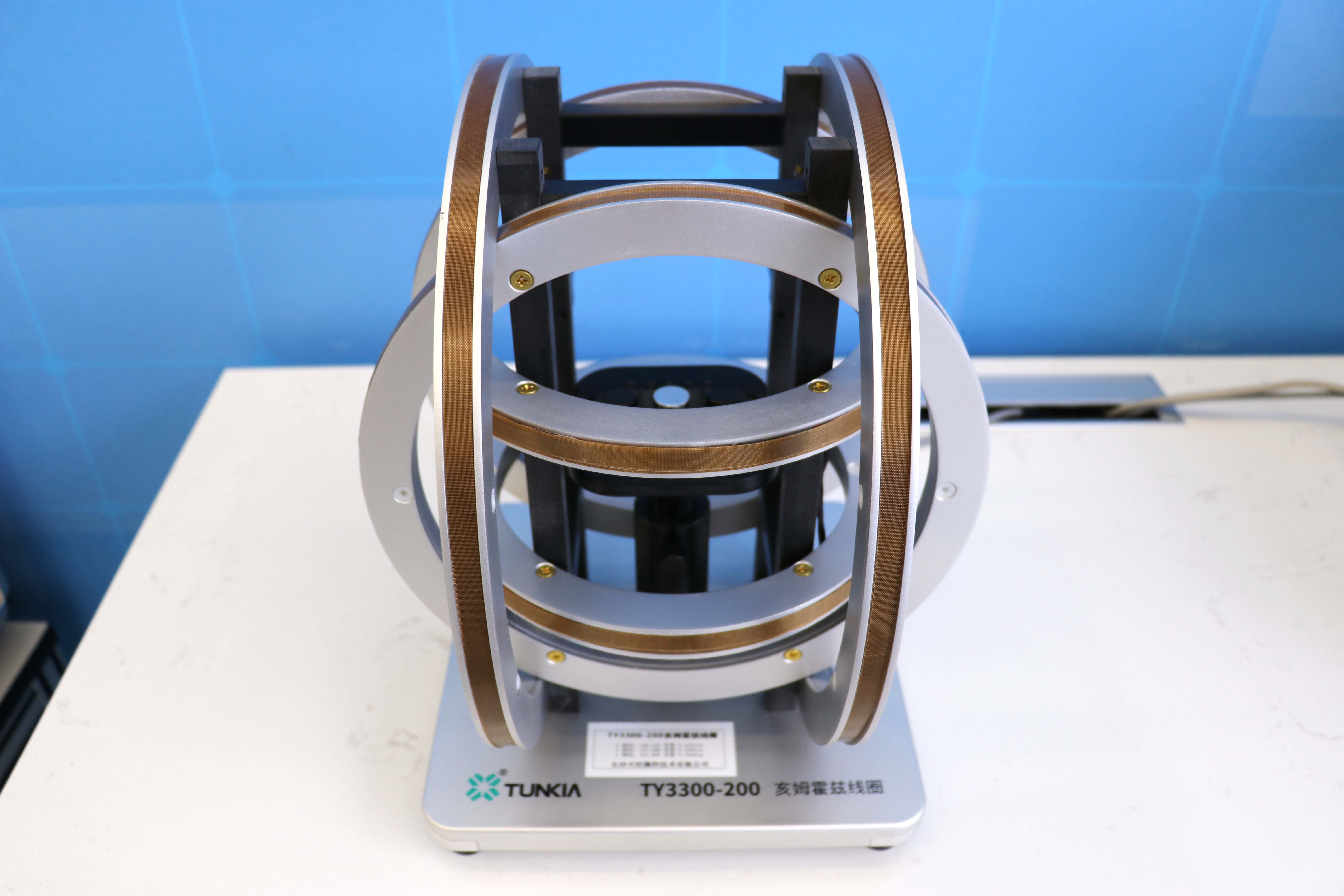

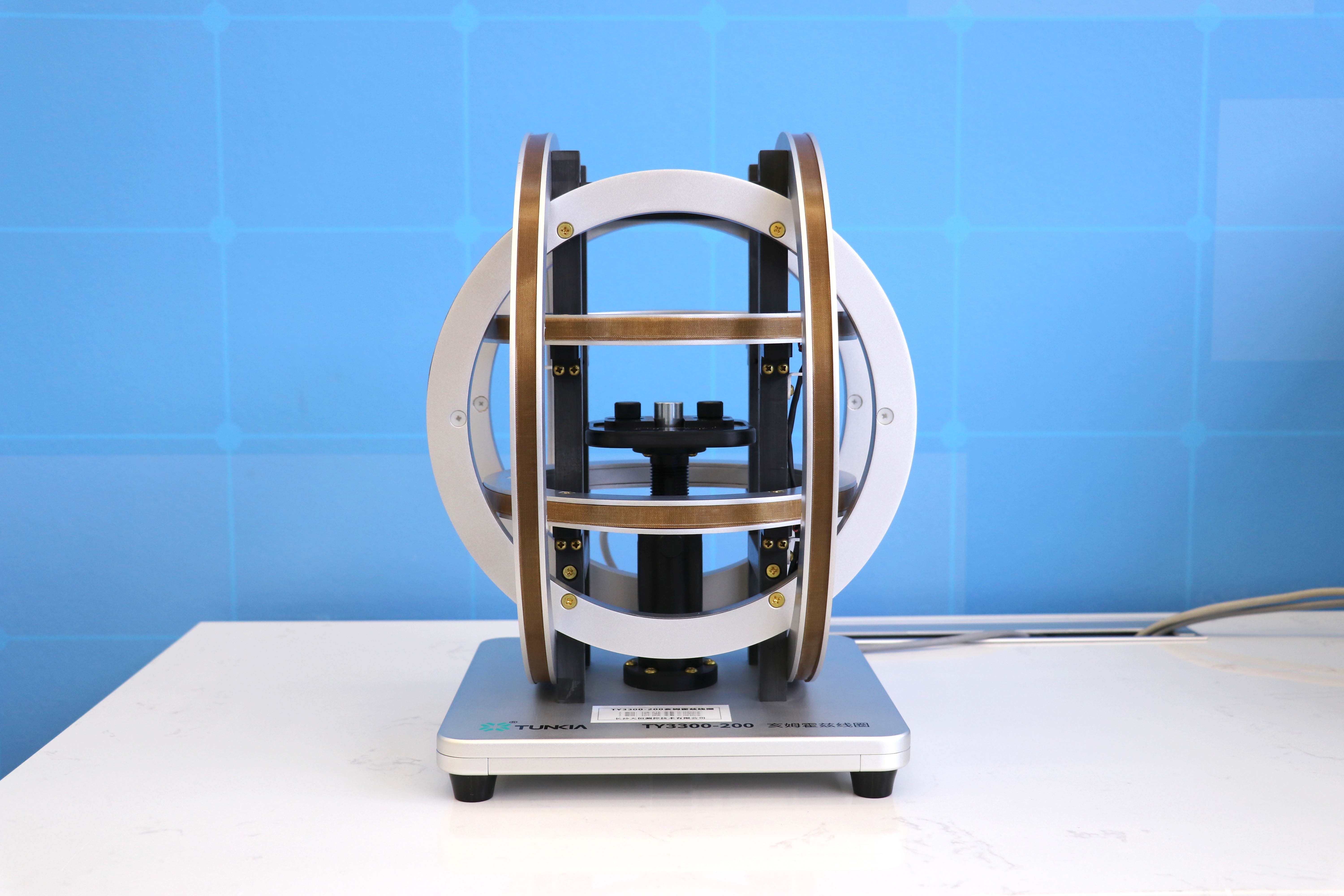

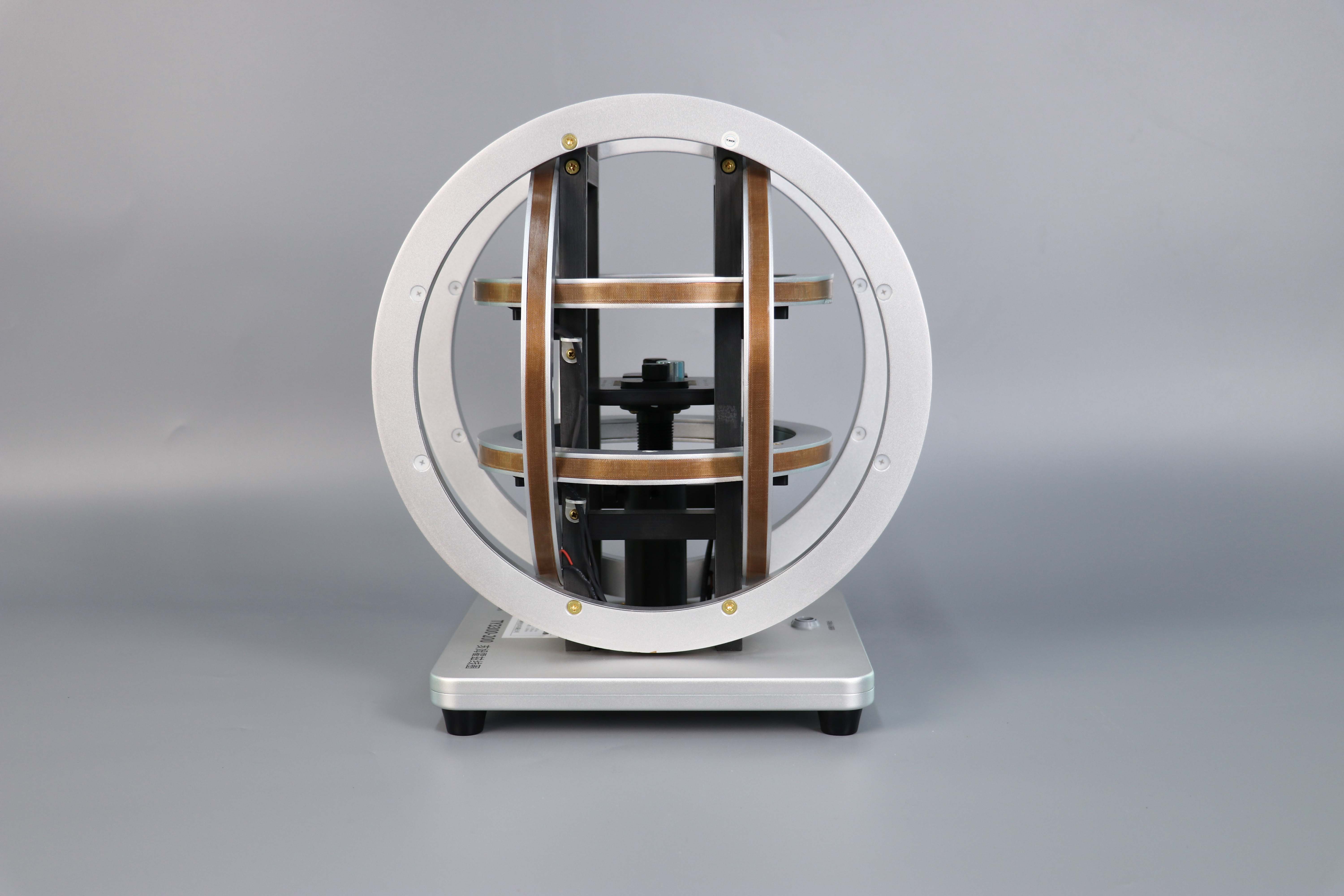

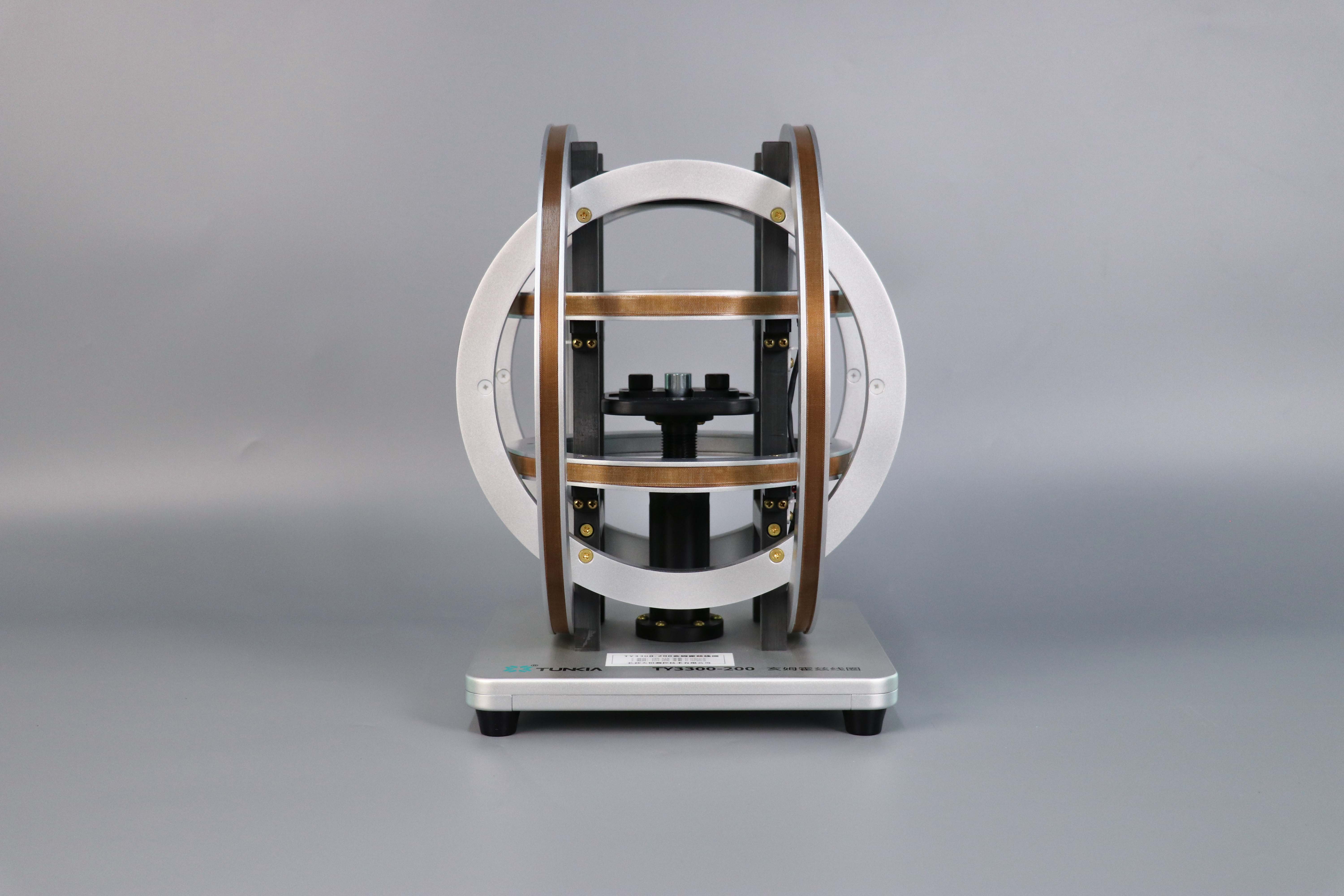

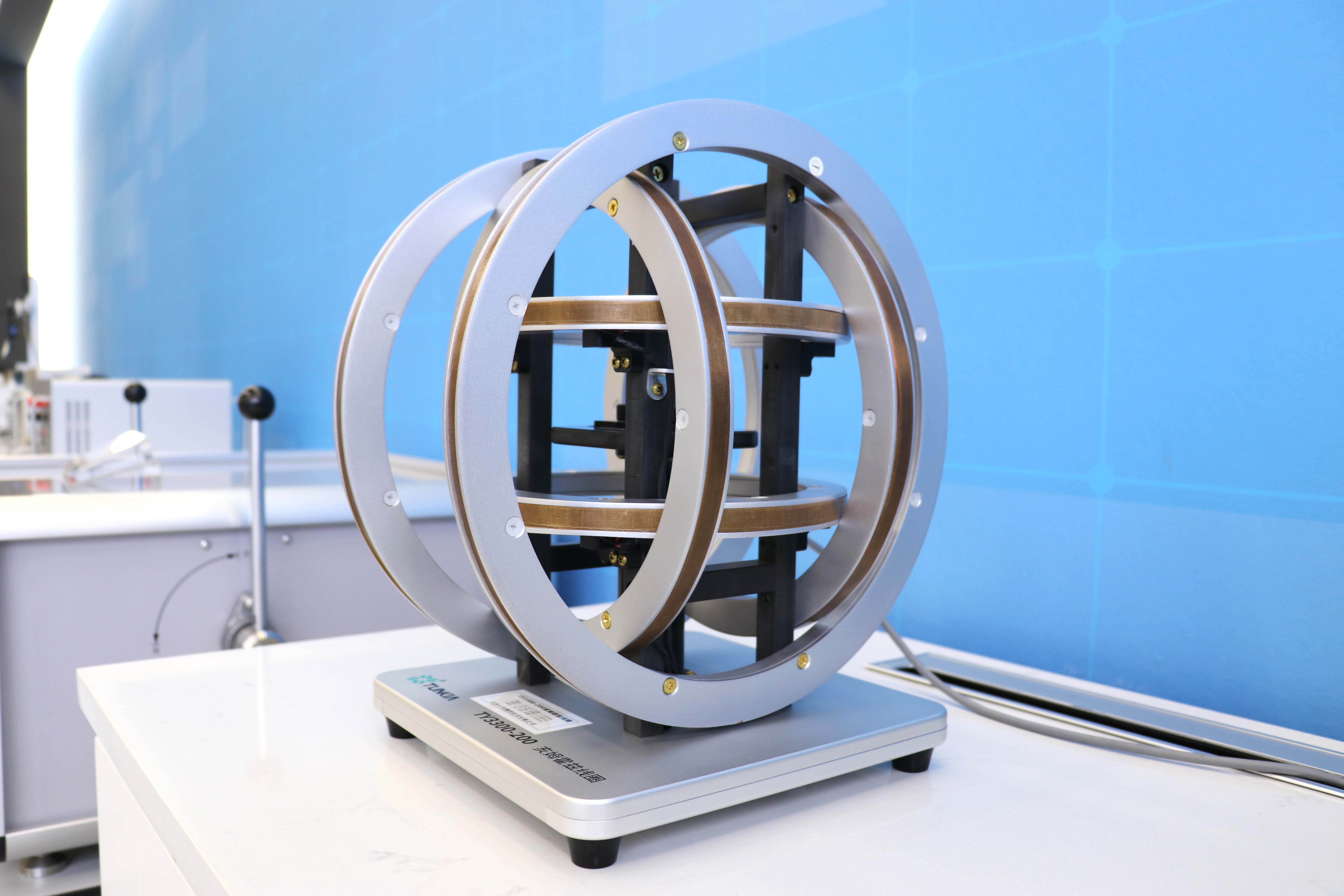

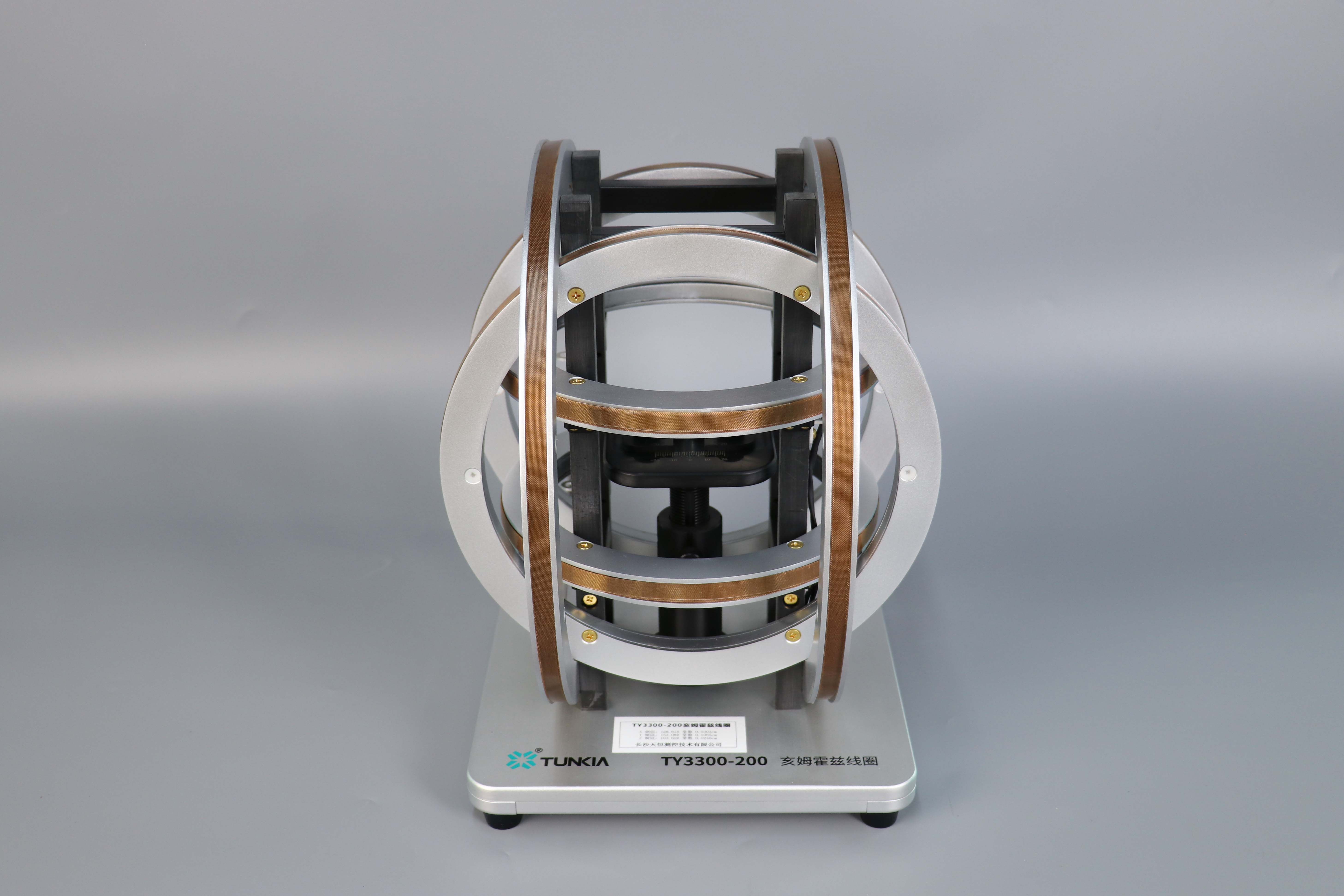

                                   One-dimensional coil                   Three dimensional coil

* This figure is for reference only. There may be some differences according to the technical specifications

1. Summary

The TM2300 / TM2330 is a series of Helmholtz coils. The generated magnetic field has good linearity with the current, and the standard DC magnetic field can be generated with the precise excitation current source.


2. Applications

Calibration of magnetic sensors

Calibration of magnetometers

Electromagnetic interference simulation experiments

Magnetic field influence experiments


3. Specifications

3.1 One Dimensional Coil

Specifications

  Diameter     ( mm )

Maximum magnetization field (G)

Homogeneous area @uniformity

Maximum current ( A )

Power

( kW )

TM2300-1000mm-100G

1000

100 G

Ф200 mm@1%

Ф166 mm@0.5%

Ф130 mm@0.2%

Ф110 mm@0.1%

± 25

2.1

TM2300-1000mm-50G

1000

50 G

± 25

1.2

TM2300-1000mm-30G

1000

30 G

± 25

0.9

TM2300-1000mm-20G

1000

20 G

± 25

0.6

TM2300-1000mm-10G

1000

10 G

± 25

0.3

TM2300-1000mm-5G

1000

5 G

± 5

0.15

TM2300-500mm-200G

500

200 G

Ф100 mm@1%

Ф83 mm@0.5%

Ф66 mm@0.2%

Ф55 mm@0.1%

± 25

2.1

TM2300-500mm-100G

500

100 G

± 25

1.2

TM2300-500mm-50G

500

50 G

± 25

0.6

TM2300-500mm-20G

500

20 G

± 5

0.15

TM2300-500mm-10G

500

10 G

± 5

0.15

TM2300-500mm-5G

500

5 G

± 5

0.15

TM2300-300mm-200G

300

200 G

Ф60 mm@1%

Ф50 mm@0.5%

Ф40 mm@0.2%

Ф33 mm@0.1%

± 25

0.9

TM2300-300mm-100G

300

100 G

± 25

0.6

TM2300-300mm-50G

300

50 G

± 25

0.3

TM2300-300mm-20G

300

20 G

± 5

0.15

TM2300-300mm-10G

300

10 G

± 5

0.15

TM2300-300mm-5G

300

5 G

± 5

0.15

TM2300-200mm-200G

200

200 G

Ф40 mm@1%

Ф33 mm@0.5%

Ф26 mm@0.2%

Ф22 mm@0.1%

± 25

0.6

TM2300-200mm-100G

200

100 G

± 25

0.3

TM2300-200mm-50G

200

50 G

± 5

0.15

TM2300-200mm-20G

200

20 G

± 5

0.15

TM2300-200mm-10G

200

10 G

± 5

0.15

TM2300-200mm-5G

200

5 G

± 5

0.15

TM2300-150mm-200G

150

200 G

Ф30 mm@1%

Ф25 mm@0.5%

Ф20 mm@0.2%

Ф16 mm@0.1%

± 25

0.3

TM2300-150mm-100G

150

100 G

± 25

0.3

TM2300-150mm-50G

150

50 G

± 5

0.15

TM2300-150mm-20G

150

20 G

± 5

0.15

TM2300-150mm-10G

150

10 G

± 5

0.15

TM2300-150mm-5G

150

5 G

± 5

0.15

Notes: Other sizes of coils with magnetized fields can be customized.


3.2 Three Dimensional Coil

Specifications

   Diameter

        ( mm )

Maximum magnetization field (G)

Homogeneous area @uniformity

Maximum current ( A )

Power

( kW )

TM2330-1000mm-100G

1000

100

Ф200 mm @ 1%

Ф160 mm @ 0.5%

Ф130 mm @ 0.2%

Ф110 mm @ 0.1%

± 25

2.4

TM2330-1000mm -50G

1000

50

± 25

1.2

TM2330-1000mm -20G

1000

20

± 25

0.6

TM2330-1000mm -10G

1000

10

± 25

0.3

TM2330-1000mm -5G

1000

5

± 5

0.15

TM2330-500mm-200G

500

200

Ф100 mm @ 1%

Ф80 mm @ 0.5%

Ф65 mm @ 0.2%

Ф55 mm @ 0.1%

± 25

3.0

TM2330-500mm-100G

500

100

± 25

1.5

TM2330-500mm-50G

500

50

± 25

0.9

TM2330-500mm-20G

500

20

± 5

0.15

TM2330-500mm-10G

500

10

± 5

0.15

TM2330-500mm-5G

500

5

± 5

0.15

TM2330-300mm-200G

300

200

Ф60 mm @ 1%

Ф50 mm @ 0.5%

Ф40 mm @ 0.2%

Ф33 mm @ 0.1%

± 25

1.5

TM2330-300mm-100G

300

100

± 25

0.9

TM2330-300mm-50G

300

50

± 25

0.6

TM2330-300mm-20G

300

20

± 5

0.15

TM2330-300mm-10G

300

10

± 5

0.15

TM2330-300mm-5G

300

5

± 5

0.15

TM2330-200mm-200G

200

200

Ф40 mm @ 1%

Ф33 mm @ 0.5%

Ф26 mm @ 0.2%

Ф22 mm @ 0.1%

± 25

0.9

TM2330-200mm-100G

200

100

± 25

0.6

TM2330-200mm-50G

200

50

± 5

0.15

TM2330-200mm-20G

200

20

± 5

0.15

TM2330-200mm-10G

200

10

± 5

0.15

TM2330-200mm-5G

200

5

± 5

0.15

TM2330-150mm-200G

150

200

Ф30 mm @ 1%

Ф25 mm @ 0.5%

Ф20 mm @ 0.2%

Ф16 mm @ 0.1%

± 25

0.6

TM2330-150mm-100G

150

100

± 25

0.3

TM2330-150mm-50G

150

50

± 5

0.15

TM2330-150mm-20G

150

20

± 5

0.15

TM2330-150mm-10G

150

10

± 5

0.15

TM2330-150mm-5G

150

5

± 5

0.15

Notes: The three-axis Helmholtz coil shall be equipped with a three-channel excitation current source. The preceding power supplies are single-channel current sources.


4. Ordering Information

TM2300 / TM2330 Helmholtz Coil
