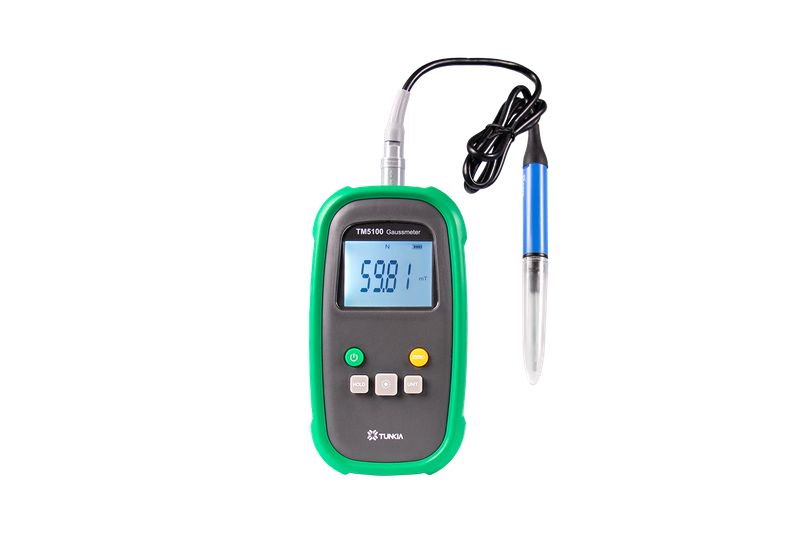

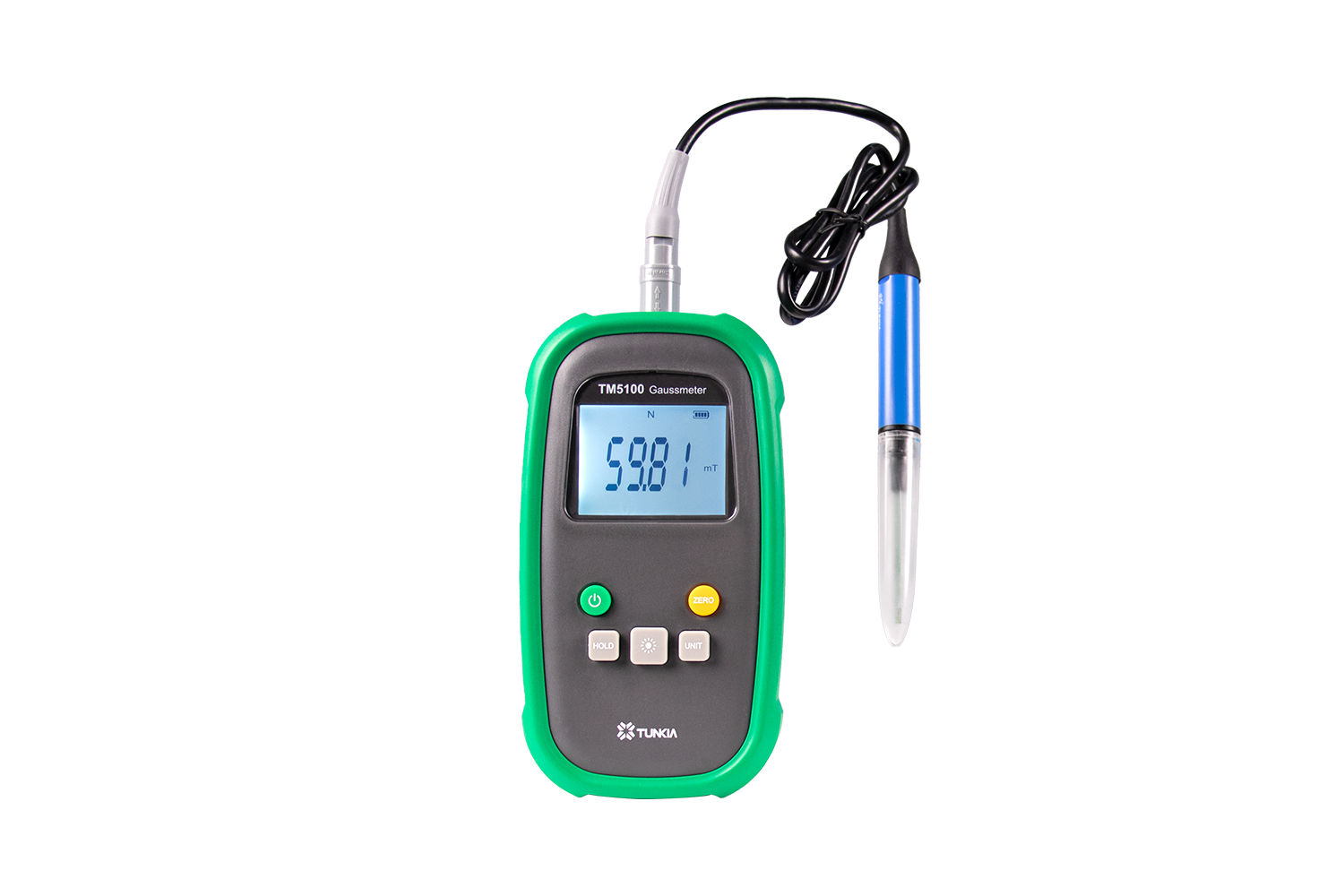

TM5100 Hand-held Tesla-Meter

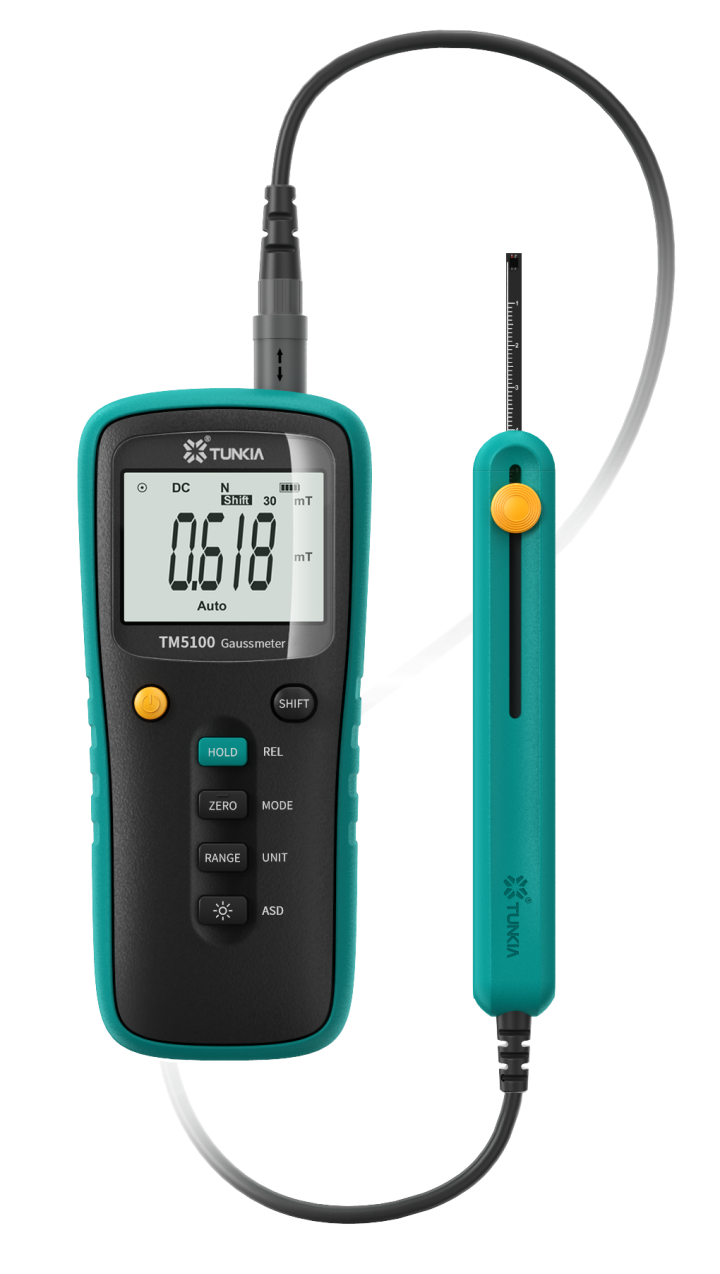

TM5100 New

1. Summary

TM5100 is a portable and multifunctional magnetic field measuring instrument. Equipped with a newly designed retractable and adjustable Hall probe featuring high sensitivity and low drift, it offers strong applicability, portability, and ease of operation, making it suitable for measuring magnetic flux density of DC (constant) magnetic fields.

2. Features

• Range: 0 mT ~ 3000 mT, auto-ranging.

• Accuracy: 1%, 2% or 5%.

• Unit switch: G, mT, kA/m, Oe.

• Supports measurement with dedicated PC software

• One-key reset and auto power-off function.

• Max. hold function.

• Standby up to 6 months per charge

• N/S polarity display.

• Over N/S upper/lower limit alarm (PC software)

• Supporting backlight.

• Battery remaining power display.

• Axial, radial probe are optional.

• Type-C port for power supply and data communication

• Probe directly replaceable without recalibration for subsequent measurements

• Display refresh rate: 1 time/sec

• Data communication protocol: Modbus Protocol

• Magnetic shielding cavity are optional.

3. Application

TM5100 Hand-held Tesla-Meter

4. Probe Selection

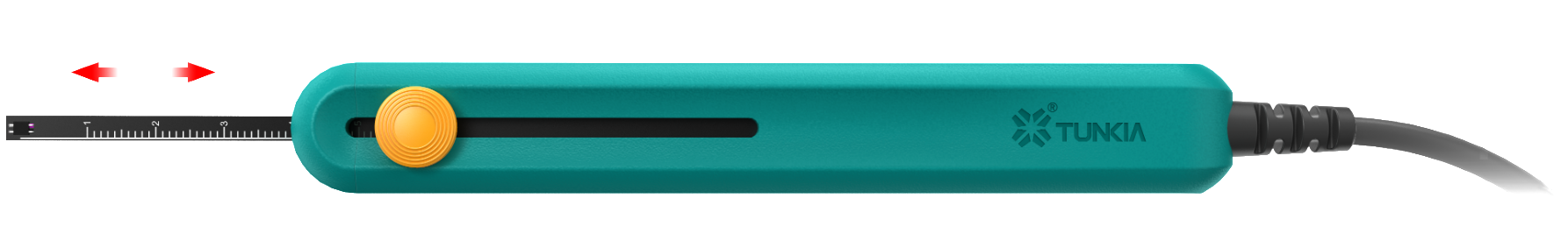

☆ Optional Radial or Axial Hall Probe
Radial Hall probe
Axial Hall probe
• Standard configuration is Radial Hall probe, also can choose Axial Hall probe.

5. Specifications

Range		30 mT	300 mT	3000 mT
Resolution		1 μT	10 μT	100 μT
Measuring Range		0 mT～3000mT^①
Accuracy	Class 1	1.0%
	Class 2	2.0%
	Class 5	2.0% ( 2 mT...1000 mT )，5.0% ( 1000 mT...3000 mT )
Temperature Coefficient		± 0.1% / K
Zero Drift		± 0.1 mT/h
Display Digit		5
Remark		①: Calibration only covers 2.5T

6. General Specification

Power Supply	2 AA batteries or USB charging
Temperature Performance	Operating temperature: 0~45℃; Storage temperature: -20°C～70°C
Humidity Performance	Operating humidity: 20%～80% R·H, non-condensing Storage humidity: <85% R·H, non-condensing
Weight	About 285 g
Interface	Hall probe input interface, USB interface
Overall Dimensions	74 mm(W) × 41 mm(D) × 168 mm(H)
Probe Dimensions	3.8 mm(W) × 50 mm(D) × 0.6 mm(H)

7. Ordering Information

TM5100 Hand-held Tesla-Meter

8. Probe Selection

Serial Number	Picture	Name	Specification	Quantity	Remark
1		TM1100 Hall probe	Radial	1	Standard Accessory
2		TM1110 Hall probe	Axial	1	Optional
Note: The users should indicate the probe in the order contract.
