The Role of Transconductance in Precision AC/DC Current Measurement

Introduction

In precision measurement and calibration, the relationship between voltage and current must be strictly controlled. While conventional current sources or amplifiers can provide stable outputs, transconductance offers a more direct and accurate way to link a voltage reference to a current output. This makes transconductance a cornerstone concept in the design of advanced calibration instruments.

What is Transconductance?

Transconductance, symbolized as gmg_m, is defined as the change in output current per unit change in input voltage:

In simple terms, it describes how effectively a voltage controls a current. While a resistor directly relates voltage to current through Ohm’s law, transconductance applies to active devices such as transistors, amplifiers, and precision current sources. Here, the input is a voltage signal, and the output is a proportional current.

Transconductance Amplifier vs. Conventional Amplifier

A conventional voltage amplifier produces an output voltage proportional to the input voltage:

A transconductance amplifier, on the other hand, produces an output current:

This distinction makes transconductance amplifiers ideal for driving loads directly or serving as controlled current sources. Unlike a voltage amplifier, which is best for high-impedance loads, a transconductance amplifier is naturally suited for applications that require accurate current generation.

Transconductance Standard Current Source vs. Conventional Current Source

A conventional current source typically relies on resistors and feedback to generate a fixed output current. Its stability depends heavily on reference components and feedback circuits.

A transconductance standard current source, however, converts a precision voltage reference directly into a proportional current output:

This approach offers several advantages:

• Traceability: The current is directly linked to the voltage reference, ensuring metrological accuracy.

• Flexibility: By adjusting the input voltage, a wide range of output currents can be generated with high linearity.

• Standardization: Provides a reliable current standard that can be used in calibration laboratories for both AC and DC conditions.

Why Transconductance Matters in AC/DC Current Measurement

The importance of transconductance in precision current measurement lies in three main advantages:

1. Direct traceability: Transconductance allows a stable and well-defined voltage reference to be converted into an equivalent current standard. This enables laboratories to link current measurements directly back to established voltage standards.

2. Wide bandwidth: High-quality transconductance designs ensure consistent performance from DC to high-frequency AC signals. This makes them essential in systems where current must be measured or generated across a broad frequency range.

3. High linearity: With excellent voltage-to-current proportionality, transconductance minimizes distortion. This is especially critical in calibration systems, where accuracy must be preserved under dynamic conditions.

Application Examples

Transconductance plays a vital role in a variety of precision measurement applications:

• Transconductance standard sources: In calibration laboratories, these sources transform precise voltage inputs into stable current outputs. They provide the backbone for AC/DC current calibration.

• AC/DC shunts with transconductance amplifiers: When paired with precision shunts, transconductance amplifiers ensure accurate measurement of both AC and DC currents over wide ranges.

• Advanced test systems: Instruments such as power quality analyzers and digital multimeters often rely on transconductance-based current generation and measurement to ensure compliance with metrological standards.

Case in Point: TUNKIA Solutions

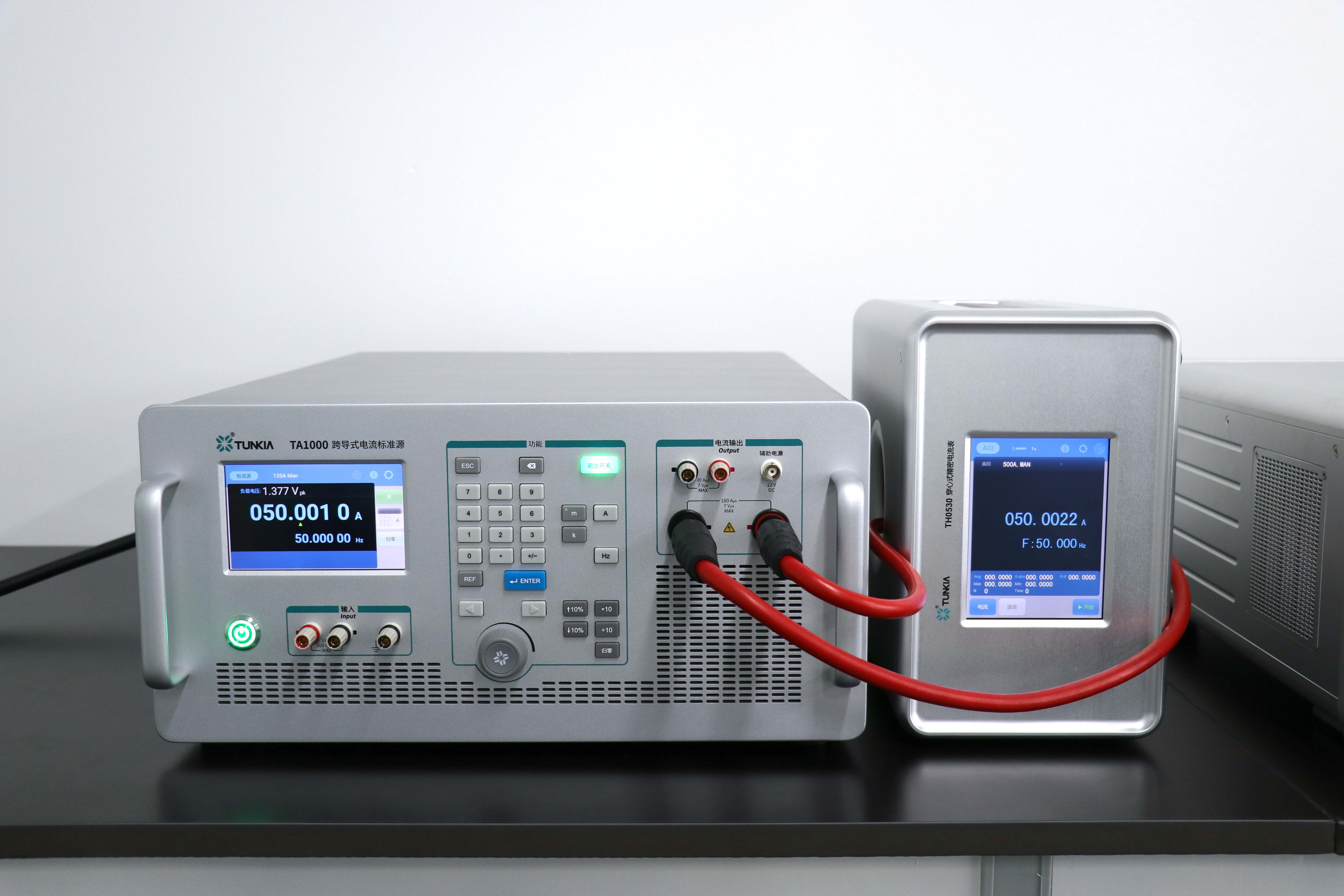

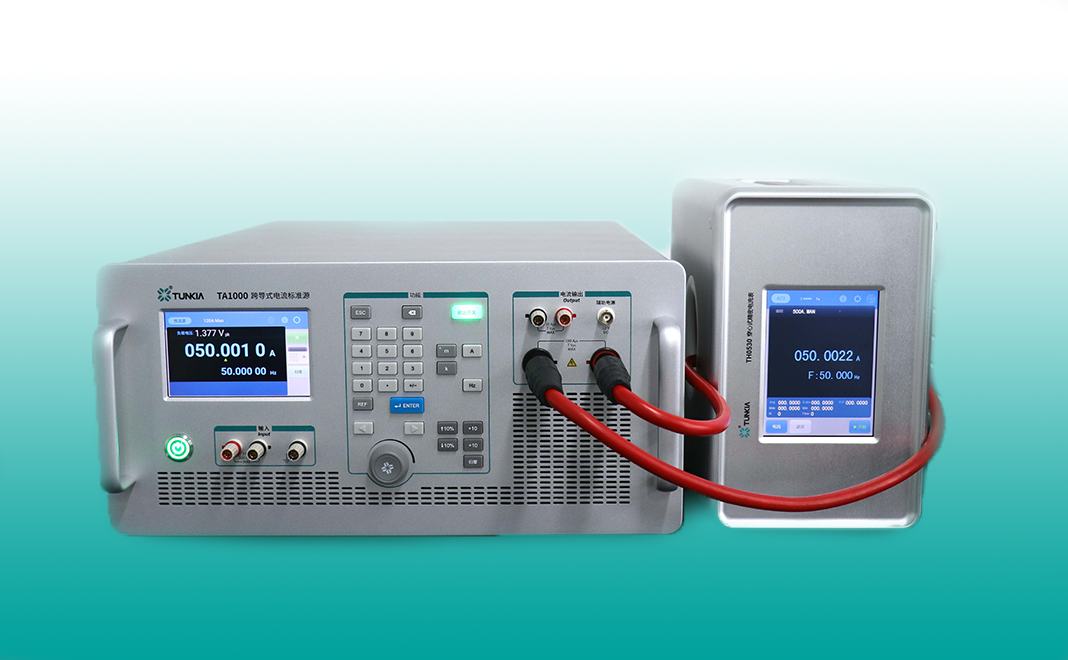

• TA1000 Transconductance Standard Current Source – delivering metrologically traceable AC/DC current standards.

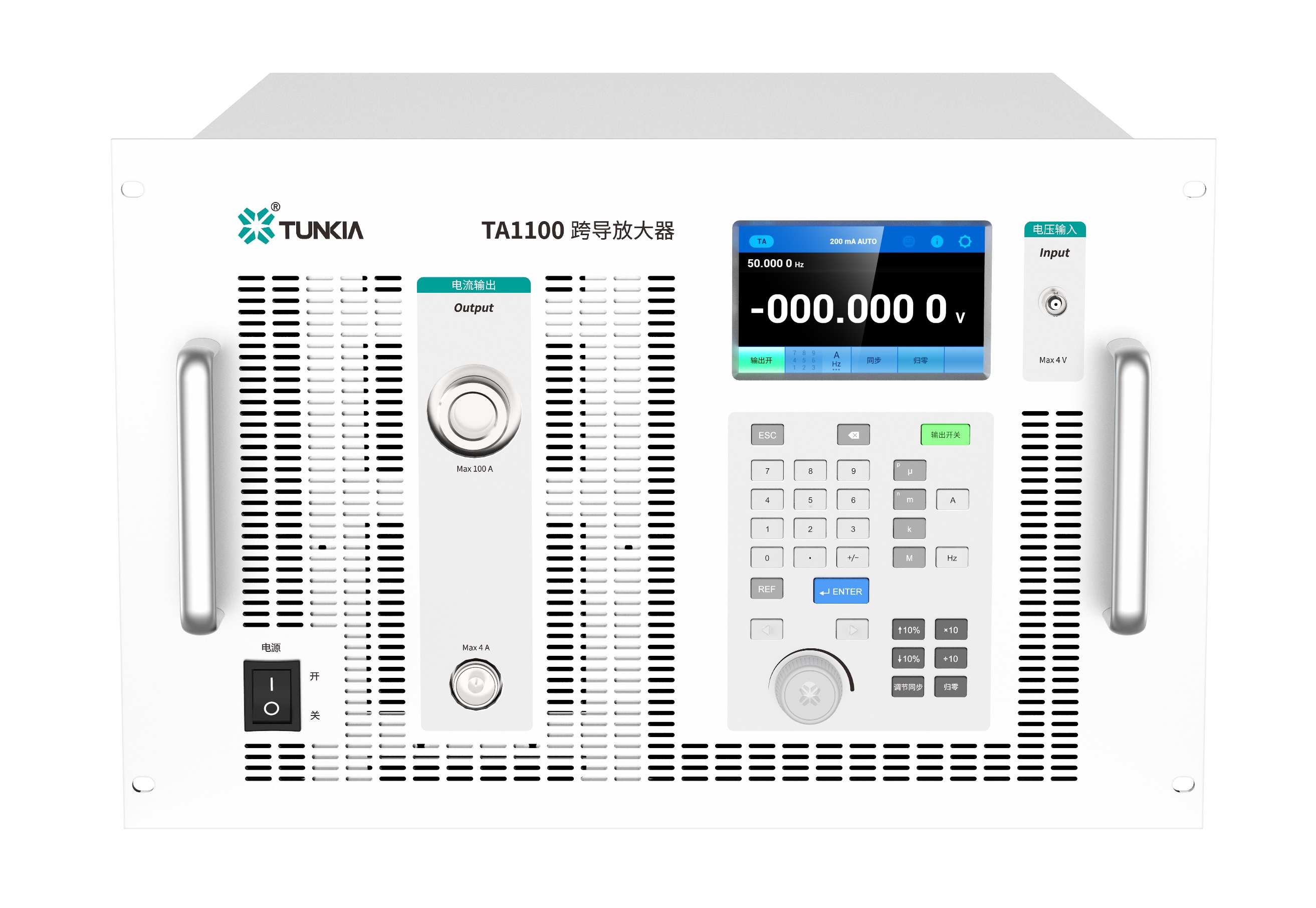

• TA1100 Transconductance Amplifier – a versatile solution for precision voltage-to-current conversion.

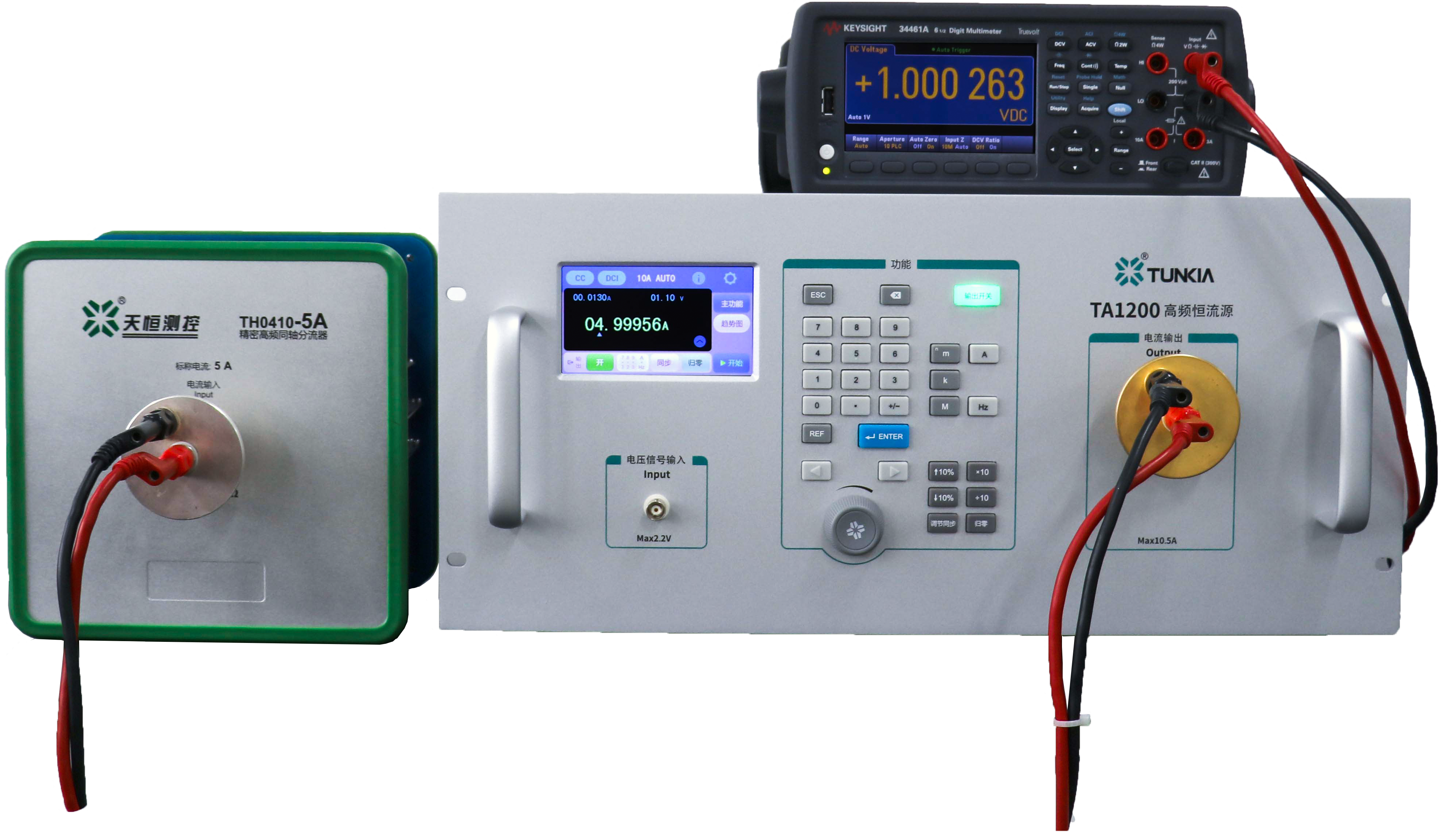

• TA1200 High-Frequency Transconductance Amplifier – optimized for wideband applications, combining accuracy with extended frequency response.






These instruments demonstrate how transconductance technology can be effectively applied in modern calibration and testing systems.

Challenges in Transconductance Design

Despite its advantages, implementing transconductance at a high precision level is technically demanding. Engineers must address:

• Noise performance: Even small fluctuations can degrade measurement accuracy.

• Thermal stability: Components must maintain consistent performance across varying temperatures.

• Dynamic range: The system must handle both very small and very large currents without distortion.

• Frequency response: Precision must be maintained from DC to AC at different bandwidths.

Overcoming these challenges requires advanced circuit design, rigorous testing, and continuous refinement.

Conclusion

Transconductance bridges the gap between voltage references and current measurement, offering a reliable path for high-precision AC/DC calibration. With its superior accuracy, wide bandwidth, and direct traceability, transconductance is not only a fundamental concept but also a practical enabler of next-generation measurement systems. By highlighting its role in modern instrumentation, we can better understand why transconductance is central to advancing precision metrology.
