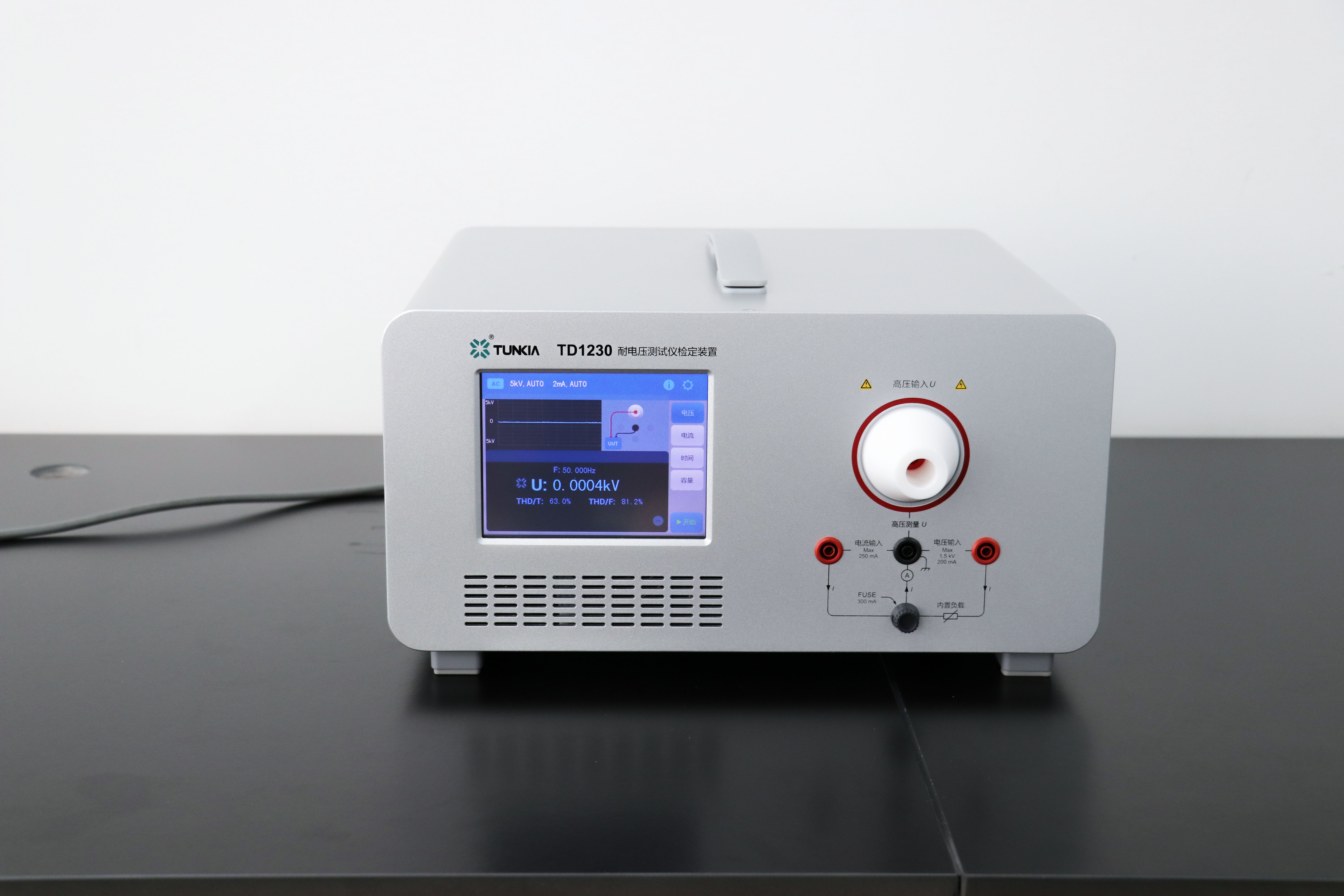

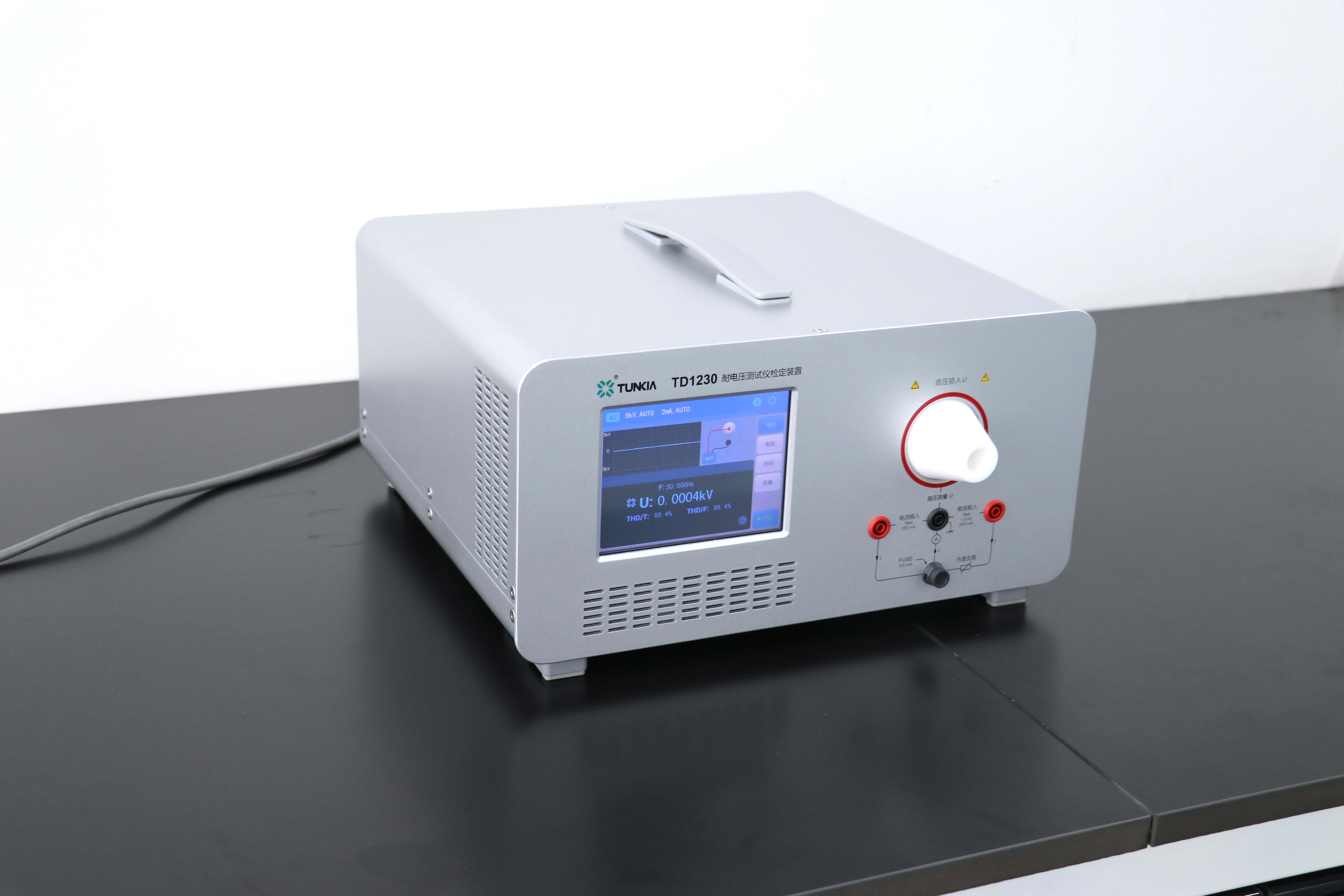

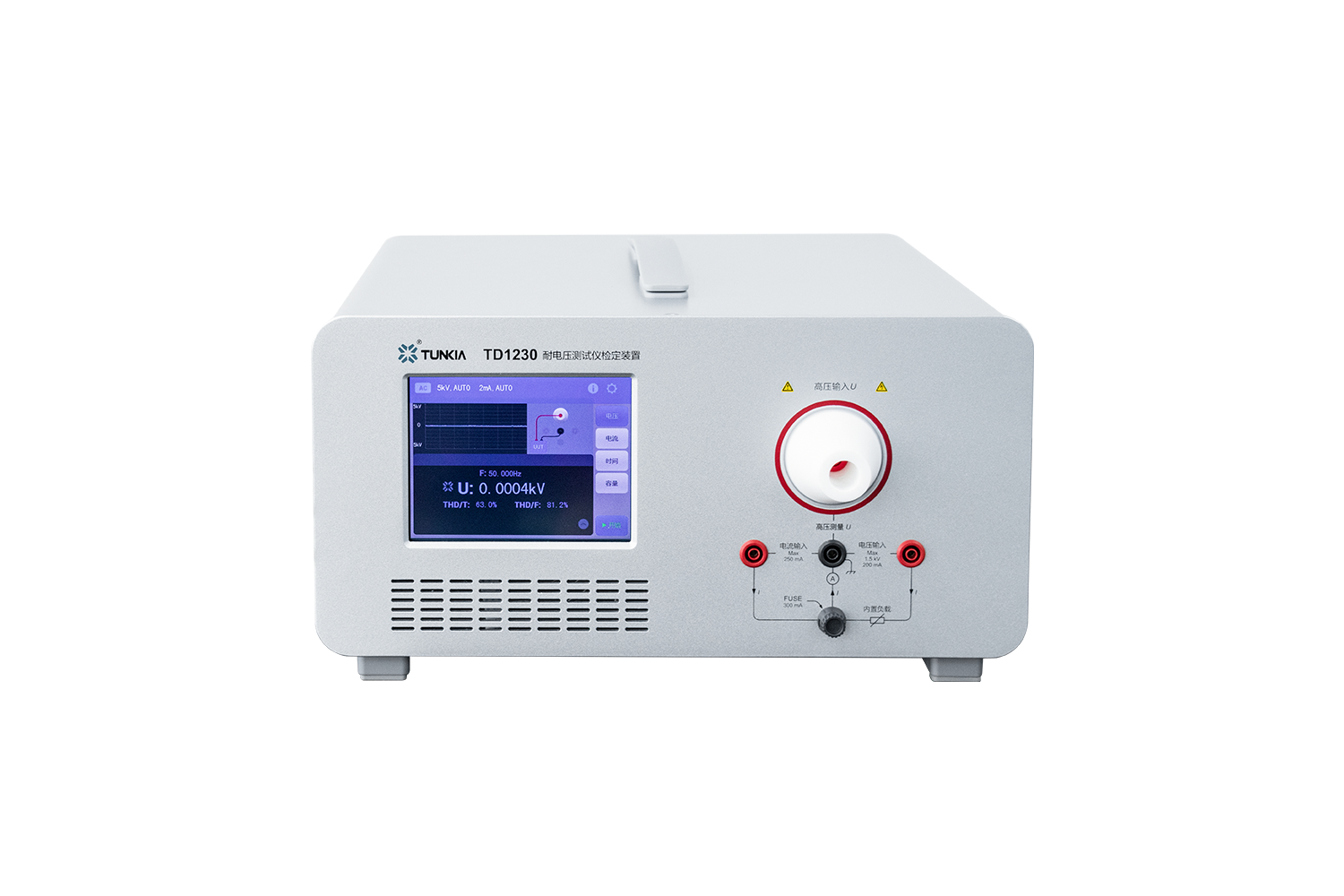

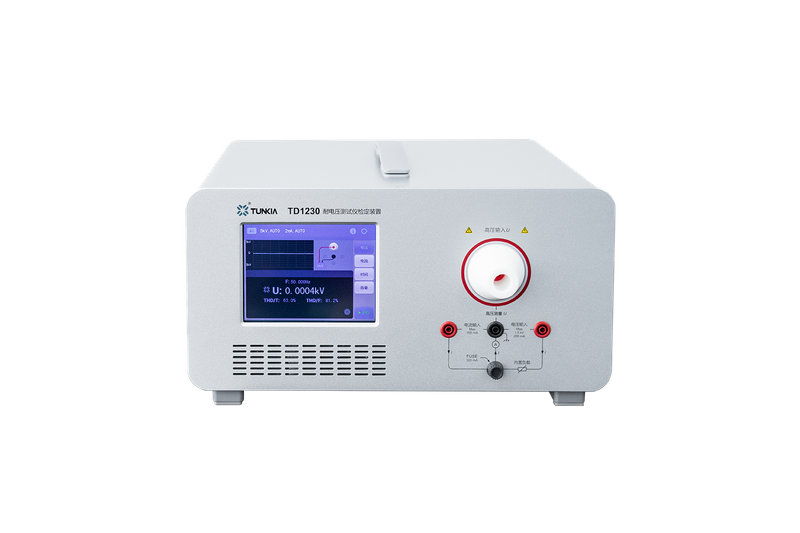

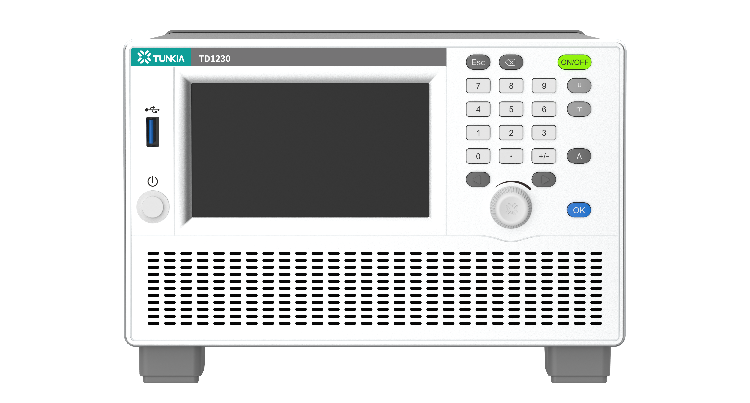

TD1230 Verification Device for Withstanding Voltage Tester

TD1230 applied to calibrate AC/DC withstanding voltage tester, withstanding voltage part of safety performance comprehensive tester, withstanding voltage part of insulation withstanding voltage tester and etc.
Features:
Availability:
Quantity:
  • TD1230

  • TUNKIA

TD1230 Verification Device for Withstanding Voltage Tester


TD1230 Testing Apparatus for Withstanding Voltage Tester

1. Summary

TD1230 applied to calibrate AC/DC withstanding voltage tester, withstanding voltage part of safety performance comprehensive tester, withstanding voltage part of insulation withstanding voltage tester and etc.


2. Features

AC/DC voltage measurement:100 V~15 kV.

AC/DC current measurement0.1 mA250 mA.

Distortion / Ripple function and voltage duration time test function.

Built-in adjustable resistive load with fineness of 1 .

Optional high power load box (TD1240) help calibrate the output capacity.

Oscilloscope and data statistical analysis function.

LCD touch screen.

Setting output values by keys.

Notification of wire connection.

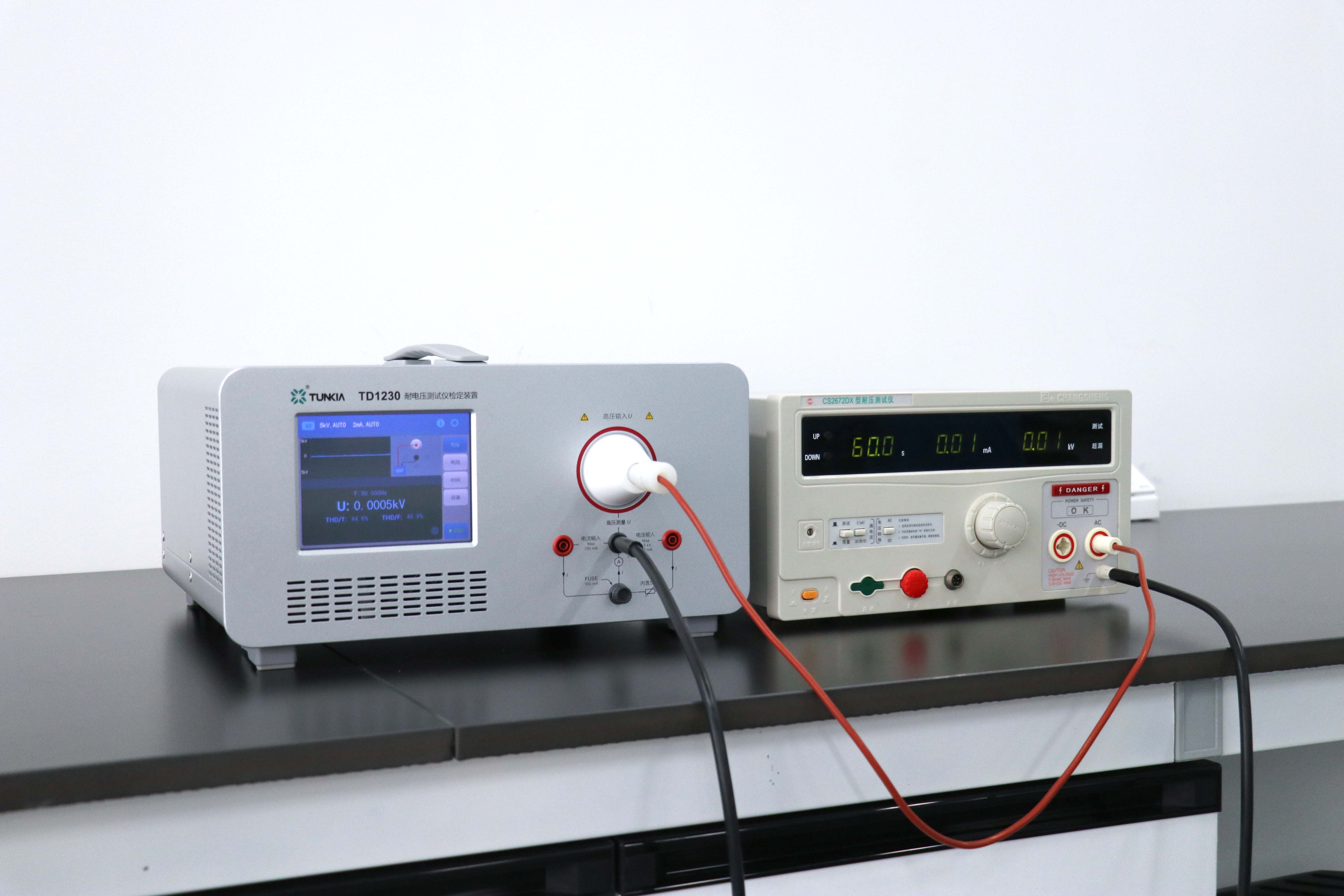

3. Applications

TD1230 Verification Device for Withstanding Voltage Tester tunkia


4. Characteristics


Connection Tips

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Calibrating the voltage required high input voltage UH; but for current, only required 0.1 UH.

Clear display connection tips to prevent failures or damage.


Waveform Display and Statistical Analysis

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Display waveform in real time, and analysis the waveform distortion.

Analysis the max, min, average and standard deviation etc.


Adjustable Resistors for the Verification of Current

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Adjustable load of 6 8MΩ with fineness of 1 , External load is also supported.

The max input voltage at the current measurement terminal can reach 1500 V.


Measurement of Distortion or Ripple

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Integrated distortion and ripple measurement functions can direct display.


Voltage Duration Time Measurement

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Testing Voltage duration time, the device automatically detects the output voltage of the tester, record the time from UStart to UStop.

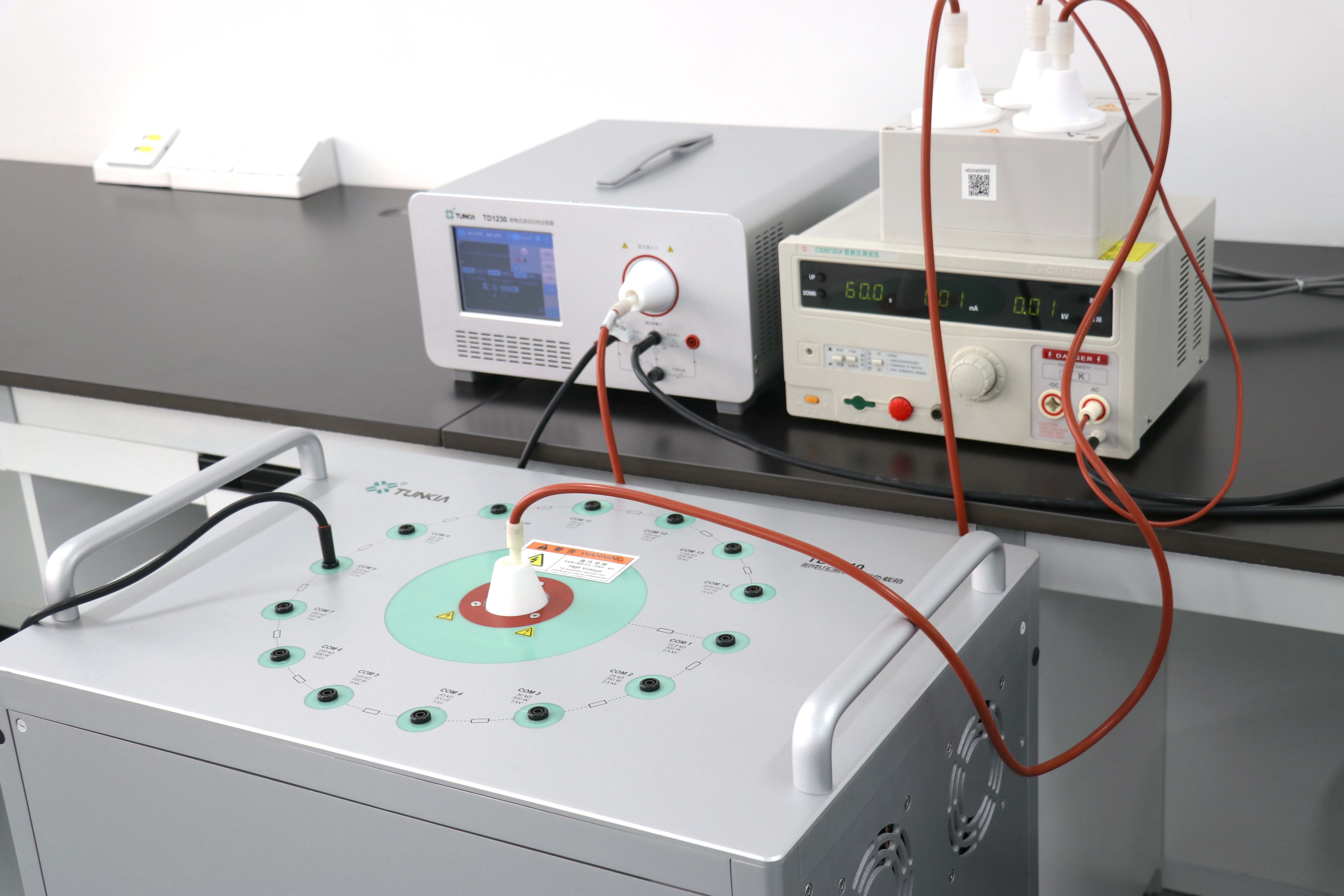

Optional High Power Load Box for Output Capacity

TD1230 Verification Device for Withstanding Voltage Tester tunkia

Optional TD1240 load box for withstanding voltage tester (or load box with other specifications) to verify the actual output capacity.


5. Specifications

5.1 AC/DC Voltage Measurement

Range

Resolution

Accuracy

±(ppm of reading + ppm of range) [1]

Class 0.5

Class 0.2

5 kV

0.1 V

4000 + 1000

1800 + 200

10 kV[2]

1 V

4000 + 1000

1800 + 200

15 kV[2]

1 V

4000 + 1000

1800 + 200

Note [1] : (ppm = parts per million) (e.g.10ppm = 0.001%).

Note [2]: 10 kV, 15 kV ranges are selectable

Measuring range: 100 V to 15 kV, 5-bit display, manual/automatic range switching

Input impedance: 50 MΩ, true RMS response for AC, average response for DC


5.2 AC/DC Current Measurement

Range

Resolution

Accuracy

±(ppm of reading + ppm of range) [1]

Class 0.5

Class 0.2

2 mA

0.1 μA

4000 + 1000

1800 + 200

20 mA

1 μA

4000 + 1000

1800 + 200

200 mA

10 μA

4000 + 1000

1800 + 200

Measurement range: 0.1 mA to 250 mA, 5-digit display, manual/automatic range switching

Built-in adjustable resistive load of 6 8MΩ with fineness of 1

True RMS response for AC, average response for DC


5.3 Other Functions

Parameters

Range

Resolution

Accuracy

AC Frequency

45 Hz65 Hz

0.1 Hz

± 0.2%

AC Voltage Distortion

0.5%10%

0.01%

± 0.5%

DC Voltage Ripple

0.1%30%

0.01%

± 0.2%

Voltage Duration Time

0.1 s1000 s

0.001 s

AC± (0.2%*RD + 2 periods)

DC± (0.2%*RD + 40 ms)


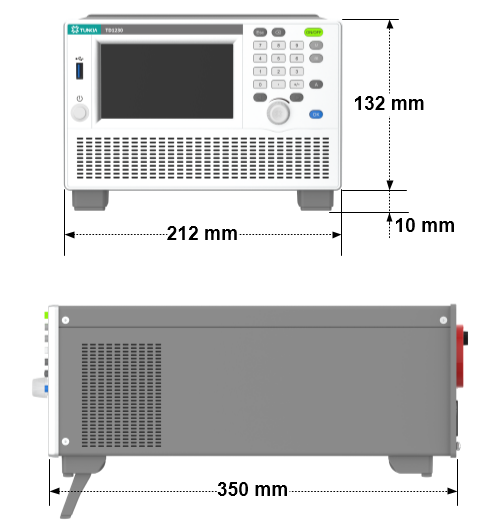

6. General Specifications

Power Supply

AC ( 220 ± 22 ) V( 50 ± 2 ) Hz

Temperature Performance

Working temperature0℃~45;

Storage temperature-20~70

Humidity Performance

Working humidity< 80% @ 30< 70% @ 40< 40% @ 50

Storage humidity(20%~80%) R·Hnon-condensing

Interface

RS232


7. Ordering Information

TD1230 Verification Device for Withstanding Voltage Tester tunkia


TUKIA TD1230 Withstanding Voltage Tester Calibration Device  TUKIA TD1230 Withstanding Voltage Tester Calibration Device


TUKIA TD1230 Withstanding Voltage Tester Calibration Device  TUKIA TD1230 Withstanding Voltage Tester Calibration Device
