TH0240 Resistance Multiplexer

TH0240 is a precise resistance channel-switch device, integrates ultra sensitive, high efficiency, polarized sealed relay, which can eliminate the self-heating effect in the relay. TH0240 improves the efficiency by eliminating the need to continually change leads when measuring groups of resistors.

Availability:

Quantity:



Inquire Add to Basket

Model:
TH0240
Brand:
TUNKIA

TH0240 Standard Resistance Multiplexer

1. Summary

TH0240 is a precise resistance channel-switch device, integrates ultra sensitive, high efficiency, polarized sealed relay, which can eliminate the self-heating effect in the relay. TH0240 improves the efficiency by eliminating the need to continually change leads when measuring groups of resistors.

2. Features

• 10 four terminal channels.

• Sealed Relays with 3 A carrying capacity.

• Copper tellurium terminal.

• Insulation resistance> 1012 Ω.

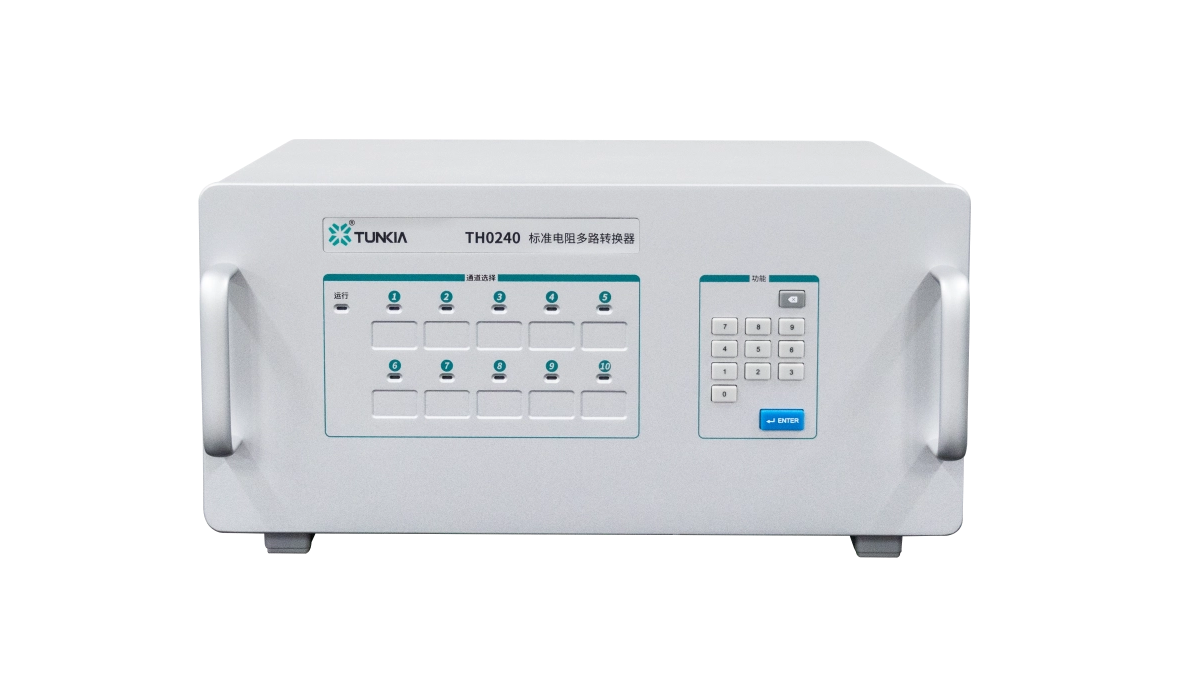

• The LED indicator on front panel is convenient for observing the selected channel.

• Front Panel or RS232 interface.

3. Application

☆ Establish automatic resistance measurement system

TH0240 Establish automatic resistance measurement system

• Multiple (up to 10) standard resistors.

• The channel of reference standard resistance can be automatically switched according to the value of measured resistance.

TH0200 Electrical Resistance Measuring Device

TH0210 Electrical Resistance Measuring Device

Wiring	Four terminal
Terminal type	Tellurium copper

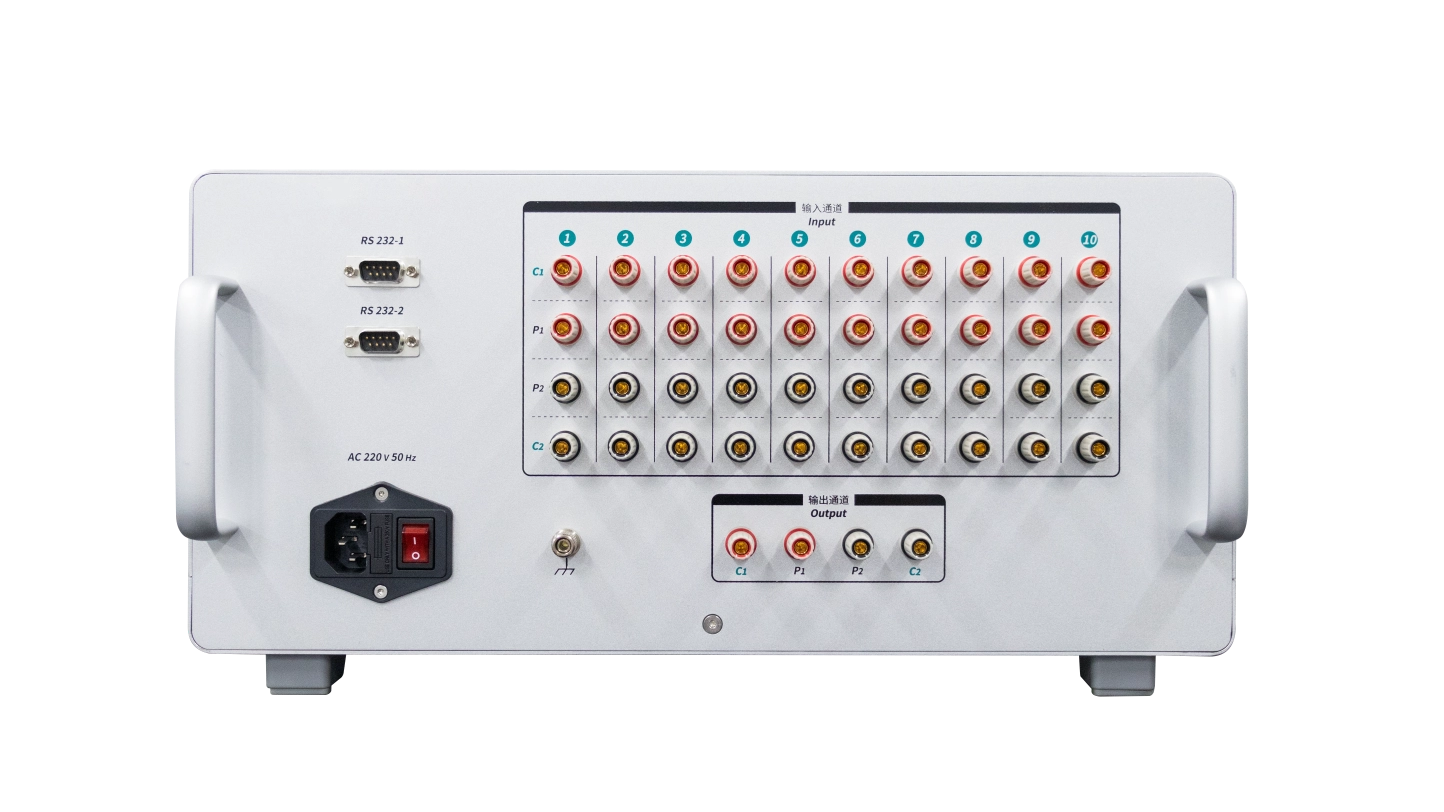

Input channel	10 channels (rear panel)
Output channel	Single channel (rear panel)
Thermal EMF’s	< 50 nV
Error contribution	< 20 nV
Max carrying/switching current	3 A @ 30 V（DC）
Contact resistance	< 0.05 Ω
Communication interface	RS232

Power supply	AC ( 220±22 )V,( 50±2 ) Hz
Warm up time	≥ 30 min
Temperature performance	Operating temperature: (23±5) °C ~ 45°C； Storage temperature: 0°C ~ 40°C
Humidity performance	Operating humidity: ( 20% ~ 85% ) R·H, No condensation; Storage humidity: < 95% R·H, No condensation;
Communication interface	RS232
Weight	About 6.5 kg
Dimensions	380 mm(W)X 260 mm(D)X 200 mm(H)

Wiring	Four terminal
Terminal type	Tellurium copper
Input channel	10 channels (rear panel)
Output channel	Single channel (rear panel)
Thermal EMF’s	< 50 nV
Error contribution	< 20 nV
Max carrying/switching current	3 A @ 30 V（DC）
Contact resistance	< 0.05 Ω
Communication interface	RS232

Power supply	AC ( 220±22 )V,( 50±2 ) Hz
Warm up time	≥ 30 min
Temperature performance	Operating temperature: (23±5) °C ~ 45°C； Storage temperature: 0°C ~ 40°C
Humidity performance	Operating humidity: ( 20% ~ 85% ) R·H, No condensation; Storage humidity: < 95% R·H, No condensation;
Communication interface	RS232
Weight	About 6.5 kg
Dimensions	380 mm(W)X 260 mm(D)X 200 mm(H)
