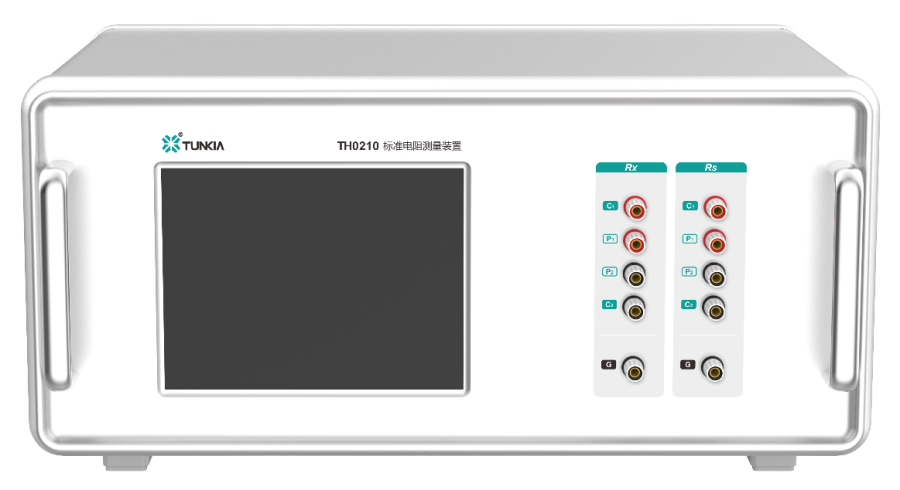

TH0210 Standard Resistance Measuring Device

Name: TH0210 Standard Resistance Measuring Device
Brand: TUNKIA
Rating: 5.0 (50 reviews)

Tunkia TH0210 Standard Resistance Measuring Device

1. Summary

TH0210 is a direct-current-comparator bridge designed for the automatic measurement and display of the ratio of two resistances to high accuracy. It’s applied for the measurement, comparison, transmission, verification of standard resistance.

2. Features

• Current output: 100 μA ~ 3.2 A.

• Resistance measurement: 1 mΩ ~ 100 kΩ (wider resistance range can be customized).

• Resistance measurement uncertainty: 0.5 ppm ~ 3 ppm (external primary standard resistance)

• Typical test cycle: about 4.5 min/time.

• The typical value of constant current output stability is 2 ppm/min.

• RS232 and LAN interfaces.

• LCD touch screen.

• Statistical analysis.

• Dedicated software(optional).

3. Applications

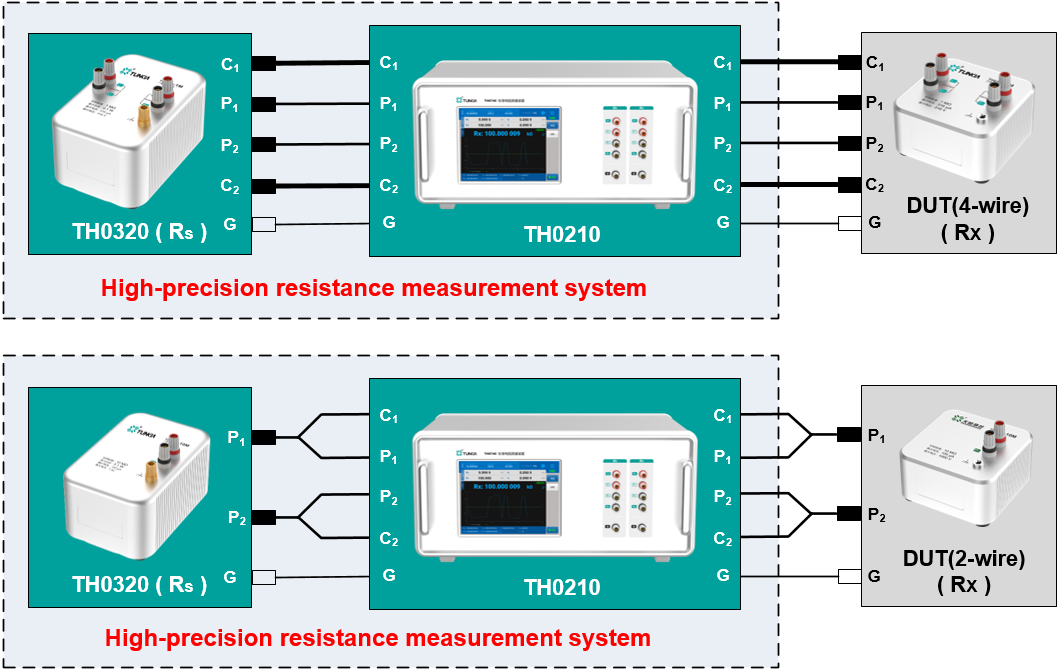

☆ Calibrate Primary/Secondary Standard Resistor (4-wire/2-wire)

Tunkia TH0210 Standard Resistance Measuring Device

• Based on the measurement principle of a DC comparator bridge, the instrument accurately compares the resistance under test with a reference standard resistor.

• For resistances R ≥ 100 kΩ, the 2-wire method is recommended.

• For resistances R ≤ 10 kΩ, the 4-wire method is recommended.

• (The 4-wire method effectively eliminates errors caused by lead resistance, improving measurement accuracy.)

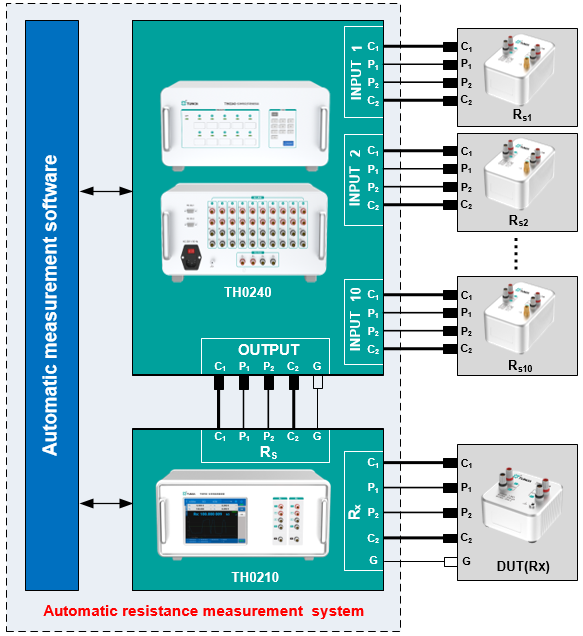

☆ Establish automatic resistance measurement system

Tunkia TH0210 Standard Resistance Measuring Device

• Multiple (up to 10) standard resistors.

• The channel of reference standard resistance can be automatically switched according to the value of measured resistance.

4. Characteristic

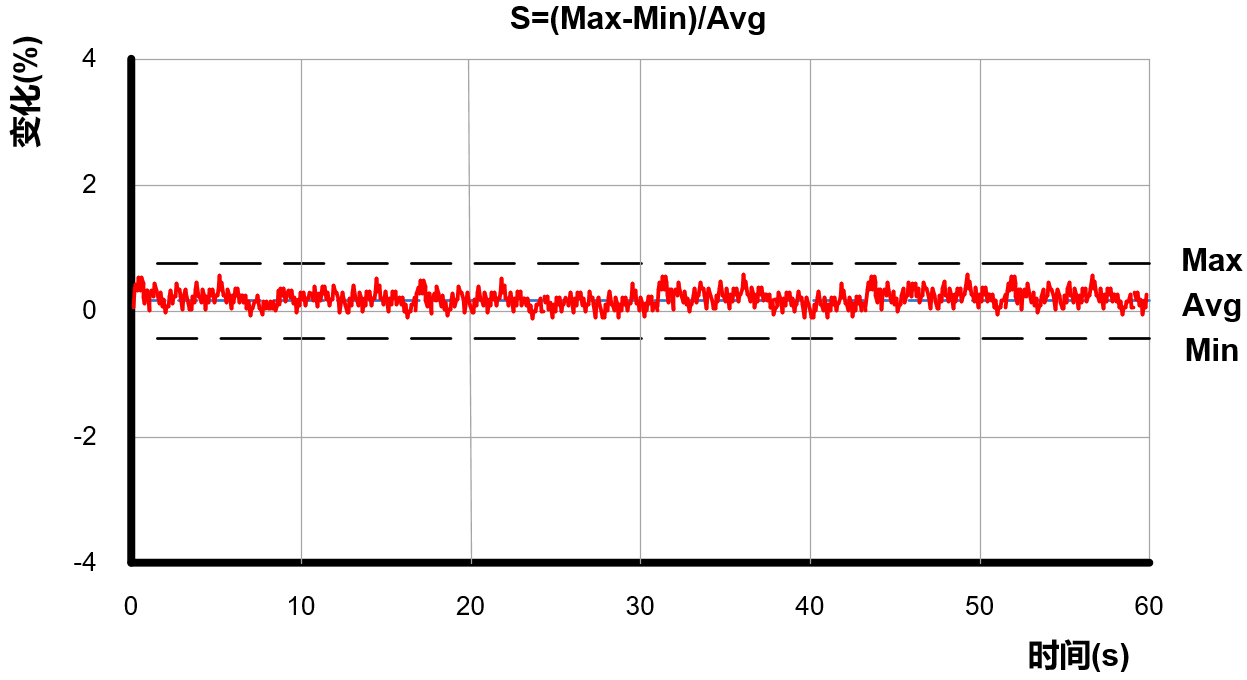

☆ High Stability of Output Current

Tunkia TH0210 Standard Resistance Measuring Device

• The typical stability of DC current output reaches 2 ppm/min.

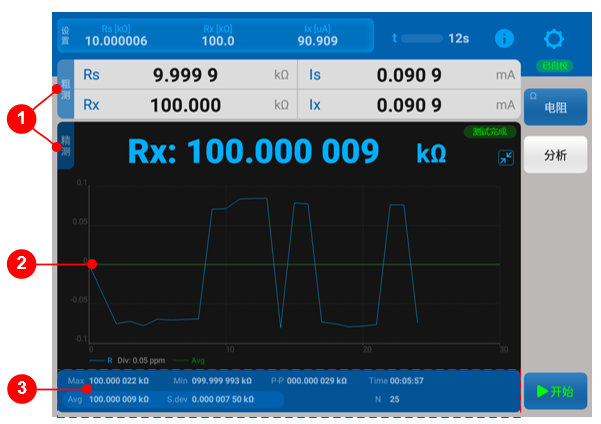

☆ Statistical Analysis

S/N	Description
	The instrument adopts the measurement method of rough and precise measurement, to avoid the damage of mistake operation.
	Display the trend of resistor measurements.
	Automatically conduct comprehensive data analysis, and display the result value on the LCD screen.

☆ High Accuracy of Resistance Test
Rx = K × Rs K——The ratio of the measured resistance to the reference standard resistance is directly measured and displayed by the instrument; Rs——Reference standard resistance value； ※ It is recommended to use Tunkia TH0320 series primary standard resistor as the reference resistor

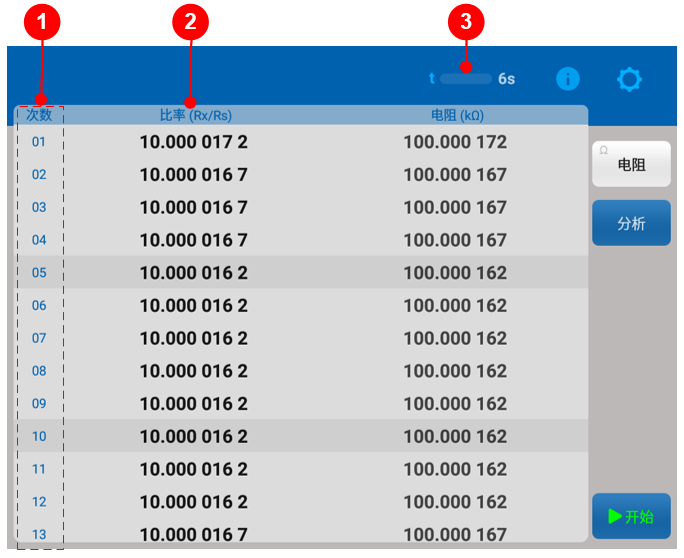

S/N	Description
	A complete test involves precisely measuring 20 data points to ensure the accuracy of the final result
	The ratio K between the resistance under test and the reference standard resistor is displayed, enabling users to evaluate the measurement results easily.
	Each data point is measured in 6 seconds, resulting in a total test duration of 4.5 to 8 minutes per cycle.

5. Appearance

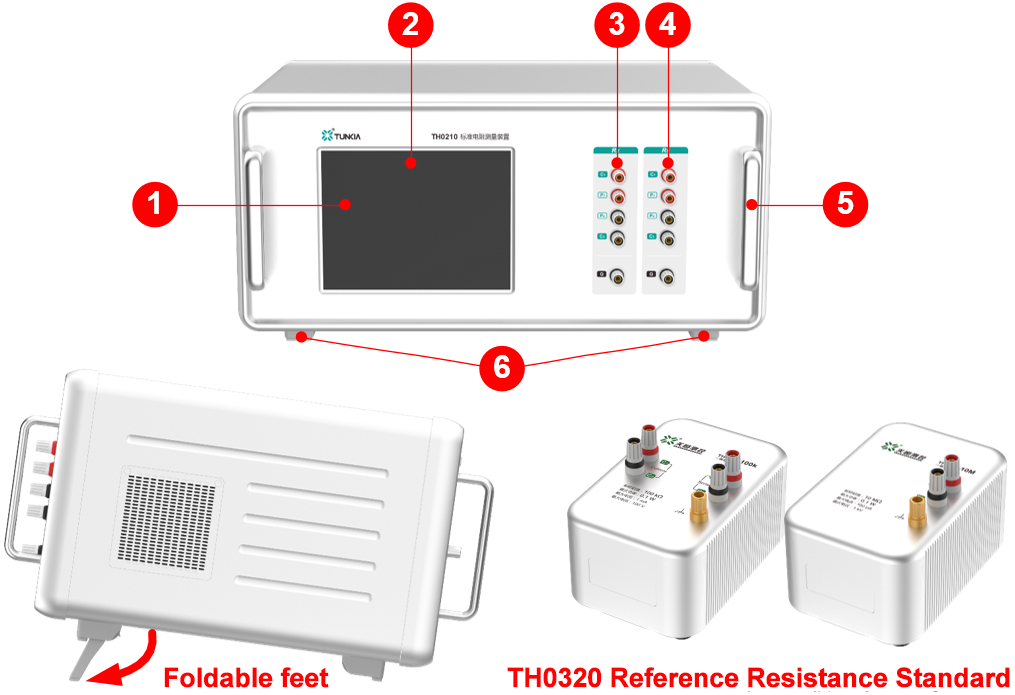

☆ Front Panel

S/N	Description
	Ergonomic and durable handle, designed for easy transportation of the instrument.
	Large LCD touch screen with full-color display, providing intuitive visualization of multiple electrical parameters and waveforms.
	Rx terminals for the resistance under test, supporting four-wire measurement and grounding.
	Rs terminals for the reference standard resistor, also supporting four-wire measurement and grounding.
	Low thermal EMF resistor terminals, minimizing temperature-induced errors for improved measurement accuracy.
	Foldable support stand

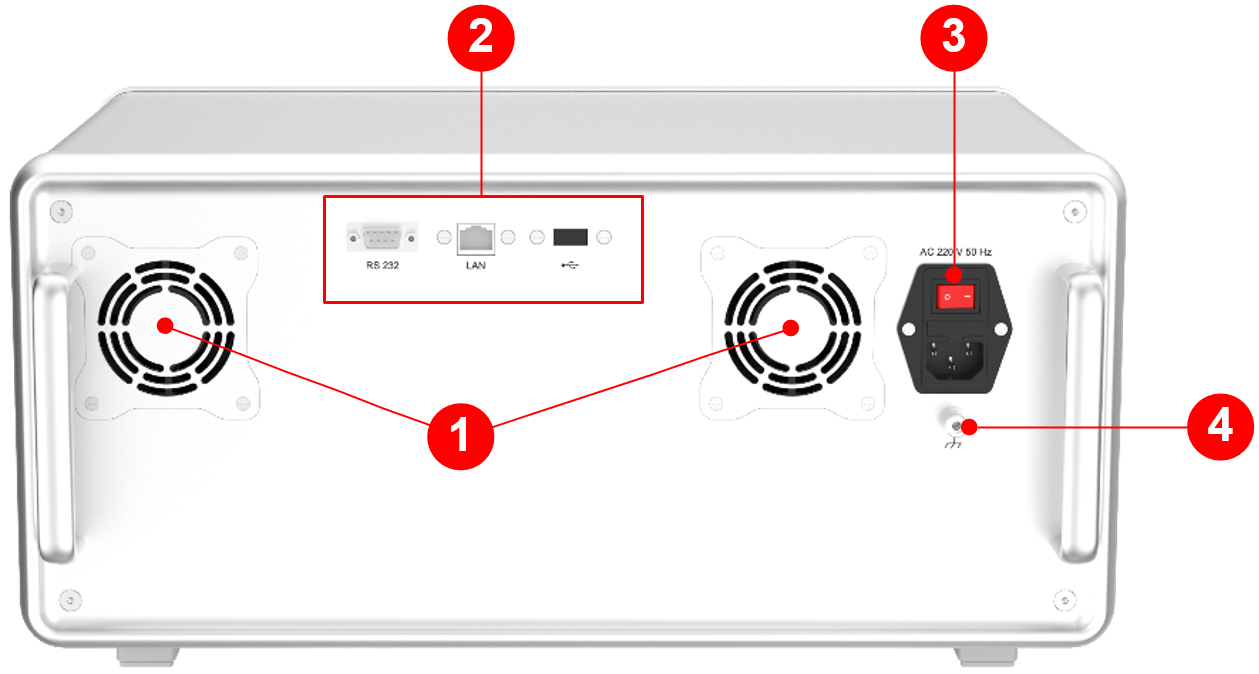

☆ Rear Panel

S/N	Description
	High-power cooling fan: Efficient thermal management ensures long-term stable operation of the instrument.
	Versatile communication interfaces: Includes RS232, USB, and LAN ports for easy integration into fully automated test systems.
	Power input interface: AC 220V input with built-in switch and fuse for safe and reliable operation.
	Chassis ground: Ensure the chassis is properly grounded before using the device.

6. Specifications

Resistance Under Test	Resolution	Reference Resistor	Nominal Ratio	Test Current	Test Power	Measurement Uncertainty (k=2, μΩ / Ω)
1 mΩ	10 pΩ	1 Ω	0.001:1	3.16 A	10 mW	3
10 mΩ	100 pΩ	1 Ω	0.01:1	1 A	10 mW	2
100 mΩ	1 nΩ	1 Ω	0.1:1	316 mA	10 mW	1
1 Ω	10 nΩ	1 Ω	1:1	100 mA	10 mW	0.5
1 Ω	10 nΩ	10 Ω	0.1:1	100 mA	10 mW	0.5
10 Ω	100 nΩ	1 Ω	10:1	31.6 mA	10 mW	0.5
		10 Ω	1:1
		100 Ω	1:10
100 Ω	1 μΩ	10 Ω	10:1	10 mA	10 mW	0.5
		100 Ω	1:1
		1 kΩ	1:10
1 kΩ	10 μΩ	100 Ω	10:1	3.16 mA	10 mW	0.5
		1 kΩ	1:1
		10 kΩ	1:10
10 kΩ	100 μΩ	1 kΩ	10:1	1 mA	10 mW	1.5
10 kΩ	100 μΩ	10 kΩ	1:1	1 mA	10 mW	1.5
100 kΩ	1 mΩ	10 kΩ	10:1	1.%2 mA	1 mW	2.5

7. General Specifications

Power supply	AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz;
Warm up time	Not less than 1 hour. After shutting down halfway, the preheating time should be not less than 2 times of the shutdown time.
Maximum power consumption	100 VA
Temperature performance	Operating temperature: 18 °C ~ 28 °C； Storage temperature: -20 °C ~ 60 °C；
Humidity performance	Operating humidity: (20 % ~ 50%) R·H, non-condensing； Storage humidity: (15 % ~ 80%) R·H, non-condensing；
Weight	About 22.5 kg
Communication interface	RS232, LAN
Dimensions	485 mm(W)355 mm(D)220 mm(H) (Excluding handles and feets）

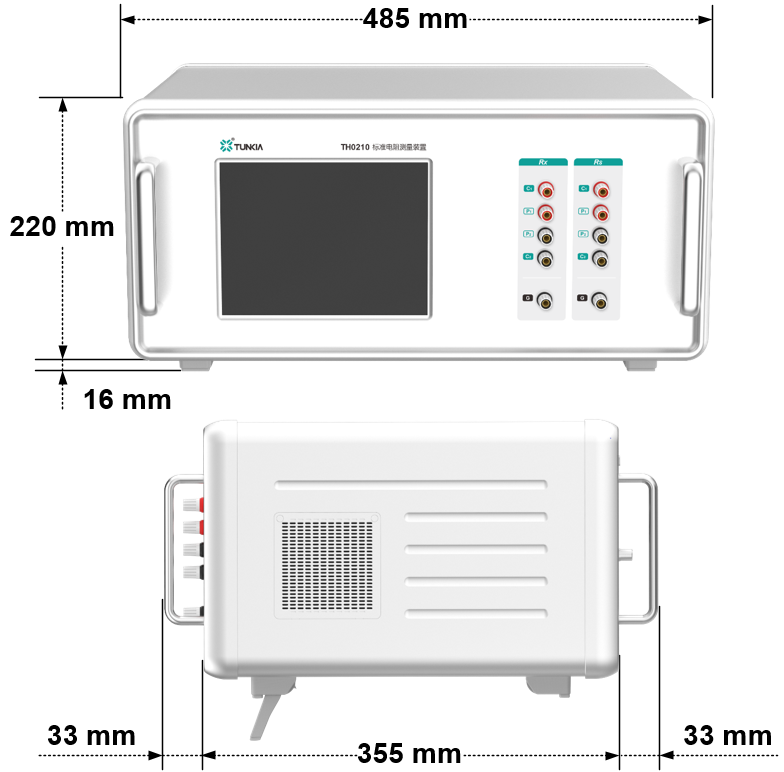

Dimensions

TH0210 Standard Resistance Measuring Device

TH0210 Standard Resistance Measuring Device

TH0210 Standard Resistance Measuring Device

TH0210 Standard Resistance Measuring Device
