TH0400 Precision Coaxial Shunt

TH0400 is a series of 14 precision coaxial shunt devices of different range. It can convert the nominal input current from 1 mA to 100 A into a small voltage of 1 V to realize wideband current measurement. It is suitable for calibrating wideband current sources, transformers, sensors, etc.
Availability:
Quantity:
  • TH0400

  • TUNKIA

TH0400 Precision Coaxial Current Shunt

TH0400 Precision Coaxial Current Shunt

1. Summary

TH0400 is a series of 14 precision coaxial shunt devices of different range. It can convert the nominal input current from 1 mA to 100 A into a small voltage of 1 V to realize wideband current measurement. It is suitable for calibrating wideband current sources, transformers, sensors, etc.


2. Features

Operating frequency: DC ~ 100 kHz

AC/DC difference: ≤ 30 ppm@53 Hz

Optimum phase displacement: 5 μrad

Nominal output voltage: 1 V (other voltage values can be customized)

Annual variation: typical value is 5 ppm, maximum value is 18 ppm

Can withstand the instantaneous current impact

1 mA, 10 mA specifications can be equipped with buffer.


3. Applications

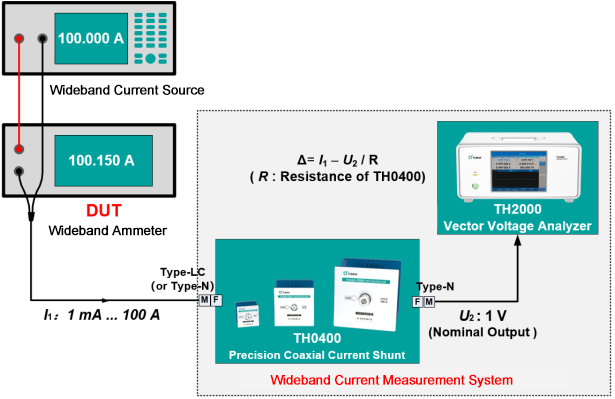

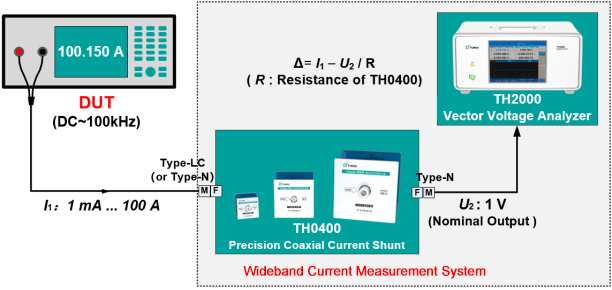

Build Wide Frequency Current Measurement System

 TH0400 Build Wide Frequency Current Measurement System

TH0400 Build Wide Frequency Current Measurement System

        Set up wideband current measurement system with wideband current source and wideband standard voltmeter (such as TH2000 vector voltage analyzer), measure wideband current signal, and calibrate wideband current source and wideband ammeter, etc.

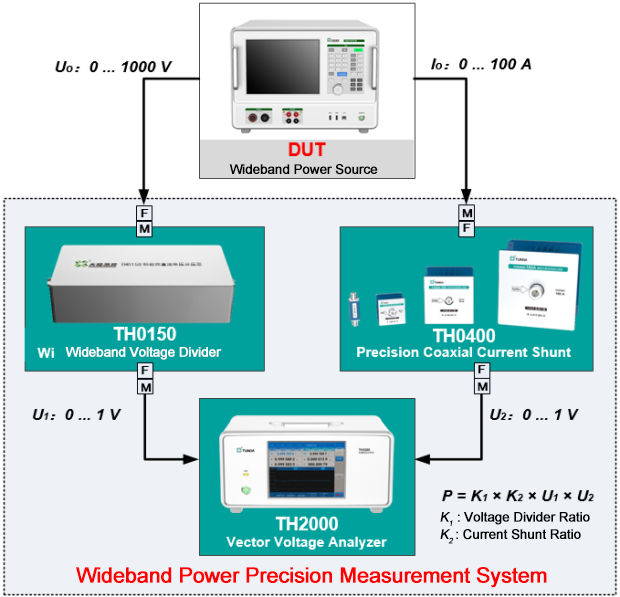

Build Wide Frequency Power/Energy Precision Measurement System

TH0400 Build Wide Frequency Power/Energy Precision Measurement System

Set up wideband power/energy precision measurement system with wideband I/V conversion standard (such as TH0150 wideband voltage divider) and TH0200 vector voltage analyzer, measure wideband power/energy signal, calibrate wideband power source, wideband power meter, power analyzer and other equipment.

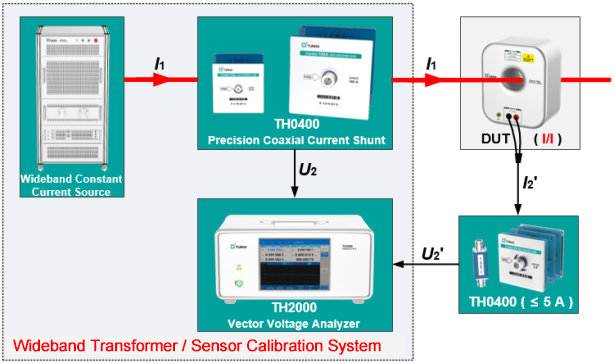

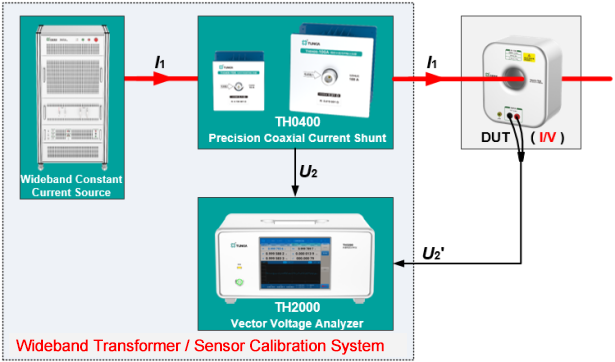

Build Wide Frequency Transformer/Sensor Calibration System

TH0400 Build Wide Frequency Transformer/Sensor Calibration System

TH0400 Build Wide Frequency Transformer/Sensor Calibration System

Set up a wideband transformer/sensor measurement system with a wideband constant-current source and a wideband sensor tester (such as TH2000 vector voltage analyzer) to calibrate the tested transformer or sensor with nominal current ≤ 100 A.

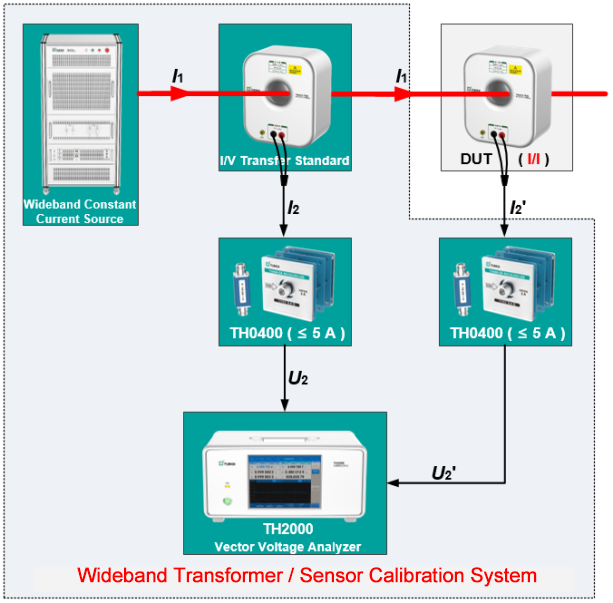

Build Wide Frequency Transformer/Sensor Calibration System

For the calibration of transformer/sensor whose nominal current is greater than 100 A, TH0400 is used as the secondary signal I/V converter of the standard and equipment under inspection, and a wideband constant current source and wideband sensor tester (such as TH2000 vector voltage analyzer) are used to build a wideband transformer/sensor measurement system.


4. Specifications

4.1 Resistance Specification

Specification

Nominal resistance ( Ω )

Initial deviation [1]

(±μΩ/Ω )

@ (23±1)°C

Annual

Stability

( ±μΩ/Ω )

Temperature coefficient ( ppm/K )

Power factor [2]

( ±ppm/Rated power )

TH0400-1mA

1000

50

18

2.5

1

TH0400-10mA

100

50

18

2.5

1

TH0400-20mA

50

50

18

2.5

1

TH0400-50mA

20

50

18

2.5

1

TH0400-100mA

10

50

18

2.5

2

TH0400-200mA

5

50

18

2.5

4

TH0400-500mA

2

50

18

2.5

12

TH0400-1A

1

50

18

4.0

25

TH0400-2A

500 m

50

18

4.0

25

TH0400-5A

200 m

50

18

4.0

30

TH0400-10A

100 m

50

18

4.0

60

TH0400-20A

50 m

50

18

4.0

75

TH0400-50A

20 m

50

18

4.5

100

TH0400-100A

10 m

50

18

4.5

100

Note [1]: The initial deviation is the maximum offset of the resistance under DC condition, usually the manufacturer's guaranteed value; Higher precision can be customized according to user requirements, such as 20 μΩ/Ω.

Note [2]: When the coaxial shunt is used to measure DCI, the resistance's own heat will lead to the change of resistance value under different input currents, thus introducing the error. The calculation formula is as follows:

γ= power coefficient × [1-(current measurement/nominal current value)^2]


4.2 Current Measurement

Specification


Nominal input current ( A )


Nominal Output current ( V )


AC/DC difference[3] ( ±ppm )

Maximum

operating current( A )


Instantaneous current

( A, <5 s )


50 Hz

1 kHz

100 kHz

TH0400-1mA

1 m

1

25

50

150

2m

3m

TH0400-10mA

10 m

1

20

25

50

20m

150m

TH0400-20mA

20 m

1

20

25

50

40m

250m

TH0400-50mA

50 m

1

20

25

50

100m

500m

TH0400-100mA

100 m

1

20

25

25

200m

1.5

TH0400-200mA

200 m

1

20

25

25

500m

2

TH0400-500mA

500 m

1

20

25

25

1

3

TH0400-1A

1

1

20

25

30

1.5

4

TH0400-2A

2

1

20

30

50

2.5

6

TH0400-5A

5

1

20

30

80

5.5

20

TH0400-10A

10

1

20

30

100

11

30

TH0400-20A

20

1

20

30

100

22

50

TH0400-50A

50

1

30

50

150

55

100

TH0400-100A

100

1

30

50

500

110

200

Note [3]: The measured value of AC current should be calculated according to the following formula, and the unit of the difference between AC and DC is ppm:

Ac current measurement value =(voltage measurement value/calibration resistance value)*(1+ AC-DC difference /(1 000 000))


4.3 Phase Displacement

Specification


Phase Displacement ( ±μrad )

53 Hz

400 Hz

1 kHz

10 kHz

50 kHz

100 kHz

TH0400-1mA

10

10

15

100

500

1000

TH0400-10mA

5

5

10

100

400

800

TH0400-20mA

5

5

10

100

400

800

TH0400-50mA

5

5

10

100

400

800

TH0400-100mA

5

5

10

60

300

500

TH0400-200mA

5

5

10

60

300

500

TH0400-500mA

5

5

10

60

300

500

TH0400-1A

5

5

10

60

300

500

TH0400-2A

10

10

15

110

500

1000

TH0400-5A

10

15

25

200

1000

2000

TH0400-10A

10

20

40

300

1500

3000

TH0400-20A

10

25

50

400

2000

4000

TH0400-50A

10

30

65

500

2500

5000

TH0400-100A

20

40

80

600

3000

6000


5. General Specifications

Power supply

——

Temperature performance

Operating temperature: 13 °C ~ 33°C;

Calibration temperature: 18°C~28°C;

Storage temperature: 5°C to 45 °C

Note: When stored in a harsh temperature environment, the resistance value may change temporarily and be restored to the original resistance value within the following 30 days.

Humidity performance

Operating humidity: < 50% R·H

Storage humidity :(15%~80%) R·H, no condensation

Connection mode

Input connection:

1 mA~20 A specifications using Type-N female plug;

Type-LC female plug for 50 A and 100 A specification;

Connection mode of TH0400

Output connection: All specifications use Type-N female plugs.


Specification

Size (mm) (W * D * H)

(excluding terminals)

Weight

( kg )

Size chart

TH0400-1mA

TH0400-10mA

TH0400-20mA

TH0400-50mA

90 *25 *25

0.1

size of TH0400 1mA-50mA

TH0400-100mA       TH0400-200mA

TH0400-500mA

TH0400-1A

TH0400-2A

TH0400-5A

110*70 *70

0.2

size of TH0400 100mA-5A

TH0400-10A

TH0400-20A

180*130*130

1

size of TH0400 10A&20A

TH0400-50A TH0400-100A

260*200*200

2.5

size of TH0400 50A&100A



6. Ordering Information

 TH0400 Ordering Information















Specification

Nominal current

TH0400-1mA

1 mA

TH0400-10mA

10 mA

TH0400-20mA

20 mA

TH0400-50mA

50 mA

TH0400-100mA

100 mA

TH0400-200mA

200 mA

TH0400-500mA

500 mA

TH0400-1A

1 A

TH0400-2A

2 A

TH0400-5A

5 A

TH0400-10A

10 A

TH0400-20A

20 A

TH0400-50A

50 A

TH0400-100A

100 A
