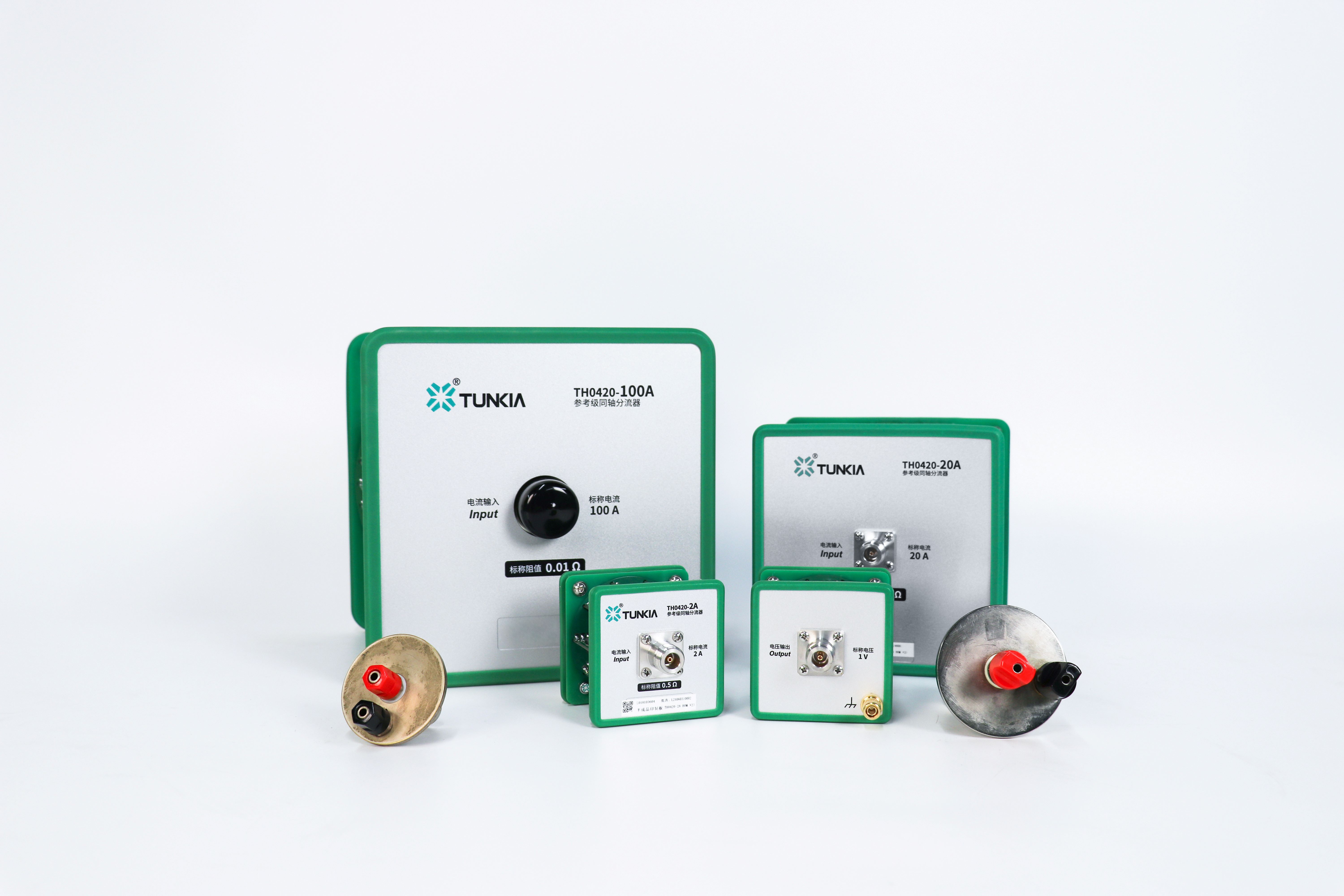

TH0420 is a set of precision coaxial shunts with ultra-low power coefficients. Each set includes 12 different current range specifications, capable of converting nominal currents from 0.1 A to 500 A into nominal voltage outputs of 1 V or 0.5 V.

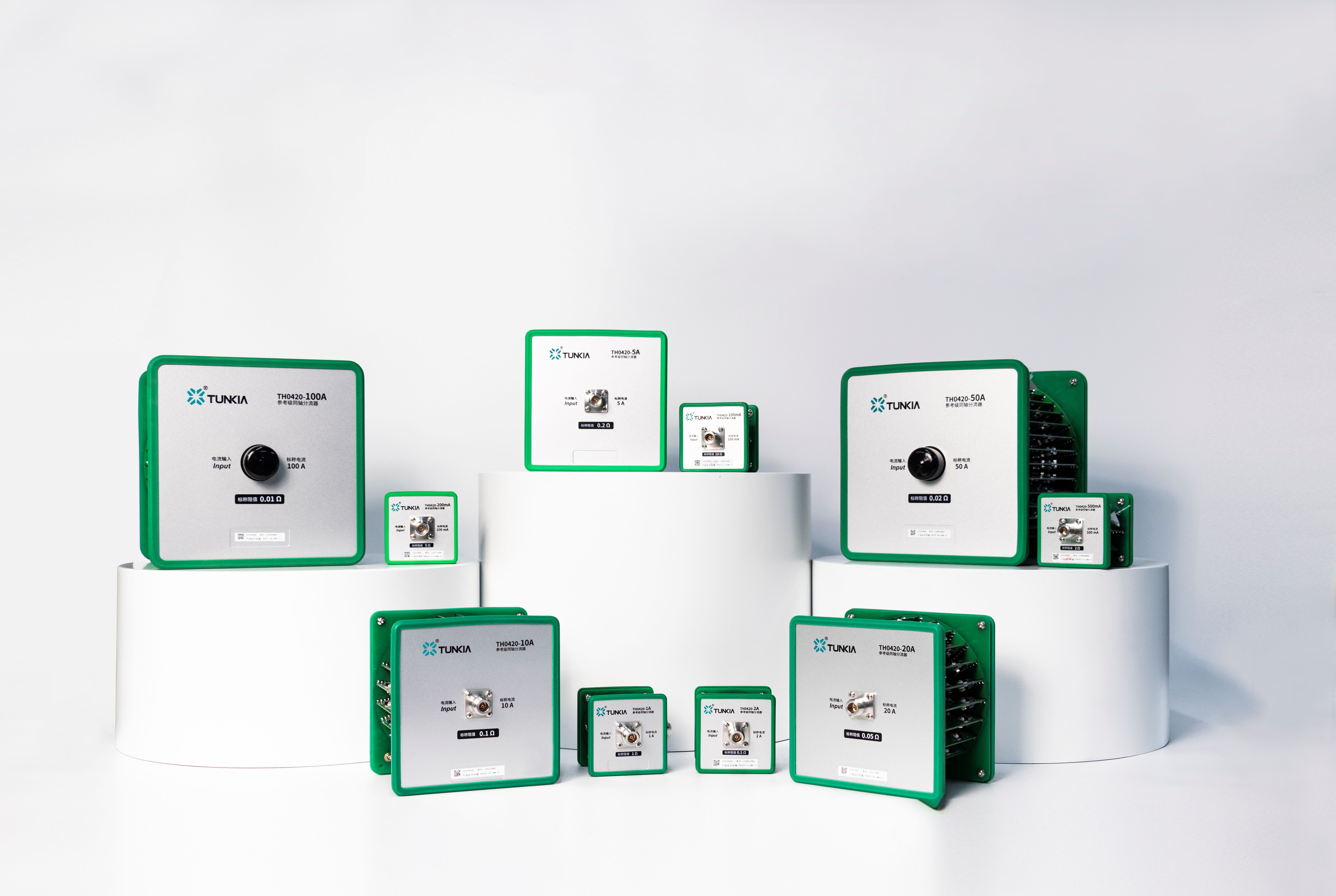

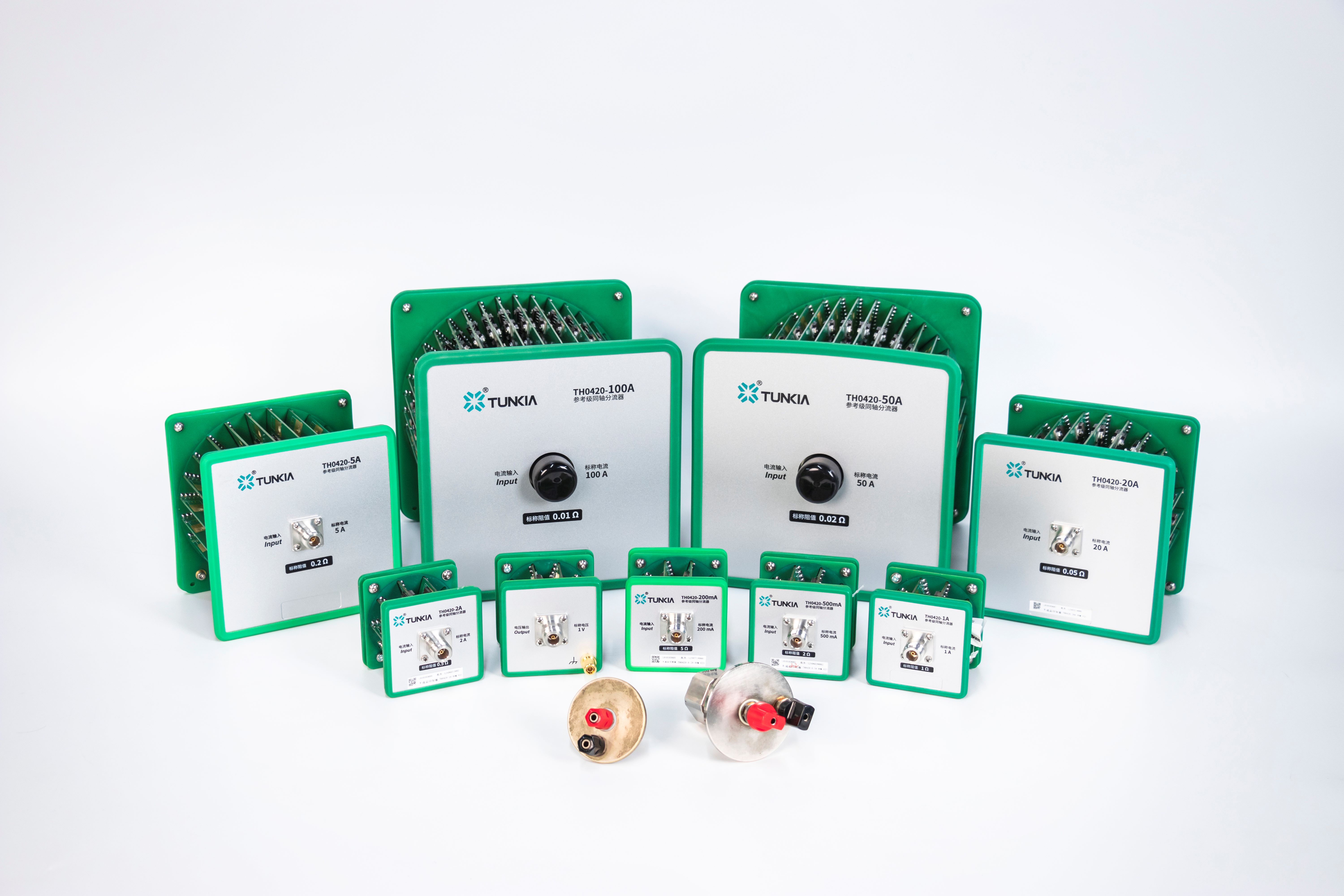

1. Summary of TH0420 Reference Coaxial Current Shunt
TH0420 is a set of precision coaxial shunts with ultra-low power coefficients. Each set includes 12 different current range specifications, capable of converting nominal currents from 0.1 A to 500 A into nominal voltage outputs of 1 V or 0.5 V.
TH0420 features an ultra-low power coefficient—for example, the power coefficient of the TH0420-100A does not exceed 10 ppm even when operating at 100 W, making it highly suitable for fast measurements of a wide range of AC and DC currents.
2. Features of TH0420 Reference Coaxial Current Shunt
Typical Annual Drift: 5 ppm; Maximum Annual Drift: 16 ppm
Ultra-low Power Coefficient
Extremely Low Self-heating Power Coefficient and Temperature Coefficient
High Current Carrying Capacity
Capable of Withstanding Instantaneous Current Surges
Designed with Efficient Heat Dissipation Structure
3. Applications of TH0420 Reference Coaxial Current Shunt

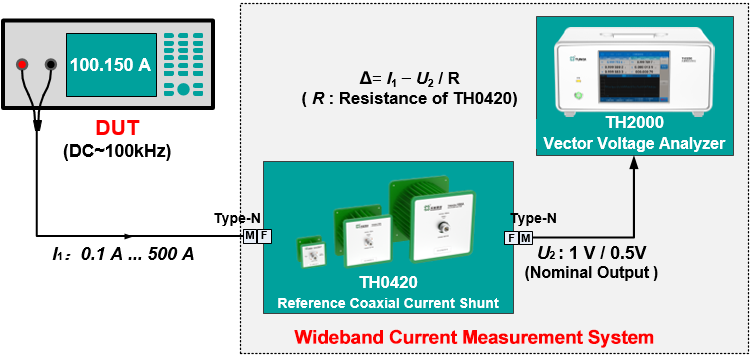

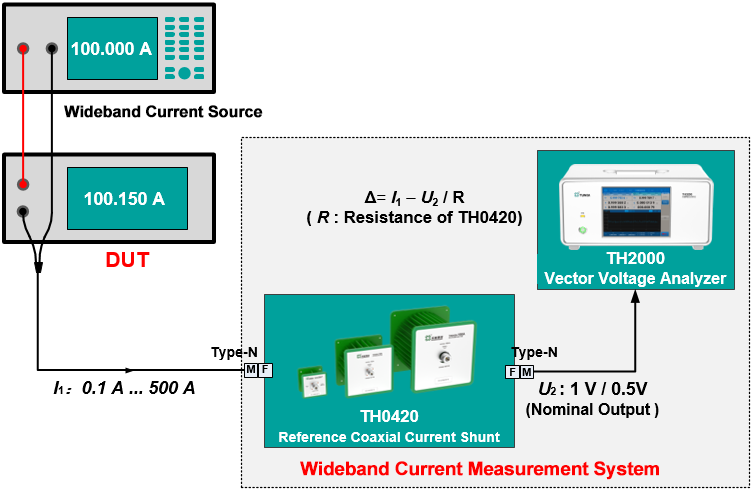

☆ Build Wideband Current Measurement System
Set up wideband current measurement system with wideband current source and wideband standard voltmeter (such as TH2000 vector voltage analyzer), measure wideband current signal, and calibrate wideband current source and wideband ammeter, etc.

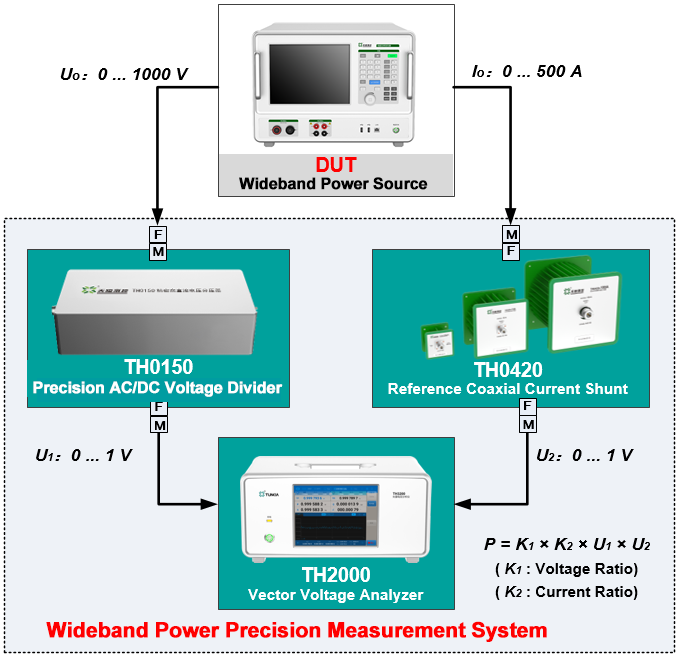

☆ Build Wideband Power/Energy Precision Measurement System
Set up wideband power/energy precision measurement system with high frequency V/V conversion standard and TH2000 vector voltage analyzer, measure wideband power/energy signal, calibrate wideband power source, wideband power meter, power analyzer and other equipment.

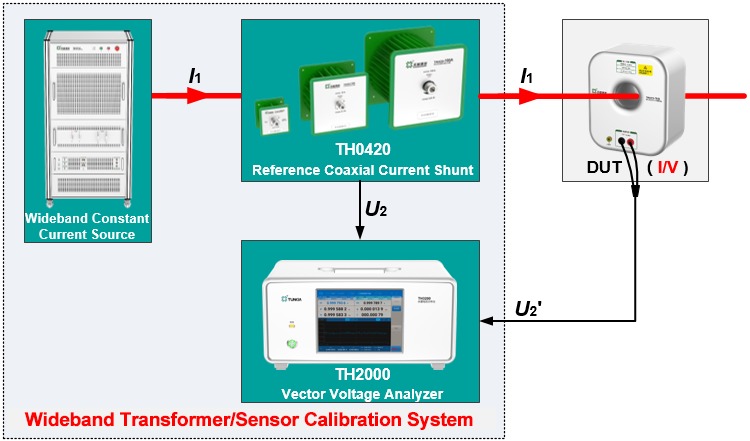

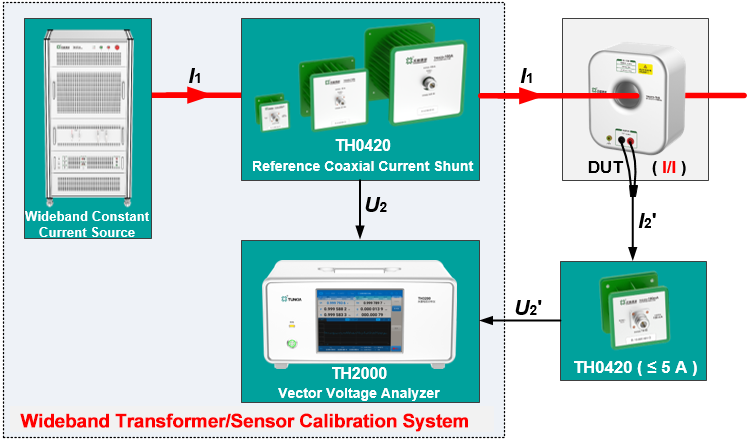

☆ Build Wideband Transformer/Sensor Calibration System
Set up a wideband transformer/sensor measurement system with wideband constant-current source and wideband sensor tester (such as TH2000 vector voltage analyzer) to calibrate the tested transformer or sensor with nominal current ≤ 500 A.

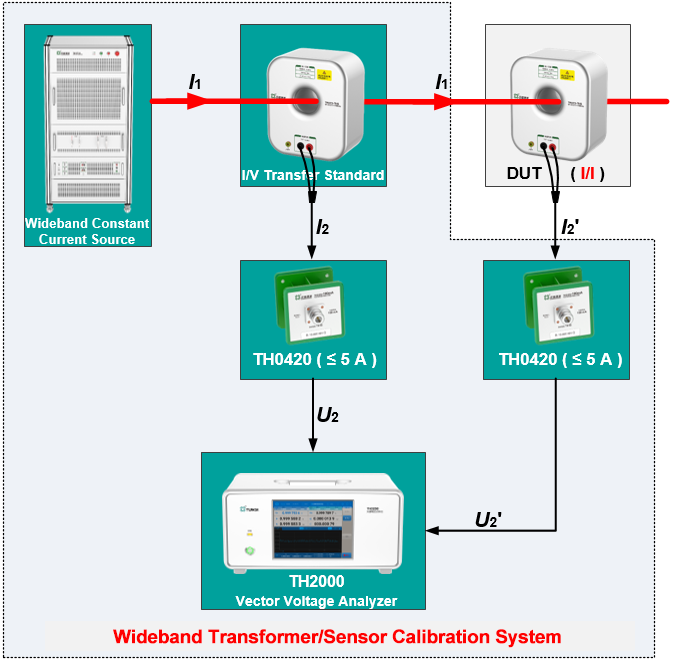

☆ Build Wideband Transformer/Sensor Calibration System
For the calibration of transformer/sensor whose nominal current is greater than 500 A, TH0420 is used as the standard and the secondary signal I/V converter of the equipment under inspection, and a wideband transformer/sensor measurement system is established with a wideband constant current source and a wideband sensor tester (such as TH2000 vector voltage analyzer).
TH0420 Reference Coaxial Current Shunt
1. Summary of TH0420 Reference Coaxial Current Shunt
TH0420 is a set of precision coaxial shunts with ultra-low power coefficients. Each set includes 12 different current range specifications, capable of converting nominal currents from 0.1 A to 500 A into nominal voltage outputs of 1 V or 0.5 V.
TH0420 features an ultra-low power coefficient—for example, the power coefficient of the TH0420-100A does not exceed 10 ppm even when operating at 100 W, making it highly suitable for fast measurements of a wide range of AC and DC currents.
2. Features of TH0420 Reference Coaxial Current Shunt
Typical Annual Drift: 5 ppm; Maximum Annual Drift: 16 ppm
Ultra-low Power Coefficient
Extremely Low Self-heating Power Coefficient and Temperature Coefficient
High Current Carrying Capacity
Capable of Withstanding Instantaneous Current Surges
Designed with Efficient Heat Dissipation Structure
3. Applications of TH0420 Reference Coaxial Current Shunt
☆ Build Wideband Current Measurement System
Set up wideband current measurement system with wideband current source and wideband standard voltmeter (such as TH2000 vector voltage analyzer), measure wideband current signal, and calibrate wideband current source and wideband ammeter, etc.
☆ Build Wideband Power/Energy Precision Measurement System
Set up wideband power/energy precision measurement system with high frequency V/V conversion standard and TH2000 vector voltage analyzer, measure wideband power/energy signal, calibrate wideband power source, wideband power meter, power analyzer and other equipment.
☆ Build Wideband Transformer/Sensor Calibration System
Set up a wideband transformer/sensor measurement system with wideband constant-current source and wideband sensor tester (such as TH2000 vector voltage analyzer) to calibrate the tested transformer or sensor with nominal current ≤ 500 A.
☆ Build Wideband Transformer/Sensor Calibration System
For the calibration of transformer/sensor whose nominal current is greater than 500 A, TH0420 is used as the standard and the secondary signal I/V converter of the equipment under inspection, and a wideband transformer/sensor measurement system is established with a wideband constant current source and a wideband sensor tester (such as TH2000 vector voltage analyzer).
4. Specifications of TH0420 Reference Coaxial Current Shunt
4.1 Resistance Specification of TH0420 Reference Coaxial Current Shunt
Specification
Nominal resistance
( Ω )
Initial deviation [1]
(±μΩ/Ω )
@ (23±1)°C
Annual
Stability
( ±μΩ/Ω )
Temperature coefficient
( ±ppm/K )
Power factor [2]
( ±ppm/Rated power )
TH0420-0.1A
10
30
12
2.0
1
TH0420-0.2A
5
30
12
2.0
1
TH0420-0.5A
2
30
12
2.0
2
TH0420-1A
1
30
12
2.0
3
TH0420-2A
0.5
30
12
2.5
5
TH0420-5A
0.2
30
12
2.5
5
TH0420-10A
0.1
30
12
2.5
5
TH0420-20A
0.05
30
12
2.5
8
TH0420-50A
0.02
30
12
3.0
10
TH0420-100A
0.01
30
12
3.0
10
Note [1]: The initial deviation is the maximum offset of the resistance under DC condition, usually the manufacturer's guaranteed value; Higher precision can be customized according to user requirements, such as 20 μΩ/Ω.
Note [2]: When the coaxial shunt is used to measure DCI, the resistance's own heat will lead to the change of resistance value under different input currents, thus introducing the error. The calculation formula is as follows:
γ= power coefficient x [1-(current measurement/nominal current value)^2]
4.2 Current Measurement of TH0420 Reference Coaxial Current Shunt
Specification
Nominal input current ( A )
Nominal Output current ( V )
Maximum AC/DC difference[3] ( k=2,±ppm )
53 Hz
1 kHz
10 kHz
100 kHz
TH0420-0.1A
0.1
1
20
25
25
25
TH0420-0.2A
0.2
1
20
25
25
25
TH0420-0.5A
0.5
1
20
25
25
25
TH0420-1A
1
1
20
25
25
30
TH0420-2A
2
1
20
30
35
50
TH0420-5A
5
1
20
30
50
80
TH0420-10A
10
1
20
30
50
100
TH0420-20A
20
1
20
30
50
100
TH0420-50A
50
1
30
50
80
150
TH0420-100A
100
1
30
50
100
200
Note [3]: The measured value of AC current should be calculated according to the following formula, and the unit of the difference between AC and DC is ppm:
Ac current measurement value =(voltage measurement value/calibration resistance value) x (1+ AC-DC difference /(1 000 000))
Specification
Maximum current
( A )
Instantaneous current
(<5s)
Specification
Maximum operating current
( A )
Instantaneous current
(<5s)
TH0420-0.1A
0.2 A
1.5 A
TH0420-5A
5.5 A
20 A
TH0420-0.2A
0.5 A
2 A
TH0420-10A
11 A
30 A
TH0420-0.5A
1 A
3 A
TH0420-20A
22 A
50 A
TH0420-1A
1.5 A
4 A
TH0420-50A
55 A
100 A
TH0420-2A
2.5 A
6 A
TH0420-100A
110 A
200 A
4.3 Phase Displacement of TH0420 Reference Coaxial Current Shunt
Specification
Maximum Phase Displacement ( k=2, ± μrad )
53 Hz
400 Hz
1 kHz
10 kHz
50 kHz
100 kHz
TH0420-0.1A
5
5
10
30
150
300
TH0420-0.2A
5
5
10
30
150
300
TH0420-0.5A
5
5
10
30
150
300
TH0420-1A
5
5
10
30
150
300
TH0420-2A
10
10
15
50
300
600
TH0420-5A
10
15
25
100
500
1200
TH0420-10A
10
20
40
150
800
1600
TH0420-20A
10
25
50
200
1000
2000
TH0420-50A
10
30
65
300
1500
3000
TH0420-100A
20
40
80
400
2000
4000
5. General Specifications of TH0420 Reference Coaxial Current Shunt
Power supply
——
Temperature performance
Operating temperature: 13°C ~ 33°C;
Calibration temperature: 18°C~28°C;
Storage temperature: 5°C to 45 °C
Note: When stored in a harsh temperature environment, the resistance value may change.
temporarily and be restored to the original resistance value within the following 30 days.
Humidity performance
Operating humidity: < 50% R·H
Storage humidity: (15%~80%) R·H, no condensation
6. Ordering Information of TH0420 Reference Coaxial Current Shunt
Specification
Nominal current
TH0420-0.1A
0.1 A
TH0420-0.2A
0.2 A
TH0420-0.5A
0.5 A
TH0420-1A
1 A
TH0420-2A
2 A
TH0420-5A
5 A
TH0420-10A
10 A
TH0420-20A
20 A
TH0420-50A
50 A
TH0420-100A
100 A
