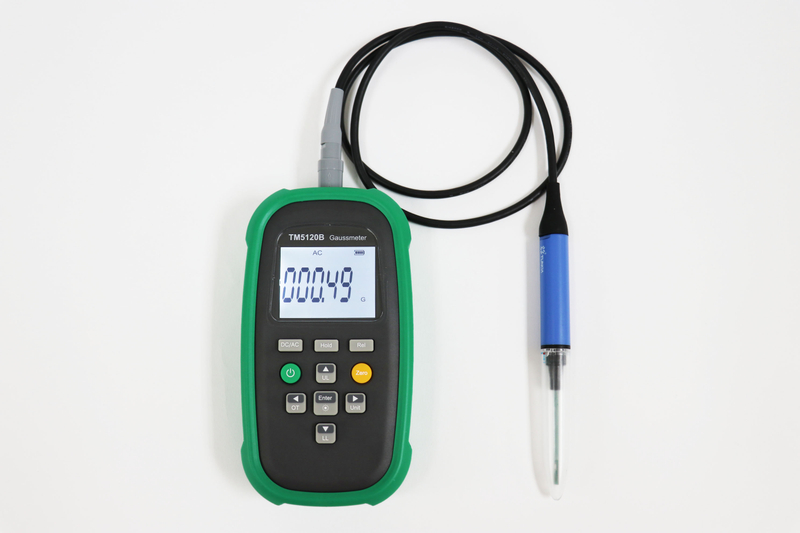

TM5120B Hand-held Tesla-Meter

The TM5120B is a portable and multifunctional magnetic field measuring instrument,equipped with a Hall sensor with high sensitivity and low drift. It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.
Features:
Availability:
Quantity:
  • TM5120B

  • TUNKIA

TM5120B Hand-held Tesla-Meter

TM5120B Hand-held Tesla-Meter

1. Summary

The TM5120B is a portable and multifunctional magnetic field measuring instrument,equipped with a Hall sensor with high sensitivity and low drift. It is applied for measuring the flux density of DC constant magnetic field and AC magnetic field.


2. Features

Range: 2mT ~ 3000 mT.

Accuracy: 1% or 2%.

Switching AC or DC mode

Unit switch: G, mT, A/m.

N/S polarity display.

Relative measurement mode.

Max. hold function.

Alarm of exceeding the upper / lower limit.

Supporting backlight.

Battery remaining power display.

Axial, radial probe are optional.

USB interface.

Optional magnetic shielding cavity.


3. Application

TM5120B Hand-held Tesla-Meter


4. Probe Selection

Optional Radial or Axial Hall Probe

Radial Hall probe

TM5120B Hand-held Tesla-Meter

TM5120B Hand-held Tesla-Meter

Axial Hall probe

TM5120B Hand-held Tesla-Meter

TM5120B Hand-held Tesla-Meter

Standard configuration is Radial Hall probe,also can choose Axial Hall probe.


5. Specifications

Range

30 mT

300 mT

3000 mT

Resolution

1 μT

10 μT

0.1 mT

Measuring Range

2mT~3000mT

Accuracy

Class 1

DC:±1%,AC:±5%

Class 2

DC:±2%,AC:±5%

Frequency Range

DC,40Hz~500Hz

Temperature Coefficient

± 0.1% / K

Zero Drift

± 0.1 mT/h

Display Digit

5

Remark

1 Calibration only covers 2.5T


6. General Specification

Power Supply

3 AA batteries or USB charging

Temperature Performance

Operating temperature: 0~50;

Storage temperature: -20°C~70°C

Humidity Performance

Operating humidity: 40%~80% R·H, non-condensing

Storage humidity: <95% R·H, non-condensing

Weight

About 350 g

Interface

Hall probe input interface, USB interface

Overall Dimensions

90mm(W) × 40 mm(D) × 165 mm(H)


7. Ordering Information

TM5120B Hand-held Tesla-Meter


8. Probe Selection

Serial Number


Name

Specification

Quantity

Remark

1

TM1100 Hall probe

Radial

1

Standard Accessory

2

TM1110 Hall probe

Axial

1

Optional

Note:The users should indicate the probe in the order contract.
