TS2000 Magnetostriction Measurement and Analysis System for Electrical Steel Sheets

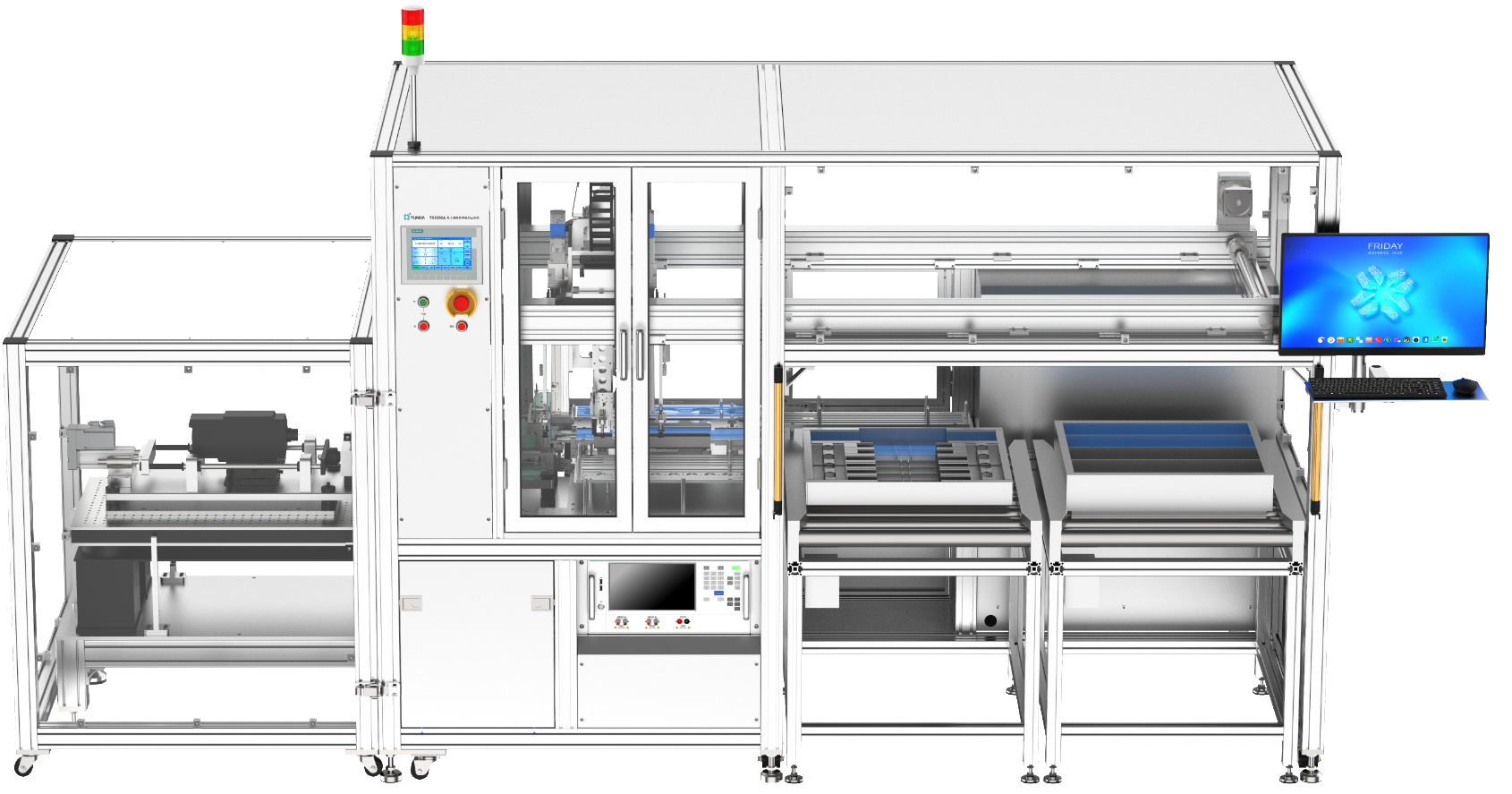

*The image above is for reference only; actual product delivery may vary slightly.

1. Summary

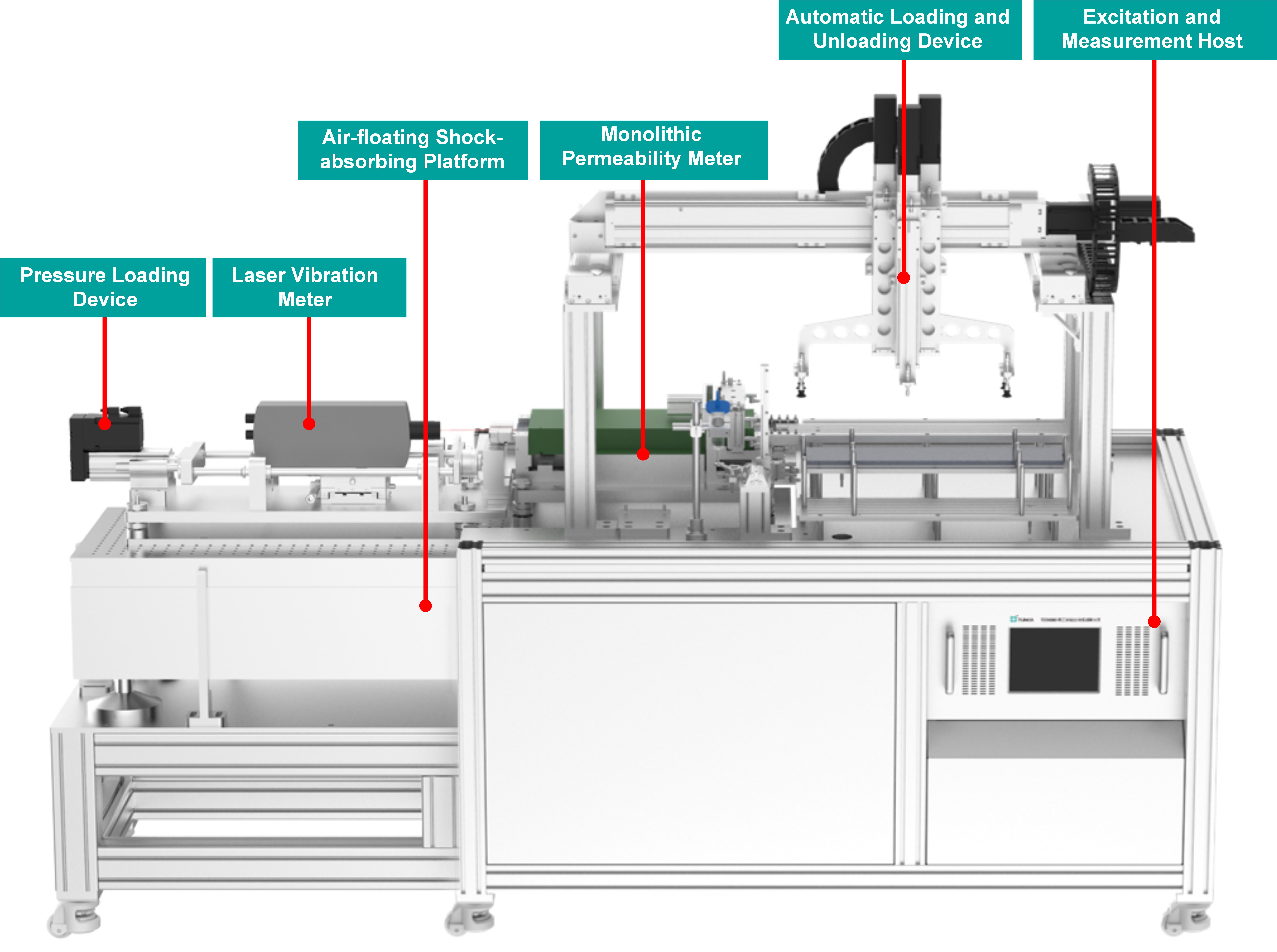

TS2000 is a device specially used to measure the magnetostriction coefficient of electrical steel sheets in the magnetization direction during the AC magnetization process. The device consists of excitation and measurement devices, single sheet tester, pressure loading device (optional), laser vibrometer, air-floating shock-absorbing platform, automatic loading and unloading device (optional), protective cover, industrial control system and special test software.

This system can measure the magnetostriction coefficient λ, specific total loss Ps, specific apparent power Ss, magnetic polarization Jm, magnetic field strength Hm, amplitude magnetic permeability μ_a and other magnetic parameters of electrical steel under conditions such as different frequencies, magnetic field strengths, magnetic polarization strengths (or magnetic flux density), harmonics (optional), no stress or applied compressive stress (optional). , suitable for research and development and quality testing of electrical steel. Reference standard: IEC 60404-17.

2. Features

Automatic loading and unloading (optional).
The excitation current can be loaded with harmonics to conduct harmonic influence tests (optional).
Pressure can be applied along the length of the specimen during testing (optional).
Can measure the magnetostriction coefficient and various magnetic properties of electrical steel.
Measurable noise performance calculation indicators LvA and LaA.
Equipped with windproof and protective cover to reduce the impact of environmental vibration.
Equipped with an air-floating shock-absorbing platform to reduce the impact of environmental vibration.
Equipped with professional computer software to achieve automatic testing.

3. Measured Parameters

3.1 Magnetic Parameter 3.2 Magnetostriction Coefficient and Curve

Magnetic field strength: *H(t), Hm*	Peak-peak magnetostriction coefficient *λp-p*
Magnetic flux density: *B(t), Bm*	Zero-peak magnetostriction coefficient *λo-p*
Magnetic polarization: *J(t), Jm*	A-weighted sound level indicators *LvA, LaA*
Specific total loss: Ps	Magnetic polarization-magnetostriction curve (*J-λ* curve)
Specific apparent power: Ss	Magnetostriction-stress curve, etc. (pressure option required).
Magnetic permeability: μ

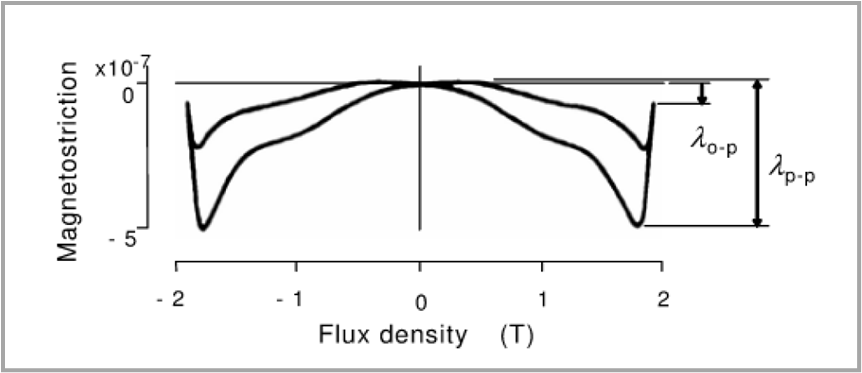

Fig 2: Typical J-λ relationship curve and the definitions of λ_p-p and λ_o-p

4. Function

5. Specifications

5.1 Parameters

Measurement Frequency	AC 45 Hz ~ 65 Hz
Magnetic Field Strength H_m	10 A/m ~ 10 kA/m
Magnetic Polarization Strengths J_m	0.5 T ~ 1.9 T ^①
Apply Pressure (optional)	0 ~ 3 Mpa
Harmonics (optional)	2nd to 63rd harmonic, amplitude adjustable from 0 to 20%

Note: ① The specific values of B and J depend on material properties

5.2 Typical Measured Parameters

Parameter	Best Measurement Uncertainty (k=2)	Best Measurement Repeatability
Magnetostriction Coefficient *λ_p-p*	5%+0.05 μm/m	2%+0.02 μm/m
Magnetic Field Strength H_m	0.5%	0.2%
Magnetic Flux Density *B_m*	0.5%	0.2%
Magnetic Polarization Strength J_m	0.5%	0.2%
Specific Total Loss Ps	1.0%	0.3%

Test Conditions:

H, B, J at a measurement frequency of 50 Hz / 60 Hz, under stress-free conditions
For grain-oriented silicon steel: 1.7 T; for non-oriented silicon steel: 1.5 T, under stress-free conditions
Regarding accuracy of measured values: Depending on the method and position of the specimen in the measurement frame, a deviation of 1% to 2% may occur.
Regarding repeatability of measured values: For the same specimen, without considering its temperature characteristics, after placing the specimen in the specified position and keeping it stationary, repeated measurements are performed. The resulting (repeatability data) is regarded as the repeatability of the specimen and is related to the performance of the specimen under test.
Repeatability = the larger of the two values calculated as:

( |maximum value – average value| ) / average value

( |minimum value – average value| ) / average value

6. Specifications of Specimen

Material: oriented silicon steel and non-oriented silicon steel
Size: standard: 100 mm (± 0.1 mm) × 500 mm (± 0.5 mm), (W*L)
Thickness: nominal plate thickness 0.1 mm ~ 0.7 mm

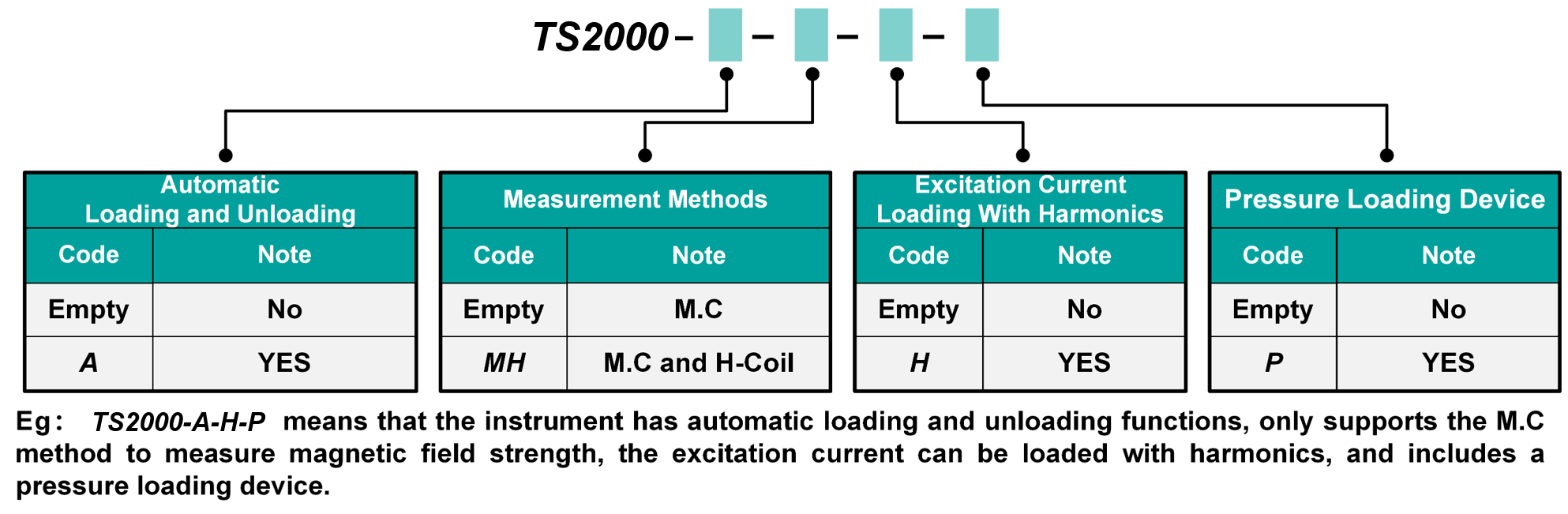

7. Ordering Information

TS2000 Magnetostriction Measurement and Analysis System for Electrical Steel Sheets

TS2000 Magnetostriction Measurement and Analysis System for Electrical Steel Sheets

4. Function

5. Specifications

5.1 Parameters

5.2 Typical Measured Parameters

6. Specifications of Specimen

7. Ordering Information
