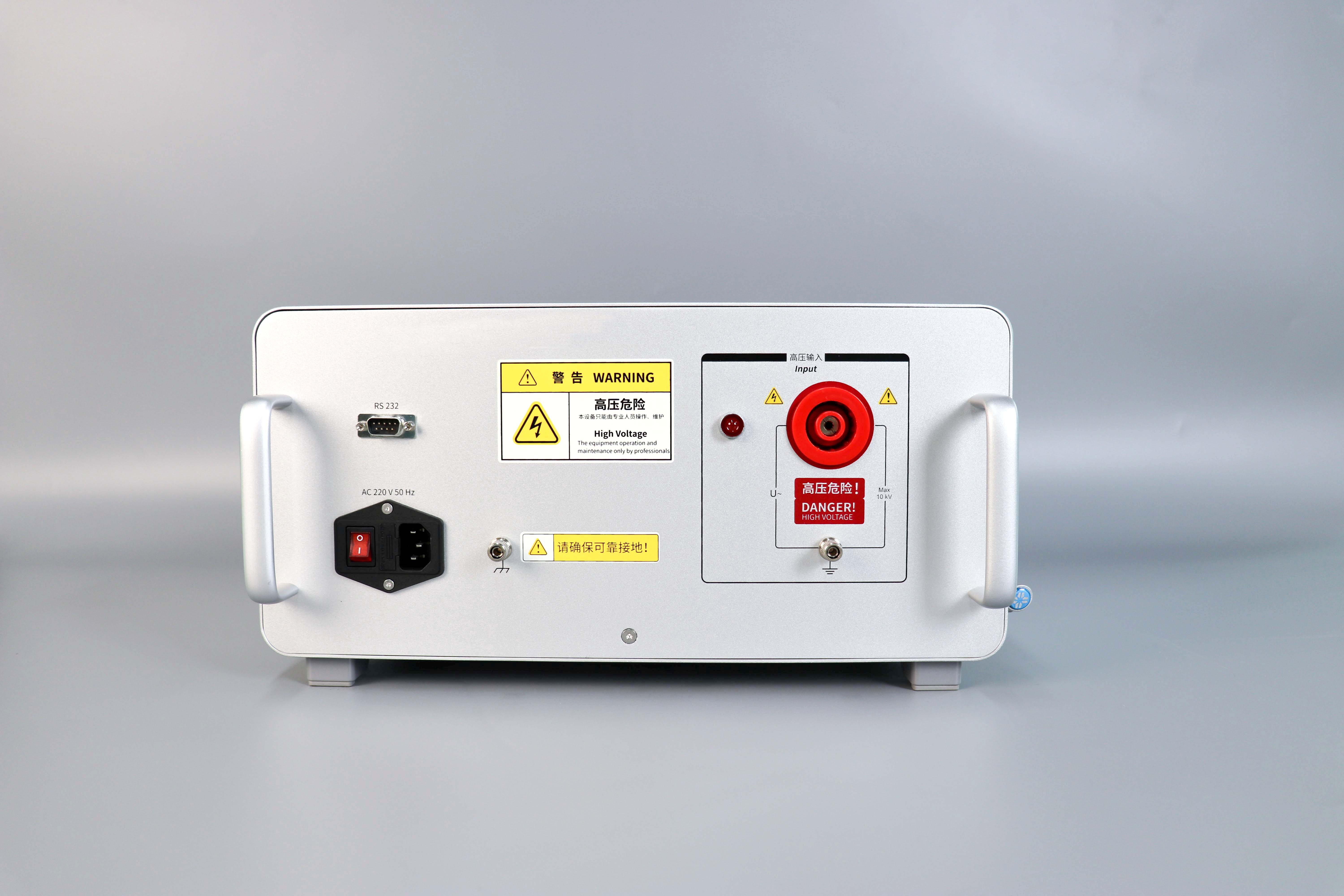

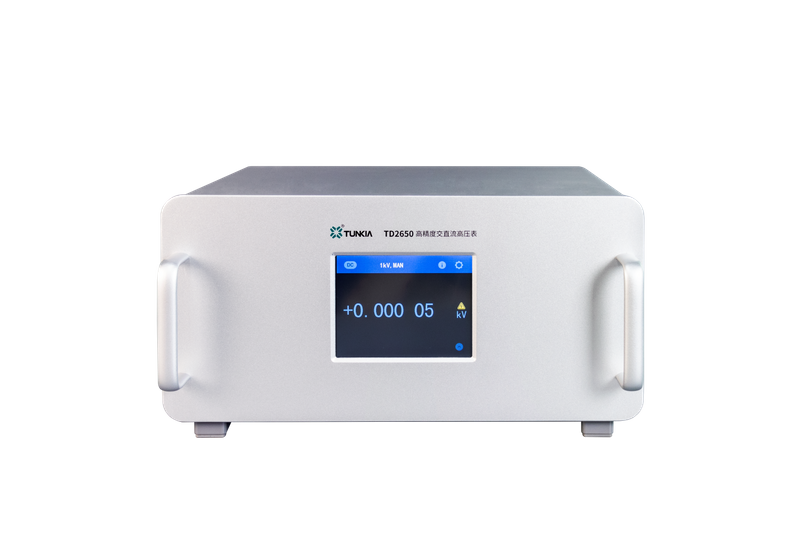

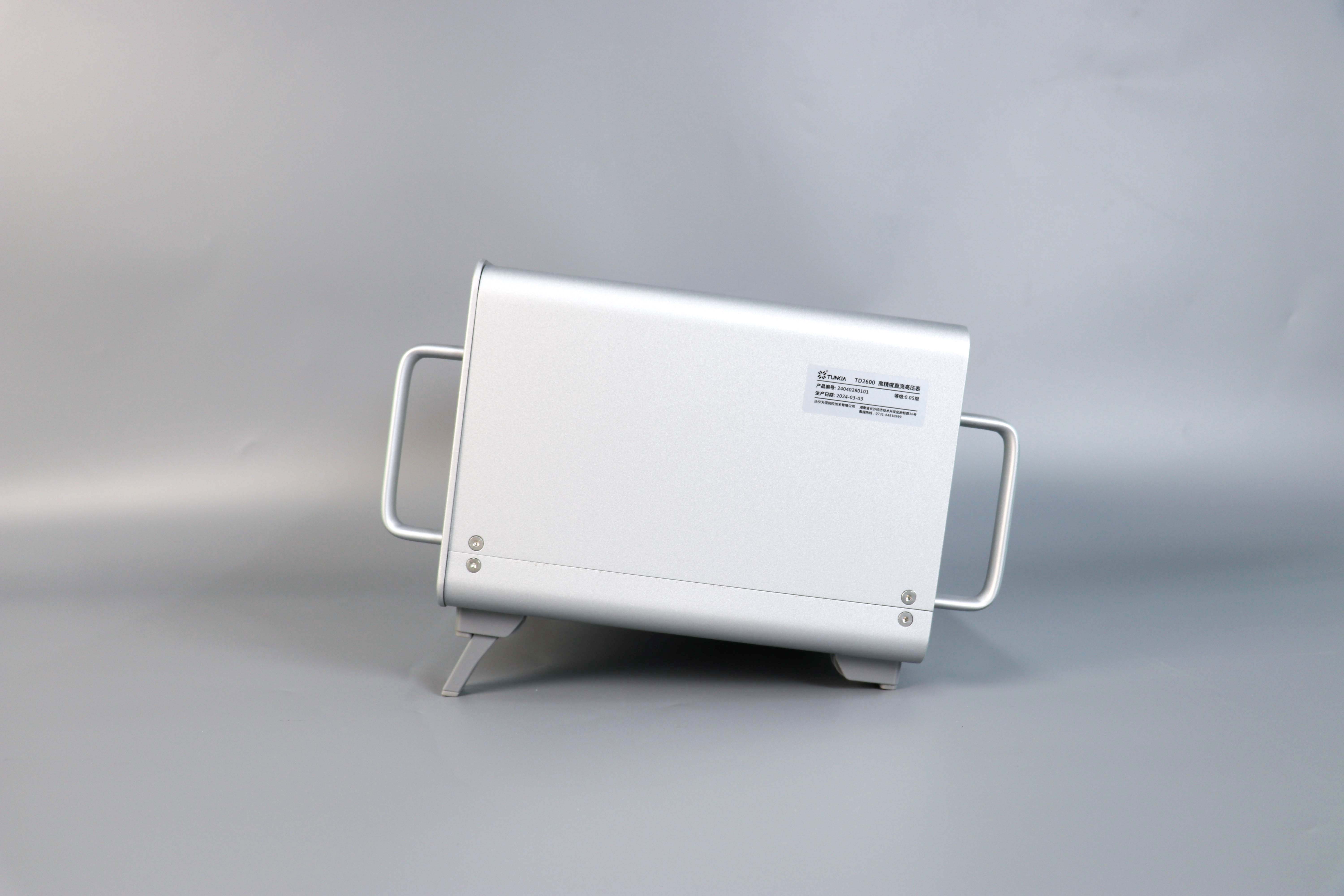

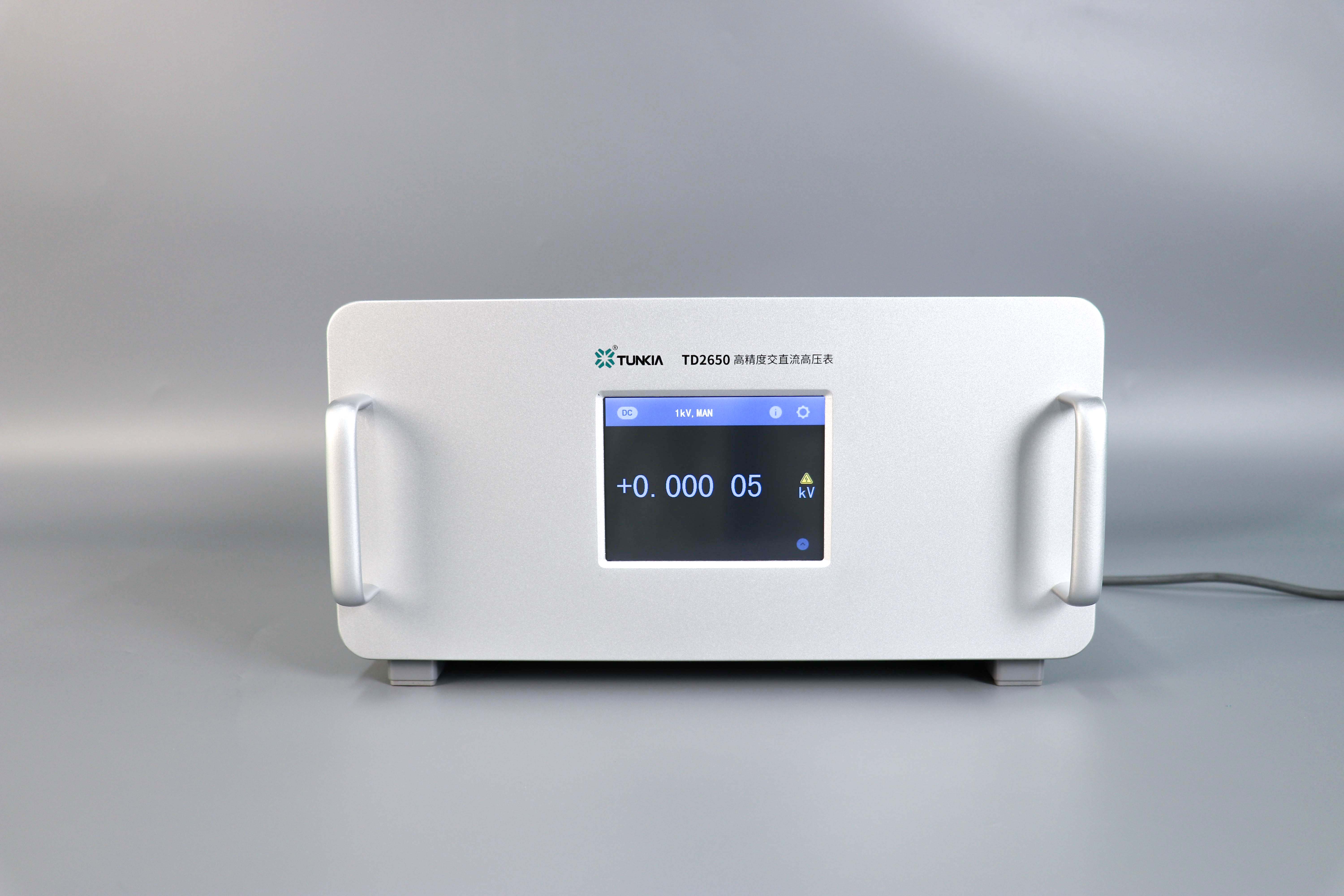

TD2650 Precision AC / DC High Voltage Meter

1. Summary

TD2650 is a high-precision AC/DC standard meter with a wide measurement range. It is capable of measuring up to 50 kV DC high voltage and 10 kV AC high voltage, and is available in two accuracy classes: 0.02 and 0.05. The instrument is suitable for verifying or calibrating AC/DC high-voltage sources, AC/DC high-voltage meters, dielectric withstand test devices, high-voltage probes, and similar equipment.

2. Features

DC Voltage Standard Meter: 100 V–5 kV / 10 kV / 20 kV / 50 kV.
AC Voltage Standard Meter: 100 V–5 kV / 10 kV
Stability testing and data statistical analysis functions
Reliable electrical protection, including short-circuit and overload protection
Large LCD touch screen for intuitive value display and convenient operation
Equipped with an RS232 interface for easy connection with dedicated software to build an automated testing system

3. Application

☆ Calibration for AC or DC High Voltage Source / Meter

TD2650 Precision AC / DC High Voltage Meter

• DCV measurement: 100 V ~ 5 kV / 10 kV / 20 kV / 50 kV

• ACV measurement: 100 V ~ 5 kV / 10 kV

• Apply for calibrating DC high voltage source or meter, AC high voltage source or meter, high voltage probe, etc.

4. Characteristics

☆ Data Statistical Analysis Function

S/N	Function
	Statistical analysis of data: Maximum value (Max), Minimum value (Min), Peak-to-Peak value (P-P) Average value (Avg), Standard variance (Std), Stability (Stab), etc.

5. Specifications

5.1 DCV Measurement

Model	Range (kV)	Accuracy ±(ppm of reading + ppm of range) [1]		Temperature Coefficient (±ppm/K)
Model	Range (kV)	Class 0.05	Class 0.02	Class 0.05	Class 0.02
TD2650-5kV-xxx	1, 2, 5	300 + 200	120 + 80	< 15	< 10
TD2650-10kV-xxx	1, 2, 5, 10	300 + 200	120 + 80	< 15	< 10
TD2650-20kV-xxx	2, 5, 10, 20	300 + 200	120 + 80	< 15	< 10
TD2650-50kV-xxx	5, 10, 20, 50	300 + 200	-	< 15	-
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).

• Measurement range :(10% ~ 100%)*range, 6 digits display,

• Manual or automatic range switch

5.2 ACV Measurement

Model	Range (kV)	Accuracy ±(ppm of reading + ppm of range)		Temperature Coefficient (±ppm/K)
Model	Range (kV)	Class 0.05	Class 0.02	0.05	0.02
TD2650-xxx-5kV	2, 5	300 + 200	120 + 80	< 25	< 15
TD2650-xxx-10kV	2, 5, 10	300 + 200	120 + 80	< 25	< 15

• measurement range :(10% ~ 100%)*RG, 6 digits display, manual/automatic range switch

• Frequency: 45.000 0 Hz ~ 65.000 0 Hz, uncertainty: 0.01 Hz

• Max. voltage 25 kV is customable.

6. General Specifications

Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface
Dimension	520 mm(W) × 450 mm(D) × 205 mm(H)
Dimension	*Note: The sizes of different models may vary slightly. Here we take TD2650-500-10kV-10kV as an example.

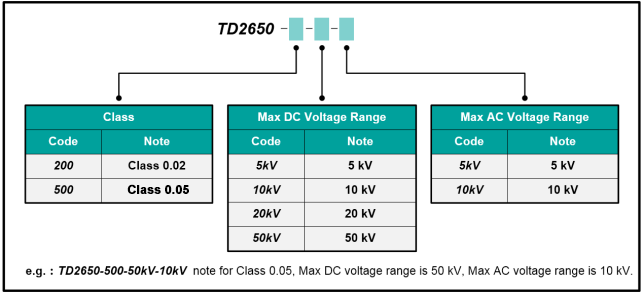

7. Ordering Information
