TH0260 Precision Resistance Analyzer

TH0260 is a measuring instrument used to analyze the characteristics of DC precision resistance. It’s applied for resistance manufacturers to perform detailed performance analysis.
Availability:
Quantity:
  • TH0260

  • TUNKIA

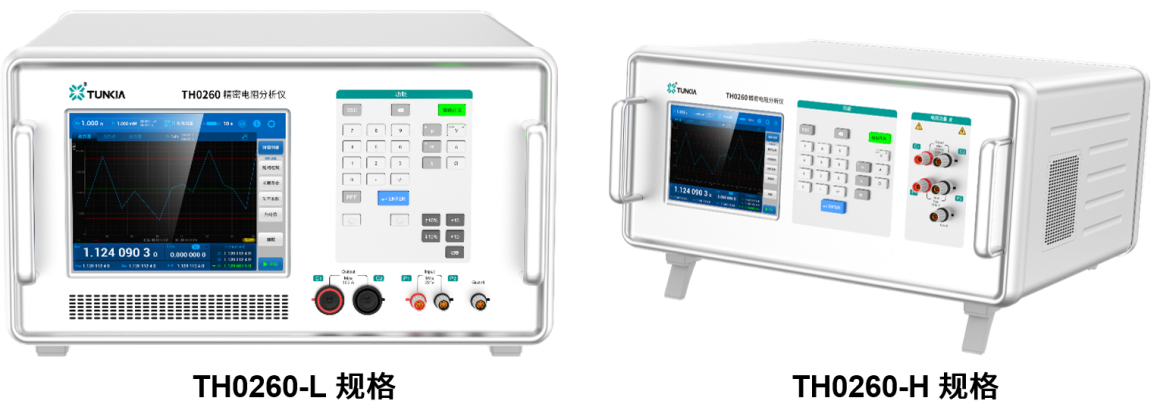

TH0260 Precision Resistance Analyzer

TH0260 Precision Resistance Analyzer 2


1. Summary

TH0260 is a measuring instrument used to analyze the characteristics of DC precision resistance. It’s applied for resistance manufacturers to perform detailed performance analysis.


2. Features

TH0260-L (low value):

Maximum current output: 100 A, maximum voltage test: 20 V.

Measuring range: 100 μΩ ~ 10 kΩ (customizable).

TH0260-L (high value):

Maximum current test: 100 mA, maximum voltage output: 1000 V.

Measuring range: 100 Ω ~ 1 GΩ (customizable).

Uncertainty of measurement:3 ppm (typical value)

Short-term overload, long-term life, power factor, thermoelectric force.

• Fast /Precise measurement Mode.

LCD touch screen.

Statistical analysis.

Front Panel or RS232 interface.

Dedicated software(optional).



3. Specifications (TH0260-L)

3.1 Resistance measurement

Resistance Measurement Range

Measurement Accuracy (k=2)(±ppm)

Minimum

Maximum

Typical

Maximum

0.1 mΩ

1 mΩ

10

30

1 mΩ

10 mΩ

5

15

10 mΩ

100 mΩ

3

10

100 mΩ

1 Ω

3

10

1 Ω

10 Ω

3

10

10 Ω

100 Ω

3

10

100 Ω

1 kΩ

3

10

1 kΩ

10 kΩ

5

20

3.2 Test capability

Resistance

Maximum current

(A)

Maximum voltage

(V)

Maximum power

(W)

0.1 mΩ

100

10 m

1

1 mΩ

100

100 m

10

10 mΩ

100

1

100

100 mΩ

30

3

90

3

3

9

10 Ω

2

20

40

100 Ω

200 m

20

4

1 kΩ

20 m

20

400 m

10 kΩ

2 m

20

40 m

4 terminal

Current output range: 2 mA ~ 100 A.

Current ≤ 2A, maximum load capacity is 20 V;

Current > 2 A, maximum load capacity is 3 V.


4. Specifications(TH0260-H)

4.1 Resistance measurement

Resistance Measurement range

Measurement Accuracy (k=2)( ±ppm)

Minimum

Maximum

Minimum

Maximum

100 Ω

1 kΩ

3

10

1 kΩ

10 kΩ

3

10

10 kΩ

100 kΩ

3

10

100 kΩ

1 MΩ

3

10

1 MΩ

10 MΩ

4

10

10 MΩ

100 MΩ

10

30

100 MΩ

1 GΩ

30

150


4.2 Test capability

Resistance

Maximum current (A)

Maximum voltage (V)

Maximum power

(W)

100 Ω

100 m

10

1

1 kΩ

100 m

100

10

10 kΩ

70.7 m

707

50

100 kΩ

10 m

1000

10

1 MΩ

1 m

1000

1

10 MΩ

100 μ

1000

100 m

100 MΩ

10 μ

1000

10 m

1 GΩ

1 μ

1000

1 m

4 terminal



5. General Specifications

Power supply

AC (220±22) V, (50±2) Hz, 150 VA;

Warm up time

Twice the time since last warmed up, to a maximum of 60 minutes.

Temperature performance

Operating temperature: 18°C ~ 28°C;

Storage temperature: -20°C ~ 60°C;

Humidity performance

Operating humidity: (20 % ~ 50%) R·H, non-condensing;

Storage humidity: (15% ~ 80%) R·H, non-condensing;

Communication interface

RS232、IP
