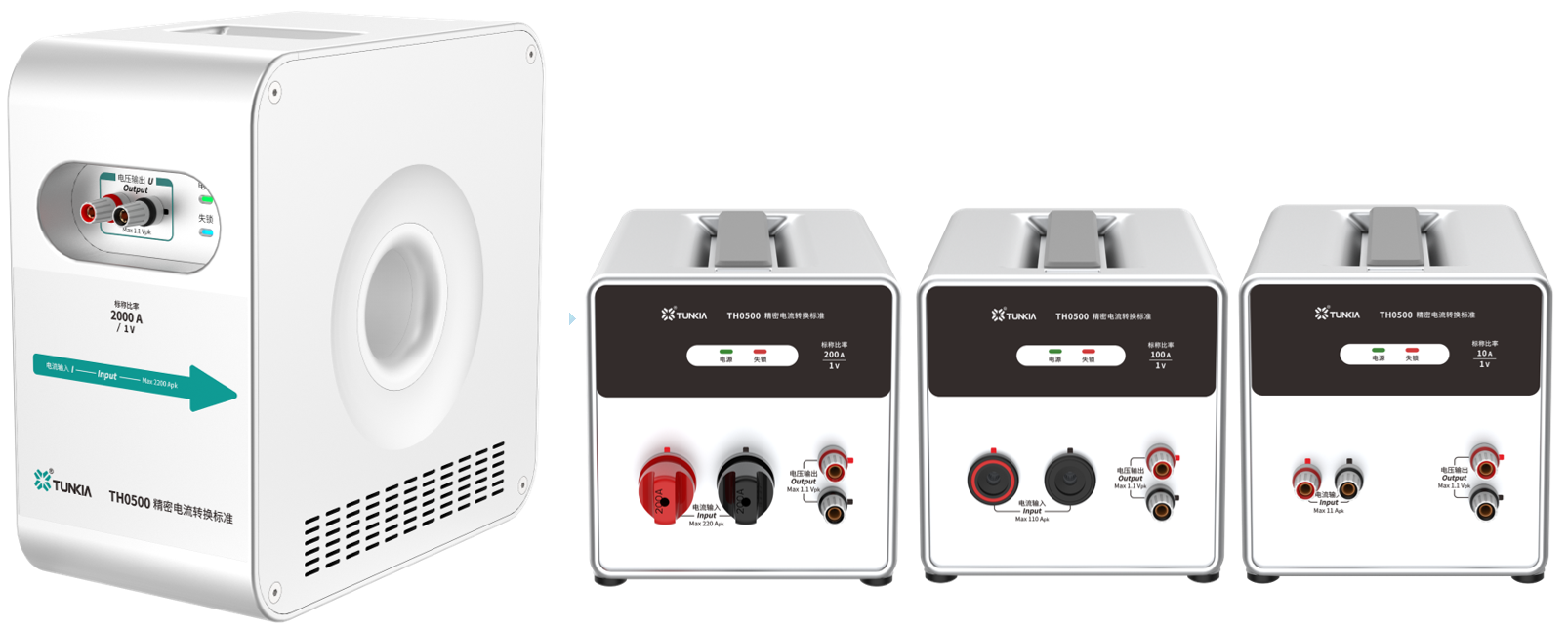

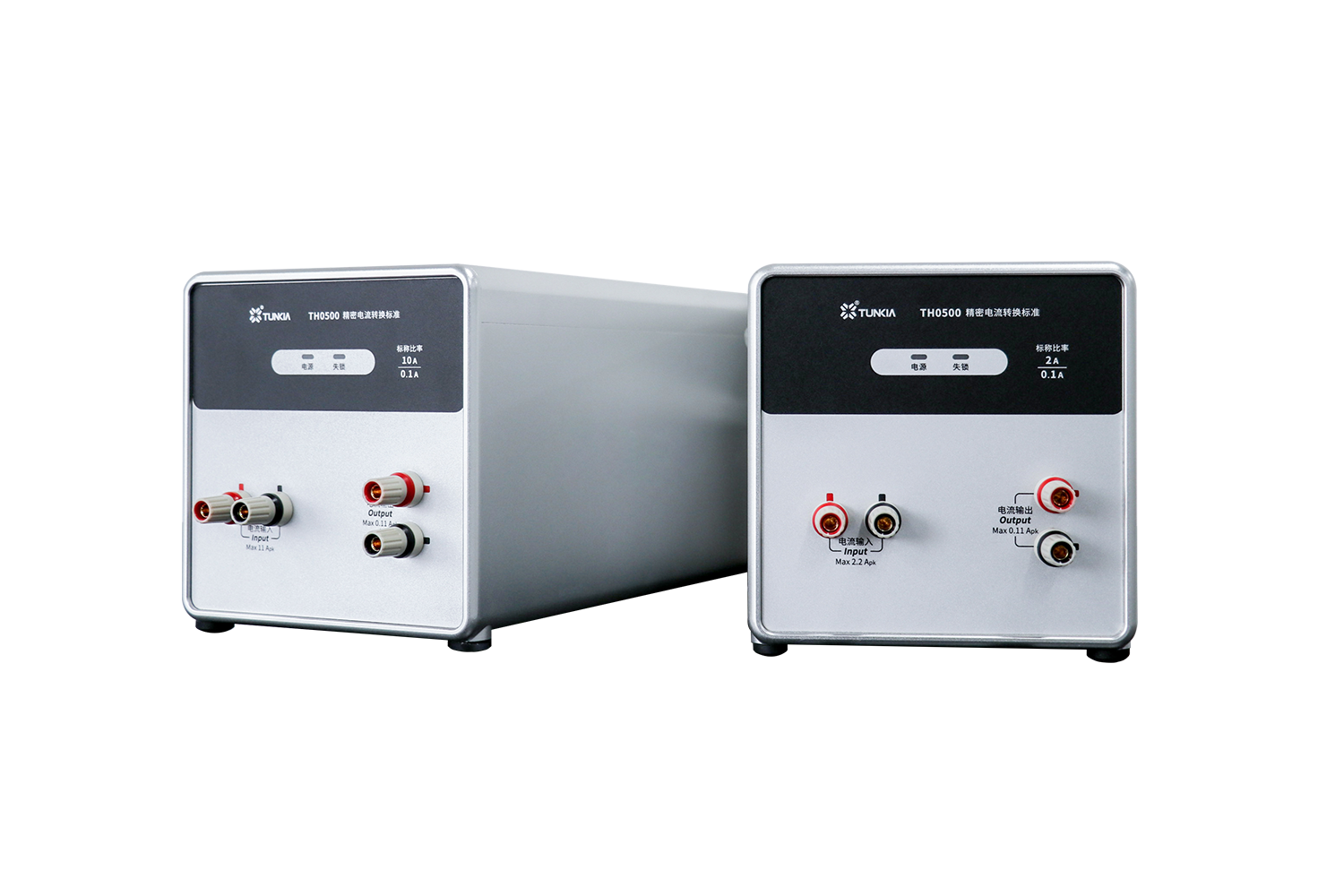

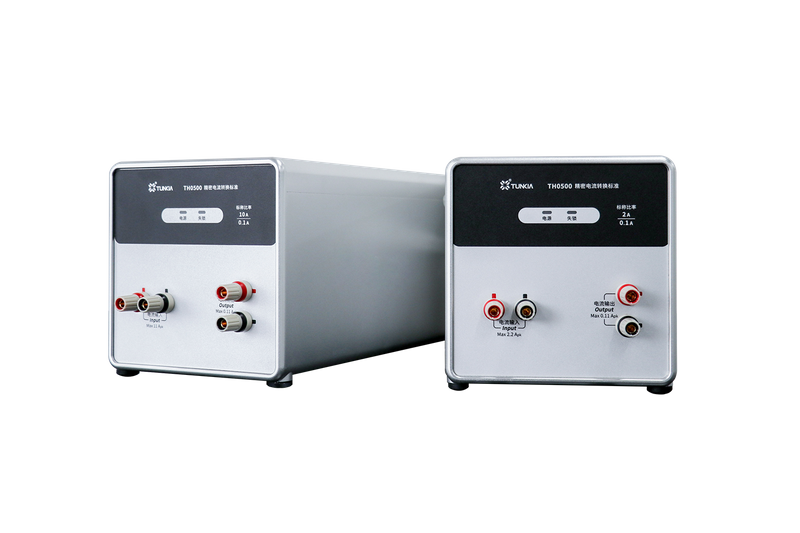

TUNKIA TH0500 Precision Current Transformer

TH0500 Precision Current Conversion Standard

The TH0500 is a series of precision current conversion standards that utilize high-precision DC current comparator technology. They convert nominal DC/AC currents ranging from 0.1 A to 20 kA into proportionally smaller voltage or current signals while maintaining a high level of ratio accuracy.

Model:
TH0500
Brand:
TUNKIA


Availability:



Inquire

TH0500 Precision Current Conversion Standard

TH0500 Precision Current Transformer

1. Summary of TH0500 Precision Current Transformer

The TH0500 is a series of precision current conversion standards that utilize high-precision DC current comparator technology. They convert nominal DC/AC currents ranging from 0.1 A to 20 kA into proportionally smaller voltage or current signals while maintaining a high level of ratio accuracy. By connecting the secondary output to appropriate measuring instruments, a wide variety of measurement applications can be achieved.

2. Features of TH0500 Precision Current Transformer

• Supports two current access modes, through core and direct connected type respectively.

Direct connected type with the input current of 0.1 A…200 A

Through core type with the input current of 500 A…20 kA

• Secondary output signal is optional for current (I / I) or voltage (I/ V)

I/I：Optimum uncertainty of 2ppm

I/V：Optimum uncertainty of 10 ppm

• Optional digital display function, support for digital signal output

• Measurement Frequency: DC ~ 5 kHz

3. Applications of TH0500 Precision Current Transformer

• Establish DC / AC current precision measurement system

• Calibrate the DC / AC current source or ammeter

• Calibrate the DC current ratio standard (current comparator)

• Calibrate the DC current transformer / sensor

• Calibrate the DC current I/V transformers

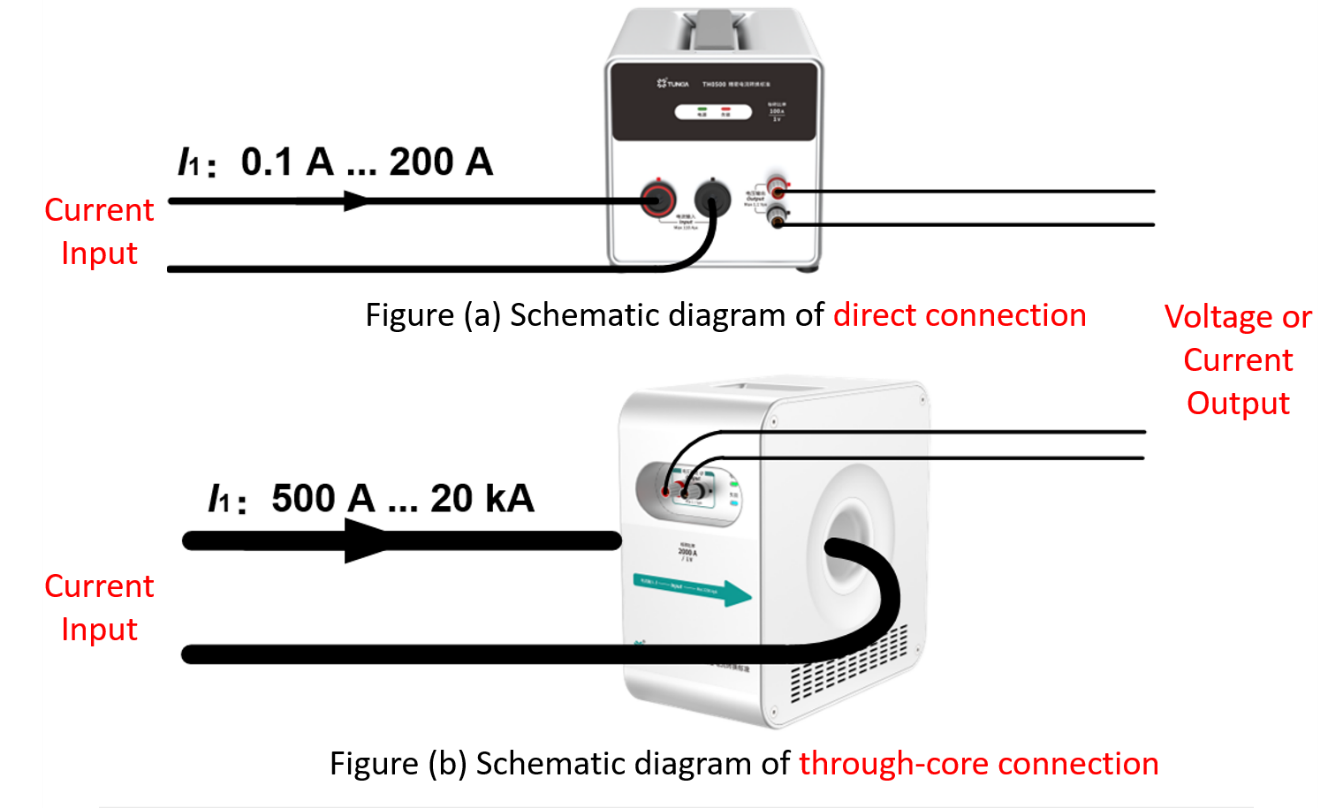

☆ Flexible current access and signal output mode

TH0500 Flexible current access and signal output mode

• Current input is optional! direct connected type with the input current of 0.1 A... 200 A.

• through core type with the input current of 500 A... 20 kA.

The secondary output can be selected as a voltage type or a current type：

• Voltage output ( I/V )：nominal output 10 V.

• Current output ( I/I )：nominal output 0.1 A ... 5 A selected .

3.1 Application of type I/V TH0500 Precision Current Transformer

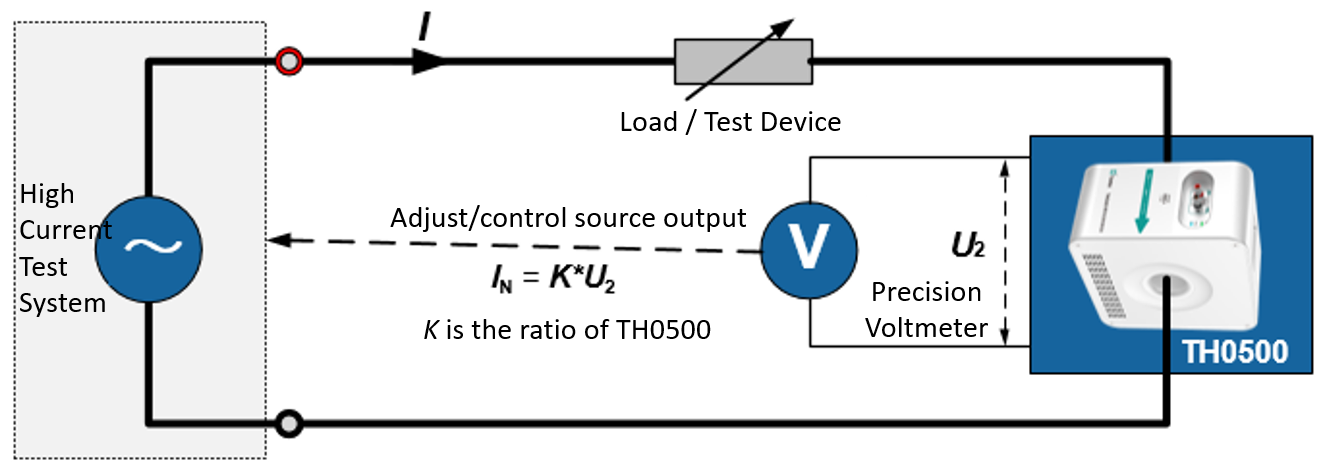

☆ Establish current precision measurement system

TH0500 Establish current precision measurement system

• Form a current measurement system withTH0500, precision voltmeter and high stability current source.

• Implement the measurement of a large current, or provide a DC / AC current signal

☆ Calibrate High Current Source / meter

TH0500 Calibrate High Current Source / meter

• Another typical application of the type I / V transform is paired with a precision voltmeter to calibrate the AC high current standard source / meter.

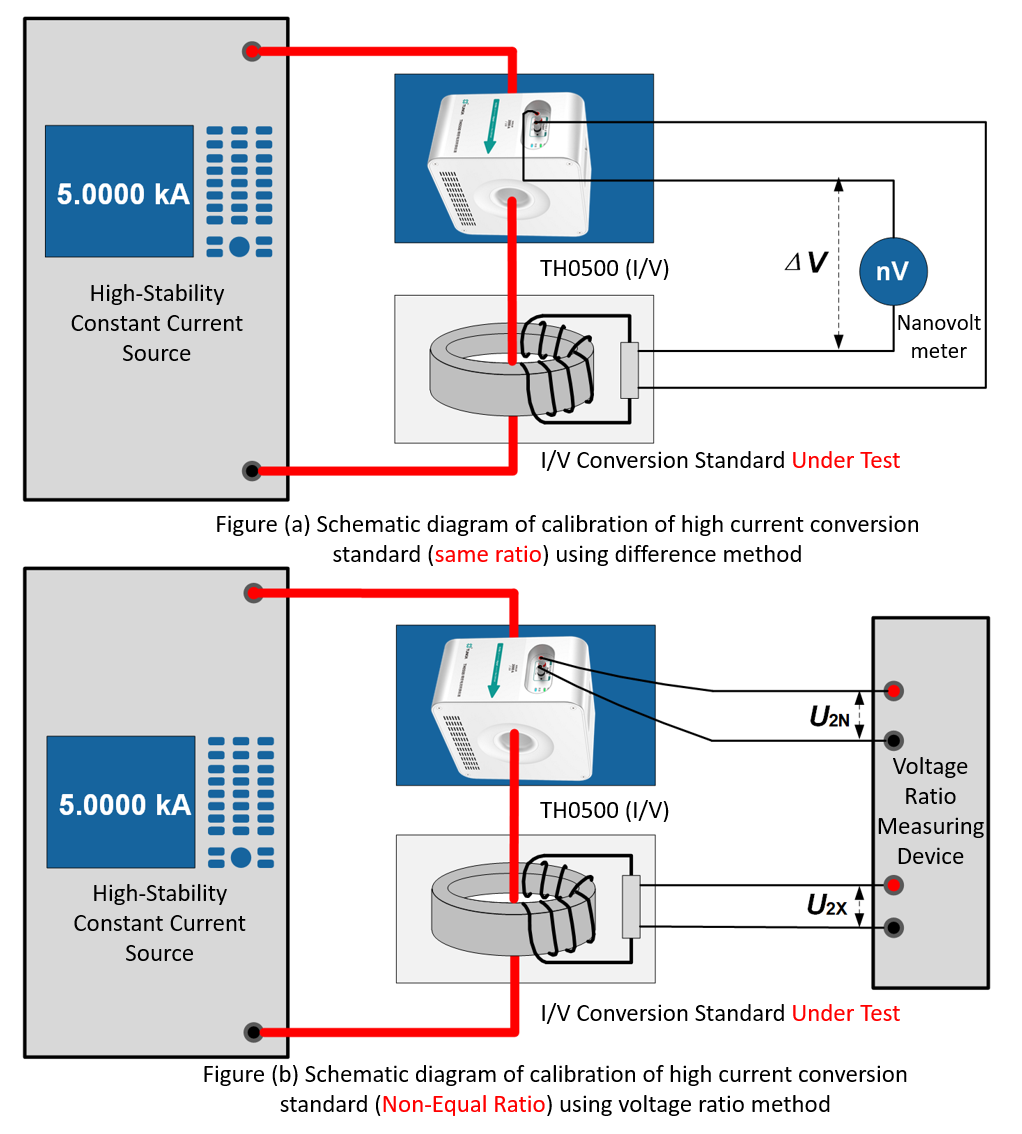

☆ Calibrate I/V conversion standards

TH0500 Calibrate I/V conversion standards

• Using the I/V type TH0500, you can calibrate the DC shunt, current transducer and other I/ V transform devices in the following two methods.

• Calibration by difference method：The selected TH0500 is in the same proportion as the tested I/V, and a micro voltmeter such as a nanovoltmeter is used for calibration

• Calibration by voltage ratio method：The selected TH0500 is not proportional to the tested I / V and is calibrated using a voltage ratio measurement device.(Note: For the calibration of type I /I conversion standard such as current comparator and DC current transformer, type I/ I TH0500 is recommended as the standard; the secondary series standard resistance being tested I / I is also used as described in the method above figure.）

3.2 Application of Type I/I TH0500 Precision Current Transformer

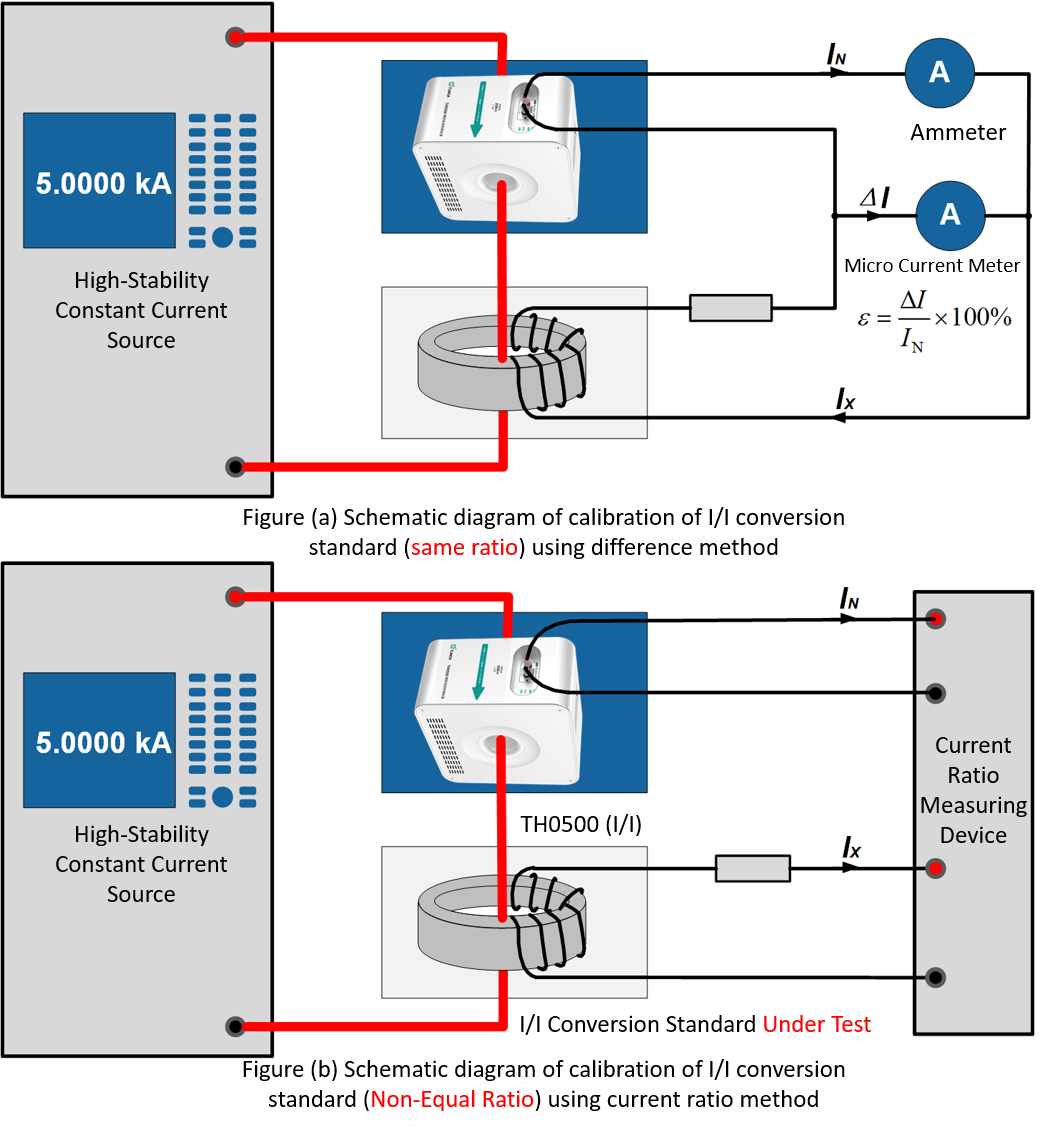

☆ Calibrate I/I conversion standards

TH0500 Calibrate I/I conversion standards

• I/I type TH0500 can be used to calibrate DC current comparator, current transformer and other I/I conversion equipment according to the following two methods.

• Calibration by difference method: the selected TH0500 is in the same proportion as the tested I/I μA micro ammeter for calibration.

• Calibration by current ratio method: TH0500 selected is not in the same proportion as the tested I/I, and the current ratio measuring device is used for calibration

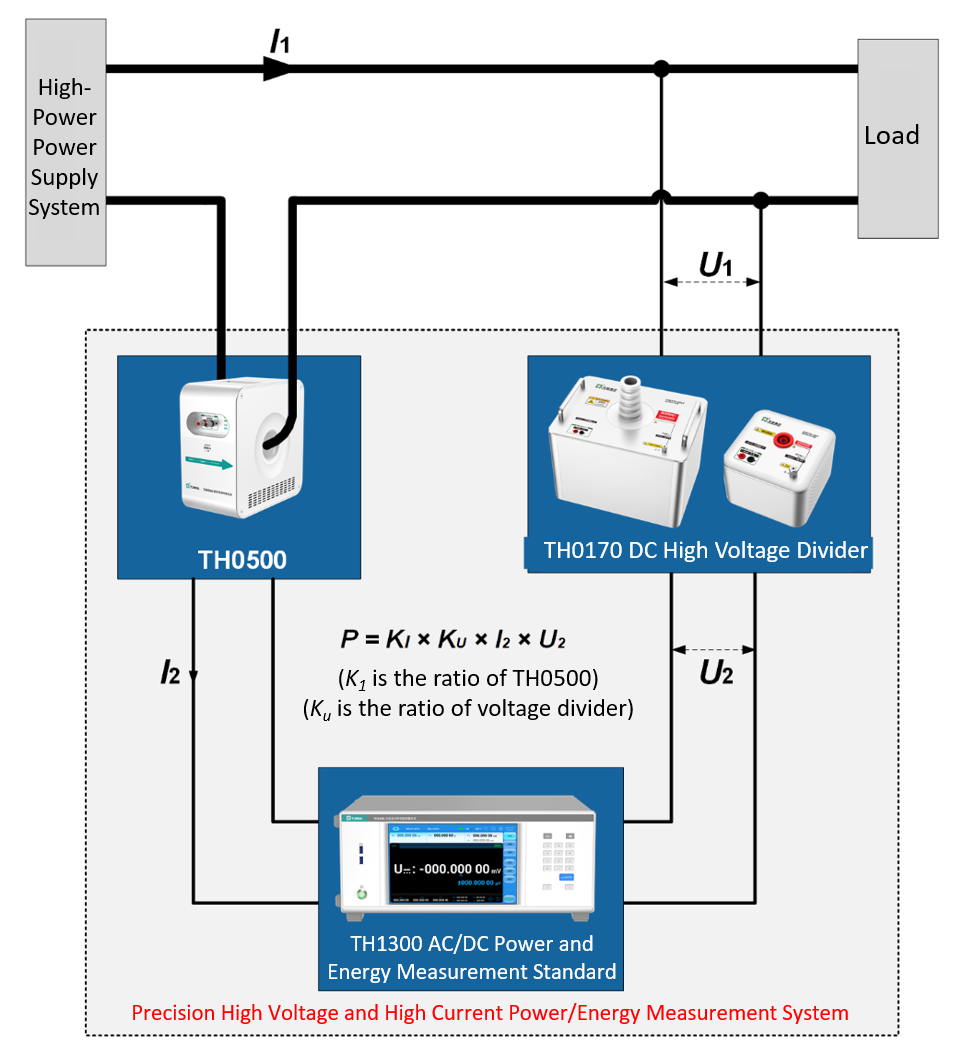

☆ Establish high voltage and high current power/electric energy precision measurement system

TH0500 Establish high voltage and high current power/electric energy precision measurement system

• TH0500 can be used with high-voltage V/V conversion equipment (typically TH0170 precision DC voltage divider) and standard power/energy meter (typically TD1310 AC/DC standard meter) to form a high-voltage high current power/energy precision measurement system.

• It is used to measure the output power of high-power power supply, the efficiency of conversion equipment, calibrate high-power power source, power meter and other equipment

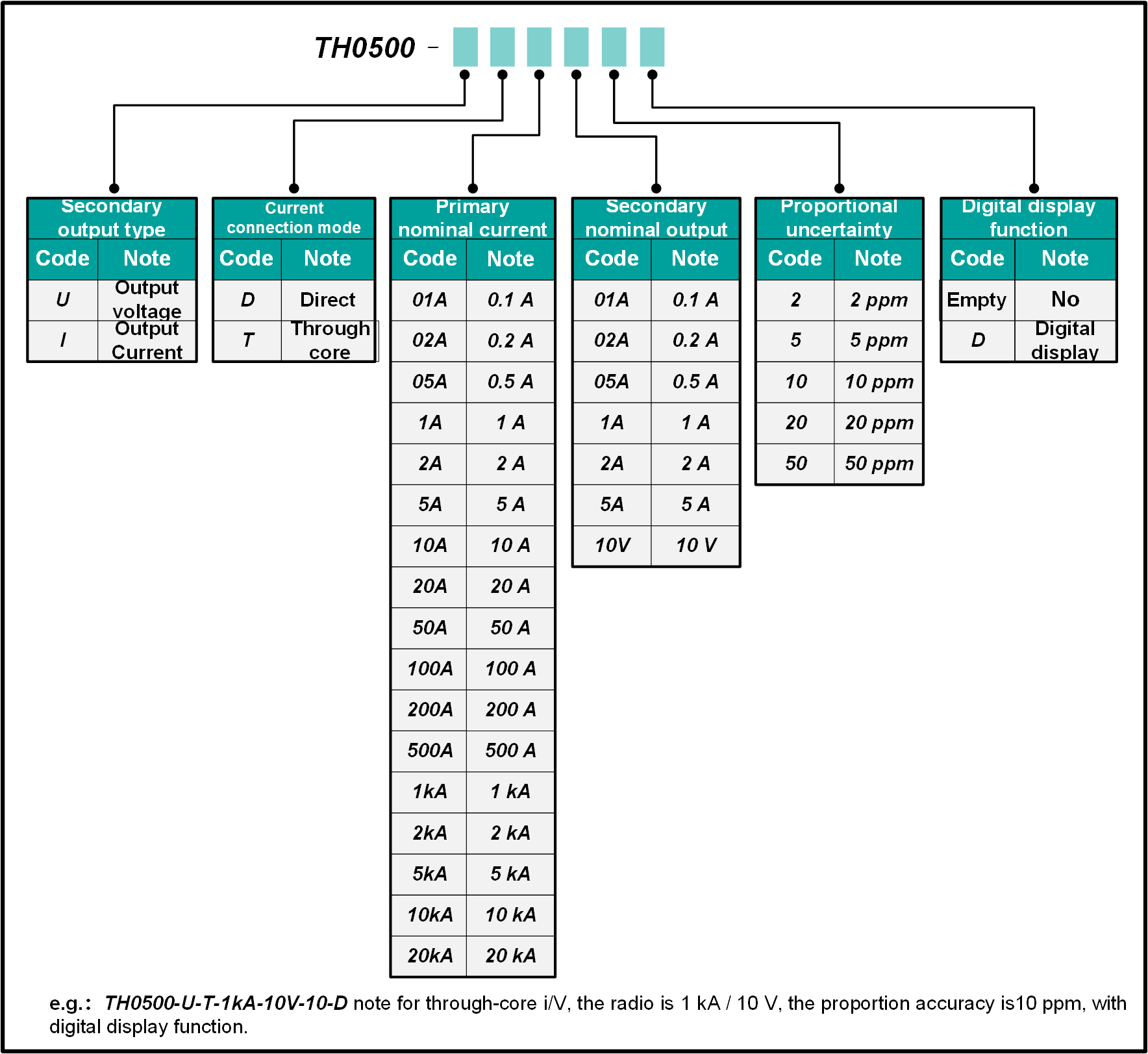

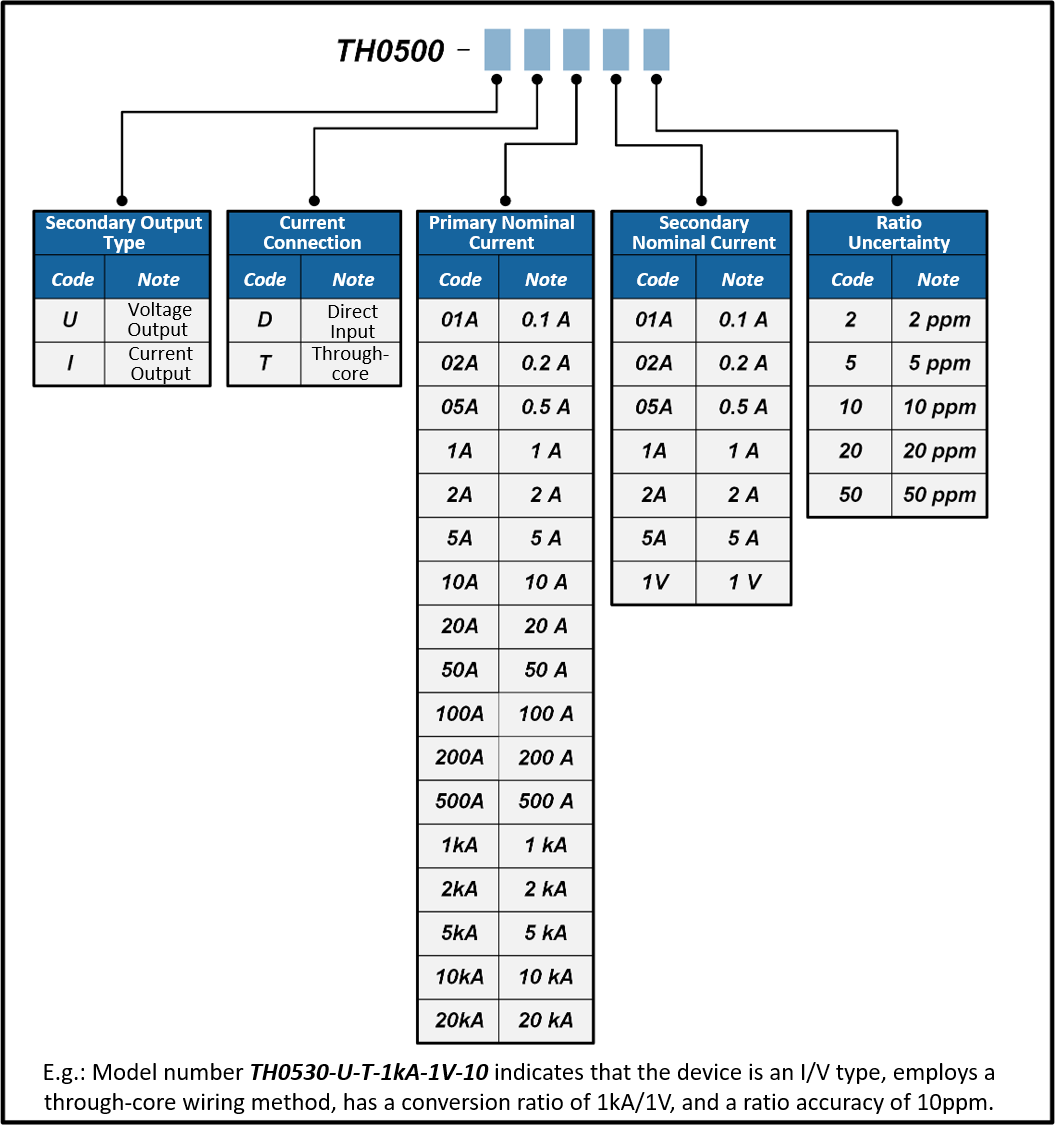

4. Specifications

4.1 Direct Connected I/I Conversion Standard

Model	Nominal Input Current ( A )	Nominal Output Current ( A )	Transformation Ratio	Accuracy ( ± μA / A, full range)
Model	Nominal Input Current ( A )	Nominal Output Current ( A )	Transformation Ratio	DC	AC@53Hz
TH0500-I-D-01A-01A-2	0.1	0.1	1:1	2	150
TH0500-I-D-02A-01A-2	0.2	0.1	2:1	2	150
TH0500-I-D-05A-01A-2	0.5	0.1	5:1	2	150
TH0500-I-D-1A-01A-2	1	0.1	10:1	2	150
TH0500-I-D-2A-01A-2	2	0.1	20:1	2	150
TH0500-I-D-5A-01A-2	5	0.1	50:1	2	150
TH0500-I-D-10A-01A-2	10	0.1	100:1	2	150
TH0500-I-D-20A-01A-2	20	0.1	200:1	2	150
TH0500-I-D-50A-01A-2	50	0.1	500:1	2	150
TH0500-I-D-100A-01A-2	100	0.1	1000:1	2	150
TH0500-I-D-200A-01A-2	200	0.1	2000:1	2	150

• Measurement range: ± (0~120%) * FS; Measuring frequency: DC~5 kHz (3dB signal bandwidth ≥ 100 kHz)

4.2 Through Core I/I Conversion Standard

Model	Nominal Input Current ( A )	Nominal Output Current ( A )	Transformation Ratio	Accuracy ( ± μA / A, full range)
Model	Nominal Input Current ( A )	Nominal Output Current ( A )	Transformation Ratio	DC	AC@53Hz
TH0500-I-T-500A-02A-5	500	0.2	2500:1	5	150
TH0500-I-T-1kA-05A-5	1 k	0.5	2000:1	5	150
TH0500-I-T-2kA-05A-5	2 k	1	2000:1	5	150
TH0500-I-T-5kA-1A-5	5 k	2	2500:1	5	150
TH0500-I-T-10kA-2A-10	10 k	2	5000:1	10	150
TH0500-I-T-20kA-5A-20	20 k	5	4000:1	20	150

• Measurement range: ± (0~120%) * FS; Measuring frequency: DC~5 kHz (3dB signal bandwidth ≥ 100 kHz)

Note: The secondary nominal output current can be customized according to customer requirements.

4.3 Direct connected I/V conversion standard

Model	Nominal Input Current ( A )	Nominal Output Voltage ( V )	Accuracy ( ± 1×10^-6, full range)
Model	Nominal Input Current ( A )	Nominal Output Voltage ( V )	DC	AC@53Hz
TH0500-U-D-01A-1V-10	0.1	1	10	200
TH0500-U-D-02A-1V-10	0.2	1	10	200
TH0500-U-D-05A-1V-10	0.5	1	10	200
TH0500-U-D-1A -1V-10	1	1	10	200
TH0500-U-D-2A-1V-10	2	1	10	200
TH0500-U-D-5A-1V-10	5	1	10	200
TH0500-U-D-10A-1V-10	10	1	10	200
TH0500-U-D-20-1V-10	20	1	10	200
TH0500-U-D-50A-1V-10	50	1	10	200
TH0500-U-D-100-1V-10	100	1	10	200
TH0500-U-D-200A-1V-10	200	1	10	200
TH0500-U-D-01A-1V-20	0.1	1	20	200
TH0500-U-D-02A-1V-20	0.2	1	20	200
TH0500-U-D-05A-1V-20	0.5	1	20	200
TH0500-U-D-1A-1V-20	1	1	20	200
TH0500-U-D-2A-1V-20	2	1	20	200
TH0500-U-D-5A-1V-20	5	1	20	200
TH0500-U-D-10A-1V-20	10	1	20	200
TH0500-U-D-20A-1V-20	20	1	20	200
TH0500-U-D-50A-1V-20	50	1	20	200
TH0500-U-D-100A-1V-20	100	1	20	200
TH0500-U-D-200A-1V-20	200	1	20	200
TH0500-U-D-01A-1V-50	0.1	1	50	200
TH0500-U-D-02A-1V-50	0.2	1	50	200
TH0500-U-D-05A-1V-50	0.5	1	50	200
TH0500-U-D-1A-1V-50	1	1	50	200
TH0500-U-D-2A-1V-50	2	1	50	200
TH0500-U-D-5A-1V-50	5	1	50	200
TH0500-U-D-10A-1V-50	10	1	50	200
TH0500-U-D-20A-1V-50	20	1	50	200
TH0500-U-D-50A-1V-50	50	1	50	200
TH0500-U-D-100A-1V-50	100	1	50	200
TH0500-U-D-200A-1V-50	200	1	50	200

l Measurement range: ± (0~120%) * FS; Measuring frequency: DC~5 kHz (3dB signal bandwidth ≥ 100 kHz)

4.4 Through Core I/V Conversion Standard

Model	Nominal Input Current ( A )	Nominal Output Voltage ( V )	Accuracy ( ± 1×10^-6, full range)
Model	Nominal Input Current ( A )	Nominal Output Voltage ( V )	DC	AC@53Hz
TH0500-U-T-500A-1V-10	500	1	10	200
TH0500-U-T-1kA-1V-10	1 k	1	10	200
TH0500-U-T-2kA-1V-10	2 k	1	10	200
TH0500-U-T-5kA-1V-10	5 k	1	10	200
TH0500-U-T-500A-1V-20	500	1	20	200
TH0500-U-T-1kA-1V-20	1 k	1	20	200
TH0500-U-T-2kA-1V-20	2 k	1	20	200
TH0500-U-T-5kA-1V-20	5 k	1	20	200
TH0500-U-T-10kA-1V-20	10 k	1	20	200
TH0500-U-T-500A-1V-50	500	1	50	200
TH0500-U-T-1kA-1V-50	1 k	1	50	200
TH0500-U-T-2kA-1V-50	2 k	1	50	200
TH0500-U-T-5kA-1V-50	5 k	1	50	200
TH0500-U-T-10kA-1V-50	10 k	1	50	200
TH0500-U-T-20kA-1V-50	20 k	1	50	200
