TUNKIA TM7600 Digital Integration Fluxmeter

TM7600 Digital Integration Fluxmeter

Name: TM7600 Digital Integration Fluxmeter
Brand: TUNKIA
Rating: 5.0 (52 reviews)

TM7600 is a series of high precision magnetic flux measuring instruments, using advanced digital sampling and integration methods. It overcomes the defects of traditional capacitance-integrated (RC-integrated) fluxmeters, such as the long-term drift of capacitance, piezoelectric effect, leakage current and bias voltage/current of amplifier, which lead to the difficulty of improving the measurement accuracy and the obvious integral drift after clearing. It provides an effective measurement method for the research and development of advanced magnetic materials, the manufacture of high-end industrial products and the traceability of magnetic flux value.

Model:
TM7600
Brand:
TUNKIA


Availability:



Inquire

TM7600 Digital Integration Flux Meter

1. Summary

TM7600 is a series of high precision magnetic flux measuring instruments, using advanced digital sampling and integration methods. It overcomes the defects of traditional capacitance-integrated (RC-integrated) flux meters, such as the long-term drift of capacitance, piezoelectric effect, leakage current and bias voltage/current of amplifier, which lead to the difficulty of improving the measurement accuracy and the obvious integral drift after clearing. It provides an effective measurement method for the research and development of advanced magnetic materials, the manufacture of high-end industrial products and the traceability of magnetic flux value.

2. Features

• Accuracy: 0.02%, 0.05%, or 0.1%.

• The drift is ≤ 0.5 μWb/min at accuracy 0.05%.

• Unit switch: Wb, mWb, Vs, mVs, Mx.

• Alarm of exceeding the upper / lower limit.

• One-key reset and zero drift.

• Class 0.02 support ф (t) and U(t) measurement curve display.

• Saves the voltage zero at the input end of the coil.

• Support coil resistance input to eliminate effects.

• Support various of measuring coils.

• Digital and analog signal (option) output.

• Large LCD touch screen.

• Small size, light weight.

3. Specifications

3.1 Voltage Measurement

Range	Resolution	Measurement Uncertainty (k=2) A%RD①+B%RG②			Temperature coefficient ± ppmRD /°C* @15℃～30℃
Range	Resolution	Class 0.1	Class 0.05	Class 0.02	Temperature coefficient ± ppmRD /°C* @15℃～30℃
50 mV	0.1 μV	0.06 + 0.03	0.02 + 0.02	0.012 + 0.006	10
500 mV	1 μV	0.06 + 0.03	0.02 + 0.02	0.012 + 0.006	10
5 V	10 μV	0.06 + 0.03	0.02 + 0.02	0.012 + 0.006	10
50 V	100 μV	0.06 + 0.03	0.02 + 0.02	0.012 + 0.006	10
Note: ① RD is the reading value, ② RG is the range value, the same below

3.2 Magnetic Flux Measurement

Accuracy	Class 0.1	Class 0.05	Class 0.02
Flux Measurement Method	Digital integration of voltage measurements over time.
Flux Measurement Range	Scope of the theory：0.0 Wb～999999 Wb
Minimum Resolution	10 nWb	10 nWb	10 nWb
Integration Time Measurement Uncertainty	0.005%	0.005%	0.002%
Magnetic Flux Measurement Uncertainty	0.1%*RD + 10 μWb	0.05%*RD + 5 μWb	0.02%*RD + 2 μWb
Zero Drift Typical Value	1 μWb/min	0.5 μWb/min	0.5 μWb/min
Digits display	6-digit	6-digit	6-digit

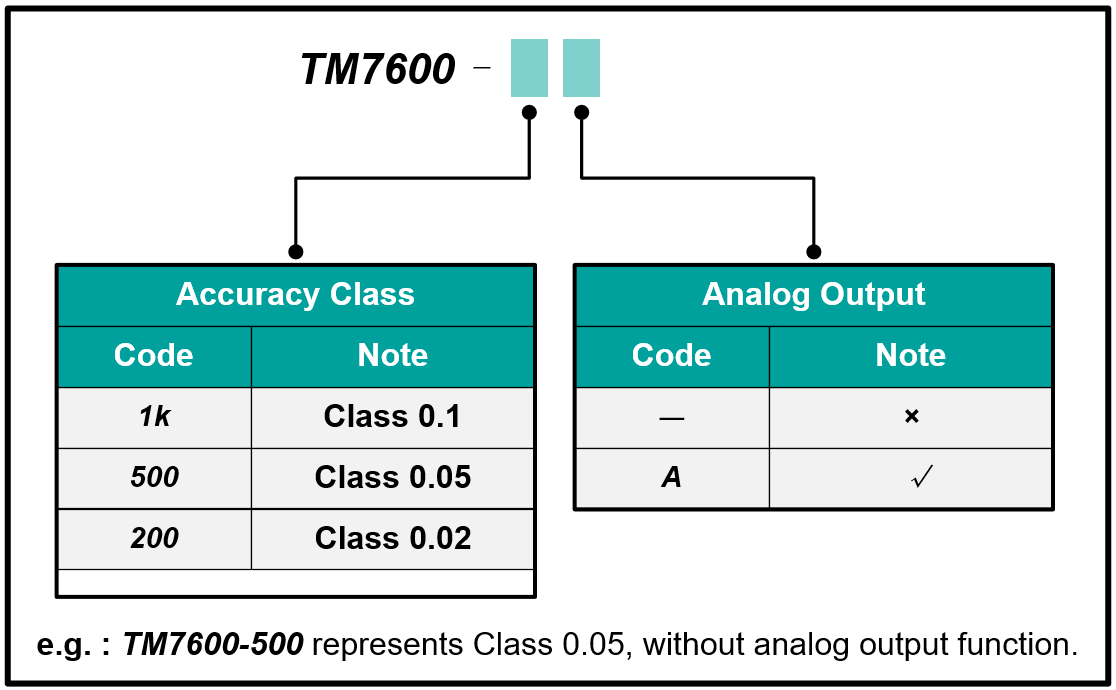

4. Ordering Information

Tunkia TM7600 Digital Integration Flux Meter

5. General Specification

Power supply	AC (220±22) V，(50±2) Hz
Temperature Performance	Operating temperature: ( 23 ± 5 )℃； Storage temperature: -20°C～70°C
Humidity Performance	Operating humidity: 40%～80% R·H, no condensation Storage humidity: < 80% R·H, no condensation
Weight	About 4 kg
Interface	Flux coil input, RS232, control, analog output interface

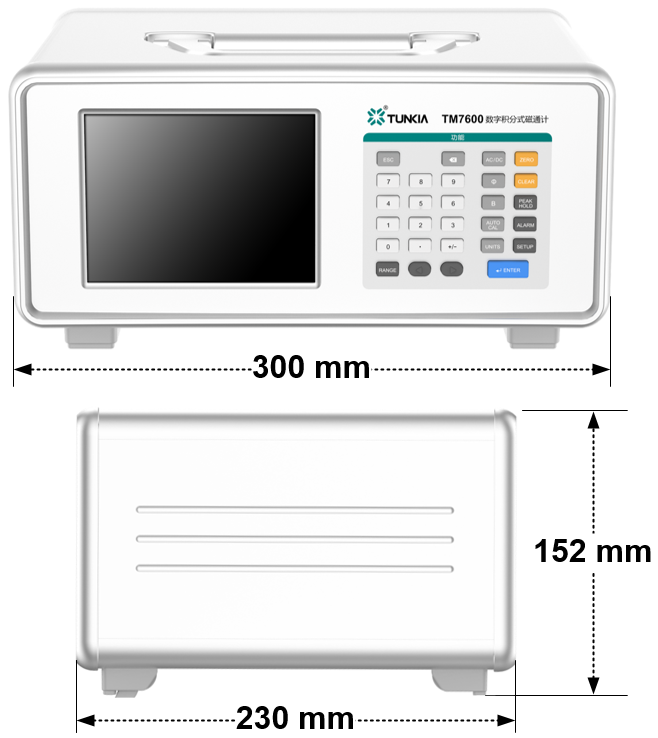

Dimensions	300 mm(L) x 230 mm(W) x 152 mm(H)

7. Accessory List

No.	Pic	Name	Specification	Qty	Remark
1		Low Potential Test Lead	1m, silver-plated wire, straight-plug lantern head, red and black twisted pair	1	Standard Accessory
2		Power Cord	AC 220V, 10A	1	Standard Accessory
3		Glass Fuse	1A 250V slow blow	4	Standard Accessory
4		Packing Box	Paper bag	1	Standard Accessory

No.	Pic	Name	Specification	Qty	Remark
1		TM1410 Flux Measurement Coil	Conventional flux coil	1	Optional Accessory
2		TM1420 Flux Measurement Coil	Sliding Search Coil	1	Optional Accessory
3		TM1430 Flux Measurement Coil	Helmholtz coil	1	Optional Accessory
4		TM1440 Flux Measurement Coil	Stator coil	1	Optional Accessory
5		Analog Output Lead	1m, 5-core aviation plug	1	Analog Output Function Optional Accessory
Note: The above accessories need to be purchased separately and must be specified in the order contract.

TM6140B Precision Magnetometer

TM4100B Handheld Fluxgate Magnetometer

TM5120B Handheld Teslameter

TM1200 / 1230 Fluxgate Probe

TM1100 / 1110 / 1130 Hall Probe

TM7500 Fluxmeter

TM7100 Handheld Fluxmeter

TM4830B Fluxgate Magnetometer

TM4300B Handheld Triaxial Fluxgate Magnetometer

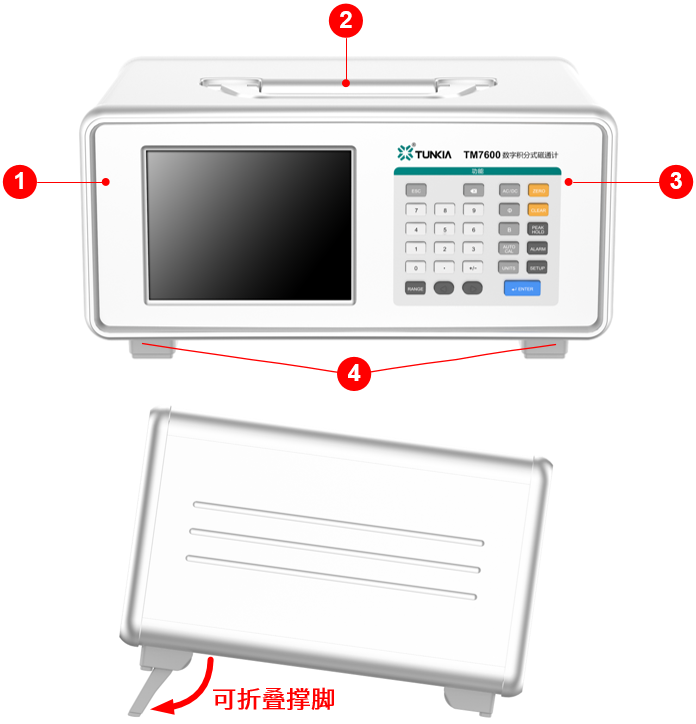

☆ Front Panel

S/N	Description
	LCD touch screen for intuitive display and easy operation.
	Built-in handle for easy carrying of the instrument.
	Keypad for easy input and function selection, improving usability.
	Foldable feet for easy reading.

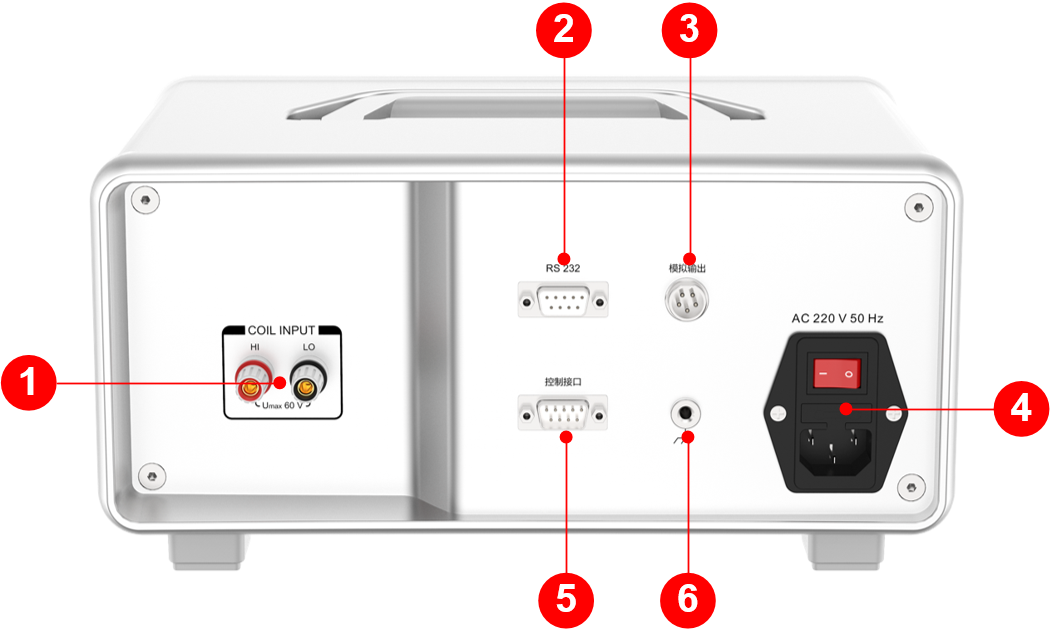

☆ Rear Panel

S/N	Description
	Coil input terminal: connect various types of flux measurement coils through test wires.
	RS232 communication interface: convenient for users to build a fully automatic test system.
	Output proportional analog voltage according to the flux measurement value, convenient for connecting to the sampling system.
	Power interface: AC 220V power input interface with switch and fuse.
	Control interface: convenient for connecting I/O control signals such as zeroing and resetting
	Casing ground: ensure that the casing is reliably grounded before testing.

☆ Front Panel

S/N	Description
	LCD touch screen for intuitive display and easy operation.
	Built-in handle for easy carrying of the instrument.
	Keypad for easy input and function selection, improving usability.
	Foldable feet for easy reading.

☆ Rear Panel

S/N	Description
	Coil input terminal: connect various types of flux measurement coils through test wires.
	RS232 communication interface: convenient for users to build a fully automatic test system.
	Output proportional analog voltage according to the flux measurement value, convenient for connecting to the sampling system.
	Power interface: AC 220V power input interface with switch and fuse.
	Control interface: convenient for connecting I/O control signals such as zeroing and resetting
	Casing ground: ensure that the casing is reliably grounded before testing.

TM7600 Digital Integration Fluxmeter

TM7600 Digital Integration Flux Meter

TM7600 Digital Integration Flux Meter
