TS2600 Comprehensive Measurement System for Electrical Steel Cores

Figure (To Be Updated)

1. Overview

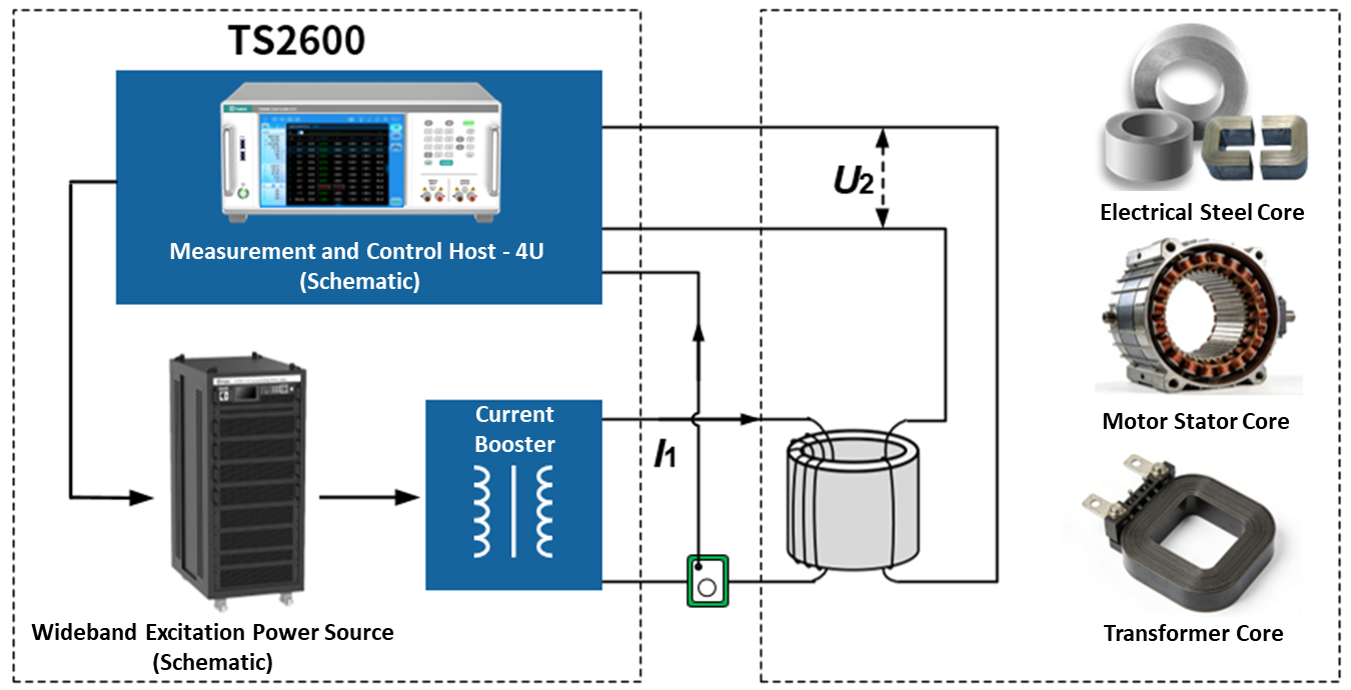

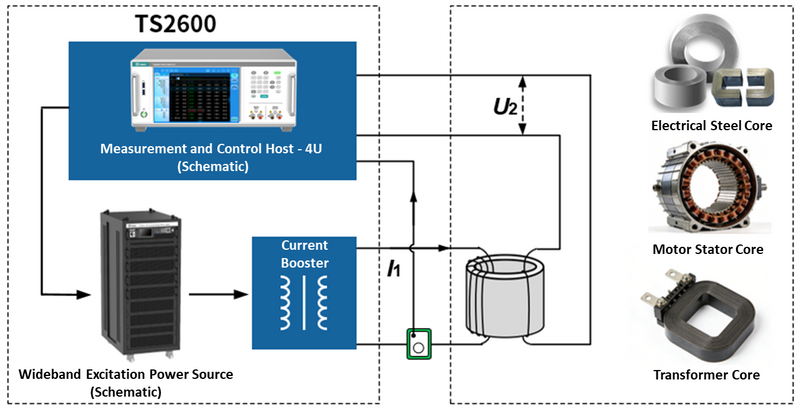

TS2600 adopts TUNKIA’s latest integrated precision measurement architecture IPMA, and is a high-precision integrated measurement system specifically designed for testing the magnetic properties of motor and transformer cores. The complete system consists of an electromagnetic measurement mainframe, a wide-frequency excitation power source, fully automated measurement software, and an automated fixture (optional).

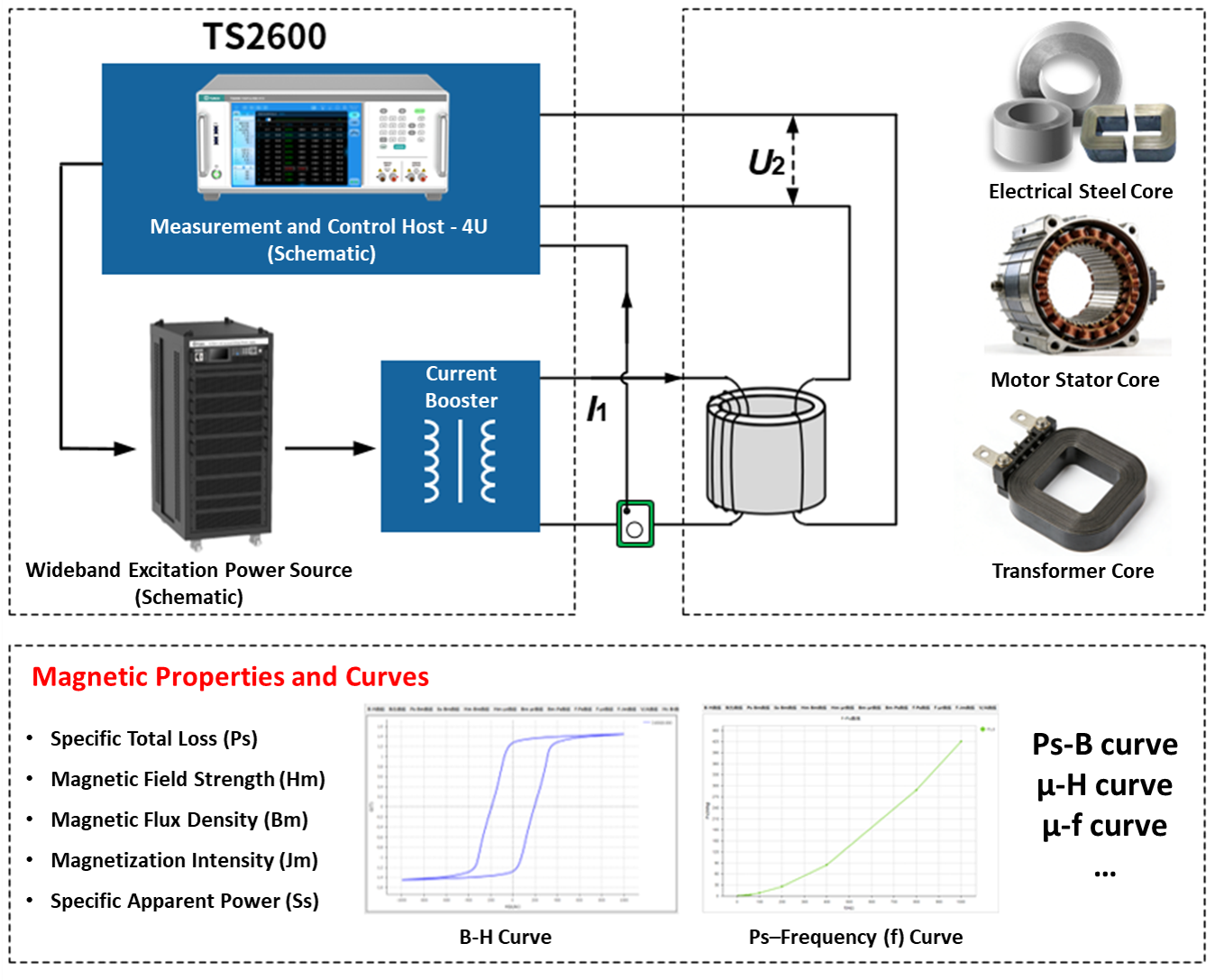

It is primarily used in the semi-finished stator core inspection stage of motor and transformer manufacturing. The system applies excitation current to the primary winding of the core and measures the induced voltage on the secondary winding, thereby obtaining the comprehensive magnetic performance parameters of the tested core.

Note IPMA: is a proprietary technology trademark of TUNKIA and stands for Integrated Precision Measurement Architecture (IPMA). IPMA is a new generation high-precision, modular, and highly reliable measurement instrument architecture developed by TUNKIA. By integrating precision electromagnetic measurement technology with high-speed bus technology, it effectively overcomes the limitations of conventional modular instruments in achieving ultra-precision measurements.

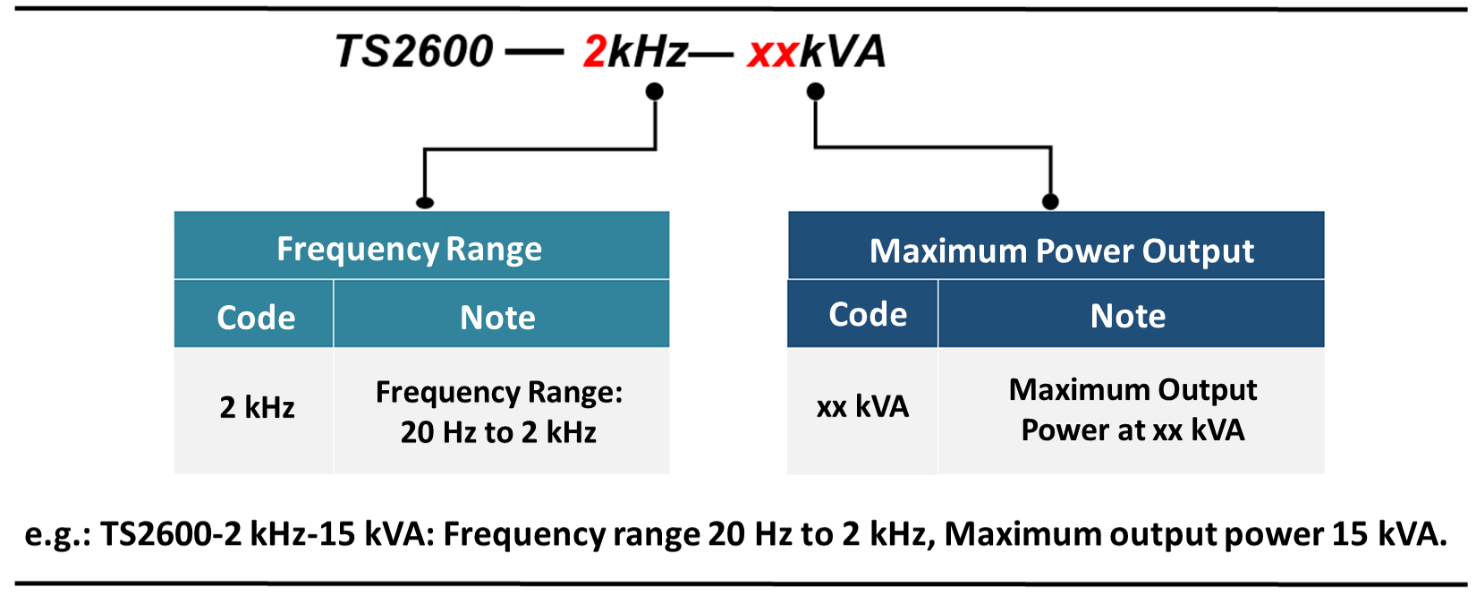

2. Typical Applications
