TS1000 is a special instrument for measuring the DC magnetic properties of electrical steel. It consists of excitation and measurement host, Epstein frame, solenoid (optional), A/B type Permeameter(optional),computer software, etc. It is suitable for comprehensive analysis of DC magnetic characteristics of electrical steel.
Availability: | |
---|---|
Quantity: | |
TS1000
TUNKIA

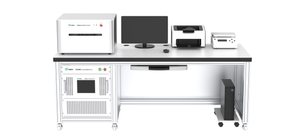

*Above picture is only for reference, subject to actual delivery
1. Summary
TS1000 is a special instrument for measuring the DC magnetic properties of electrical steel. It consists of excitation and measurement host, Epstein frame, solenoid (optional), A/B type Permeameter(optional),computer software, etc. It is suitable for comprehensive analysis of DC magnetic characteristics of electrical steel.
2. Features
• Electrical parameters calibration function.
• Maximum magnetization field reaches 30 kA/m (700 T Epstein frame).
• Slowly reduce amplitude demagnetization for specimen.
• Ultra-wide range of current continuously and stably regulated.
• Software controlled automatic measurement.
• Automatic calculates magnetic parameters and curves.
• Modular design, easy to upgrade or maintenance.
3. Application
*Above picture is only for reference, subject to actual delivery
1. Summary
TS1000 is a special instrument for measuring the DC magnetic properties of electrical steel. It consists of excitation and measurement host, Epstein frame, solenoid (optional), A/B type Permeameter(optional),computer software, etc. It is suitable for comprehensive analysis of DC magnetic characteristics of electrical steel.
2. Features
• Electrical parameters calibration function.
• Maximum magnetization field reaches 30 kA/m (700 T Epstein frame).
• Slowly reduce amplitude demagnetization for specimen.
• Ultra-wide range of current continuously and stably regulated.
• Software controlled automatic measurement.
• Automatic calculates magnetic parameters and curves.
• Modular design, easy to upgrade or maintenance.
3. Application
4. Specifications of magnetic parameters
Parameter | Range | Uncertainty (k=2) | Repeatability |
Hm | 1 A/m ~ 30 kA/m [1] | 0.5% | 0.2% |
Jm | 10 mT ~ 2.0 T [2] | 1.0% | 0.3% |
Bm | 10 mT ~ 2.1 T [2] | 1.0% | 0.3% |
Br | —— | 1.0% | 0.3% |
Hc | —— | 1.0% | 0.5% |
μi | —— | 4.0% | 1.5% |
μm | —— | 2.0% | 1.0% |
• Note: [1] The maximum magnetic field must be matched with a 700 T Epstein frame. • Note: [2] Jm、Bm related to the material properties |
5. Specifications of electrical parameters
Output Capacity | Voltage | ± 0.1 V ~ ± 20 V | |
Current | ± 0.5 mA ~ ± 40 A | ||
Power | 0 ~ 800 W | ||
Adjustment Fineness of Current | 0.005%*RG [3] | ||
Specification | Current | Uncertainty(k=2) | 0.2%*RG |
Flux | Range | 5 mWb、100 mWb、350 mWb | |
Zero-drift | ± (0.05%*RG)/min or ± 1 μWb/min (Whichever is greater) | ||
Uncertainty(k=2) | 0.3%*RG+ 5 μWb | ||
• Note: [3] RG is range. |
6. General specifications
Power Supply | AC ( 220±22 ) V,( 50±2 ) Hz |
Temperature Performance | Working Temperature:0°C~40°C Storage Temperature:-20°C~70°C |
Humidity Performance | Working Humidity:40%~80% R·H,No condensation Store Humidity:< 95% R·H,No condensation |
7. Epstein Frame
• The built-in coil of air flux compensation conforms to IEC60404-2 or IEC60404-10 standards.
• The cutting and placement of specimens shall comply with IEC60404-2.
Model | TS7000-B |
Length | 25 cm |
Lumen Height | 10 mm |
Turns | 700 T ( N1:4×175=700;N2:4×175=700) |
Magnetic Field Strength | 1 A/m~30 kA/m |
Frequency | ≤ 400 Hz |
Specimens Dimension | 30 mm (W) × ( 280~320 ) mm (L) |
Specimens Quality | 0.2 kg~1 kg |
Working Temperature | 0℃~45℃ |
8. Solenoid (optional)
Model | TS7750-A-55-600 | TS7750-B-55-600 |
Type | Single solenoid | Double solenoid |
Diameter (Ф) | 55 mm | 55 mm |
Length (L) | 600 mm | 600 mm |
Turns | About 2270 T | About 2270 T |
Maximum Current (Imax) | DC,± 20 A | DC,± 10 A |
Coil Constant (KH) | About 3780 1/m | About 3780 1/m |
Coil Constant (KB) | About 4.75 mT/A | About 4.75 mT/A |
Coil Impedance | About 1.8 Ω | About 3.6 Ω |
Dimensions (L×W×H,mm) | 650 × 230 × 230 | 650 × 600 × 230 |
Quality | About 50 kg | About 100 kg |
Working Temperature | 0°C~45°C | 0°C~45°C |
• Notes:The maximum magnetic field that can be achieved is related to the power load capacity. |
9. Type A / Type B Permeameter (optional)
Model | TS7710-A | TS7710-B |
Type | Type A | Type B |
Magnetic Field Strength | ( 1 ~ 200 ) kA/m | ( 1 ~ 50 ) kA/m |
Magnetic Field Measurement | H-coil | Rogowski-Chattock coil |
Sample Length L | ≥ 250 mm | ≥ 100 mm |
Device Dimension (L×W×H,mm) | 490 mm × 330 mm × 240 mm | 580 mm × 220 mm × 270 mm |
Quality | About 65 kg | About 53 kg |
Notes:The maximum magnetic field that can be achieved is related to the power load capacity. |
10. Configuration List
No. | Item name | Number | Configuration | Note |
1 | TS1000 | 1 | standard | |
2 | TS7000-B Epstein Frame | 1 | standard | 700 T,1 A/m~30 kA/m |
3 | Software | 1 | standard | |
4 | Test Wires and Attachments | 1 | standard | |
5 | Type A Permeameter | 1 | Optional | |
6 | Type B Permeameter | 1 | Optional | |
7 | Solenoid | 1 | Optional | |
8 | Sartorius Electronic Balance | 1 | Optional | 0.1~3.2kg,Precision:0.1g |
9 | Workbench | 1 | Optional | Third party Products |
10 | Computer | 1 | Optional | Third party Products |
11 | Printer | 1 | Optional | Third party Products |
Note: The above is only for reference. The specific configuration list depends on the technical protocol.
