TS1020 DC Magnetic Properties Measuring System for Yoke Steel

TS1020 is a special instrument for measuring the DC magnetic properties of yoke steel. It consists of excitation and measurement host, Epstein frame, solenoid (optional), A/B type Permeameter(optional)computer software, etc. It is suitable for comprehensive analysis of DC magnetic characteristics of yoke steel.

Availability:
Quantity:
  • TS1020

  • TUNKIA

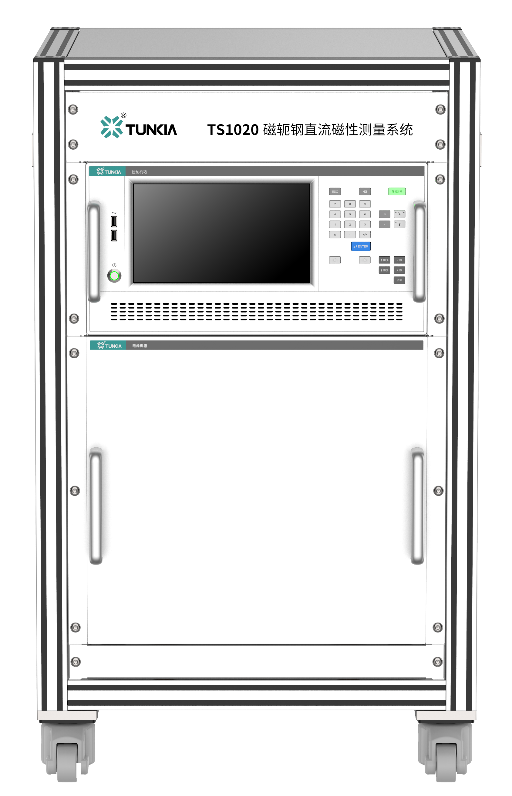

TS1020 DC Magnetic Properties Measuring System

                for Yoke Steel

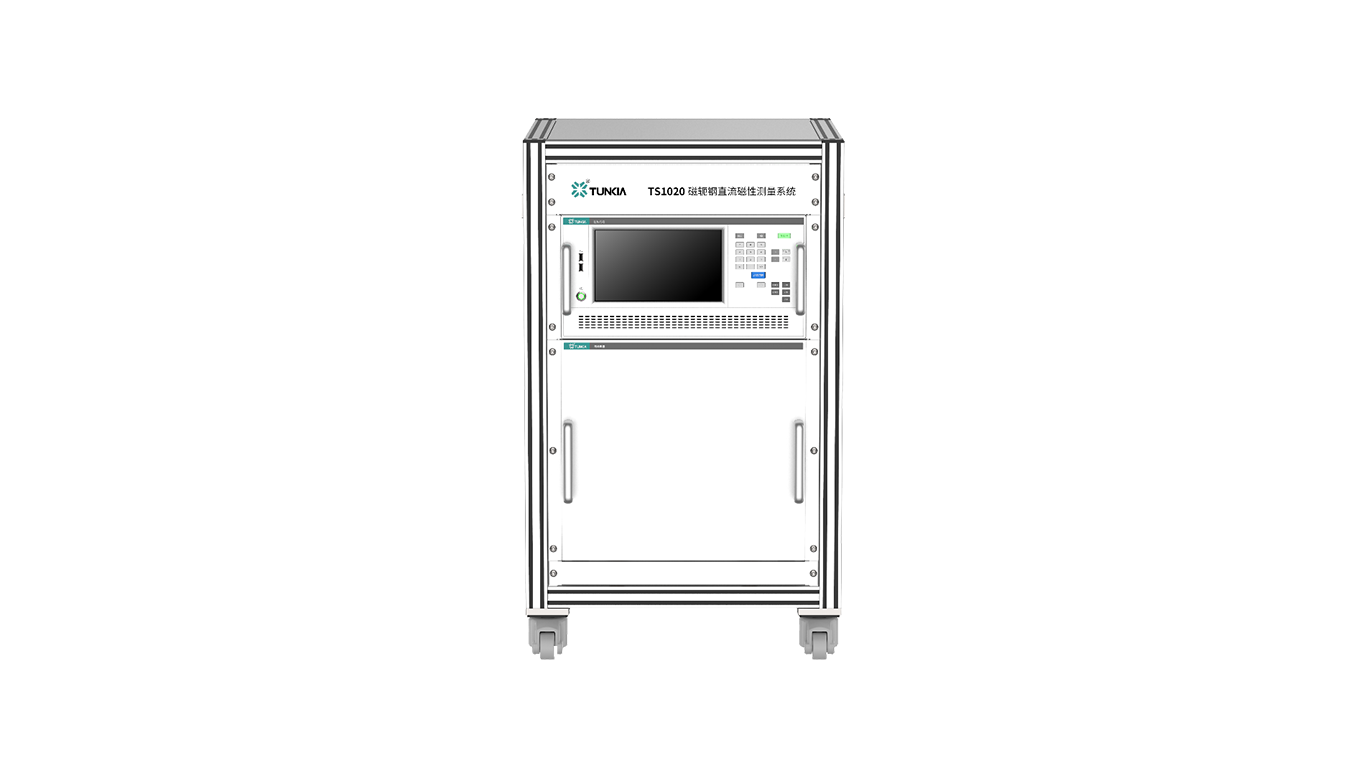

  TS1020 DC Magnetic Properties Measuring System for Yoke Steel

*Above picture is only for reference, subject to actual delivery

1. Summary

     TS1020 is a special instrument for measuring the DC magnetic properties of yoke steel. It consists of excitation and measurement host, Epstein frame, solenoid (optional), A/B type Permeameter(optional)computer software, etc. It is suitable for comprehensive analysis of DC magnetic characteristics of yoke steel.


2. Features

   •  Electrical parameters calibration function.

   •  Maximum magnetization field reaches 75 kA/m (700 T Epstein frame).

   •  Slowly reduce amplitude demagnetization for specimen.

   •  Ultra-wide range of current continuously and stably regulated.

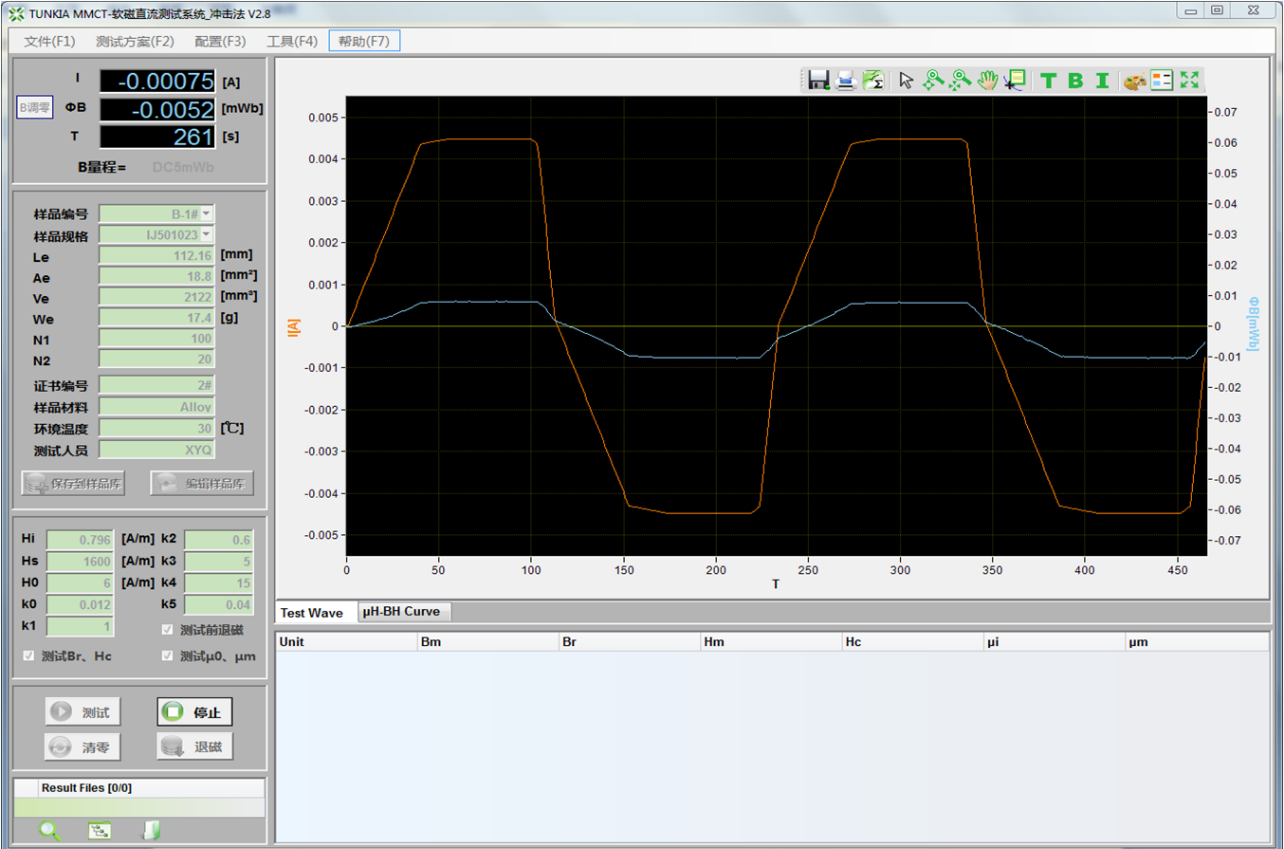

   •  Software controlled automatic measurement.

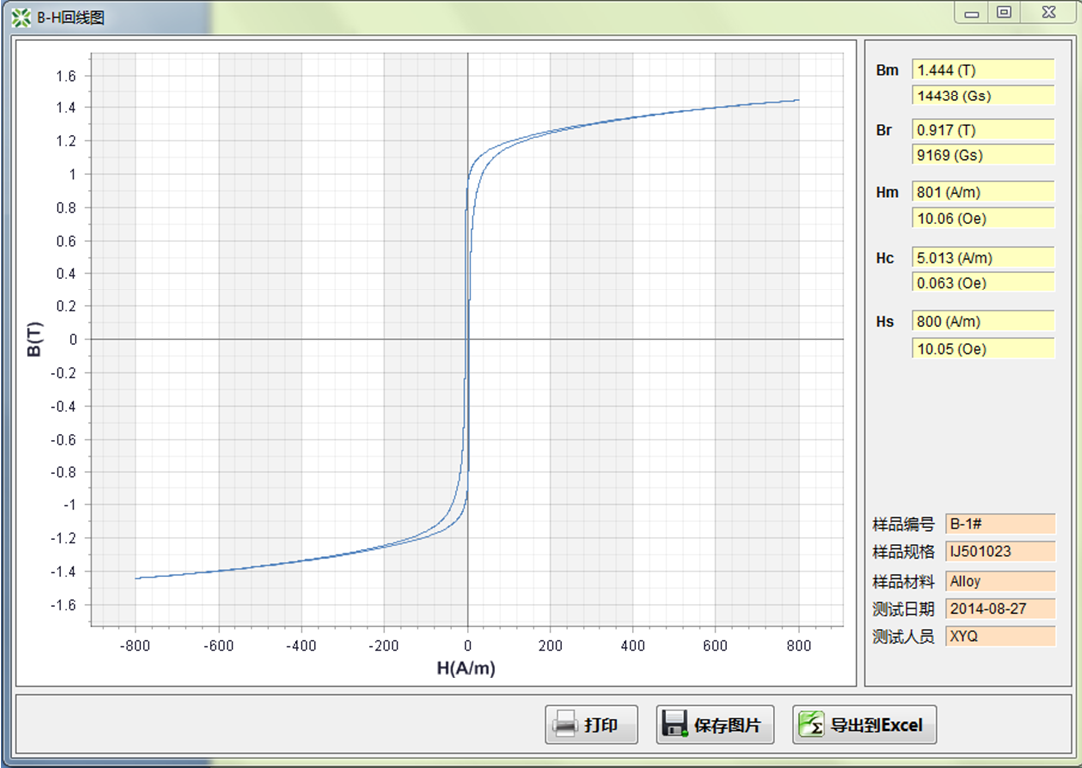

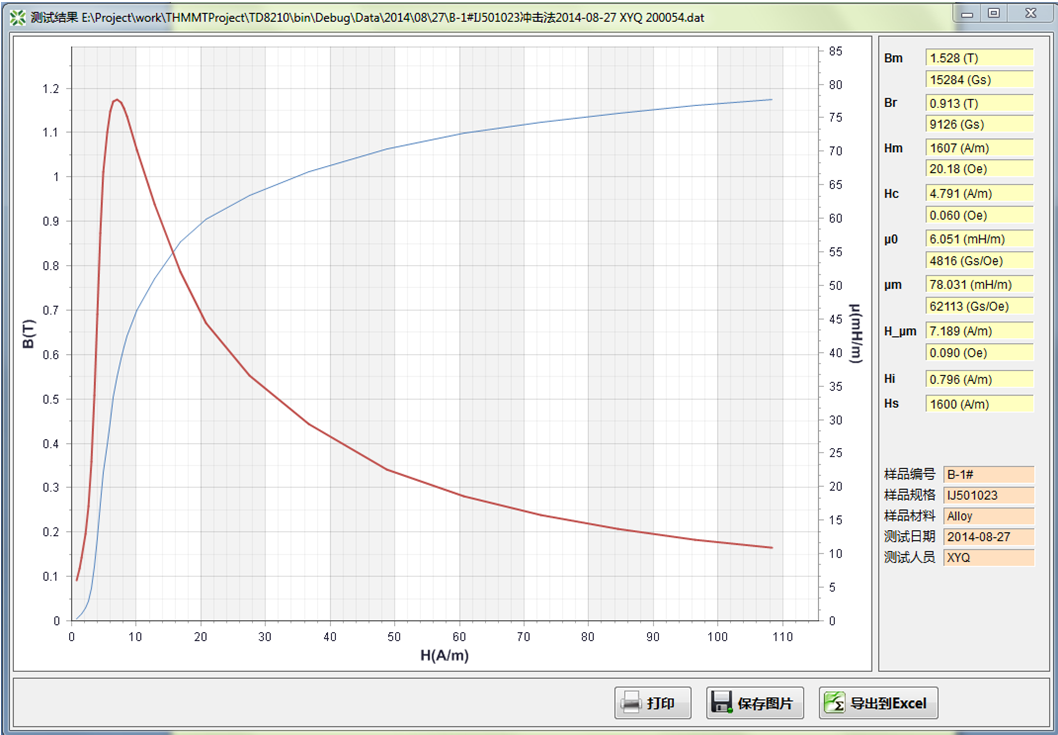

   •  Automatic calculates magnetic parameters and curves.

   •  Modular design, easy to upgrade or maintenance.



3. Application

TS1000 DC Magnetic Properties Measuring System for Electrical Steel  Application





4. Specifications of Magnetic Parameters

Parameter

Range

Uncertainty (k=2)

Repeatability

Hm

1 A/m  30 kA/m [1]

0.5%

0.2%

Jm

10 mT  2.0 T [2]

1.0%

0.3%

Bm

10 mT  2.1 T [2]

1.0%

0.3%

Br

——

1.0%

0.3%

Hc

——

1.0%

0.5%

μi

——

4.0%

1.5%

μm

——

2.0%

1.0%

Note: [1] The maximum magnetic field must be matched with a 700 T Epstein frame.

Note: [2] JmBm related to the material properties


5. Specifications of electrical parameters

Output Capacity

Voltage

± 0.1 V  ± 20 V


Current

± 0.5 mA  ± 100 A


Power

0  2 kW


Adjustment Fineness of Current

0.005%*RG [3]

Specification

Current

Uncertaintyk=2

0.2%*RG


Flux

Range

5 mWb100 mWb350 mWb



Zero-drift

± (0.05%*RG)/min or

± 1 μWb/min (Whichever is greater)



Uncertaintyk=2

0.3%*RG+ 5 μWb

Note: [3] RG is range.


6. General specifications

Power Supply

AC ( 220±22 ) V,( 50±2 ) Hz

Temperature Performance

Working Temperature:0°C40°C

Storage Temperature:-20°C70°C

Humidity Performance

Working Humidity:40%80% R·HNo condensation

Store Humidity:< 95% R·H,No condensation



7. Epstein Frame

TS1000 DC Magnetic Properties Measuring System for Electrical Steel Epstein Frame

The built-in coil of air flux compensation conforms to IEC60404-2 or IEC60404-10 standards.

The cutting and placement of specimens shall comply with IEC60404-2.

Model

TS1020-EPS Epstein Frame

Length

25 cm

Lumen Height

30 mm

Turns

700 T ( N1:4×175=700;N2:4×175=700)

Magnetic Field Strength

1 A/m75 kA/m

Frequency

400 Hz

SpecimenDimension

30 mm (W) × ( 280320 ) mm (L)

Specimens Quality

0.2 kg3 kg

Working Temperature

045


8. Solenoid (optional)

TS1020 DC Magnetic Properties Measuring System for Yoke Steel Solenoid

Model

TS7750-A-55-600

TS7750-B-55-600

Type

Single Solenoid

Double Solenoid

Diameter (Ф)

55 mm

55 mm

Length (L)

600 mm

600 mm

Turns

About 2270 T

About 2270 T

Maximum Current (Imax)

DC,± 20 A

DC,± 10 A

Coil Constant (KH)

About 3780 1/m

              About 3780 1/m

Coil Constant (KB)

About 4.75 mT/A

About 4.75 mT/A

Coil Impedance

About 1.8 Ω

About 3.6 Ω

Dimensions (L×W×H,mm)

650 × 230 × 230

650 × 600 × 230

Quality

About 50 kg

About 100 kg

Working Temperature

0°C~45°C

0°C~45°C

Notes:The maximum magnetic field that can be achieved is related to the power load capacity.


9. Type A / Type B Permeameter (optional)


TS1000 DC Magnetic Properties Measuring System for Electrical Steel permeameter

Model

TS7710-A

TS7710-B

Type

Type A

Type B

Magnetic Field Strength

( 1  200 ) kA/m

( 1  50 ) kA/m

Magnetic Field Measurement

H-coil

Rogowski-Chattock coil

Sample Length L

 250 mm

 100 mm

Device Dimension (L×W×H,mm)

490 mm × 330 mm × 240 mm

580 mm × 220 mm × 270 mm

Quality

About 65 kg

About 53 kg

NotesThe maximum magnetic field that can be achieved is related to the power load capacity.


10. Configuration List

No.

Item name

Number

Configuration

Note

1

TS1020

1

standard


2

TS1020-EPS Epstein Frame

1

standard

700 T1 A/m~75 kA/m

3

Software

1

standard


4

Test Wires and Attachments

1

standard


5

Type A Permeameter

1

Optional


6

Type B Permeameter

1

Optional


7

Solenoid

1

Optional


8

Sartorius Electronic Balance

1

Optional

0.13.2kgPrecision0.1g

9

Workbench

1

Optional

Third party Products

10

Computer

1

Optional

Third party Products

11

Printer

1

Optional

Third party Products

Note: The above is only for reference. The specific configuration list depends on the technical protocol.
