TY1500 Electromagnet

TY1500 electromagnet can install different specifications of pole heads and excite with DC current source. It can produce a large and continuously adjustable magnetic field, with good uniformity and linearity. The electromagnet can be used as an excitation device for permanent magnet samples, to detect their magnetic properties. TY1500 electromagnet has a low input power / magnetic field, and features low carbon, environmental protection and energy-saving. It adopts a natural cooling method and does not require an external water cooling system for heat dissipation. Electromagnets with pole diameters of 250mm or 280mm can be equipped with an optional pole head automatic lifting function (accessory).

Availability:
Quantity:
  • TY1500

  • TUNKIA

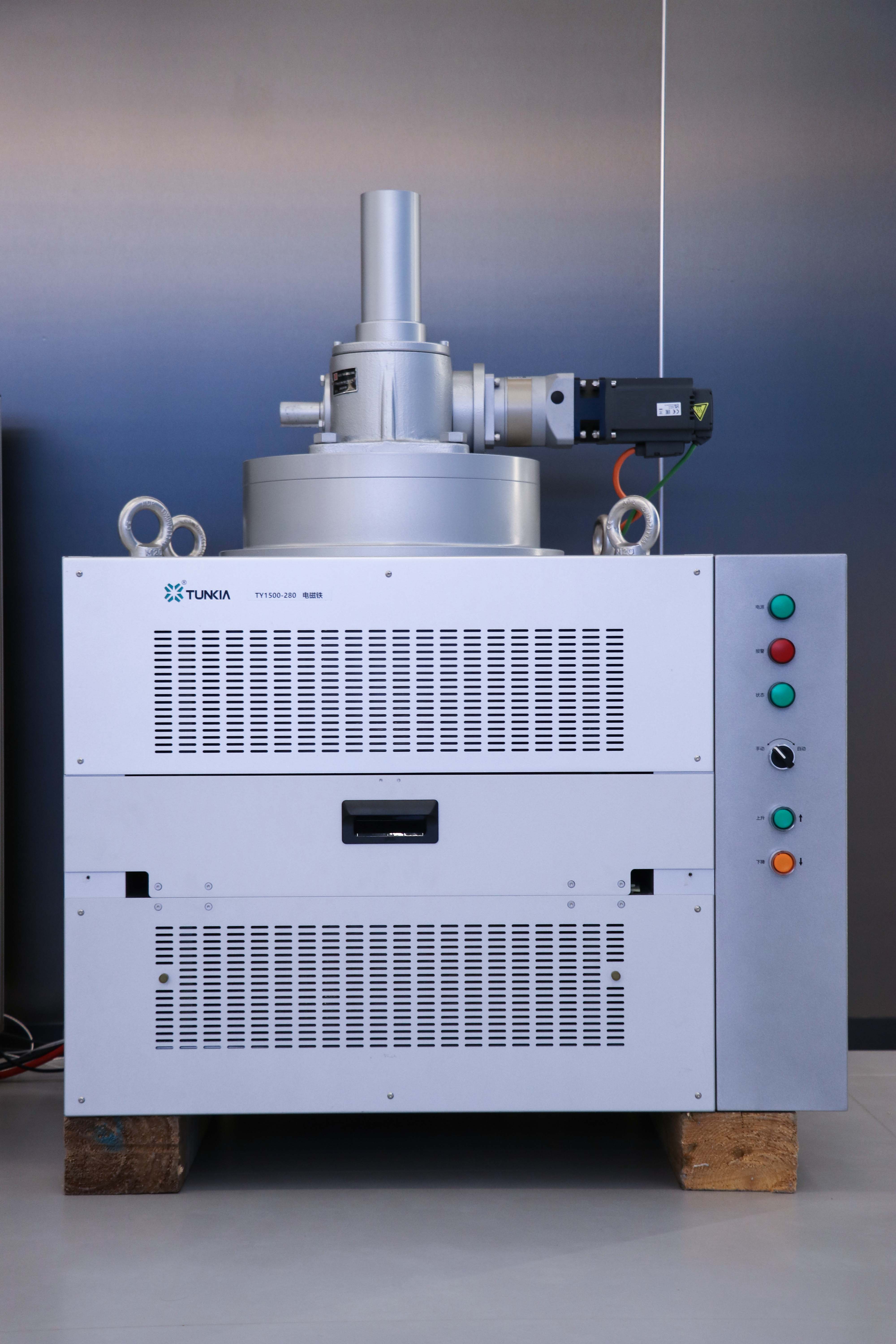

TY1500 Electromagnet

TY1500 Electromagnet

*Above picture is only for reference, subject to actual delivery

1. Summary

TY1500 electromagnet can install different specifications of pole heads and excite with DC current source. It can produce a large and continuously adjustable magnetic field, with good uniformity and linearity. The electromagnet can be used as an excitation device for permanent magnet samples, to detect their magnetic properties. TY1500 electromagnet has a low input power / magnetic field, and features low carbon, environmental protection and energy-saving. It adopts a natural cooling method and does not require an external water cooling system for heat dissipation. Electromagnets with pole diameters of 250mm or 280mm can be equipped with an optional pole head automatic lifting function (accessory).


2. Features

Various of poles are available on request.

Electromagnet excited by current source generates large magnetic field.

Use for testing magnetic properties of hard magnetic materials.

Natural cooling, without external water cooler for heat dissipation.

Automatic lifting poles function is optional(only 250 mm or 280 mm poles.


3. Specifications

Model

Pole

Diameter

Air Gap

Imax

Hmax

(10 mm Gap)

Apply to System

TY1500-100

100 mm

050 mm adjustable

DC , ±25 A

1.2 T

TS4000

TY1500-130

130 mm

080 mm adjustable

DC , ±25 A

2.45 T

TY1000


TY1500-150

150 mm

080 mm adjustable

DC , ±25 A

2.50 T

TY1500-250

250 mm

050 mm adjustable

DC , ± 60 A

3.0 T

TY1100


TY1500-280

280 mm

050 mm adjustable

DC , ±60 A

3.2 T

Note: Hmax of the electromagnet depends on the poles.



4. Ordering Information

TY1500 Electromagnet Ordering Information
