TY1550 Pole of Electromagnet

Name: TY1550 Pole of Electromagnet
Brand: TUNKIA
Rating: 5.0 (20 reviews)

 Pole pieces are typically accessories installed inside the electromagnet. When excited by a stable DC current source, they generate a large, uniform magnetic field at the center of the two pole faces. This is used for magnetizing/demagnetizing permanent magnet specimens, testing their magnetic properties, or calibrating the magnetic field with a standard tesla-meter.

Model:
TY1550
Brand:
TUNKIA


Availability:



Inquire

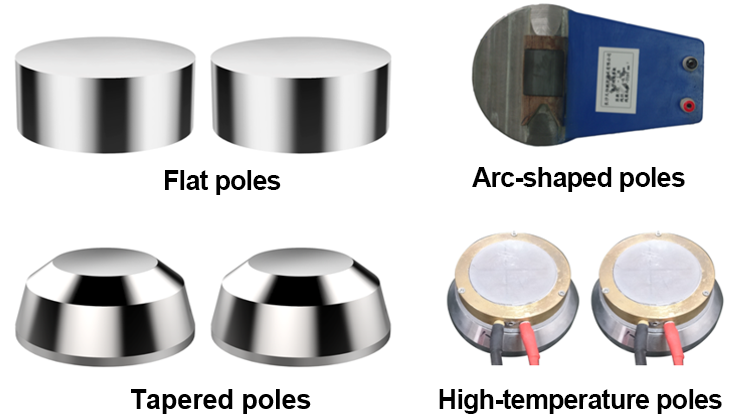

TY1550 Pole of Electromagnet

*Above picture is only for reference, subject to actual delivery

1. Summary

• Pole pieces are typically accessories installed inside the electromagnet. When excited by a stable DC current source, they generate a large, uniform magnetic field at the center of the two pole faces. This is used for magnetizing/demagnetizing permanent magnet specimens, testing their magnetic properties, or calibrating the magnetic field with a standard tesla-meter.

• Flat pole pieces are cylindrical, with the same diameter for both the pole column and pole face; tapered pole pieces have a smaller pole face diameter than the pole column. Both types are suitable for testing cylindrical, ring-shaped, or block-shaped specimens.

• High-temperature pole pieces can be connected to the TY1900 Specimen Heating Device for heating, commonly used to test the magnetic properties of permanent magnets at elevated temperatures. A thermocouple sensor can be inserted into the pole piece for temperature measurement and feedback control.

• Segment pole pieces are typically used for testing arc magnets and must be customized based on specimen dimensions.

• Tapered pole pieces are available in Fe-Co versions for improved test performance.

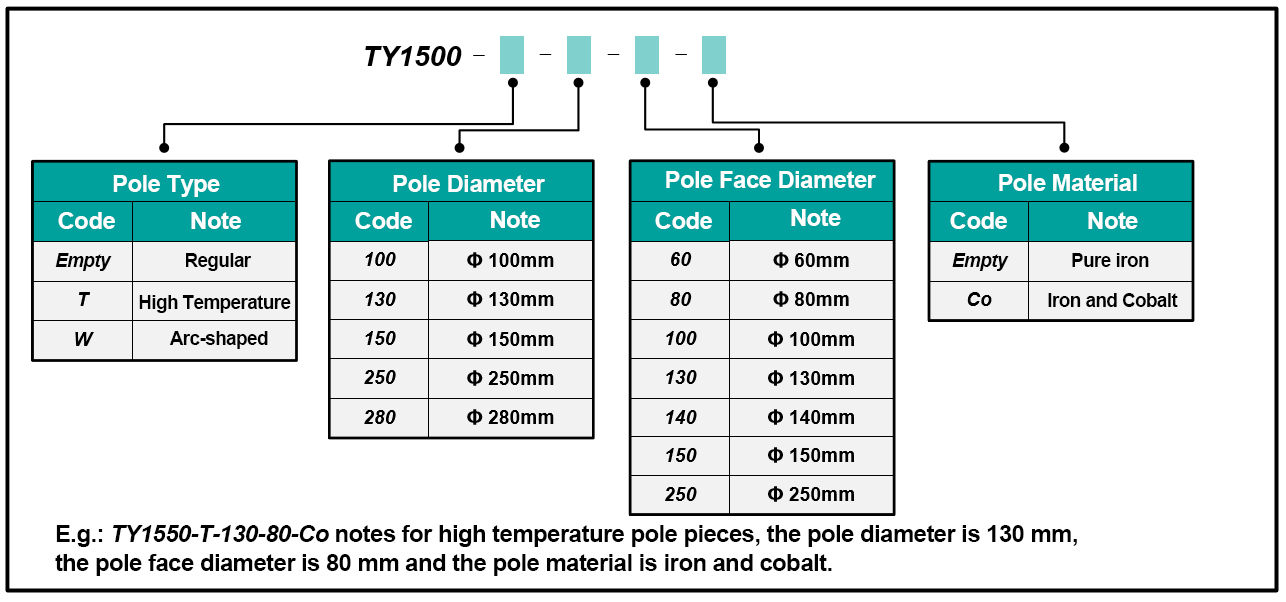

2. Specifications

Model	Pole Type	Pole Diameter	Pole Face Diameter	Pole material	Typical Maximum Magnetic Field (10 mm gap)	Applied System
TY1550-100-100	Flat	100 mm	100 mm	Pure Iron	1.2 T	TS4000
TY1550-130-130	Flat	130 mm	130 mm	Pure Iron	1.5 T	TY1000
TY1550-130-60	Tapered	130 mm	60 mm	Pure Iron	2.45 T
TY1550-150-150	Flat	150 mm	150 mm	Pure Iron	1.5 T
TY1550-150-80	Tapered	150 mm	80 mm	Pure Iron	2.55 T
TY1550-250-250	Flat	250 mm	250 mm	Pure Iron	2.0 T	TY1100
TY1550-250-140	Tapered	250 mm	140 mm	Pure Iron	2.8 T
TY1550-250-80	Tapered	250 mm	80 mm	Pure Iron	3.0 T
TY1550-250-80-Co	Tapered	250 mm	80 mm	Iron and Cobalt	3.0 T
TY1550-280-140	Tapered	280 mm	140 mm	Pure Iron	3.0 T
TY1550-280-80-Co	Tapered	280 mm	80 mm	Iron and Cobalt	3.2 T
TY1550-T-130-80	High-temperature	130 mm	80 mm	Pure Iron	1.8 T	TY1000
TY1550-T-150-80	High-temperature	150 mm	80 mm	Pure Iron	2.0 T	TY1000
TY1550-T-250-80-Co	High-temperature	250 mm	80 mm	Iron and Cobalt	2.8 T	TY1100
TY1550-T-280-80-Co	High-temperature	280 mm	80 mm	Iron and Cobalt	3.0 T	TY1100
