TY1700 Coils for Permanent Magnet Measurement

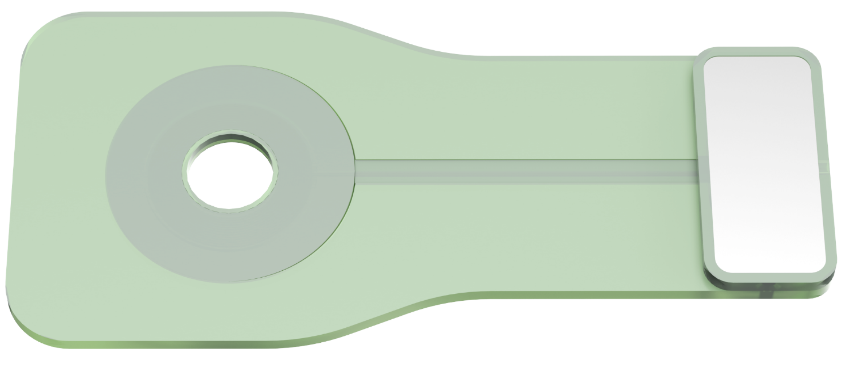

*Above picture is only for reference, subject to actual delivery

1. Summary

• The TY1700 coils are optional accessories designed for use with permanent magnet measurement systems. Based on the measurement parameters, they are classified into H coils, B coils, J coils, BH coils, and JH coils.

• Users can select coils of different sizes or high-temperature coils according to their measurement requirements.

• The turn area of each coil is calibrated using high-grade magnetic measurement standards.

• Compatible products include TY1000, TY1100, and others.

2. Ordering Information
