1. Summary

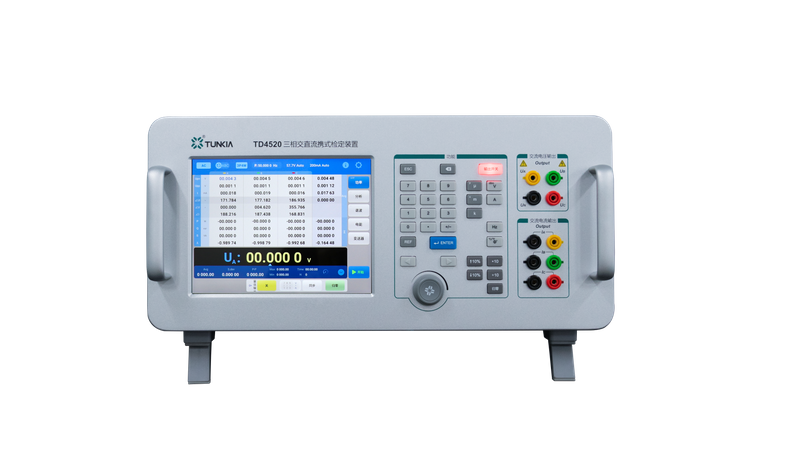

TD4520 is a multi-function 3PH power calibrator. Class 0.02 / class 0.05 available. It integrates AC/DC power output function, 3PH measuring function, harmonic function, transmitter test function, U4th voltage output function, AC energy meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC ammeter, AC/DC power meter electric energy meter and transmitter, etc.
2. Features
3PH voltage output: 6 V~456 V
3PH current output: 20 mA~24 A
3PH voltage meter: 6 V~456 V;
3PH current meter: 0.1 A~6 A
DC voltage output: 10 mV~660 V
DC current output: 0.1 mA~22 A
Accuracy class: 0.02, 0.05.
Adjustable frequency and phase; virtual power output
Harmonic function/transmitter test function
U4th AC voltage output function(option)
Energy meter test function(option)
Clamp measurement/ Test software(option)
3. Application

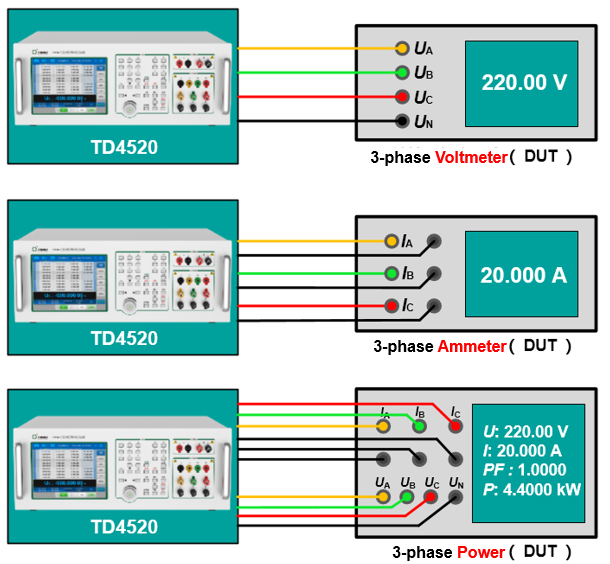

☆ Calibrating AC Measuring Devices with Virtual Load (Standard Source Method) |
|

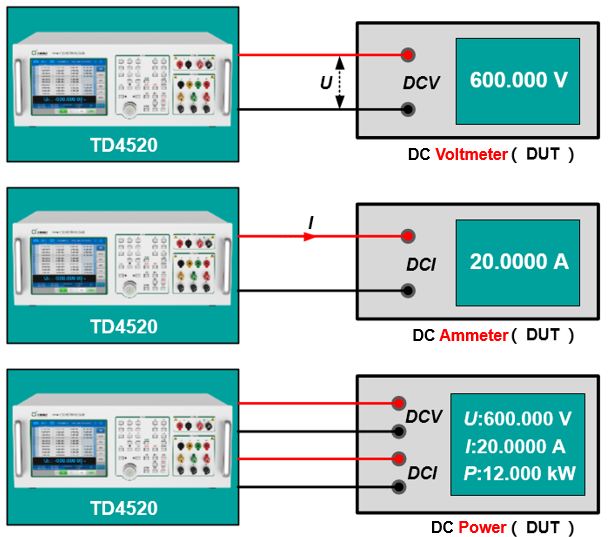

☆ Calibrating DC Measuring Devices with Virtual Load (Standard Source Method) |
|

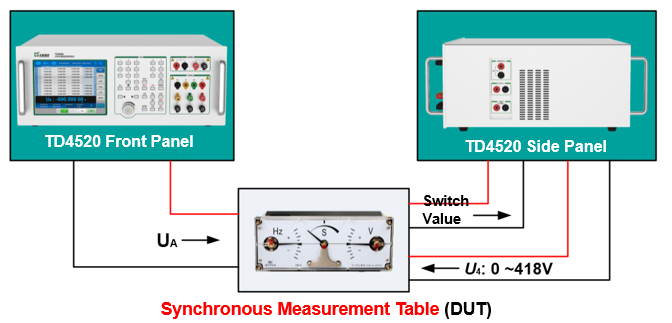

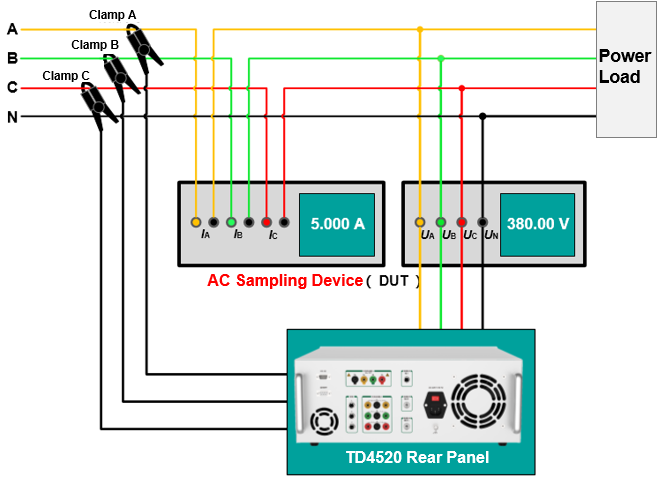

☆ Calibrating AC Sampling for Real Load (Standard Meter Method) |
|

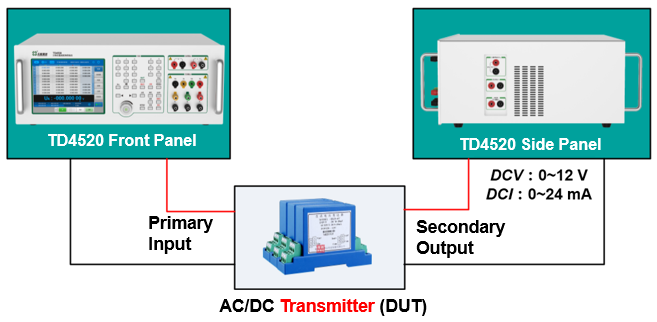

☆ Calibrating AC/DC Transmitter |
|

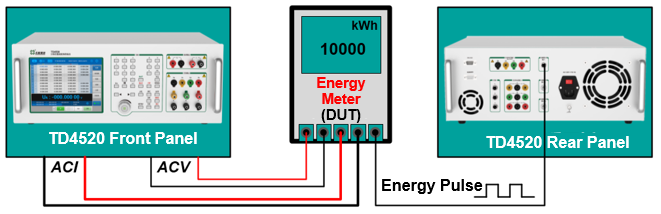

☆ Test Single/Three-Phase Energy Meter (Optional) |
|
☆ Test Contemporaneous Table (Optional) |
|

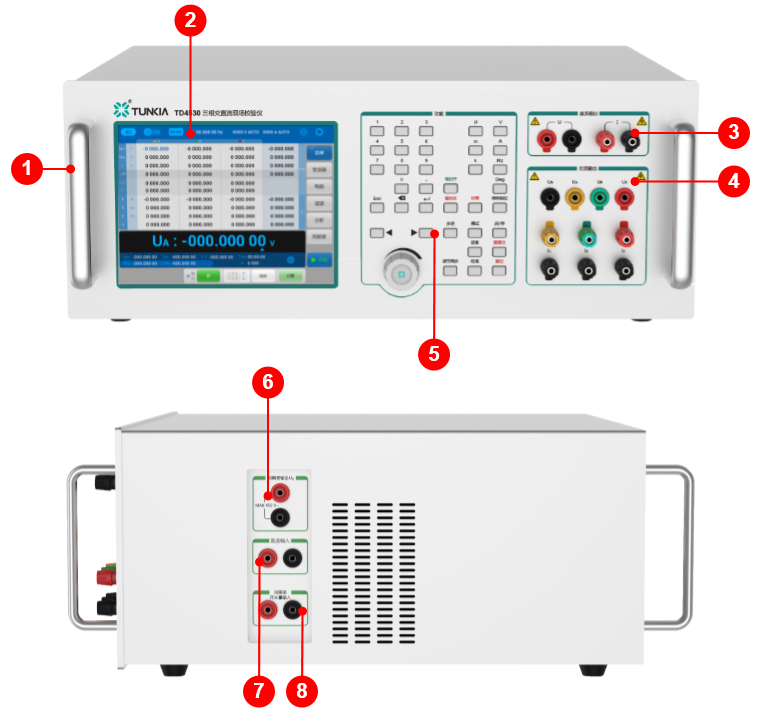

☆ Front/Side Panel | |
S/N | Description |
The handle makes it convenient for users to carry the device. | |
LCD touch color screen, intuitive display of multiple power levels, and full touch operation greatly improve the usability. | |
DC voltage output terminal, DC current output terminal | |
UA, UB, UC three-phase voltage output terminals, IA, IB, IC three-phase current output terminals. | |
Operate physical buttons and rotary knob to assist in setting outputs. | |
The fourth voltage output terminal is used for synchronous meter function detection. | |
The DC transmitter secondary signal input terminal supports the input of a maximum DC24 mA or 12 V signal. | |
Synchronous measurement table switch input terminal, supports the measurement of synchronous meter switch signal. |

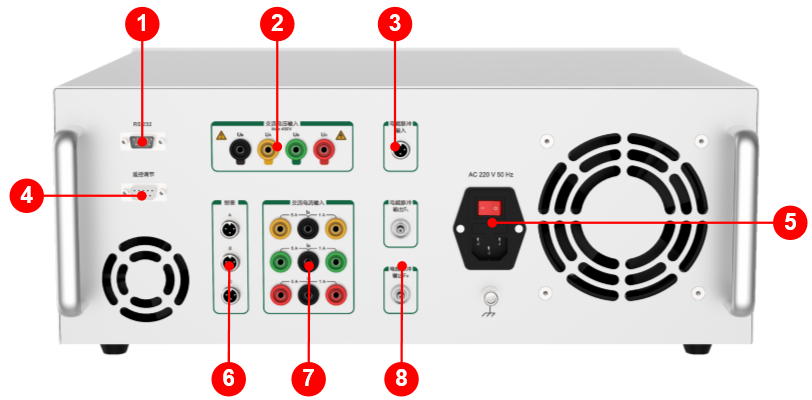

☆ Rear Panel | |
S/N | Description |
RS232 interface, can be connected to a computer, convenient for users to program and control the output of the power calibrator. | |
UA, UB, UC three-phase voltage measurement terminals. | |
Energy pulse input terminal. | |
This interface can be connected to the remote control box to facilitate users to calibrate the analog meter. | |
Power switch and interface, rocker switch, AC 220V power input interface with fuse. | |
IA, IB, IC three-phase current clamp measurement terminals. | |
IA, IB, IC three-phase current direct measurement terminals. | |
Energy pulse output terminal. |
1. Summary
TD4520 is a multi-function 3PH power calibrator. Class 0.02 / class 0.05 available. It integrates AC/DC power output function, 3PH measuring function, harmonic function, transmitter test function, U4th voltage output function, AC energy meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC ammeter, AC/DC power meter electric energy meter and transmitter, etc.
2. Features
3PH voltage output: 6 V~456 V
3PH current output: 20 mA~24 A
3PH voltage meter: 6 V~456 V;
3PH current meter: 0.1 A~6 A
DC voltage output: 10 mV~660 V
DC current output: 0.1 mA~22 A
Accuracy class: 0.02, 0.05.
Adjustable frequency and phase; virtual power output
Harmonic function/transmitter test function
U4th AC voltage output function(option)
Energy meter test function(option)
Clamp measurement/ Test software(option)
3. Application
☆ Calibrating AC Measuring Devices with Virtual Load (Standard Source Method) |
|
☆ Calibrating DC Measuring Devices with Virtual Load (Standard Source Method) |
|
☆ Calibrating AC Sampling for Real Load (Standard Meter Method) |
|
☆ Calibrating AC/DC Transmitter |
|
☆ Test Single/Three-Phase Energy Meter (Optional) |
|
☆ Test Contemporaneous Table (Optional) |
|
☆ Front/Side Panel | |
S/N | Description |
The handle makes it convenient for users to carry the device. | |
LCD touch color screen, intuitive display of multiple power levels, and full touch operation greatly improve the usability. | |
DC voltage output terminal, DC current output terminal | |
UA, UB, UC three-phase voltage output terminals, IA, IB, IC three-phase current output terminals. | |
Operate physical buttons and rotary knob to assist in setting outputs. | |
The fourth voltage output terminal is used for synchronous meter function detection. | |
The DC transmitter secondary signal input terminal supports the input of a maximum DC24 mA or 12 V signal. | |
Synchronous measurement table switch input terminal, supports the measurement of synchronous meter switch signal. |
☆ Rear Panel | |
S/N | Description |
RS232 interface, can be connected to a computer, convenient for users to program and control the output of the power calibrator. | |
UA, UB, UC three-phase voltage measurement terminals. | |
Energy pulse input terminal. | |
This interface can be connected to the remote control box to facilitate users to calibrate the analog meter. | |
Power switch and interface, rocker switch, AC 220V power input interface with fuse. | |
IA, IB, IC three-phase current clamp measurement terminals. | |
IA, IB, IC three-phase current direct measurement terminals. | |
Energy pulse output terminal. |
5. Characteristics
☆ Wide Output
The wide range output capability can cover the calibration of three-phase and DC measuring instruments commonly used in power systems.
☆ Wide Input
The wide range measurement capability can cover the AC sampling devices commonly used in power systems for real load verification.
☆ Convenience of operation

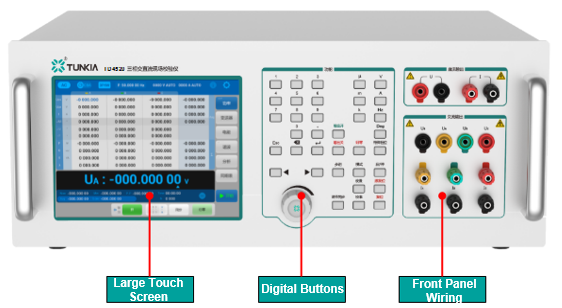

Large LCD Touch Screen: full color, high screen brightness, clear picture quality, support touch operation, comprehensive functions, simple and fast.
Digital Programmable Buttons: can realize multiple input methods such as fixed-point output, rotary encoder, and step adjustment, and the operation is convenient and fast.
Front Panel Wiring: convenient for users to replace current and voltage test wires when checking the meter.
Solution Advantages: This combined operation method effectively improves the convenience of operation to adapt to a variety of application scenarios.
☆ Multiple Output Mode
The instrument has a "Direct output " mode. You can directly set the required output value through the digital buttons on the front panel or by clicking the touch screen. The instrument will automatically switch to the optimal range output, making it very convenient to calibrate digital instruments.
Especially when setting power, you can directly enter the voltage value, current value, and phase.
When setting three-phase power, select three-phase unified adjustment or phase-by-phase adjustment on the main interface.
• “Rotary Knob”mode,users can setting in clockwise direction or anticlockwise direction.
.
☆ Multiple set value output mode
The calibration of analog pointer type usually needs to be carried out scale by scale, especially the "rising and falling variation" (i.e. the change caused by the rise and fall of the tested point), and the output of the source needs to be adjusted to align the indicator of the tested table with the graduation line of the tested point.
It is relatively inconvenient to use the digital fixed-point output method to adjust the output of the standard source to achieve the alignment of the scale.
For this reason, we provide users with a Remote Control Box(option). Through the operation of coarse adjustment-fine adjustment, the output can be quickly adjusted to align with the scale of the tested table, which is very convenient to complete the calibration of the analog table. This function is particularly useful when it is necessary to consider the friction or hysteresis effect during movement.
When calibrating electrical measuring instruments, it is usually necessary to select calibration points according to the proportion of each range of the meter being tested.
Users can easily select the calibration points through the " Calibration point " on the touch screen of this instrument.
☆ Harmonics Function
S/N
Function
Set the amplitude of the selected harmonic. Users can set the absolute value of the voltage or current harmonic, or set it as a percentage of the fundamental.
Set phase of harmonic (fundamental wave).
Choose 2nd~21st harmonics channel output. The embedded software is equipped with a user-defined “harmonic parameter setting” interface, which allows users to set the required harmonics according to test requirements.
Oscilloscope function, user can observe voltage and current waves.
Display frequency spectrum of harmonic by histogram.(fundament wave is 100%)
☆ Test software(option)
Optional automatic calibration software, adaptable to various electrical measuring instruments, automatically generates test reports, and improves test efficiency.
Supports fully automatic or semi-automatic calibration of the equipment under test, raw data recording, analysis, management and customized template report export.
*(During fully automatic calibration, the equipment under test should have communication function and open communication protocol to enable data reading.)
Software functions can be customized according to customer needs, and support subsequent software upgrades to add new procedure test requirements.
5. Characteristics
☆ Wide Output
The wide range output capability can cover the calibration of three-phase and DC measuring instruments commonly used in power systems.
☆ Wide Input
The wide range measurement capability can cover the AC sampling devices commonly used in power systems for real load verification.
☆ Convenience of operation
Large LCD Touch Screen: full color, high screen brightness, clear picture quality, support touch operation, comprehensive functions, simple and fast.
Digital Programmable Buttons: can realize multiple input methods such as fixed-point output, rotary encoder, and step adjustment, and the operation is convenient and fast.
Front Panel Wiring: convenient for users to replace current and voltage test wires when checking the meter.
Solution Advantages: This combined operation method effectively improves the convenience of operation to adapt to a variety of application scenarios.
☆ Multiple Output Mode
The instrument has a "Direct output " mode. You can directly set the required output value through the digital buttons on the front panel or by clicking the touch screen. The instrument will automatically switch to the optimal range output, making it very convenient to calibrate digital instruments.
Especially when setting power, you can directly enter the voltage value, current value, and phase.
When setting three-phase power, select three-phase unified adjustment or phase-by-phase adjustment on the main interface.
• “Rotary Knob”mode,users can setting in clockwise direction or anticlockwise direction.
.
☆ Multiple set value output mode
The calibration of analog pointer type usually needs to be carried out scale by scale, especially the "rising and falling variation" (i.e. the change caused by the rise and fall of the tested point), and the output of the source needs to be adjusted to align the indicator of the tested table with the graduation line of the tested point.
It is relatively inconvenient to use the digital fixed-point output method to adjust the output of the standard source to achieve the alignment of the scale.
For this reason, we provide users with a Remote Control Box(option). Through the operation of coarse adjustment-fine adjustment, the output can be quickly adjusted to align with the scale of the tested table, which is very convenient to complete the calibration of the analog table. This function is particularly useful when it is necessary to consider the friction or hysteresis effect during movement.
When calibrating electrical measuring instruments, it is usually necessary to select calibration points according to the proportion of each range of the meter being tested.
Users can easily select the calibration points through the " Calibration point " on the touch screen of this instrument.
☆ Harmonics Function
S/N
Function
Set the amplitude of the selected harmonic. Users can set the absolute value of the voltage or current harmonic, or set it as a percentage of the fundamental.
Set phase of harmonic (fundamental wave).
Choose 2nd~21st harmonics channel output. The embedded software is equipped with a user-defined “harmonic parameter setting” interface, which allows users to set the required harmonics according to test requirements.
Oscilloscope function, user can observe voltage and current waves.
Display frequency spectrum of harmonic by histogram.(fundament wave is 100%)
☆ Test software(option)
Optional automatic calibration software, adaptable to various electrical measuring instruments, automatically generates test reports, and improves test efficiency.
Supports fully automatic or semi-automatic calibration of the equipment under test, raw data recording, analysis, management and customized template report export.
*(During fully automatic calibration, the equipment under test should have communication function and open communication protocol to enable data reading.)
Software functions can be customized according to customer needs, and support subsequent software upgrades to add new procedure test requirements.
6. Specifications
6.1 Three-Phase Voltage / Current Output
Voltage Range | Resolution | Stability ( %/min ) | Uncertainty (k+2) (ppm*RD + ppm*RG) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
57.7 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 250 |
100 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 150 |
220 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
380 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 40 |
Note [1]: (ppm = parts per million) (e.g.,10ppm = 0.001%). RD is the reading value, RG is the range value, the same below. |
Current Range | Resolution | Stability ( %/min ) | Uncertainty (k+2) (ppm*RD + ppm*RG) | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
200 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
500 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 15 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 15 |
2 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
5 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
20 A | 0.1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 1 |
• Three-phase voltage output: 6 V~ 456 V, Degree of distortion:< 0.2%
• Three-phase current output:20 mA~24 A, Degree of distortion: < 0.2%;
• Voltage short circuit, current open-circuit and overload protection
6.2 Frequency / Phase / Harmonic
Symmetry | Voltage superior to 0.2%;Current superior to 0.5%;Phase superior to 0.5° |
Frequency | Range:45.000 Hz~70.000 Hz; Adjustment fineness:0.001 Hz; Uncertainty: 0.02 Hz (class 0.05), 0.01 Hz(class 0.02) |
Phase | Range:0.000 0°~359.999 9°; Adjustment fineness:0.005°; Uncertainty: 0.02°(class 0.05), 0.01°(class 0.02) |
Harmonic | 2nd~21st harmonic; Amplitude 0~25% adjustable; Phase 0~359.99°adjustable |
6.3 Three-Phase Power Output
Current Range | Stability ( %/min ) | Uncertainty (K=2) ( ± %*FS)[2] | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |
Active power |cosφ|≥0.5 | 0.01 | 0.005 | 0.05 | 0.02 |
Reactive power |sinφ|≥0.5 | 0.02 | 0.01 | 0.1 | 0.05 |
Apparent power | 0.02 | 0.01 | 0.1 | 0.05 |
Power factor | 0.02 | 0.01 | 0.1 | 0.05 |
Note [2] :FS= voltage range× current range |
• Power factor setting range: -1.000 000…0.000 000…1.000 000
6.4 Three-Phase Voltage / Current Input
Type | Range | Resolution | Uncertainty (k=2) (ppm of reading + ppm of range) | |
Direct Input | Clamp Current Input [3] | |||
AC Voltage ACV | 57.7 V | 0.1 mV | 300 + 200 | —— |
100 V | 1 mV | 300 + 200 | —— | |
220 V | 1 mV | 300 + 200 | —— | |
380 V | 1 mV | 300 + 200 | —— | |
AC Current ACI | 1 A | 10 μA | 300 + 200 | —— |
5 A | 10 μA | 300 + 200 | 0.2%*RG | |
Note [3]:Clamp is option,if it be need, it must remark in order contract,Same as below。 |
• Voltage input:6 V~456 V. Current input: 0.1 A~6 A
• Frequency:45 Hz~70 Hz. Uncertainty (k=2): 0.01 Hz
• Phase:0.000°~359.999°. Uncertainty (k=2): 0.02°;
6.5 Three-Phase Power Input
Type | Uncertainty (k=2) | |
Direct Input | Clamp Current Input | |
Active power | 0.05%*FS | 0.2%*FS |
Reactive power | 0.1%*FS | 0.5%*FS |
Apparent power | 0.1%*FS | 0.5%*FS |
Power factor | 0.1% | 0.5% |
6.6 DC Voltage / Current Output
Voltage Range | Resolution | Stability ( %/min ) | Uncertainty (k=2) (ppm*RD + ppm*RG) | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
75 mV | 0.1 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 V | 0.1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 V | 0.1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 500 |
100 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
300 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 50 |
600 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 25 |
Current Range | Resolution | Stability ( %/min ) | Uncertainty (k=2) (ppm*RD + ppm*RG) | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
1 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
5 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
20 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
20 A | 0.1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
• DC voltage output range:10 mV~660 V,ripple factor:< 1%;
• DC current output range:0.1 mA~22 A,ripple factor:< 1%
• Voltage short circuit, current open-circuit and overload protection
6.7 DC Meter(Transmitter)
Range | Measurement Range | Uncertainty (k=2) | Measurement Range of Ripple | Uncertainty of Ripple |
1 V | ± ( 0~1.2 ) V | 0.01%*RG | 0~30 mV | 1 mV |
10 V | ± ( 0~12 ) V | 0.01%*RG | 0~300 mV | 10 mV |
2 mA | ± ( 0~2.4) mA | 0.01%*RG | 0~60 μA | 2 μA |
20 mA | ± ( 0~24 ) mA | 0.01%*RG | 0~600 μA | 20 μA |
• Response time:measurement range:0~1000 ms,uncertainty: 40 ms
6.8 Test Energy Meter(option)
Type | Uncertainty (k=2) | |
Class 0.05 | Class 0.02 | |
Active electrical energy | 0.1%*reading | 0.05%* reading |
Reactive electrical energy | 0.2%* reading | 0.1%* reading |
• Energy pulse output:full range for 60 kHz
• Energy pulse input:max frequency is 1 kHz,pulse level:3 V~12 V
• Constant setting of Electrical energy meter:1…1000000 imp./kwh or 1…1000000 imp./ws
6.9 U4 Voltage Output(option)
• Voltage range: 100 V, 380 V
• Output range: (0~110)%*RG
• Uncertainty (k=2): 0.05%*RG
• Max output power: 10 VA
• Frequency range: 45 Hz~55 Hz
• The function is used to test Synchrometer.
7. General Specifications
Power Supply | AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz |
Maximum Power Consumption | 500 VA |
Warm Up Time | 30 min |
Temperature Performance | Working temperature:0°C~45°C; Storage temperature:-20°C~70°C |
Humidity Performance | Working humidity:< 80% @ 30°C,< 70% @ 40°C,< 40% @ 50°C Storage humidity:(20%~80%) R·H,non-condensing |
Altitude | < 3000 m |
Weight | About 22 kg |
Interface | RS232 |
Dimension | 470 mm(W) × 400 mm(D) × 195 mm(H) (Without handle) |
![]() |
8. Ordering Information
6. Specifications
6.1 Three-Phase Voltage / Current Output
Voltage Range | Resolution | Stability ( %/min ) | Uncertainty (k+2) (ppm*RD + ppm*RG) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
57.7 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 250 |
100 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 150 |
220 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
380 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 40 |
Note [1]: (ppm = parts per million) (e.g.,10ppm = 0.001%). RD is the reading value, RG is the range value, the same below. |
Current Range | Resolution | Stability ( %/min ) | Uncertainty (k+2) (ppm*RD + ppm*RG) | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
200 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
500 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 15 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 15 |
2 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
5 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
20 A | 0.1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 1 |
• Three-phase voltage output: 6 V~ 456 V, Degree of distortion:< 0.2%
• Three-phase current output:20 mA~24 A, Degree of distortion: < 0.2%;
• Voltage short circuit, current open-circuit and overload protection
6.2 Frequency / Phase / Harmonic
Symmetry | Voltage superior to 0.2%;Current superior to 0.5%;Phase superior to 0.5° |
Frequency | Range:45.000 Hz~70.000 Hz; Adjustment fineness:0.001 Hz; Uncertainty: 0.02 Hz (class 0.05), 0.01 Hz(class 0.02) |
Phase | Range:0.000 0°~359.999 9°; Adjustment fineness:0.005°; Uncertainty: 0.02°(class 0.05), 0.01°(class 0.02) |
Harmonic | 2nd~21st harmonic; Amplitude 0~25% adjustable; Phase 0~359.99°adjustable |
6.3 Three-Phase Power Output
Current Range | Stability ( %/min ) | Uncertainty (K=2) ( ± %*FS)[2] | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |
Active power |cosφ|≥0.5 | 0.01 | 0.005 | 0.05 | 0.02 |
Reactive power |sinφ|≥0.5 | 0.02 | 0.01 | 0.1 | 0.05 |
Apparent power | 0.02 | 0.01 | 0.1 | 0.05 |
Power factor | 0.02 | 0.01 | 0.1 | 0.05 |
Note [2] :FS= voltage range× current range |
• Power factor setting range: -1.000 000…0.000 000…1.000 000
6.4 Three-Phase Voltage / Current Input
Type | Range | Resolution | Uncertainty (k=2) (ppm of reading + ppm of range) | |
Direct Input | Clamp Current Input [3] | |||
AC Voltage ACV | 57.7 V | 0.1 mV | 300 + 200 | —— |
100 V | 1 mV | 300 + 200 | —— | |
220 V | 1 mV | 300 + 200 | —— | |
380 V | 1 mV | 300 + 200 | —— | |
AC Current ACI | 1 A | 10 μA | 300 + 200 | —— |
5 A | 10 μA | 300 + 200 | 0.2%*RG | |
Note [3]:Clamp is option,if it be need, it must remark in order contract,Same as below。 |
• Voltage input:6 V~456 V. Current input: 0.1 A~6 A
• Frequency:45 Hz~70 Hz. Uncertainty (k=2): 0.01 Hz
• Phase:0.000°~359.999°. Uncertainty (k=2): 0.02°;
6.5 Three-Phase Power Input
Type | Uncertainty (k=2) | |
Direct Input | Clamp Current Input | |
Active power | 0.05%*FS | 0.2%*FS |
Reactive power | 0.1%*FS | 0.5%*FS |
Apparent power | 0.1%*FS | 0.5%*FS |
Power factor | 0.1% | 0.5% |
6.6 DC Voltage / Current Output
Voltage Range | Resolution | Stability ( %/min ) | Uncertainty (k=2) (ppm*RD + ppm*RG) | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
75 mV | 0.1 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 V | 0.1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 V | 0.1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 500 |
100 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
300 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 50 |
600 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 25 |
Current Range | Resolution | Stability ( %/min ) | Uncertainty (k=2) (ppm*RD + ppm*RG) | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
1 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
5 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
20 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
20 A | 0.1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
• DC voltage output range:10 mV~660 V,ripple factor:< 1%;
• DC current output range:0.1 mA~22 A,ripple factor:< 1%
• Voltage short circuit, current open-circuit and overload protection
6.7 DC Meter(Transmitter)
Range | Measurement Range | Uncertainty (k=2) | Measurement Range of Ripple | Uncertainty of Ripple |
1 V | ± ( 0~1.2 ) V | 0.01%*RG | 0~30 mV | 1 mV |
10 V | ± ( 0~12 ) V | 0.01%*RG | 0~300 mV | 10 mV |
2 mA | ± ( 0~2.4) mA | 0.01%*RG | 0~60 μA | 2 μA |
20 mA | ± ( 0~24 ) mA | 0.01%*RG | 0~600 μA | 20 μA |
• Response time:measurement range:0~1000 ms,uncertainty: 40 ms
6.8 Test Energy Meter(option)
Type | Uncertainty (k=2) | |
Class 0.05 | Class 0.02 | |
Active electrical energy | 0.1%*reading | 0.05%* reading |
Reactive electrical energy | 0.2%* reading | 0.1%* reading |
• Energy pulse output:full range for 60 kHz
• Energy pulse input:max frequency is 1 kHz,pulse level:3 V~12 V
• Constant setting of Electrical energy meter:1…1000000 imp./kwh or 1…1000000 imp./ws
6.9 U4 Voltage Output(option)
• Voltage range: 100 V, 380 V
• Output range: (0~110)%*RG
• Uncertainty (k=2): 0.05%*RG
• Max output power: 10 VA
• Frequency range: 45 Hz~55 Hz
• The function is used to test Synchrometer.
7. General Specifications
Power Supply | AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz |
Maximum Power Consumption | 500 VA |
Warm Up Time | 30 min |
Temperature Performance | Working temperature:0°C~45°C; Storage temperature:-20°C~70°C |
Humidity Performance | Working humidity:< 80% @ 30°C,< 70% @ 40°C,< 40% @ 50°C Storage humidity:(20%~80%) R·H,non-condensing |
Altitude | < 3000 m |
Weight | About 22 kg |
Interface | RS232 |

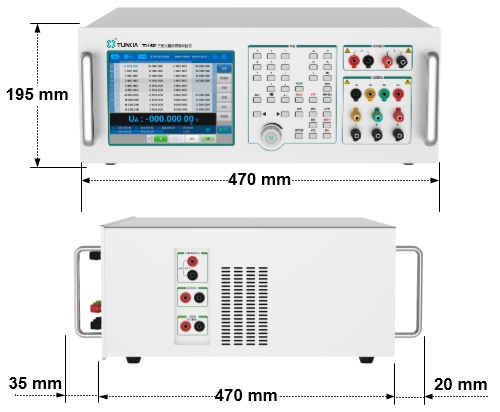

Dimension | 470 mm(W) × 400 mm(D) × 195 mm(H) (Without handle) |
![]() |
8. Ordering Information
