TD4100
TUNKIA

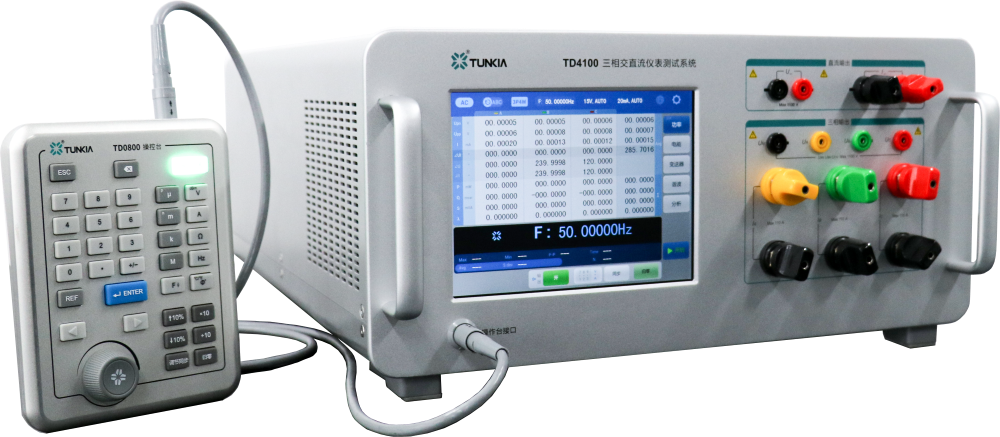

TD4100 Portable Tester for Three-phase and DC Meters
1. Summary
TD4100 is a multifunctional 3PH power source. It integrates AC/DC power output function, harmonic function, transmitter test function, AC energy meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC ammeter, AC/DC power meter, electric energy meter and transmitter, etc.
2. Features
• 3PH AC voltage output:1 V~825 V
• 3PH AC current output:2 mA~110 A
• Frequency:45 Hz~70 Hz
• U-I phase:0°~360°
• DC voltage output:5 mV~1100 V
• DC current output:1 μA~33 A
• Accuracy class: 0.02, 0.05.
• 2nd~21st harmonic output (option)
• Transmitter test function (option)
• AC energy meter test function(option)
• Test software(option)
3. Application
TD4100 Portable Tester for Three-phase and DC Meters
1. Summary
TD4100 is a multifunctional 3PH power source. It integrates AC/DC power output function, harmonic function, transmitter test function, AC energy meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC ammeter, AC/DC power meter, electric energy meter and transmitter, etc.
2. Features
• 3PH AC voltage output:1 V~825 V
• 3PH AC current output:2 mA~110 A
• Frequency:45 Hz~70 Hz
• U-I phase:0°~360°
• DC voltage output:5 mV~1100 V
• DC current output:1 μA~33 A
• Accuracy class: 0.02, 0.05.
• 2nd~21st harmonic output (option)
• Transmitter test function (option)
• AC energy meter test function(option)
• Test software(option)
3. Application
4. Characteristics
☆ Wide Output |
• It can meet most single-phase / three-phase meters or DC meters. |
☆ Convenient Operation |
• Color LCD touch-screen. • Support connect operation keypad with physical keys. |
☆ Multiple Output Mode |
• “Direct output”mode,User can set output value by physical key or touch screen. • Three-phase unit adjustment or single phase adjustment. |
• “Remote Control Box(option)”,by operation of coarse tuning—fine tuning,can calibrate analog meter. |
☆ Multiple Output Mode |
• Touch “Calibration point”of screen for “% setting”. |
• “Rotary Knob”mode,User can setting in clockwise direction or anticlockwise direction. |
☆ Harmonics Function | |
S/N | Function declaration |
Set amplitude of harmonic. | |
Set phase of harmonic(fundamental wave)。 | |
Choose 2nd~21st harmonics channel output. | |
Oscilloscope function, user can observe voltage and current waves. | |
Display frequency spectrum of harmonic by histogram.(fundament wave is 100%) |
☆ Testing Software(Option) |
• RS232 communication interface,software customizable. |
4. Characteristics
☆ Wide Output |
• It can meet most single-phase / three-phase meters or DC meters. |
☆ Convenient Operation |
• Color LCD touch-screen. • Support connect operation keypad with physical keys. |
☆ Multiple Output Mode |
• “Direct output”mode,User can set output value by physical key or touch screen. • Three-phase unit adjustment or single phase adjustment. |
• “Remote Control Box(option)”,by operation of coarse tuning—fine tuning,can calibrate analog meter. |
☆ Multiple Output Mode |
• Touch “Calibration point”of screen for “% setting”. |
• “Rotary Knob”mode,User can setting in clockwise direction or anticlockwise direction. |
☆ Harmonics Function | |
S/N | Function declaration |
Set amplitude of harmonic. | |
Set phase of harmonic(fundamental wave)。 | |
Choose 2nd~21st harmonics channel output. | |
Oscilloscope function, user can observe voltage and current waves. | |
Display frequency spectrum of harmonic by histogram.(fundament wave is 100%) |
☆ Testing Software(Option) |
• RS232 communication interface,software customizable. |
5. Specifications
5.1 Three-Phase Voltage Output
Voltage Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
15 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 500 |
57.7 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 500 |
100 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 300 |
220 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 140 |
380 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 80 |
600 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 50 |
750 V | 10 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
Note [1] : (ppm = parts per million) (e.g.,10ppm = 0.001%). |
• Three-phase voltage output:1 V~825 V;
• Degree of distortion:<0.2%
• Short circuit and overload protection
5.2 Three-Phase Current Output
Current Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
20 mA | 0.1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
50 mA | 0.1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
200 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
500 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
2 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 6 |
5 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 6 |
10 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 2.5 |
20 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 1.2 |
50 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 0.8 |
100 A | 1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 0.8 |
• Three-phase current output:2 mA~110 A;
• Degree of distortion:<0.2%
• Current open-circuit and overload protection
5.3 Frequency / Phase / Harmonic
Symmetry | Voltage superior to 0.2%;Current superior to 0.5%;Phase superior to 0.5° |
Frequency | Range:45 Hz~70 Hz;Adjustment fineness:0.001 Hz; Accuracy:±0.02 Hz (class 0.05), ±0.01 Hz(class 0.02) |
Phase | Range:0.000 0°;~359.999 9°;Adjustment fineness:0.001°; Accuracy:±0.02° (class 0.05), ±0.01°(class 0.02) |
Harmonic(optional) | 2nd~21st harmonic; Amplitude 0~25% adjustable;Phase 0~359.99°adjustable |
5.4 Three-Phase Power Output
Current Range | Stability ( %/min ) | Accuracy ( ± %*FS)[2] | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |
Active power |cosφ|≥0.5 | 0.01 | 0.005 | 0.05 | 0.02 |
Reactive power |sinφ|≥0.5 | 0.02 | 0.01 | 0.1 | 0.05 |
Apparent power | 0.02 | 0.01 | 0.1 | 0.05 |
Power factor | 0.02 | 0.01 | 0.1 | 0.05 |
Note [2] :FS= voltage range × current range |
• Power factor range:-1.000 000…0.000 000…1.000 000
5.5 DC Voltage Output
Voltage Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
75 mV | 0.1 μV | 0.01 | 0.005 | 300 + 200 | 120 + 120 | 10 |
100 mV | 1 μV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 mV | 1 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 500 |
60 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
100 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
300 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 50 |
600 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 25 |
1000 V | 10 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 15 |
• DC voltage output range:5 mV~1100 V,
• Ripple factor:< 1%
• Short circuit and overload protection
5.6 DC Current Output
Current Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
10 μA | 0.1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 μA | 0.1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 μA | 1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 μA | 1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
3 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
10 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 3 |
30 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 2.5 |
• DC current output range:1 μA~33 A,
• Ripple factor:< 1%
• Current open-circuit and overload protection
5.7 DC Meter(option)
Range | Measurement Range | Accuracy | Measurement Range of Ripple | Accuracy of Ripple |
1 V | ± ( 0~1.2 ) V | ± 0.01%*range | 0~30 mV | ± 1 mV |
10 V | ± ( 0~12 ) V | ± 0.01%* range | 0~300 mV | ± 10 mV |
2 mA | ± ( 0~2.4) mA | ± 0.01%* range | 0~60 μA | ± 2 μA |
20 mA | ± ( 0~24 ) mA | ± 0.01%* range | 0~600 μA | ± 20 μA |
Note:This DC Meter is used to test second signal of Transmitter |
5.8 AC Energy Testing(option)
Type | Accuracy | |
Class 0.05 | Class 0.02 | |
Active electrical energy | ± 0.1%*reading | ± 0.05%*reading |
Reactive electrical energy | ± 0.2%*reading | ± 0.1%*reading |
• Energy pulse output:full range for 60 kHz
• Energy pulse input:max frequency is 200 kHz,pulse level:3 V~12 V
• Constant setting of Electrical energy meter:1…1000000 imp./kwh or 1…1000000 imp./ws
6. General Specifications
Power Supply | AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz |
Temperature Performance | Working temperature:0℃~45℃; Storage temperature:-20℃~70℃ |
Humidity Performance | Working humidity:< 80% @ 30℃,< 70% @ 40℃,< 40% @ 50℃ Storage humidity:(20%~80%) R·H,actnon-condensing |
Interface | RS232 |
7. Ordering Information
5. Specifications
5.1 Three-Phase Voltage Output
Voltage Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
15 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 500 |
57.7 V | 0.1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 500 |
100 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 300 |
220 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 140 |
380 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 80 |
600 V | 1 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 50 |
750 V | 10 mV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
Note [1] : (ppm = parts per million) (e.g.,10ppm = 0.001%). |
• Three-phase voltage output:1 V~825 V;
• Degree of distortion:<0.2%
• Short circuit and overload protection
5.2 Three-Phase Current Output
Current Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
20 mA | 0.1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
50 mA | 0.1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 60 |
200 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
500 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 30 |
2 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 6 |
5 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 6 |
10 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 2.5 |
20 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 1.2 |
50 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 0.8 |
100 A | 1 mA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 0.8 |
• Three-phase current output:2 mA~110 A;
• Degree of distortion:<0.2%
• Current open-circuit and overload protection
5.3 Frequency / Phase / Harmonic
Symmetry | Voltage superior to 0.2%;Current superior to 0.5%;Phase superior to 0.5° |
Frequency | Range:45 Hz~70 Hz;Adjustment fineness:0.001 Hz; Accuracy:±0.02 Hz (class 0.05), ±0.01 Hz(class 0.02) |
Phase | Range:0.000 0°;~359.999 9°;Adjustment fineness:0.001°; Accuracy:±0.02° (class 0.05), ±0.01°(class 0.02) |
Harmonic(optional) | 2nd~21st harmonic; Amplitude 0~25% adjustable;Phase 0~359.99°adjustable |
5.4 Three-Phase Power Output
Current Range | Stability ( %/min ) | Accuracy ( ± %*FS)[2] | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |
Active power |cosφ|≥0.5 | 0.01 | 0.005 | 0.05 | 0.02 |
Reactive power |sinφ|≥0.5 | 0.02 | 0.01 | 0.1 | 0.05 |
Apparent power | 0.02 | 0.01 | 0.1 | 0.05 |
Power factor | 0.02 | 0.01 | 0.1 | 0.05 |
Note [2] :FS= voltage range × current range |
• Power factor range:-1.000 000…0.000 000…1.000 000
5.5 DC Voltage Output
Voltage Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (mA) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
75 mV | 0.1 μV | 0.01 | 0.005 | 300 + 200 | 120 + 120 | 10 |
100 mV | 1 μV | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 mV | 1 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 V | 10 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 500 |
60 V | 100 μV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
100 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 150 |
300 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 50 |
600 V | 1 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 25 |
1000 V | 10 mV | 0.005 | 0.005 | 300 + 200 | 120 + 80 | 15 |
• DC voltage output range:5 mV~1100 V,
• Ripple factor:< 1%
• Short circuit and overload protection
5.6 DC Current Output
Current Range | Resolution | Stability ( %/min ) | Accuracy ±(ppm of reading + ppm of range) [1] | Max Burden (V) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | |||
10 μA | 0.1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 μA | 0.1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 μA | 1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 μA | 1 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
1 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
3 mA | 10 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
10 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
30 mA | 100 nA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
100 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 10 |
300 mA | 1 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
1 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
3 A | 10 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 4 |
10 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 3 |
30 A | 100 μA | 0.01 | 0.005 | 300 + 200 | 120 + 80 | 2.5 |
• DC current output range:1 μA~33 A,
• Ripple factor:< 1%
• Current open-circuit and overload protection
5.7 DC Meter(option)
Range | Measurement Range | Accuracy | Measurement Range of Ripple | Accuracy of Ripple |
1 V | ± ( 0~1.2 ) V | ± 0.01%*range | 0~30 mV | ± 1 mV |
10 V | ± ( 0~12 ) V | ± 0.01%* range | 0~300 mV | ± 10 mV |
2 mA | ± ( 0~2.4) mA | ± 0.01%* range | 0~60 μA | ± 2 μA |
20 mA | ± ( 0~24 ) mA | ± 0.01%* range | 0~600 μA | ± 20 μA |
Note:This DC Meter is used to test second signal of Transmitter |
5.8 AC Energy Testing(option)
Type | Accuracy | |
Class 0.05 | Class 0.02 | |
Active electrical energy | ± 0.1%*reading | ± 0.05%*reading |
Reactive electrical energy | ± 0.2%*reading | ± 0.1%*reading |
• Energy pulse output:full range for 60 kHz
• Energy pulse input:max frequency is 200 kHz,pulse level:3 V~12 V
• Constant setting of Electrical energy meter:1…1000000 imp./kwh or 1…1000000 imp./ws
6. General Specifications
Power Supply | AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz |
Temperature Performance | Working temperature:0℃~45℃; Storage temperature:-20℃~70℃ |
Humidity Performance | Working humidity:< 80% @ 30℃,< 70% @ 40℃,< 40% @ 50℃ Storage humidity:(20%~80%) R·H,actnon-condensing |
Interface | RS232 |
7. Ordering Information
