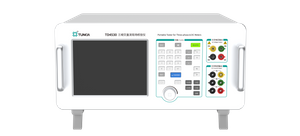

TUNKIA TD4500 Portable Tester for AC Sampling Devices and Transmitters

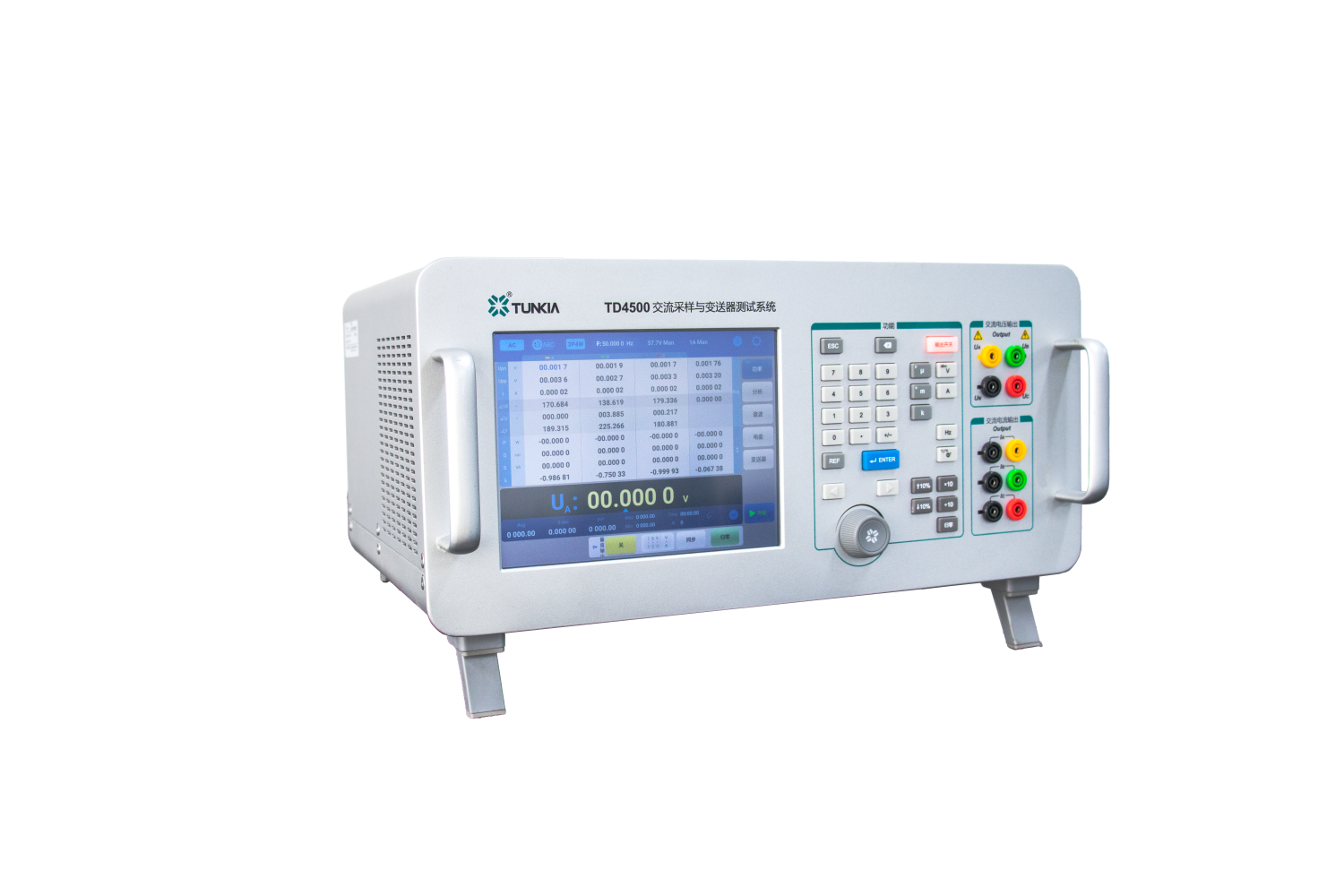

TD4500 Portable Tester for AC Sampling Devices and Transmitters

TD4500 is a multi-function 3PH power calibrator. Class 0.02 / class 0.05 available. It integrates AC/DC power output function, 3PH measuring function, harmonic function, transmitter test function, U4th voltage output function, AC energy meter test function. Can be used to calibrate AC/DC voltmeter, AC/DC ammeter, AC/DC power meter and transmitter, etc.

Model:
TD4500
Brand:
TUNKIA


Availability:



Inquire

TD4500 Portable Tester for AC Sampling Devices and Transmitters

TD4500 Calibrator For AC Sampling Devices and Transmitters

1. Summary

2. Features

3PH AC voltage output：6 V～456 V
3PH AC current output：0.1 A～6.25 A
3PH voltage meter：6 V～456 V；
3PH current meter：0.1 A～6 A
DC voltage output：10 mV～330 V
DC current output：0.1 mA～22 mA
Accuracy class: 0.02, 0.05.
Transmitter test function
U4 AC voltage output function
Harmonic output/Clamp Measurement/Test software（option）

3. Application

TD4500 Portable Tester for AC Sampling Devices and Transmitters Application

☆ Calibrating AC Measuring Devices with Virtual Load (Standard Source Method)

TD4500 Calibrator For AC Sampling Devices and Transmitters

3PH voltage standard source (ACV): output range 6 V～456 V @ 45 Hz～70 Hz
3PH current standard source (ACI): output range输出范围0.1 A～6.25 A @ 45 Hz～70 Hz
PH power standard source: a virtual power standard source composed of three-phase voltage and current independent outputs and adjustable phases.
lass 0.02: suitable for calibrating single/three-phase voltmeters and ammeters of class 0.1 and below; suitable for calibrating active power meters of class 0.1 and below, reactive power meters, apparent power meters, and power factor meters of class 0.2 and below.
lass 0.05: suitable for calibrating single/three-phase voltmeters and ammeters of class 0.2 and below; suitable for calibrating active power meters of class 0.2 and below, reactive power meters, apparent power meters, and power factor meters of class 0.5 and below.

☆ Calibrating DC Measuring Devices with Virtual Load (Standard Source Method)

TD4500 Calibrator For AC Sampling Devices and Transmitters

DC voltage standard source (DCV): output range 10 mV～330 V
DC current standard source (DCI): output range 0.1 mA～22 mA
DC power standard source: a virtual power standard source composed of independent DC voltage and current outputs.
Class 0.02: suitable for calibrating DC voltage meters and ammeters of class 0.1 and below; suitable for calibrating DC power meters of class 0.2 and below.
Class 0.05: suitable for calibrating DC voltage meters and ammeters of class 0.2 and below; suitable for calibrating DC power meters of class 0.5 and below.

☆ Calibrating AC Sampling for Real Load (Standard Meter Method)

TD4500 Calibrator For AC Sampling Devices and Transmitters

3PH voltage measuring range: 6 V ~ 456 V; 3PH current measuring range: 0.1 A ~ 6 A.
Current measurement supports two methods: direct input measurement or clamp (optional) measurement.
Application 1 (direct current measurement): calibrate 1PH/3PH voltage source, current source, and power source of class 0.2 and below in the laboratory or on-site.

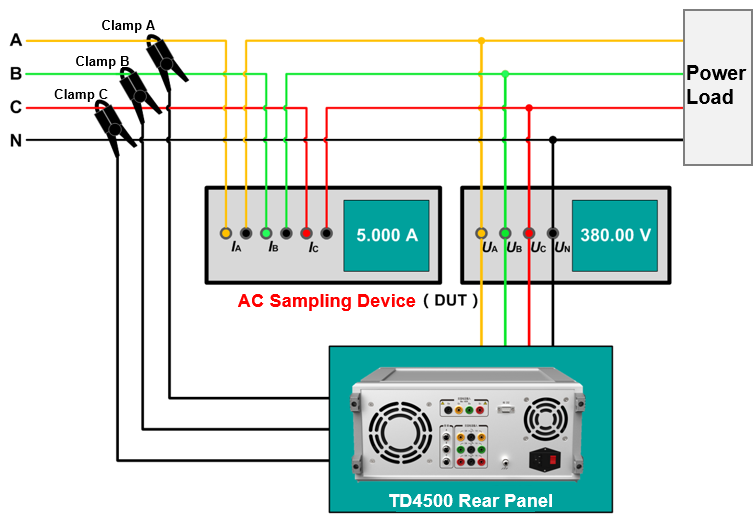

Application 2 (clamp current measurement): In the past, when testing on-site AC sampling devices, it was usually necessary to wait for power outages for maintenance to disconnect the circuit, connect the standard ammeter in series to the loop for detection, or remove the meter to be tested to the laboratory for detection using the standard source method. When using a clamp meter to detect current, the circuit does not need to be short-circuited. Just clamp the current line into the jaws to perform real-time measurement online. This makes on-site detection faster and more convenient, and can meet the requirements of daily inspection of instrument operation status.
Note: The clamp is an option. If necessary, it should be indicated in the order contract.

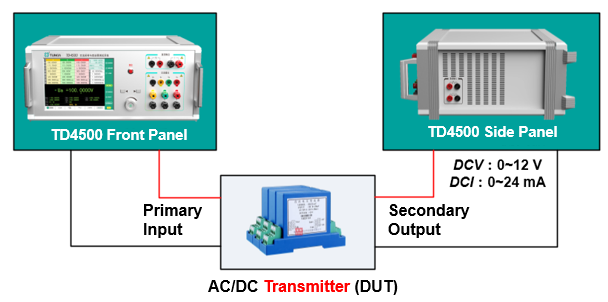

☆ Calibrating AC/DC Transmitter

TD4500 Calibrator For AC Sampling Devices and Transmitters

The function of measuring the secondary DC signal of the optional AC/DC transmitter supports the maximum DC 12V or 24 mA signal input.
With the 3-phase or DC standard source function, the error, output ripple and response time of the transmitter can be detected.

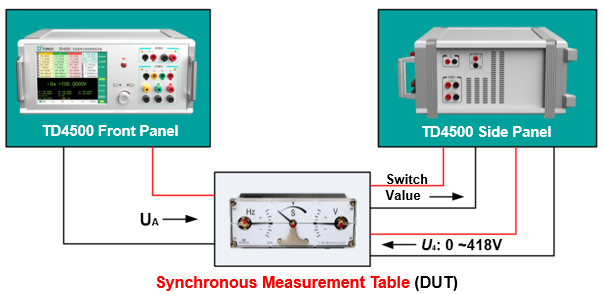

☆ Test Synchronous Measurement Table (Optional)

TD4500 Calibrator For AC Sampling Devices and Transmitters

The fourth voltage output module is optional to realize the fourth 0 ~ 418 V AC voltage output.
With the voltage output function of single/three-phase standard source, it is used to detect the amplitude difference, phase difference and frequency difference of synchronous measurement tables.

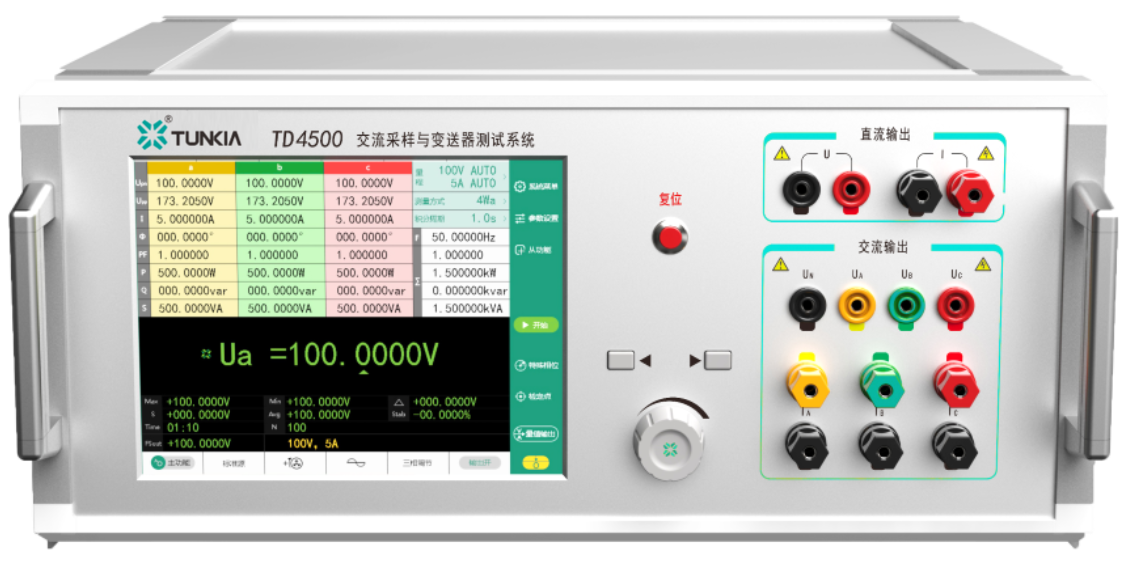

4. Appearance

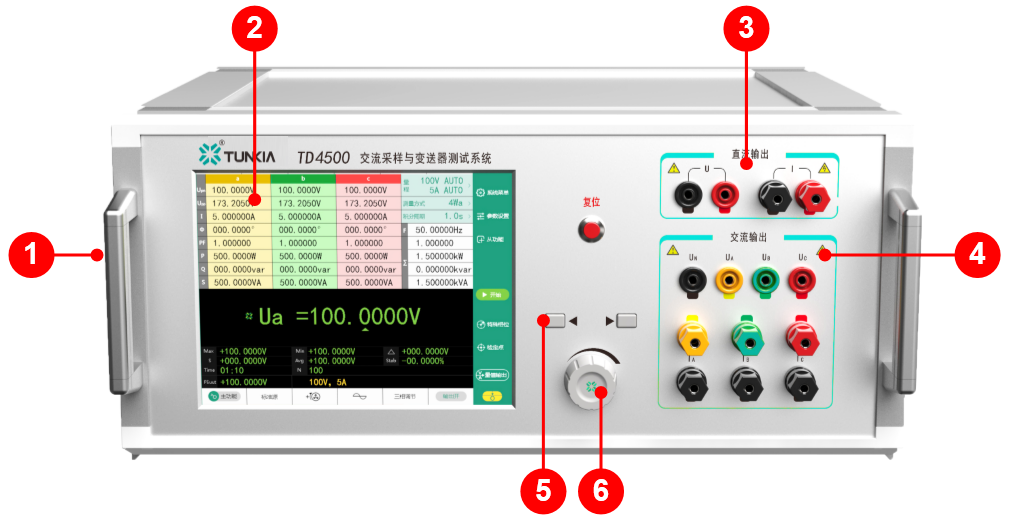

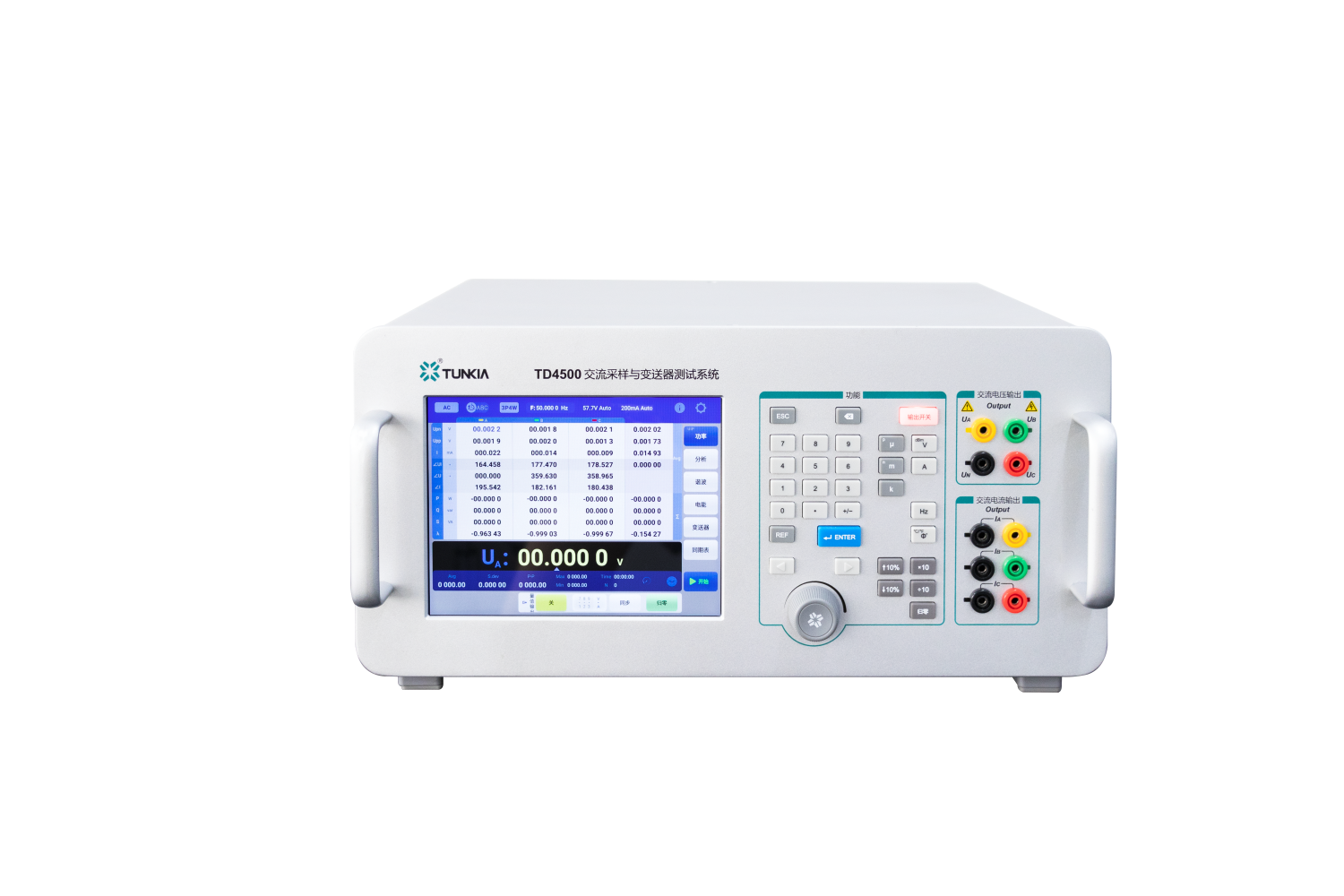

☆ Front Panel

S/N	Description
	The handle makes it convenient for users to carry the device.
	LCD touch color screen, intuitive display of multiple power levels, and full touch operation greatly improve the usability.
	DC voltage output terminal, DC current output terminal
	U_A, U_B, U_C three-phase voltage output terminals, I_A, I_B, I_C three-phase current output terminals.
	Operate physical buttons to assist in setting outputs.
	Rotary knob to assist in setting outputs.

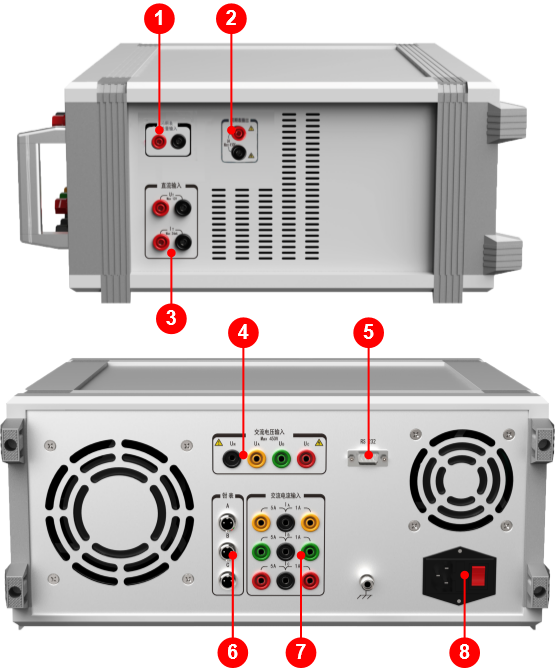

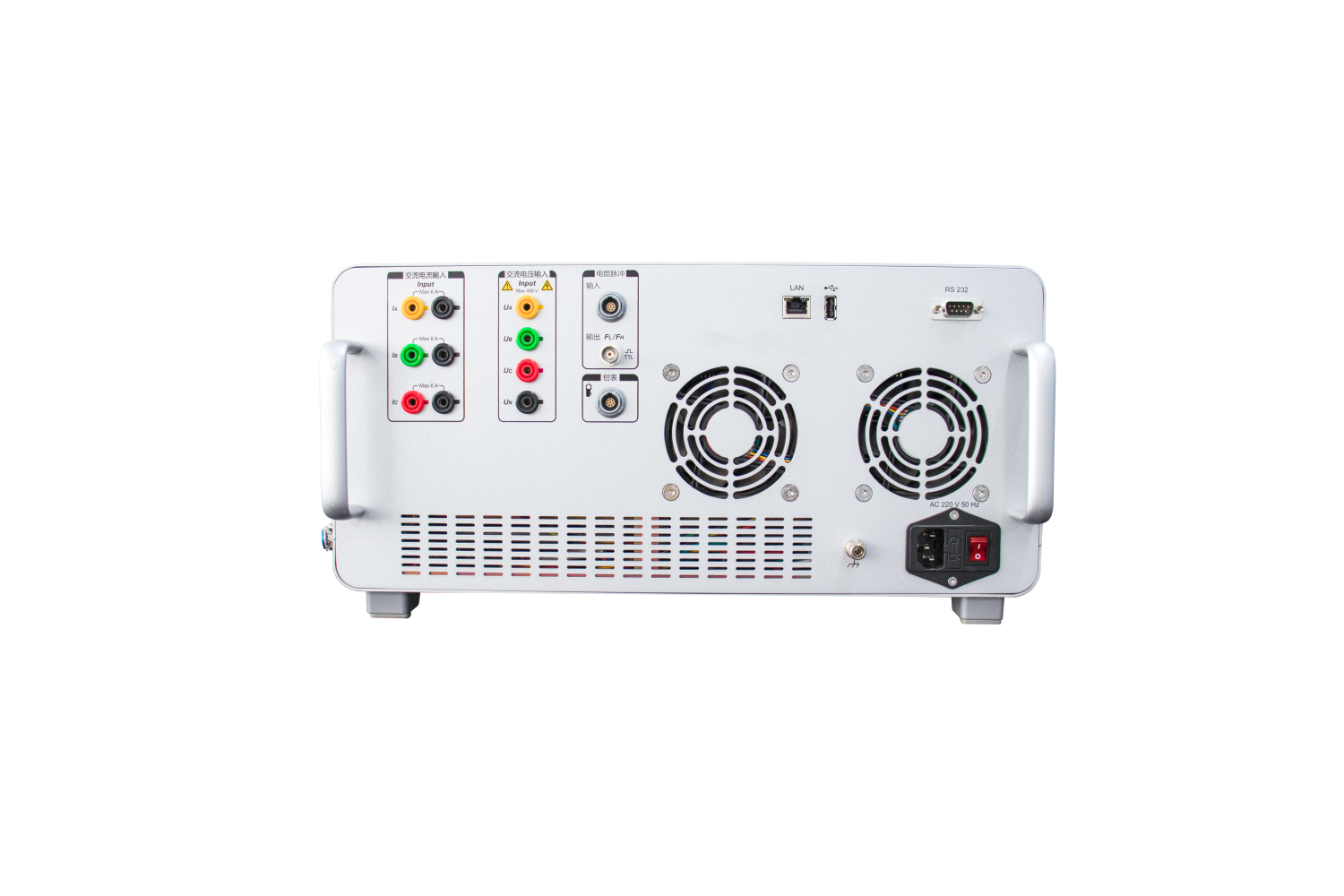

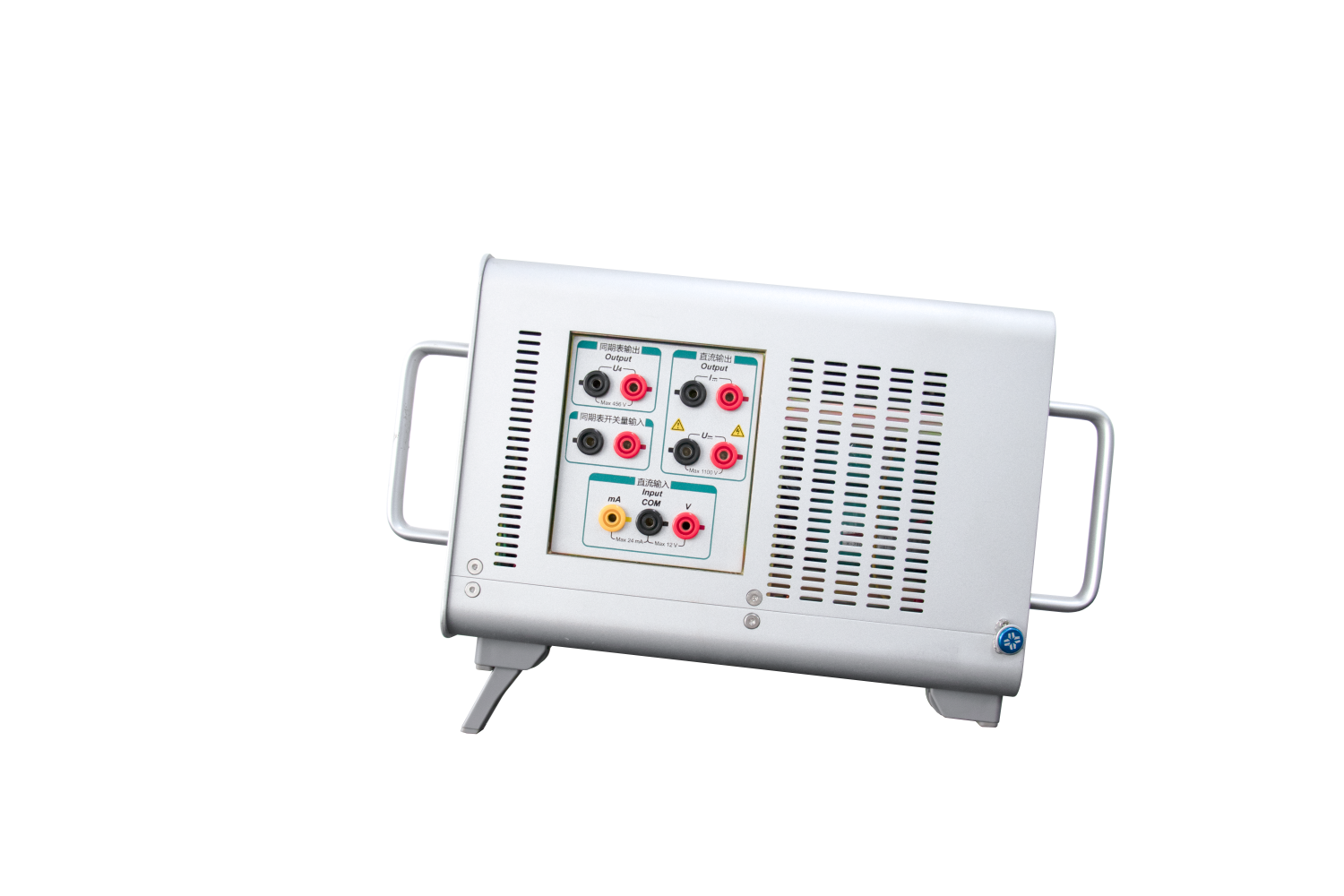

☆ Side/Rear Panel

S/N	Description
	Synchronous measurement table switch input terminal, supports the measurement of synchronous meter switch signal.
	The fourth voltage output terminal is used for synchronous meter function detection.
	The DC transmitter secondary signal input terminal supports the input of a maximum DC24 mA or 12 V signal.
	U_A, U_B, U_C three-phase voltage measurement terminals.
	RS232 interface, can be connected to a computer, convenient for users to program and control the output of the power calibrator.
	I_A, I_B, I_C three-phase current clamp measurement terminals.
	I_A, I_B, I_C three-phase current direct measurement terminals.
	Power switch and interface, rocker switch, AC 220V power input interface with fuse.

5. Characteristics

☆ Wide Output

TD4500 Calibrator For AC Sampling Devices and Transmitters

The wide range output capability can cover the calibration of three-phase and DC measuring instruments commonly used in power systems.• It can meet most single-phase / three-phase meters or DC meters.

☆ Wide Input

TD4500 Calibrator For AC Sampling Devices and Transmitters

The wide range measurement capability can cover the AC sampling devices commonly used in power systems for real load verification.

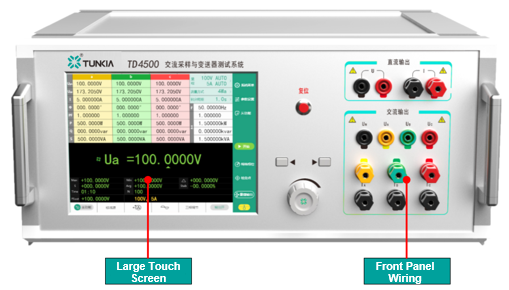

☆ Convenience of operation

TD4500 Calibrator For AC Sampling Devices and Transmitters

Large LCD Touch Screen: full color, high screen brightness, clear picture quality, support touch operation, comprehensive functions, simple and fast.
Digital Programmable Buttons: can realize multiple input methods such as fixed-point output, rotary encoder, and step adjustment, and the operation is convenient and fast.
Solution Advantages: This combined operation method effectively improves the convenience of operation to adapt to a variety of application scenarios.

☆ Multiple Output Mode

TD4500 Calibrator For AC Sampling Devices and Transmitters

The device has a "Direct output " mode. You can directly set the required output value through the digital buttons on the front panel or by clicking the touch screen. The device will automatically switch to the optimal range output, making it very convenient to calibrate digital instruments.
Especially when setting power, you can directly enter the voltage value, current value, and phase.
When setting three-phase power, select three-phase unified adjustment or phase-by-phase adjustment on the main interface.

TD4500 Calibrator For AC Sampling Devices and Transmitters

"Rotary Knob" mode，User can setting in clockwise direction or anticlockwise direction.

☆ Multiple Output Mode

TD4500 Calibrator For AC Sampling Devices and Transmitters

When calibrating electrical measuring instruments, it is usually necessary to select calibration points according to the proportion of each range of the meter being tested.
Users can easily select the calibration points through the " Calibration point " on the touch screen of this instrument.

☆ Graphics Features

S/N	Function
	Oscilloscope function，user can observe voltage and current waves.
	Accurately measure the phase between each phase voltage and current, and display it intuitively in the form of a phasor diagram.
	The trend changes of short-time signal output are displayed in the form of a dot graph.

☆ Harmonics Function

S/N	Function
	Set the amplitude of the selected harmonic. Users can set the absolute value of the voltage or current harmonic, or set it as a percentage of the fundamental.
	Set phase of harmonic (fundamental wave)
	Choose 2^nd～21^st harmonics channel output. The embedded software is equipped with a user-defined “harmonic parameter setting” interface, which allows users to set the required harmonics according to test requirements.
	Oscilloscope function, user can observe voltage and current waves.
	Display frequency spectrum of harmonic by histogram.(fundament wave is 100%)

☆ Test software（option）

TD4500 Calibrator For AC Sampling Devices and Transmitters

Optional automatic calibration software, adaptable to various electrical measuring instruments, automatically generates test reports, and improves test efficiency.
Supports fully automatic or semi-automatic calibration of the equipment under test, raw data recording, analysis, management and customized template report export.
*(During fully automatic calibration, the equipment under test should have communication function and open communication protocol to enable data reading.)
Software functions can be customized according to customer needs, and support subsequent software upgrades to add new procedure test requirements.

5. Specifications

5.1 Three-Phase Voltage / Current Output

Voltage Range	Resolution	Stability ( %/min )		Uncertainty (k=2) *(ppmRD + ppmRG)^[1]*		Max Burden (mA)
Voltage Range	Resolution	Class 0.05	Class 0.02	Class 0.05	Class 0.02	Max Burden (mA)
57.7 V	0.1 mV	0.01	0.005	300 + 200	120 + 80	250
100 V	1 mV	0.01	0.005	300 + 200	120 + 80	150
220 V	1 mV	0.01	0.005	300 + 200	120 + 80	60
380 V	1 mV	0.01	0.005	300 + 200	120 + 80	40
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).

Current Range	Resolution	Stability ( %/min )		Uncertainty (k=2) *(ppmRD + ppmRG)*		Max Burden (V)
Current Range	Resolution	Class 0.05	Class 0.02	Class 0.05	Class 0.02	Max Burden (V)
1 A	10 μA	0.01	0.005	300 + 200	120 + 80	12
5 A	10 μA	0.01	0.005	300 + 200	120 + 80	3

• Three-phase voltage output：6 V～456 V，Degree of distortion：<0.2%

• Three-phase current output：0.1 A～6.25 A，Degree of distortion：<0.2%

• Voltage short circuit, current open-circuit and overload protection

5.2 Frequency / Phase / Harmonic

Symmetry	Voltage superior to 0.2%；Current superior to 0.5%；Phase superior to 0.5°;
Frequency	Range：45.000 Hz～70.000 Hz； Adjustment fineness：0.001 Hz； Uncertainty (k=2): 0.02 Hz (class 0.05), 0.01 Hz(class 0.02)
Phase	Range：0.000 0°～359.999 9°； Adjustment fineness：0.005°； Uncertainty (k=2): 0.02° (class 0.05), 0.01°(class 0.02)
Harmonic	2nd～21st harmonic； Amplitude 0～25% adjustable； Phase 0～359.99°adjustable

5.3 Three-Phase Power Output

Current Range	Stability ( %/min )		Uncertainty (k=2) *( %FS)[2]**
Current Range	Class 0.05	Class 0.02	Class 0.05	Class 0.02
Active power \|cosφ\|≥0.5	0.01	0.005	0.05	0.02
Reactive power \|sinφ\|≥0.5	0.02	0.01	0.1	0.05
Apparent power	0.02	0.01	0.1	0.05
Power factor	0.02	0.01	0.1	0.05
Note [2] :FS= voltage range × current range

• Power factor setting range：-1.000 000…0.000 000…1.000 000

5.4 Three-Phase Voltage / Current Input

Type	Range	Resolution	Uncertainty (k=2) *(ppmRD + ppmRG)*
Type	Range	Resolution	Direct Input	Clamp Current Input [3]
AC Voltage ACV	57.7 V	0.1 mV	300 + 200	——
	100 V	1 mV	300 + 200	——
	220 V	1 mV	300 + 200	——
	380 V	1 mV	300 + 200	——
AC Current ACI	1 A	10 μA	300 + 200	——
AC Current ACI	5 A	10 μA	300 + 200	0.2%*RG
Note [3]：Clamp is option，if it be need, it must remark in order contract，Same as below。

• Voltage input：6 V～456 V，current input：0.1 A～6 A

• Frequency：45 Hz～70 Hz，uncertainty (k=2): 0.01 Hz

• Phase：0.000°～359.999°，uncertainty (k=2): 0.02°

5.5 Three-Phase Power Input

Type	Uncertainty (k=2)
Type	Direct Input	Clamp Current Input
Active power	0.05%*FS	0.2%*FS
Reactive power	0.1%*FS	0.5%*FS
Apparent power	0.1%*FS	0.5%*FS
Power factor	0.1%	0.5%

5.6 DC Voltage / Current Output

Voltage Range	Resolution	Stability ( %/min )		Uncertainty (k=2) *(ppmRD + ppmRG)*		Max Burden (mA)
Voltage Range	Resolution	Class 0.05	Class 0.02	Class 0.05	Class 0.02	Max Burden (mA)
75 mV	0.1 μV	0.005	0.005	300 + 200	120 + 80	10
1 V	10 μV	0.005	0.005	300 + 200	120 + 80	10
10 V	0.1 mV	0.005	0.005	300 + 200	120 + 80	10
30 V	0.1 mV	0.005	0.005	300 + 200	120 + 80	500
100 V	1 mV	0.005	0.005	300 + 200	120 + 80	150
300 V	1 mV	0.005	0.005	300 + 200	120 + 80	50

Current Range	Resolution	Stability ( %/min )		Uncertainty (k=2) *(ppmRD + ppmRG)*		Max Burden (V)
Current Range	Resolution	Class 0.05	Class 0.02	Class 0.05	Class 0.02	Max Burden (V)
1 mA	10 nA	0.01	0.005	300 + 200	120 + 80	10
5 mA	10 nA	0.01	0.005	300 + 200	120 + 80	10
20 mA	100 nA	0.01	0.005	300 + 200	120 + 80	10

• DC voltage output：10 mV～330 V，ripple factor：< 1%；

• DC current output：0.1 mA～22 mA，ripple factor：< 1%

• Voltage short circuit, current open-circuit and overload protection

5.7 DC Meter（Transmitter）

Range	Measurement Range	Uncertainty	Measurement Range of Ripple	Accuracy of Ripple
1 V	± ( 0～1.2 ) V	0.01%*RG	0～30 mV	1 mV
10 V	± ( 0～12 ) V	0.01%*RG	0～300 mV	10 mV
2 mA	± ( 0～2.4) mA	0.01%*RG	0～60 μA	2 μA
20 mA	± ( 0～24 ) mA	0.01%*RG	0～600 μA	20 μA

• Response time：measurement range：0～1000 ms，uncertainty (k=2): 40 ms

5.8 U4 Voltage Output（option）

• Voltage range：100 V, 380 V

• Output range：(0～110)%*RG

• Accuracy of measurement ( k = 2 )：± 0.05%*RG

• Max output power：10 VA

• Frequency range：45 Hz～55 Hz

• The function is used to test Synchrometer.

6. General Specifications

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Maximum Power Consumption	350 VA
Warm Up Time	30 min
Temperature Performance	Working temperature：0°C~45°C； Storage temperature：-20°C~70°C
Humidity Performance	Working humidity：< 80% @ 30°C，< 70% @ 40°C，< 40% @ 50°C Storage humidity：(20%~80%) R·H，non-condensing
Altitude	< 3000 m
Weight	About 17 kg
Interface	RS232

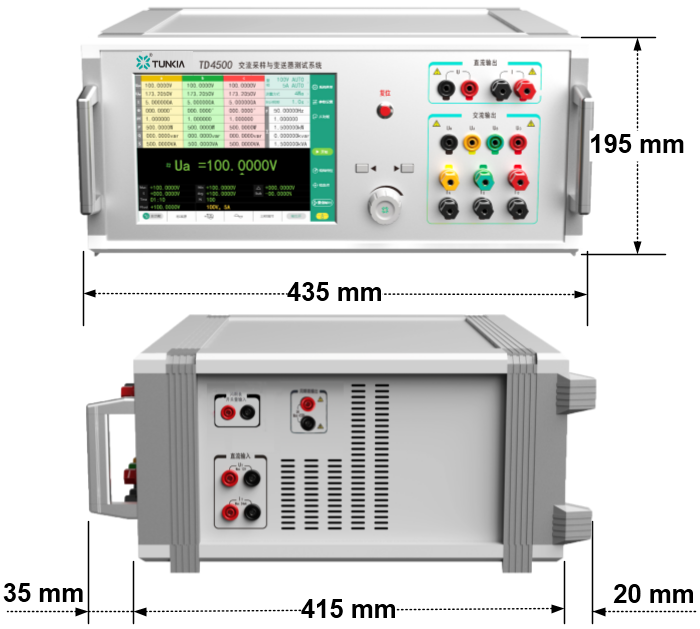

Dimension	435 mm(W) × 415 mm(D) × 195 mm(H) (Without handle)
Dimension
