TUNKIA TD4550 Portable Tester for Three-phase Energy Meter

TD4550 Portable Tester for Three-phase Energy Meter

TD4550 is an intelligent and highly integrated test system for calibrating three-phase energy meter and other AC electrical apparatus. It is built-in 3PH standard source. It can complete intrinsic error test, constant test, standard deviation test, starting current test, test of no-load of electric energy meter.

Model:
TD4550
Brand:
TUNKIA


Availability:



Inquire

TD4550 Portable Tester for Three-phase Energy Meter

TD4550 Portable Three-Phase Energy Meter Calibrator

1. Summary

TD4550 is an intelligent, highly integrated electrical instrument test system, a portable instrument dedicated to calibrating three-phase AC energy meters and power meters. It has a built-in three-phase standard source with three optional specifications: class 0.02 / class 0.05 / class 0.1. One device can complete the basic energy error detection, energy meter constant test, standard deviation, start-up test, creep test and other test items of the energy meter.

2. Features

Accuracy：class 0.02, 0.05, 0.1
3PH ACV output：6 V～456 V
3PH ACI output：2 mA ~ 120 A
Multiple output mode, support three-phase or single adjust
U-I phase：0°～360°, accuracy 0.01°
Supports graphic display functions such as oscilloscope and phasor diagram
Built-in standard electric energy metering module, suitable for calibrating single energy meter
Large-size LCD touch color screen, with external operation console to adjust output
Able to load 2~21 harmonics with adjustable amplitude and phase（option）
Test software（option） supports semi-automatic or fully automatic calibration

3. Application

TD4550 Portable Three-Phase Energy Meter Calibrator Application

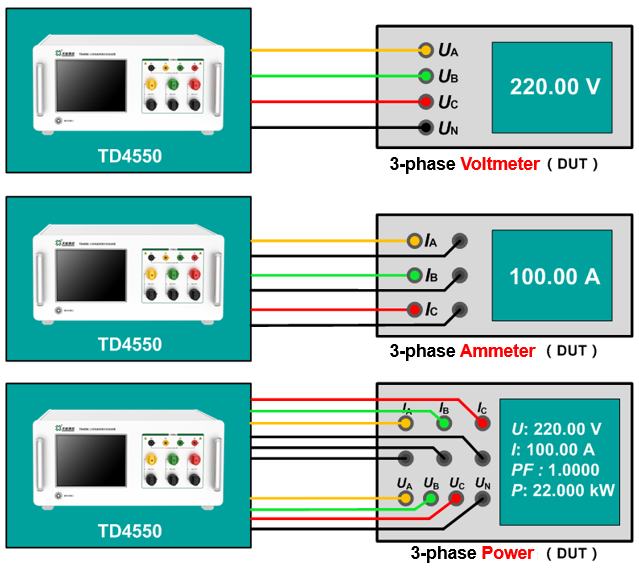

☆ Calibrating Single and Three-Phase Electrical Measuring Devices

TD4550 Portable Tester for Three-phase Energy Meter

3-phase voltage standard source (ACV): output range 6 V～456 V @ 45 Hz～65 Hz
3-phase current standard source (ACI): output range 2 mA～120 A @ 45 Hz～65 Hz
3-phase power standard source: a virtual power standard source composed of three-phase voltage and current independent outputs and adjustable phases.
Class 0.02: suitable for calibrating single/three-phase voltage meters and ammeters of class 0.1 and below; suitable for calibrating active power meters of class 0.1 and below, reactive power meters of class 0.1 and below, apparent power meters, and power factor meters.
Class 0.05: suitable for calibrating single/three-phase voltage meters and ammeters of class 0.2 and below; suitable for calibrating active power meters of class 0.2 and below, reactive power meters of class 0.2 and below, apparent power meters, and power factor meters.

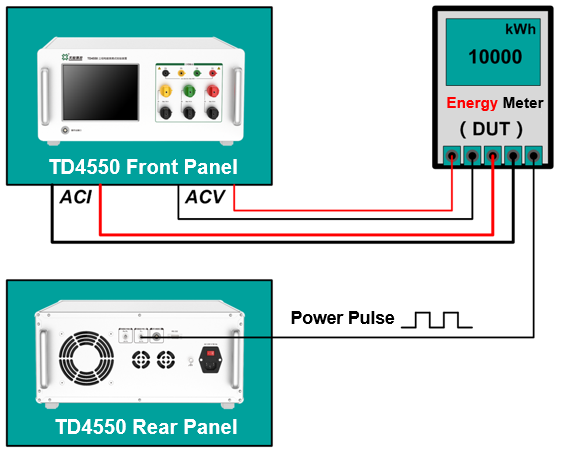

☆ Test Single / Three-Phase Energy Meter

TD4550 Portable Tester for Three-phase Energy Meter

Built-in standard electric energy metering module with electric energy pulse signal input/output function.
With the output function of single/three-phase standard power source, it is used to detect a single AC electric energy meter.

4. Appearance

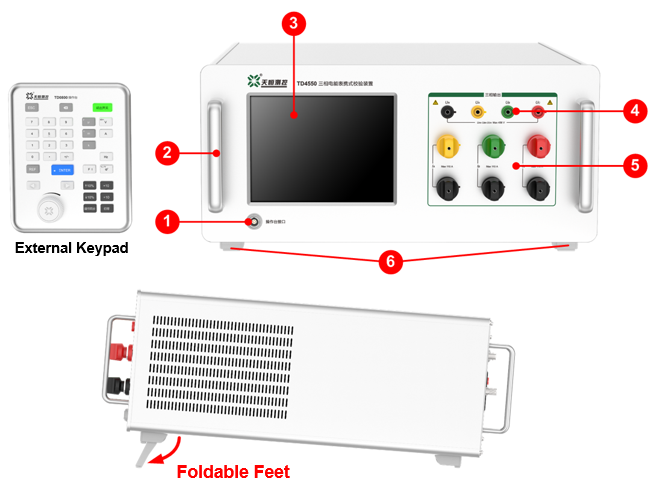

☆ Front Panel

S/N	Description
	The operation console interface can be connected to an external operation console with digital buttons, making it convenient for users to set the output value.
	The instrument has a pair of handles on the front and back panels to facilitate users to carry the instrument.
	LCD touch color screen, intuitive display of multiple power levels, and full touch operation greatly improve the usability of the instrument.
	U_A, U_B, U_C 3-phase voltage output terminals
	I_A, I_B, I_C 3-phase current output terminals
	Foldable feet: can slightly raise the instrument to a certain angle to obtain the best operating and reading viewing angle.

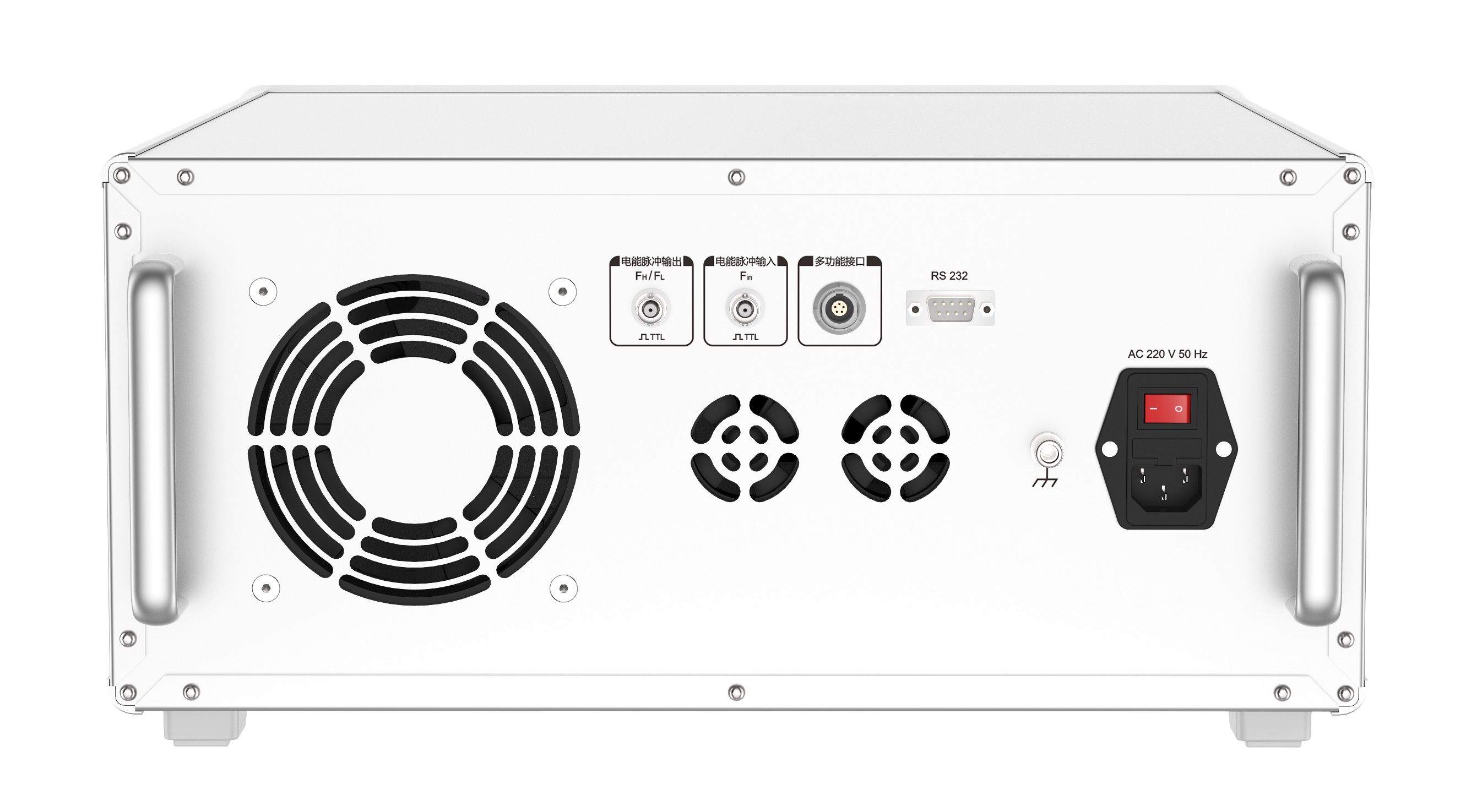

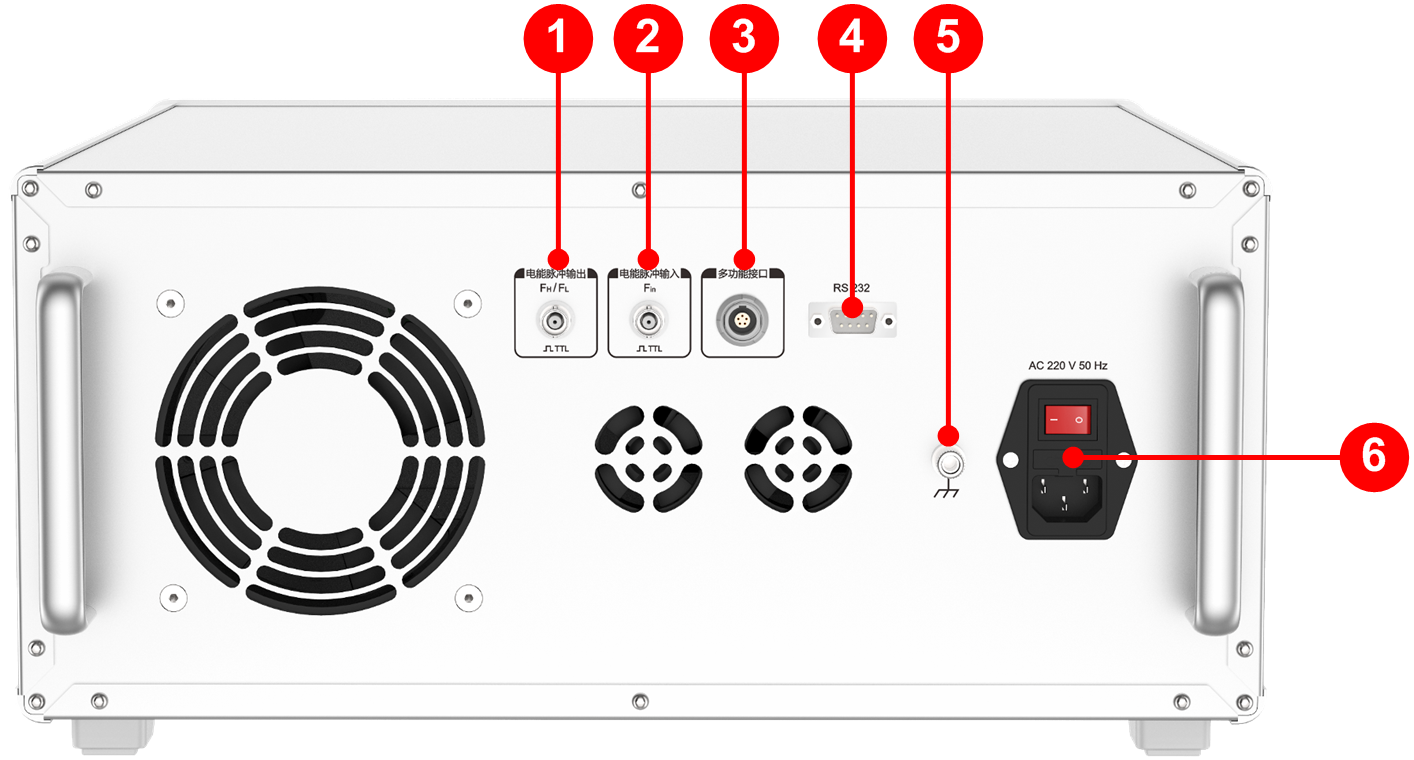

☆ Rear Panel

S/N	Description
	Energy pulse output terminal
	Energy pulse output terminal
	Multifunctional interface, can be connected to photoelectric head pulse signal, etc.
	RS232 terminal, used for communication with a computer.
	Equipment protective grounding terminal.
	220V power supply terminal at the power switch and fuse position.

5. Characteristics

☆ Wide Output

TD4550 Portable Three-Phase Energy Meter Calibrator Wide Output

It can cover the calibration of three-phase instruments commonly used in power systems

☆ Convenient Operation

TD4550 Portable Three-Phase Energy Meter Calibrator Convenient Operation

The instrument host is equipped with a large-size LCD screen, full touch operation, and no buttons on the front panel.
A portable operating table with digital buttons and rotary encoders can be connected to facilitate users to set the output value.
This combination is conducive to reducing the size of the host and effectively improving the convenience of operation.

☆ Multiple Value Output Modes

TD4550 Portable Tester for Three-phase Energy Meter

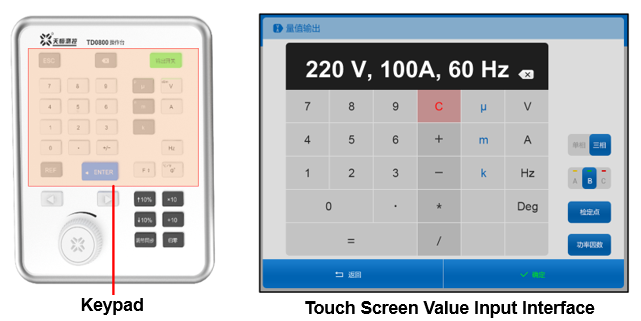

"Direct output" mode: Users can directly set the required output value by pressing the digital buttons on the console or clicking the touch screen. The instrument will automatically switch to the optimal range output, making it very convenient to calibrate digital instruments.
Especially when setting power, you can directly enter the voltage value, current value, and frequency.
When setting three-phase power, it supports three-phase unified regulation or phase-by-phase regulation.

TD4550 Portable Tester for Three-phase Energy Meter

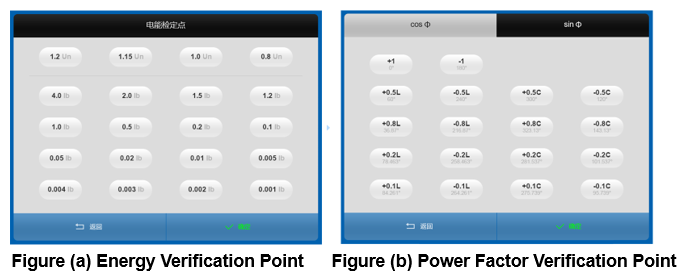

For the calibration of electric energy meters, the commonly used voltage, current load points and power factor points have been configured in the interface.

☆ Multiple Value Output Modes

TD4550 Portable Tester for Three-phase Energy Meter

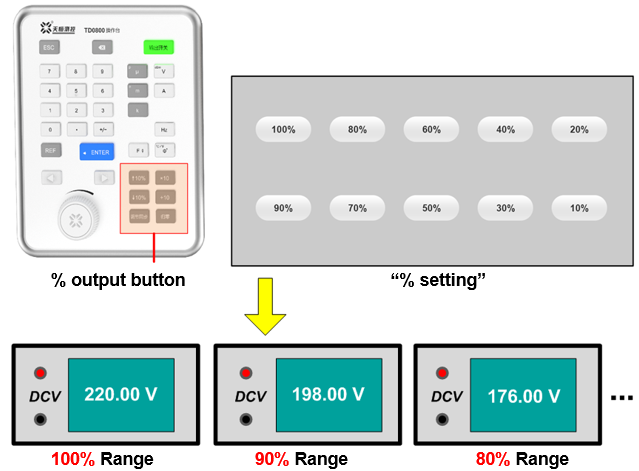

When calibrating electrical measuring instruments, it is usually necessary to select calibration points according to the proportion of each range of the meter being tested.
Users can easily select the calibration points of the meter being tested through the "% output button" on the instrument console or the "percent calibration point" on the touch screen.

TD4550 Portable Tester for Three-phase Energy Meter

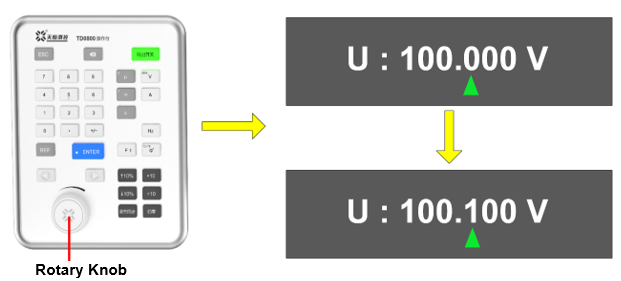

The operation area is equipped with a "Rotary Knob" that can increase or decrease the value output by rotating it clockwise or counterclockwise.

☆ Harmonics Function (Option)

S/N	Function
	Set the amplitude of the selected harmonic. You can set the absolute value of the voltage or current harmonic, or set it as a percentage of the fundamental.
	Set the phase of the selected harmonic first (relative to the fundamental wave).
	The instrument has the output function of the 2nd to 21st harmonics. The embedded software is equipped with a user-defined "harmonic parameter setting" interface. The user can set the required harmonics according to the test requirements.
	It has an oscilloscope function, which can observe the AC phase power waveform after the harmonic is loaded.
	The spectrum of each harmonic is intuitively displayed in the form of a bar graph (the fundamental wave is 100%).

☆ Testing Software（Option）

TD4550 Portable Three-Phase Energy Meter Calibrator Testing Software（Option）

Optional automatic calibration software, suitable for various electrical measuring instruments, automatic testing according to the test items in JJG 596-2012 "Electronic AC Energy Meter Calibration Procedure", and automatic generation of test reports to improve detection efficiency.
Supports fully automatic or semi-automatic calibration of the tested equipment, raw data recording, analysis, management and customized template report export.
*(During fully automatic calibration, the tested equipment should have communication function and open communication protocol to realize data reading.)
Software functions can be customized according to customer needs, and support subsequent software upgrades to add new procedure test requirements.

6. Specifications

6.1 Three-Phase Voltage / Current Output

Voltage Range	Stability ( %/min )			Uncertainty (k=2) (ppm of reading + ppm of range) ^[1]			Max Burden (mA)
Voltage Range	Class 0.1	Class 0.05	Class 0.02	Class 0.1	Class 0.05	Class 0.02	Max Burden (mA)
57.7 V	0.02	0.01	0.005	600+400	300+200	120+80	500
100 V	0.02	0.01	0.005	600+400	300+200	120+80	300
220 V	0.02	0.01	0.005	600+400	300+200	120+80	130
380 V	0.02	0.01	0.005	600+400	300+200	120+80	80
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).

Current Range	Stability ( %/min )			Uncertainty (k=2) (ppm of reading + ppm of range) [1]			Max Burden (V)
Current Range	Class 0.1	Class 0.05	Class 0.02	Class 0.1	Class 0.05	Class 0.02	Max Burden (V)
20 mA	0.02	0.01	0.005	600+400	300+200	120+80	24
50 mA	0.02	0.01	0.005	600+400	300+200	120+80	24
100 mA	0.02	0.01	0.005	600+400	300+200	120+80	24
200 mA	0.02	0.01	0.005	600+400	300+200	120+80	24
500 mA	0.02	0.01	0.005	600+400	300+200	120+80	24
1 A	0.02	0.01	0.005	600+400	300+200	120+80	24
2 A	0.02	0.01	0.005	600+400	300+200	120+80	6
5 A	0.02	0.01	0.005	600+400	300+200	120+80	6
10 A	0.02	0.01	0.005	600+400	300+200	120+80	2
20 A	0.02	0.01	0.005	600+400	300+200	120+80	2
50 A	0.02	0.01	0.005	600+400	300+200	120+80	0.6
100 A	0.02	0.01	0.005	600+400	300+200	120+80	0.6

• Three-phase voltage output：6 V～456 V, Three-phase current output：2 mA～120 A

• Degree of distortion：<0.5%

• Degree of symmetry：voltage <0.2%, current <0.5%, phase <0.5°

• Voltage short circuit, current open-circuit and overload protection

6.2 Frequency / Phase / Harmonic

Frequency

Range：45 Hz～65Hz；

Adjustment fineness：0.001 Hz；

Uncertainty (k=2)：0.01Hz

Phase

Range：0.000 0°～359.999 9°；

Adjustment fineness：0.005°；

Uncertainty (k=2)：0.05° (class 0.1), 0.02° (class 0.05), 0.01°(class 0.02)

Harmonic

2nd～21st harmonic；

Amplitude 0～25% adjustable；

Phase 0～359.99°adjustable

6.3 Power / Energy Output

Type	Current range	Class 0.1	Class 0.05	Class 0.02
Output power stability ( % / 2min )	50 mA≤I≤120 A	0.05	0.02	0.01
Output power stability ( % / 2min )	2 mA≤I< 50 mA	0.05	0.03	0.02
Active power /energy \|cos Φ\| ≥0.5	50 mA≤I≤120 A	± 0.1%*reading	± 0.05%*reading	± 0.02%*reading
Active power /energy \|cos Φ\| ≥0.5	2 mA≤I< 50 mA	± 0.2%*FS^③	± 0.1%*FS	± 0.05%*FS
Reactive power /energy \|sin Φ\| ≥0.5	50 mA≤I≤120 A	± 0.2%*FS	± 0.1%*FS	± 0.05%*FS
Reactive power /energy \|sin Φ\| ≥0.5	2 mA≤I< 50 mA	± 0.5%*FS	± 0.2%*FS	± 0.1%*FS
Power factor	50 mA≤I≤120 A	± 0.1%	± 0.05%	± 0.02%
Power factor	2 mA≤I< 50 mA	± 0.2%	± 0.1%	± 0.05%
Note③ :FS= voltage range × current range

• Power/energy measure range：combination of voltage range and current range

• Power factor measure range：-1.000 00…0.000 00…1.000 00

• Energy pulse output：High frequency full range is 60 kHz, Low frequency full range is 6 Hz

• Energy pulse input：Frequency ≤ 150 kHz, pulse level：：0…3.3 V…24 V

• Energy error display：auto，resolution as 0.0001%

7. General Specifications

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Warm Up Time	30 min
Temperature Performance	Working temperature：0°C~45°C; Storage temperature：-20°C~70°C
Humidity Performance	Working humidity：< 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C Storage humidity：(20%~80%) R·H，non-condensing
Altitude	<3000 m
Weight	About 29 kg
Interface	RS232

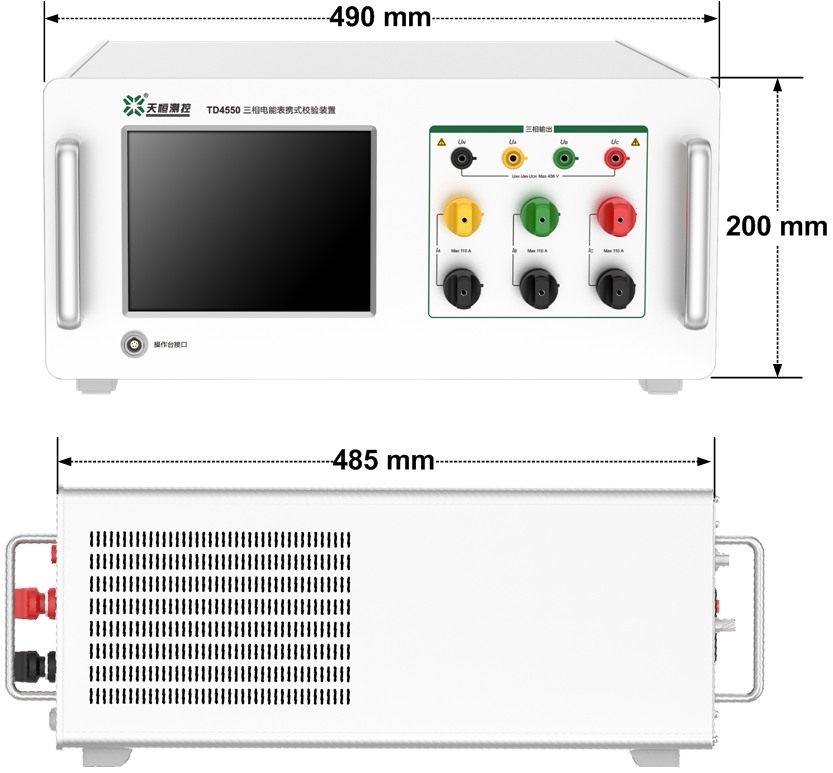

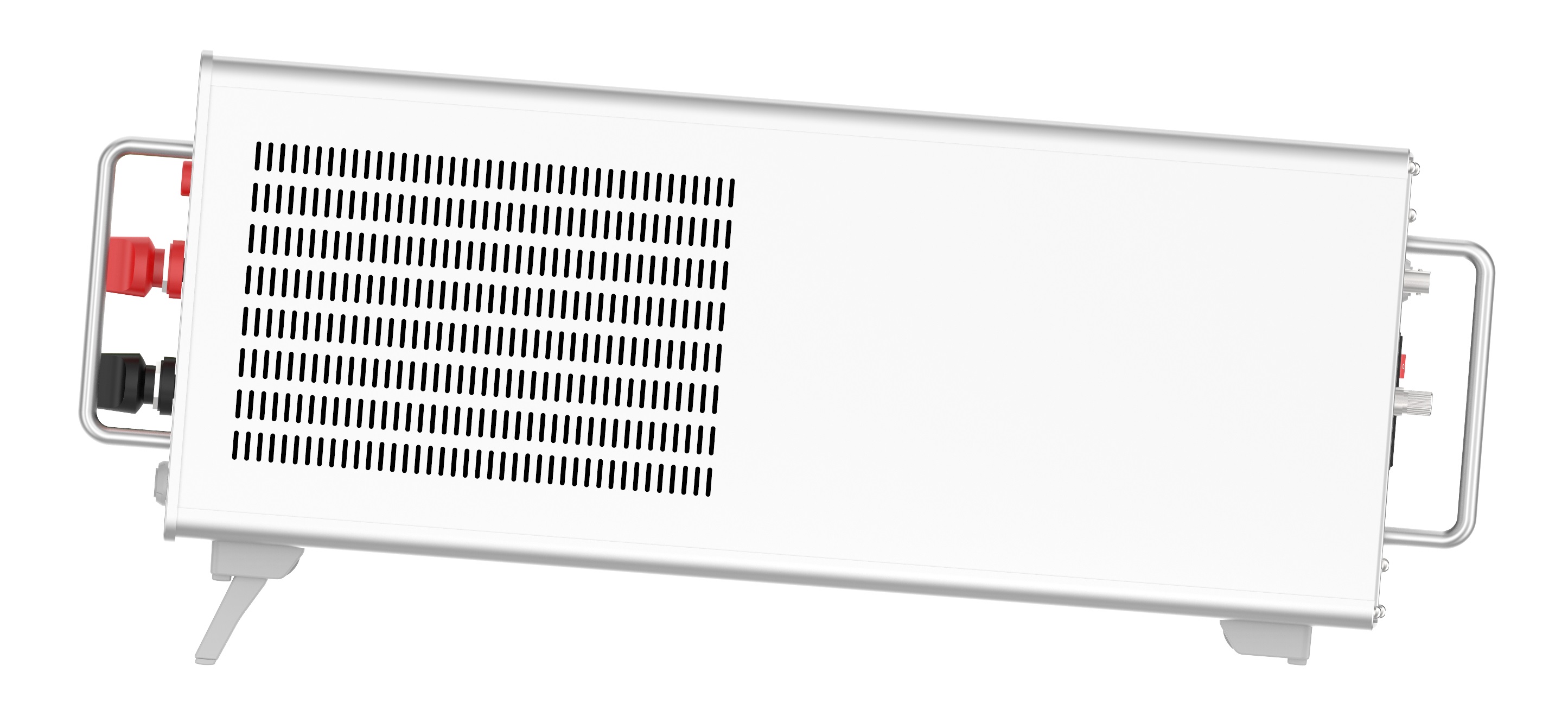

Dimension	490 mm(W) × 485 mm(D) × 200 mm(H) (Without handle)
Dimension
