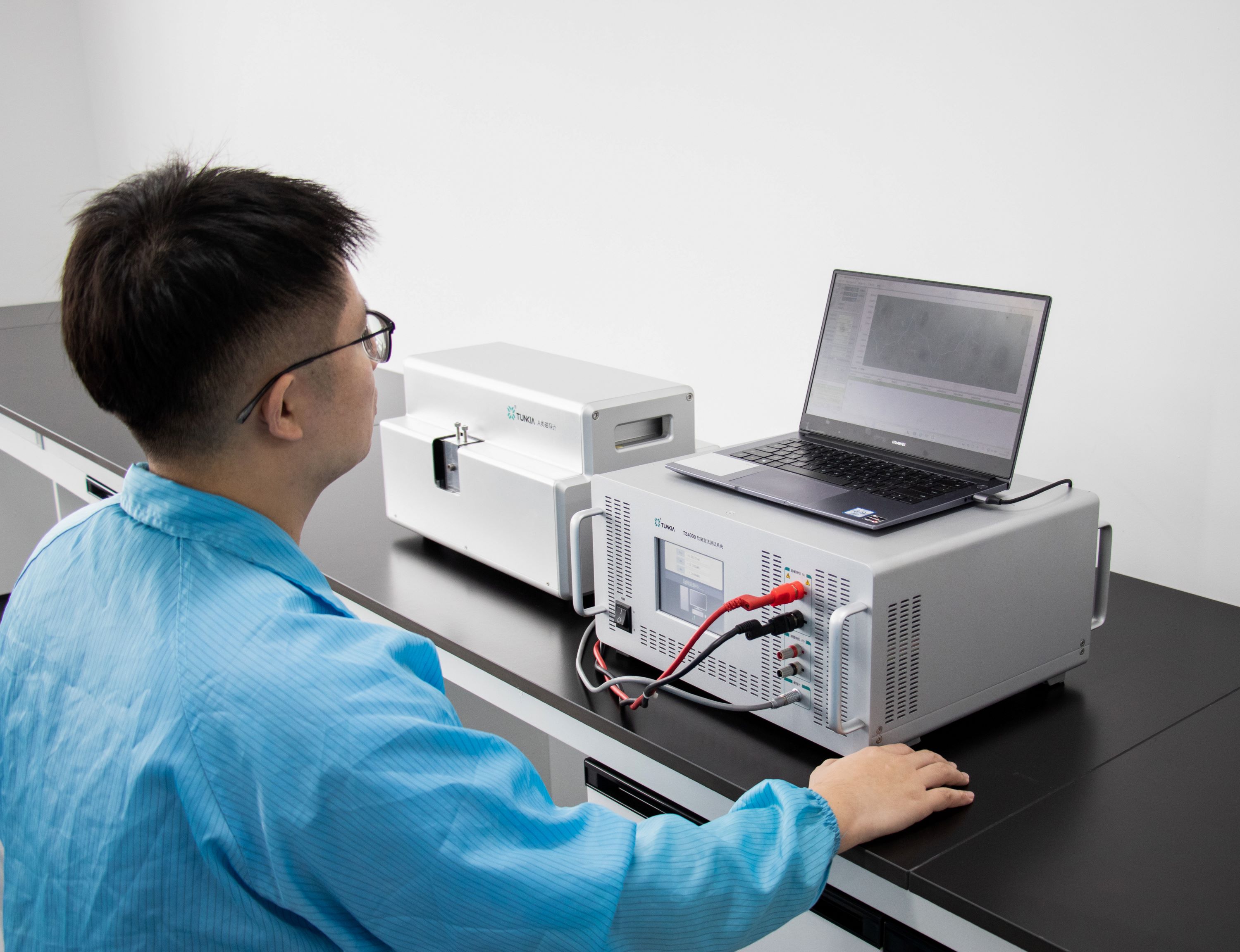

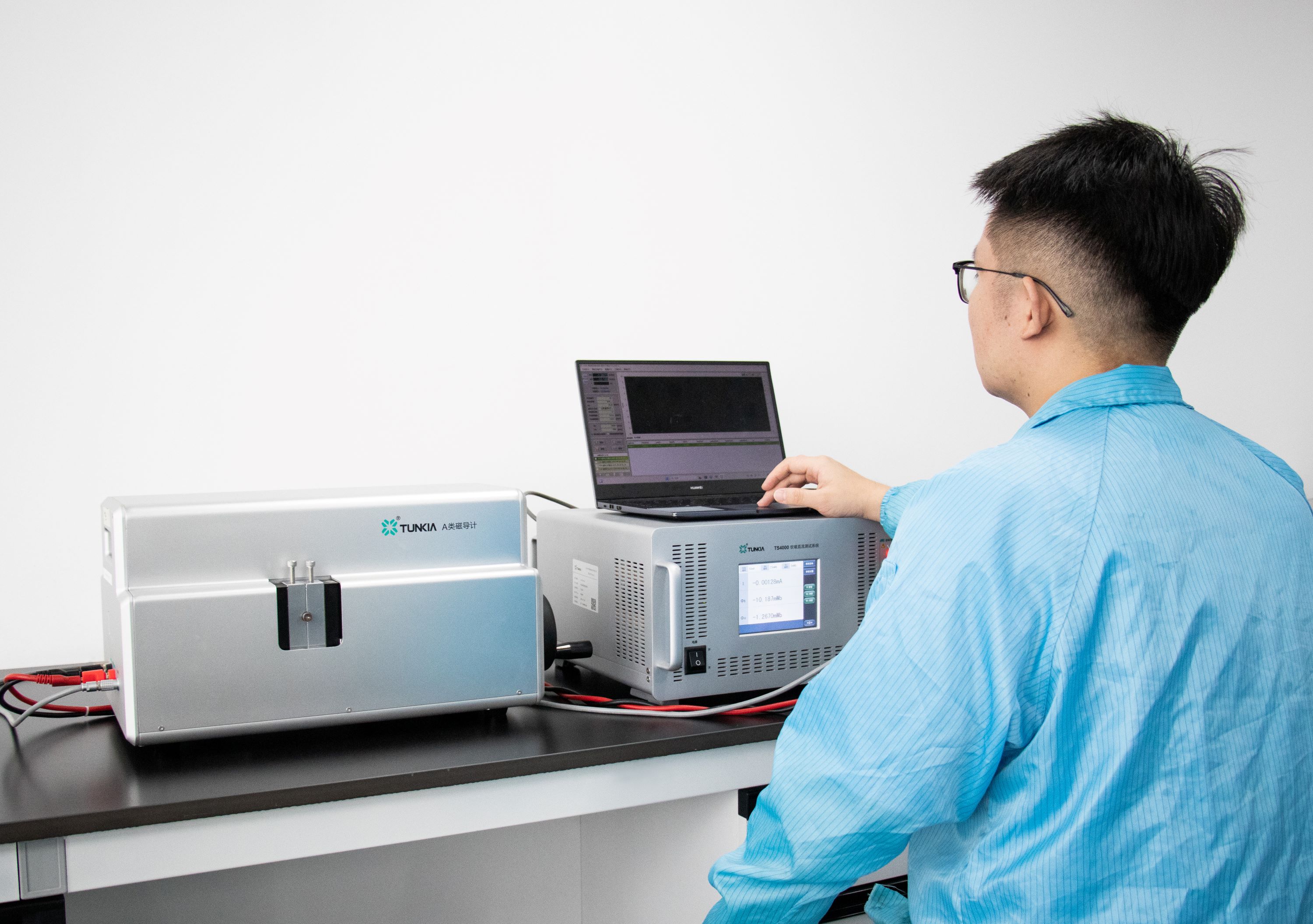

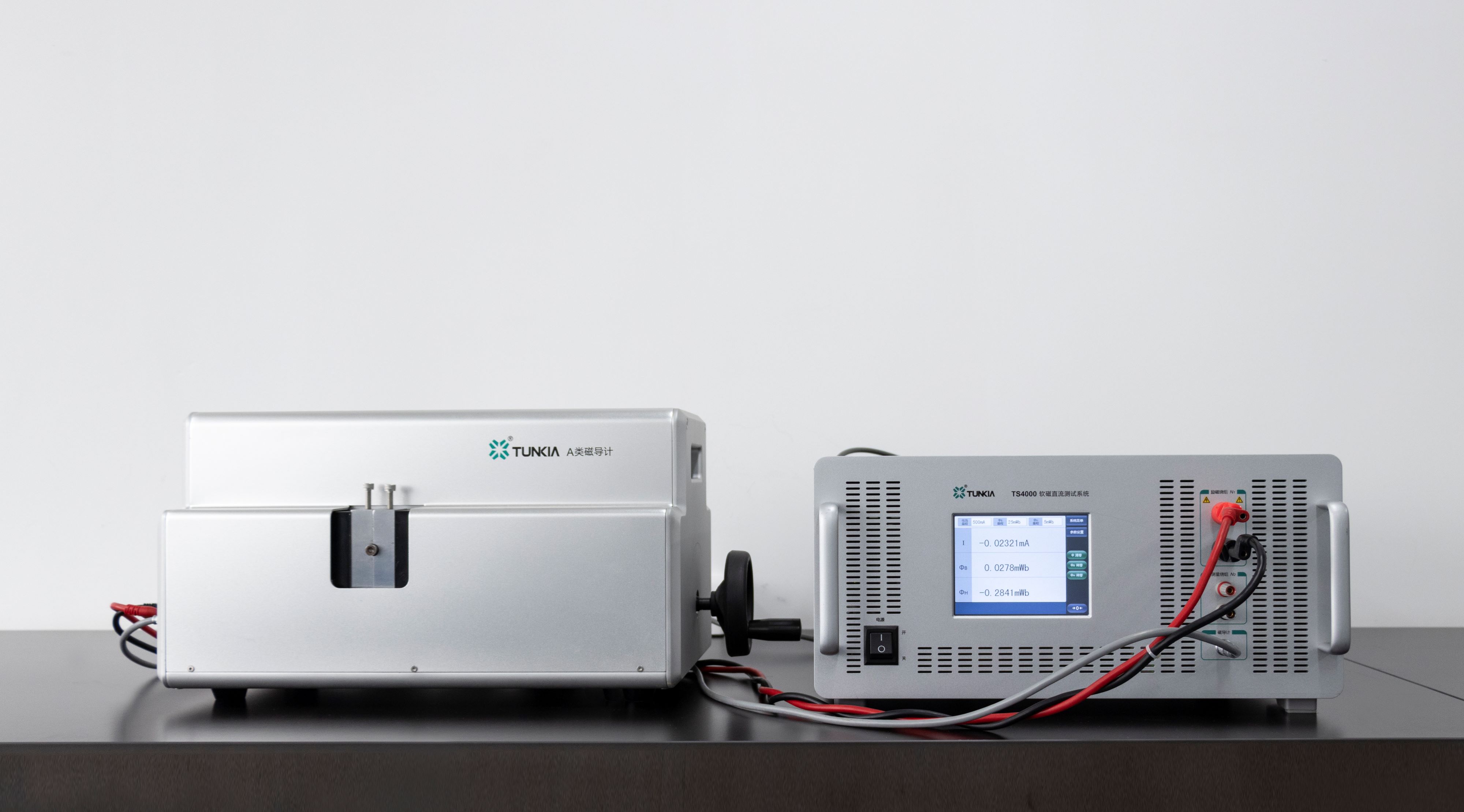

TS7710 Type A / B Permeameter

TS7710 Permeameter is mainly used as an excitation device for open-circuit magnetic specimen such as bars, rods, and strips to test their DC magnetic properties. Bar specimen cross section: round (Φ10mm), square (10mm×10mm). Sheet specimen: sheet or strip ( width 30 mm). Users can customize corresponding magnetic pole pieces according to the above specimen shapes. Measuring systems that can be equipped with A/B type magnetic permeability meters include: TS4000, TS5300, TS1000, TS1300.

Availability:

Quantity:



Inquire Add to Basket

Model:
TS7710
Brand:
TUNKIA

TS7710 Type A / B Permeameter

Type A and B Permeameter

1. Summary

l It’s applied for testing open-circuit specimen such as bar, cylinder, strip.

l Bar specimen cross section: round (Φ10mm), square (10mm×10mm).

l Sheet specimen: sheet or strip ( width 30 mm).

l Users can customize magnetic pole piece according to specimen shape.

l Applicable system: TS4000, TS5300, TS1000, TS1300.

2. Specifications

Model	TS7710-A	TS7710-B
Type	Type A Permeameter	Type B Permeameter
Range of H	( 1 ～ 200 ) kA/m	(1 ～ 50 ) kA/m
Coil	Field coil	Rogowski-Chattock coil
Specimen Length	≥ 250 mm	≥ 100 mm
Dimension (L × W × H)	490 mm × 330 mm × 240 mm	580 mm × 220 mm × 270 mm
Weight	About 65 kg	About 53 kg
