TUNKIA TY1100 Magnetic Properties Measuring System for Hard Magnetic Materials

TY1100 Magnetic Properties Measuring System for Hard Magnetic Materials

Model:
TY1100
Brand:
TUNKIA


Availability:



Inquire

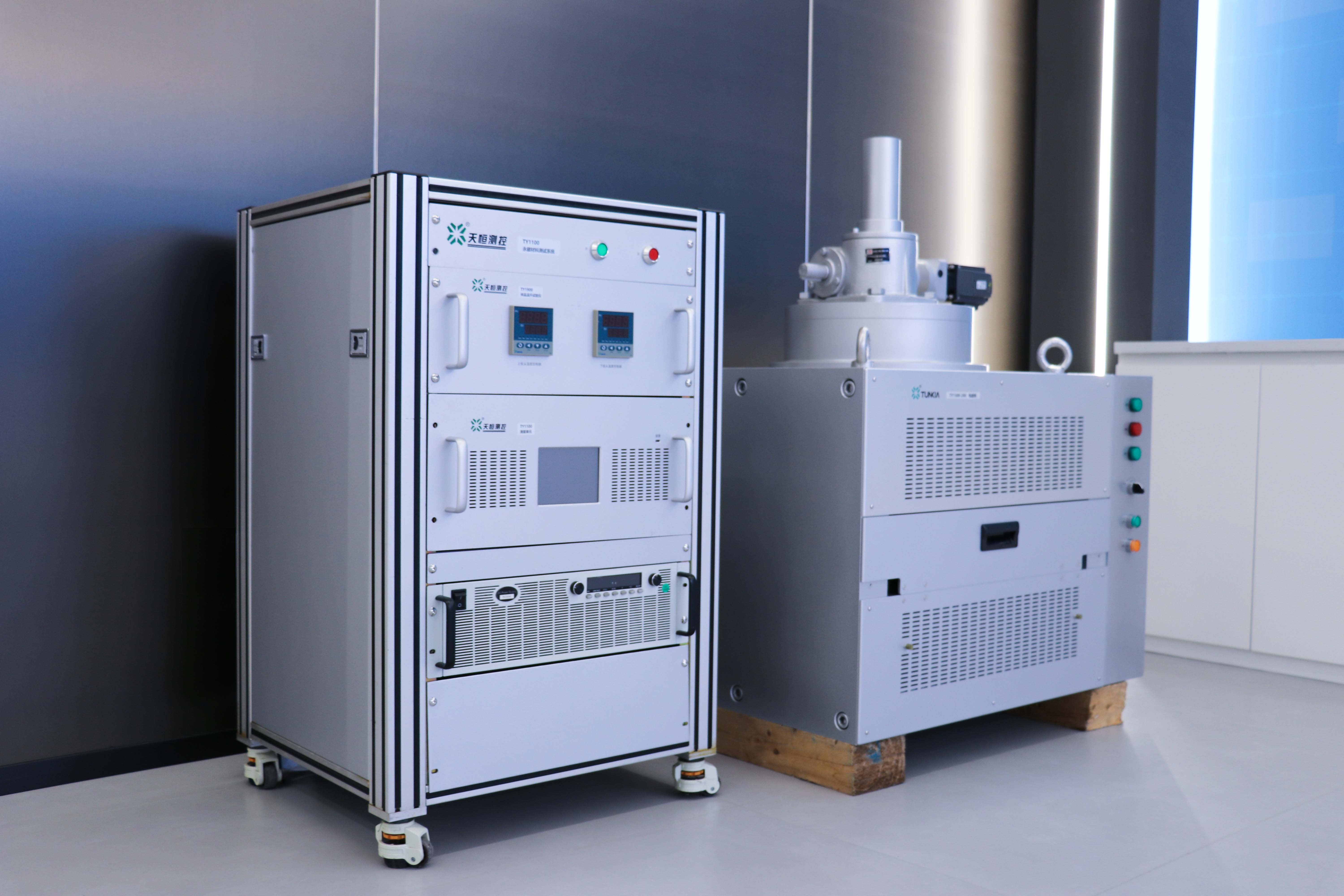

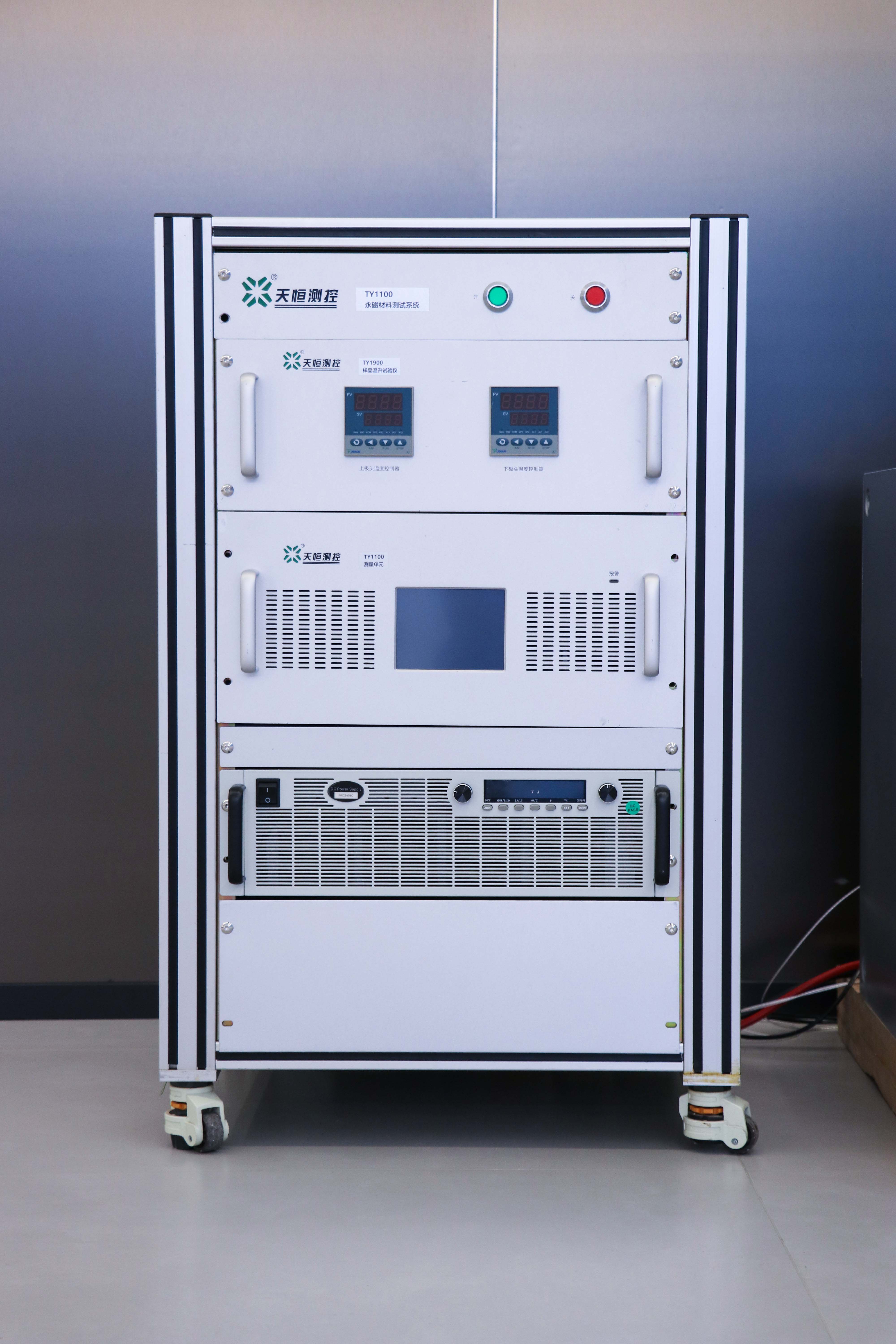

TY1100 Magnetic Properties Measuring System for Hard Magnetic Materials

*Above picture is only for reference, subject to actual delivery

1. Summary

The TY1100 is an intelligent system specifically designed for measuring the magnetic properties of permanent magnet materials. It consists of an excitation and measurement unit, electromagnet, magnetic sensors, computer, and measurement software. Suitable for testing various types of permanent magnets, it can generate corresponding magnetic property curves. The system features easy operation, fast measurement, good repeatability, and high reliability.

2. Features

Independent calibration for electrical parameters.
Demagnetization using a slow attenuation method.
Wide-range, continuously adjustable and stable current output.
Minimal impact from fluxmeter integrator drift and Hall probe nonlinearity.
Bipolar magnetizing power supply with continuous adjustment for easy magnetization and demagnetization.
B or J measured via B/J coil + fluxmeter; automatic compensation for residual loop area when using J coil.
H measured via gaussmeter + Hall probe or H coil + fluxmeter.
Various coils and probes available; customizable for different sample sizes.
Φ280 mm electromagnet with tapered pole head: up to 3.2 T field strength.
Φ250 mm electromagnet with tapered pole head: up to 3.0 T field strength.
Professional software for automated magnetic property measurement.
Automatic calculation of magnetic parameters and curve plotting with data management.
Modular design of main unit and permeameter for easy upgrades and maintenance.
Optional temperature rise tester: evaluates high-temperature effects on permanent magnets.
Optional automatic-lifting electromagnet: enables automated sample clamping for testing.

3. Applications

TY1100 Magnetic Properties Measuring System for Hard Magnetic Materials Applications

4. Excitation and Measurement

Magnetizing Current	Output Range	0～± 60 A
	Max. Power	15 kVA
	Protection Function	Over voltage, over current, overload, overheating
Tesla Meter	Range	0～4000 mT
	Optimal Measurement Uncertainty（k=2）	0.5%*RG within 2500 mT [1]
	Characteristic	Hall-probe nonlinear correction function
Flux Meter	B Flux Meter Range	0～20 mWb, for magnetic flux measurement
	H Flux Meter Range	0～40 mWb, for magnetic field strength measurement
	Min. Resolution	0.1 μWb
	Zero-Drift	Drift better than ±1 μWb/min, with auto-zero function.
Note：[1] RG is the range values.

5. Reproducibility

Magnetic Parameters	Typical Values	Guaranteed Value (Al Ni Co)	Guaranteed Value (Ferrite, Fe-Cr-Co, Rare Earth Magnet )
Br	0.3%	1.0%	2.0%
Hcb	0.3%	1.0%	2.0%
Hcj	0.3%	1.0%	2.0%
(BH)max	0.3%	1.5%	3.0%

Test temperature: 23 °C ± 5 °C
Sample dimensions must strictly follow GB/T 3217-2013 requirements
Guaranteed values conform to relevant IEC standards

6. General technical specifications

Power Supply

Three Phase Five Wire System

Phase Voltage：220 V，Line Voltage：380 V，( 50 ± 2 ) Hz

Temperature Performance

Working Temperature：0°C～40°C

Storage Temperature：-20°C～70°C

Humidity Performance

Working Humidity：40%～80% R·middot;H，No condensation

Store Humidity：< 95% R·middot;H，No condensation

7. Electromagnet (optional)

TY1100 Magnetic Properties Measuring System for Hard Magnetic Materials Electromagnet

7.1 Features

The electromagnet is excited via a current source, generating a strong, continuously adjustable magnetic field with excellent linearity and uniformity.
Pole faces are highly parallel, significantly minimizing air gaps during testing.
Low input power per magnetic field strength; energy-efficient and eco-friendly.
Naturally cooled—no external water-cooling unit required.
Various pole head specifications available to generate different magnetizing fields.
Automatic pole head lifting is available for electromagnets with 250 mm or 280 mm pole diameter (optional).
Shrinking pole heads can be optionally equipped with Fe-Co tips for improved performance.

7.2 Specification

Model	Type	Air gap	I_max	H_max (10 mm Gap)
TY1500-250	Vertical 250 type	0 ~ 50 mm single side adjustable	DC, ± 60 A	3.0 T
TY1500-280	Vertical 280 type	0 ~ 50 mm single side adjustable	DC, ± 60 A	3.2 T

Poles Type	Model	Pole Diameter	Pole Face Diameter	Pole Material	H_max (10 mm Gap)
Room Temperature	TY1550-250-250	250 mm	250 mm	Pure Iron	2.0 T
	TY1550-250-140	250 mm	140 mm	Pure Iron	2.8 T
	TY1550-250-80	250 mm	80 mm	Pure Iron	3.0 T
	TY1550-250-80-Co	250 mm	80 mm	Iron and Cobalt	3.0 T
	TY1550-280-140	280 mm	140 mm	Pure Iron	3.0 T
	TY1550-280-80	280 mm	80 mm	Pure Iron	3.2 T
	TY1550-280-80-Co	280 mm	80 mm	Iron and Cobalt	3.2 T
High Temperature	TY1550-T-250-80	250 mm	80 mm	Pure Iron	2.8 T
	TY1550-T-250-80-Co	250 mm	80 mm	Iron and Cobalt	2.8 T
	TY1550-T-280-80	280 mm	80 mm	Pure Iron	3.0 T
	TY1550-T-280-80-Co	280 mm	80 mm	Iron and Cobalt	3.0 T

Note: The above accessories are optional according to the testing requirements.

8. Auto-testing Software

Software runs on Windows, offering intuitive and user-friendly operation.
Magnetization, demagnetization, and testing of typical permanent magnets are completed in one automated cycle with short measurement time.
Fully automated control and intelligent judgment minimize manual error.
Automatically calculates data, applies temperature coefficient correction, and calibrates range coefficients.
Main interface displays the magnetization curve in real time, with the option to stop measurement at any time.
Excitation current output percentage is freely adjustable; fluxmeter and teslameter zero-drift can be corrected.
Measurement data is automatically saved. Reports include complete curves, results, test conditions, and sample parameters.

8. System Configuration List

No.	Item Name	Number	Configuration	Note
1	TY1100	1	Standard	/
2	Hall probe and bracket	1	Standard	/
3	J coils or J-H coils	1	Standard	According to specimen size
4	Testing software	1	Standard	Installation CD-ROM
5	Test wire and junction box	1	Standard	/
6	TY1500 electromagnet	1	Optional	See electromagnet model
7	TY1550 electromagnet poles	1	Optional	See electromagnet poles model
8	TY1900 Specimen Heating Device	1	Optional	Used for high temperature performance testing
9	High temperature J-H coils	1	Optional	Used for high temperature performance testing
10	Reference specimen	1	Optional	Including certificate
11	Segment poles	1	Optional	According to specimen size
12	Workbench	1	Optional	Third party Products
13	Computer	1	Optional	Third party Products
14	Printer	1	Optional	Third party Products
