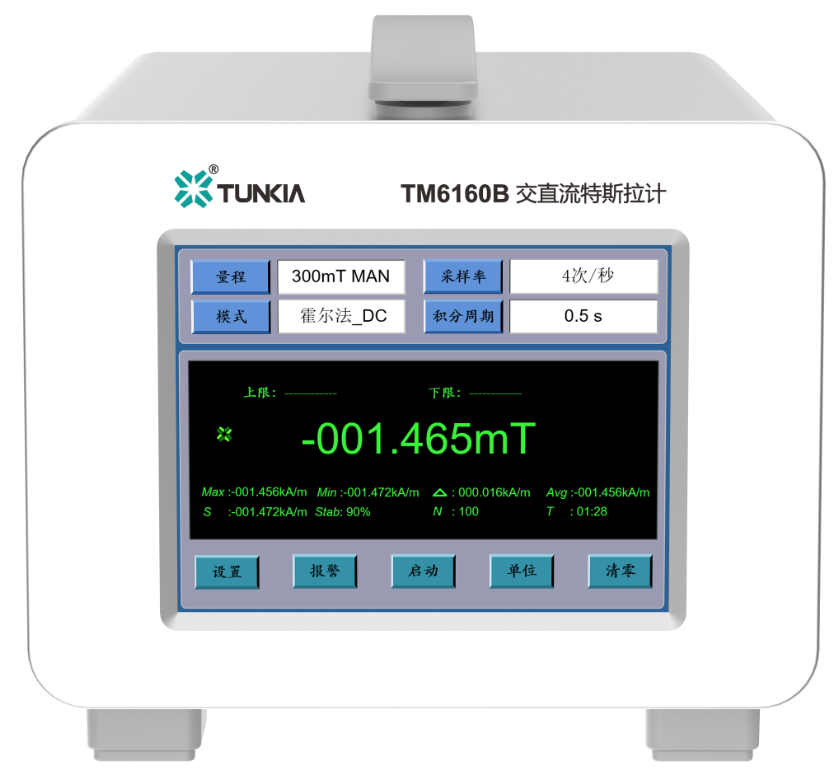

TM6160B AC/DC Tesla-Meter

1 Summary

TM6160B is a versatile AC/DC Teslameter with a maximum magnetic field of 3 T and fully automatic range switching. It can directly measure DC magnetic fields generated by magnetic field sources, as well as AC magnetic fields in space. It is particularly suitable for measuring magnetic flux density at the position of the meter under test in electricity meter testing devices, or for measuring other weak AC magnetic fields. It is also applicable for magnetic field measurements in magnetic influence tests as specified in OIML R46 (e.g., power-frequency magnetic field strength of 400 A/m or 1000 A/m, and DC magnetic fields up to 200 mT).

2. Features

• DC and AC measurement modes.

• Measure medium and high DC magnetic fields with a Hall probe.

• Measure low AC magnetic fields with a coil probe.

• Data statistics, stability analysis functions.

• Unit switch: G, mT, Oe, A/m.

• +/- polarity display.

• Alarm of exceeding the upper / lower limit.

• Set magnetic field integration period.

• Digital and analog signal output.

• LCD touch screen.

3. Application

TM6160B AC/DC Tesla-Meter

4. Features

☆ Optional Radial or Axial Hall Probe
Radial Hall Probe
Axial Hall Probe
• Standard configuration is Radial Hall probe, also can choose Axial Hall probe.

☆ Digital and Analog Signal Output

• Two output modes of digital signal and analog signal.

• Directly output the secondary analog signal, and can adjust the maximum output voltage.

☆ One-key Clear Function/ Zero Drift Calibration
Zero Drift Calibration Operation
Serial Number	Function Description
	One-key clear function: eliminate the influence of zero drift on the measurement before measuring.
	Magnetic shielding cavity (optional): • Realize the calibration of the zero drift. • Can completely remove the influence of the earth's magnetic field with the shielding material of high magnetic permeability. • Internal magnetic field <10 -6 T. • Small size, light weight (about 1 kg).

5. Specifications

5.1 Coil Probe

Range	10 μT	100 μT	1 mT
Resolution	1 nT	10 nT	100 nT
Accuracy	± 0.2 μT	± 2 μT	± 20 μT
Measuring Range	1 μT ~ 1 mT
Frequency Range	45 Hz to 65 Hz
Display Digits	5

5.2 Hall Probe

Range		3 mT	30 mT	300 mT	3000 mT ②
Resolution		0.1 μT	1 μT	10 μT	100 μT
Accuracy ±(ppm of reading + ppm of range)①	DC	1.0% + 0.05	1.0% + 0.1	0.5% + 1	0.2% + 2
	AC	2% + 0.15	2% + 0.2	1% + 1	1% + 2
Measuring Range		0.3mT ～ 3T
Frequency Range		DC to 1kHz
Display Digits		5
Remark		1 (ppm = parts per million) (e.g., 10ppm = 0.001%) 2 Actual calibration only covers up to 2.5 T

6. General Specifications

Temperature Performance	Operating temperature: 0°C～50°C Storage temperature: -20°C ~ 70°C
Humidity Performance	Operating humidity: 40% ~ 80 % R·H, non-condensing Storage humidity: < 80% R·H, non-condensing
Altitude	< 3000 m
Weight	About 5 kg
Interface	RS232, Hall probe input, coil input interface
Dimensions	185 mm (W) × 280 mm (D) × 170 mm (H)

7. Probe Selection

Serial number	Picture	Name	Specification	Quantity	Remark
1		TM1100 Hall Probe	Radial	1	Standard Accessory
2		TM1110 Hall Probe	Axial	1	Optional
Note：The users should indicate the probe in the order contract.
