TUNKIA TD1000 Calibration Device for Clamp Meters

TD1000 Calibration Device for Clamp Meters

TD1000 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.

Model:
TD1000
Brand:
TUNKIA


Availability:



Inquire

TD1000 Clamp Meters Calibration Device

TD1000 Calibration Apparatus for Clamp Meters

1. Summary of TD1000 Clamp Meters Calibration Device

TD1000 is a device used to calibrate multi-function clamp meters. It integrates the functions of AC high current standard source, DC current standard source, AC voltage standard source, DC voltage standard source and DC resistance standard source, and can meet the calibration needs of multi-function clamp meters of different accuracy levels.

2. Features of TD1000 Clamp Meters Calibration Device

• Accuracy: Class 0.05, Class 0.1 available

• AC current output: 20 mA ~ 1100 A

• AC voltage output: 1 V ~ 825 V

• DC current output(optional): 20 mA ~ 22A

• DC voltage output(optional): 20 mV ~ 1100V

• DC resistance output: 10 Ω ~ 11 MΩ

• Adopts a dual-loop structure with large and small currents

• Two thickness copper rings

• Remote adjustment(optional)

3. Application of TD1000 Clamp Meters Calibration Device

TD1000 Calibration Apparatus for Clamp Meters Application

☆Calibrate AC Clamp Meter by Single-turn Method

TD1000 Calibration Apparatus for Clamp Meters Calibrate AC Clamp Meter by Single-turn Method

AC current standard source (ACI) Output range: 20 mA ~ 1100 A, 45 Hz ~ 65 Hz.
Class 0.05 specification device: suitable for calibrating AC clamp ammeters of level 0.2 and below.
Class 0.1 level specification device: suitable for calibrating AC clamp ammeters of level 0.5 and below.
The AC large current source outputs the standard current signal to a single-turn semicircular copper ring with a diameter of 1 m. The current output copper ring is divided into large and small copper rings, which are suitable for calibrating clamp ammeters with different jaw sizes.
Solution advantages: It fully complies with the requirements of the single-turn method for calibrating clamp ammeters recommended in the JJF 1075-2015 Clamp Ammeter Calibration Specification. The TD1000 is controlled to output the standard AC current source signal, which can calibrate high-precision AC clamp ammeters, solving the problem of insufficient calibration accuracy of the traditional equivalent ampere-turn method and improving the service capabilities of metrology calibration laboratories.

☆ Calibrate DC Clamp meters by Equivalent Ampere-turn Method(optional)

TD1000 Calibration Apparatus for Clamp Meters Calibrate DC Clamp meters by Equivalent Ampere-turn Method(optional)

DCI output: 20 mA ~ 22 A
Coil: 50 T, accuracy ± 0.3%
Equivalent to 1000AT current through input 20A current to the 50T Coil, which is suitable for calibrating DC clamp meters. Suitable for calibrating low-precision clamp ammeters or current clamps of class 1 and below.

☆ Calibrate Multi-function Clamp Meters

TD1000 Calibration Apparatus for Clamp Meters Calibrate Multi-function Clamp Meters

ACV output: 1 V ~ 825 V, 45 Hz ~ 65 Hz
DCV output: 20 mV ~ 1100V
RES output: 10 Ω ~ 11 MΩ, continuously adjustable
Class 0.05 specification device: suitable for calibrating AC and DC voltmeters and DC resistance meters of class 0.2 and below.
Class 0.1 specification device: suitable for calibrating AC and DC voltmeters of class 0.5 and below, and DC resistance meters of class 0.2 and below.

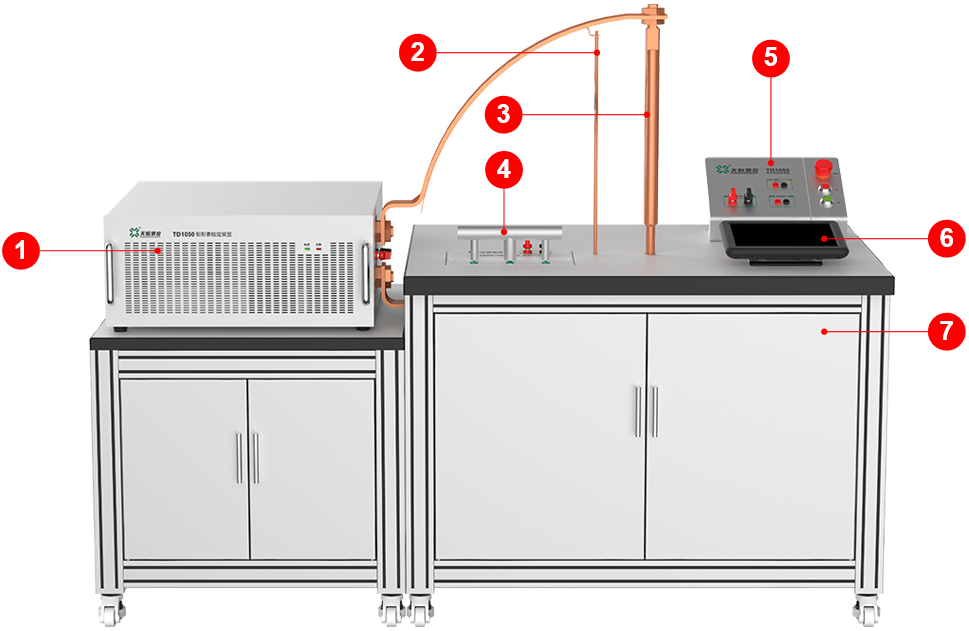

4. Panel Features of TD1000 Clamp Meters Calibration Device


Item	Name	Description
	Signal source cabinet	1000 A device is a single cabinet.
	Small current copper ring	Output current: I ≤ 100 A, suitable for calibrating small clamp ammeters.
	Large current copper ring	Diameter 1 m, output current: I > 100 A, single turn method for calibrating clamp ammeters.
	50T current coil	Used for equivalent amplification of DC current and calibration of DC clamp ammeters.
	Wiring panel	Contains various signal output terminals, power button and emergency stop switch, etc.
	Measurement and control table	Movable and touch-operable, used to adjust the output of the signal source and display data information.
	Workbench	Non-magnetic workbench, convenient for placing the clamp meter under test.

5. Characteristics of TD1000 Clamp Meters Calibration Device

☆ Convenient Traceability

TD1000 Calibration Apparatus for Clamp Meters Convenient Traceability

Open the connection of the current output copper ring and connect the standard ammeter to the current output loop to calibrate the AC current source. The standard ammeter can be TH0630 through-hole precision AC ammeter.
Solution value: It solves the problem of difficult traceability using the traditional equivalent ampere-turn method, making it easier to calibrate the device regularly.

☆Wide Output Range

TD1000 Calibration Apparatus for Clamp Meters Wide Output Range

Solution value: The output range of the multifunctional standard source of TD1000 covers the working range of mainstream multifunctional clamp meters, and it can be calibrated directly using the standard source method

☆ Output and Adjustment

TD1000 Calibration Apparatus for Clamp Meters Output and Adjustment

The device has a " Direct output " mode. By clicking the touch screen, you can directly set the required output value. The device will automatically switch to the optimal range output, making it very convenient to calibrate digital instruments.
Especially when setting the AC voltage/current output, you can directly enter the amplitude and frequency at the same time, which is very convenient to use.

TD1000 Calibration Apparatus for Clamp Meters Calibration of the analog pointer meter

The calibration of analog pointer type usually needs to be carried out scale by scale, especially the "rising and falling variation" (i.e. the change caused by the rise and fall of the tested point), and the output of the source needs to be adjusted to align the indicator of the tested table with the graduation line of the tested point.
It is relatively inconvenient to use the digital fixed-point output method to adjust the output of the standard source to achieve the alignment of the scale.
For this reason, we provide users with a remote box (optional accessory). Through the operation of coarse adjustment-fine adjustment, the output can be quickly adjusted to align with the scale of the tested table, which is very convenient to complete the calibration of the analog table. This function is particularly useful when it is necessary to consider the friction or hysteresis effect during movement.

6. Specifications of TD1000 Clamp Meters Calibration Device

6.1 AC Current of TD1000 Clamp Meters Calibration Device

Range	Resolution	Output Range	Frequency	Max Compliance Voltage (rms)
200 mA	1 μA	10.000 mA ~ 210.000 mA	45 Hz ~ 65 Hz	50 V
1 A	10 μA	0.10000 A ~ 1.10000 A	45 Hz ~ 65 Hz	15 V
5 A	10 μA	0.50000 A ~ 5.50000 A	45 Hz ~ 65 Hz	8 V
20 A	100 μA	2.0000 A ~ 22.0000 A	45 Hz ~ 65 Hz	2 V
50 A	100 μA	5.0000 A ~ 55.0000 A	45 Hz ~ 65 Hz	1 V
100 A	1 mA	10.000 A ~ 110.000 A	45 Hz ~ 65 Hz	0.7 V
250 A	1 mA	25.000 A ~ 275.000 A	45 Hz ~ 65 Hz	0.7 V
500 A	1 mA	50.000 A ~ 550.000 A	45 Hz ~ 65 Hz	0.7 V
1000 A	10 mA	100.00 A ~ 1100.00 A	45 Hz ~ 65 Hz	0.7 V

Range	Stability (± %/min)		Uncertainty (k=2) *(ppmRD+ppmRG)^[1]*		Distortion (%)
Range	Class 0.05	Class 0.1	Class 0.05	Class 0.1	Distortion (%)
200 mA	0.01	0.02	250 + 150	600 + 400	<0.5
1 A	0.01	0.02	250 + 150	600 + 400	< 0.5
5 A	0.01	0.02	250 + 150	600 + 400	< 0.5
20 A	0.01	0.02	250 + 150	600 + 400	< 0.5
50 A	0.01	0.02	250 + 150	600 + 400	< 0.5
100 A	0.01	0.02	250 + 150	600 + 400	< 0.5
250 A	0.01	0.02	250 + 150	600 + 400	< 0.5
500 A	0.01	0.02	250 + 150	600 + 400	< 0.5
1000 A	0.01	0.02	250 + 150	600 + 400	< 0.5
Note[1]: RD=Reading，RG=Range, unless otherwise noted；

• Output range: 20 mA ~ 1100 A

• Adjustment fineness: 0.002%*RG，6 digits display

• Protections: open-circuit protection, overload protection, over-heat protection

6.2 AC Voltage of TD1000 Clamp Meters Calibration Device

Range	Resolution	Output Range	Frequency	Max Burden(rms)
10 V	100 μV	1.0000 V ~ 11.0000 V	45 Hz ~ 65 Hz	800 mA
30 V	100 μV	3.0000 V ~ 33.0000 V	45 Hz ~ 65 Hz	700 mA
100 V	1 mV	10.000 V ~ 110.000 V	45 Hz ~ 65 Hz	200 mA
300 V	1 mV	30.000 V ~ 330.000 V	45 Hz ~ 65 Hz	70 mA
750 V	1 mV	75.000 V ~ 825.000 V	45 Hz ~ 65 Hz	30 mA

Range	Stability (±/min)		Uncertainty (k=2) (ppmRD+ppmRG)		Distortion (%)
Range	Class 0.05	Class 0.1	Class 0.05	Class 0.1	Distortion (%)
10 V	0.01	0.02	300 + 200	600 + 400	<0.5
30 V	0.01	0.02	300 + 200	600 + 400	< 0.5
100 V	0.01	0.02	300 + 200	600 + 400	< 0.5
300 V	0.01	0.02	300 + 200	600 + 400	< 0.5
750 V	0.01	0.02	300 + 200	600 + 400	< 0.5

• Output range: 1 V ~ 825 V

• Adjustment fineness: 0.002%*RG

• 6 digits display

• Protections: short-circuit protection, overload protection, over-heat protection

6.3 DC Current(optional) of TD1000 Clamp Meters Calibration Device

Range	Resolution	Output Range	Max Compliance Voltage
200 mA	1 μA	20.000 mA ~ 220.000 mA	10 V
1 A	10 μA	0.10000 A ~ 1.10000 A	10 V
5 A	10 μA	0.50000 A ~ 5.50000 A	10 V
20 A	100 μA	2.0000 A ~ 22.0000 A	10 V

Range	Stability (± %/min)		Uncertainty (k=2) (ppmRD+ppmRG)		Ripple Factor (%)
Range	Class 0.05	Class 0.1	Class 0.05	Class 0.1	Ripple Factor (%)
200 mA	0.01	0.02	250 + 150	600 + 400	<0.5
1 A	0.01	0.02	250 + 150	600 + 400	<0.5
5 A	0.01	0.02	250 + 150	600 + 400	<0.5
20 A	0.01	0.02	250 + 150	600 + 400	<0.5

• Output range: 20 mA ~ 22 A（1000 At）

• Adjustment fineness: 0.002%*RG

• Display digits: 6 digits display

• Protections: open-circuit protection, overload protection, over-heat protection.

6.4 DC Voltage(optional) of TD1000 Clamp Meters Calibration Device

Range	Resolution	Output Range	Max Burden
200 mV	1 μV	20.000 mV ~ 220.000 mV	100 mA
1 V	10 μV	0.10000 V ~ 1.00000 V	100 mA
10 V	100 μV	1.0000 V ~ 11.0000 V	100 mA
30 V	100 μV	3.0000 V ~ 33.0000 V	800 mA
100 V	1 mV	10.000 V ~ 110.000 V	200 mA
300 V	1 mV	30.000 V ~ 330.000 V	70 mA
600 V	1 mV	60.000 V ~ 660.000 V	25 mA
1000 V	10 mV	100.00 V ~ 1100.00 V	20 mA

Range	Stability (± %/min)		Uncertainty (k=2) *(ppmRD+ppmRG)*		Ripple Factor (%)
Range	Class 0.05	Class 0.1	Class 0.05	Class 0.1	Ripple Factor (%)
200 mV	0.01	0.02	300 + 200	600 + 400	<0.5
1 V	0.01	0.02	300 + 200	600 + 400	< 0.5
10 V	0.01	0.02	300 + 200	600 + 400	< 0.5
30 V	0.01	0.02	300 + 200	600 + 400	< 0.5
100 V	0.01	0.02	300 + 200	600 + 400	< 0.5
300 V	0.01	0.02	300 + 200	600 + 400	< 0.5
600 V	0.01	0.02	300 + 200	600 + 400	< 0.5
1000 V	0.01	0.02	300 + 200	600 + 400	< 0.5

• Output range: 20 mV ~ 1100 V

• Adjustment fineness: 0.002%*RG

• 6 digits display

• Protections: short-circuit protection, overload protection, over-heat protection

6.5 DC Resistance of TD1000 Clamp Meters Calibration Device

Range	Resolution	Output Range	Uncertainty (k=2) *(ppmRD+ppmRG)*	Allowable Current
100 Ω	1 mΩ	10.000 Ω ~ 110.000 Ω	600 + 400	1 mA ~ 15 mA
1 kΩ	10 mΩ	0.10000 kΩ ~ 1.10000 kΩ	600 + 400	100 μA ~ 1.5 mA
10 kΩ	100 mΩ	1.0000 kΩ ~ 11.0000 kΩ	600 + 400	10 μA ~ 150 μA
100 kΩ	1 Ω	10.000 kΩ ~ 110.000 kΩ	600 + 400	10 μA ~ 150 μA
1 MΩ	10 Ω	0.10000 MΩ ~ 1.10000 MΩ	600 + 400	1 μA ~ 15 μA
10 MΩ	100 Ω	1.0000 MΩ ~ 11.0000 MΩ	600 + 400	100 nA ~ 2 nA

• Output range: 10 Ω ~ 11 MΩ

• Adjustment fineness: 0.002%*RG

• 6 digits display

7. Ordering Information of TD1000 Clamp Meters Calibration Device

TD1000 Calibration Apparatus for Clamp Meters Ordering Information

8. General Specifications of TD1000 Clamp Meters Calibration Device

Power supply	AC (220 ± 22) V，(50 ± 2) Hz
Max power consumption	2.5 kVA
Warm Up Time	30 min
Operating condition	0°C ~ 40°C，(20% ~ 85%) R·H，non-condensing
Storage condition	-20°C ~ 70°C，(10% ~ 95%) R·H，non-condensing
Altitude	<3000 m
Standard interfaces	RS 232
Dimensions	2310 mm (W)×750 mm (D)×1280 mm (H)
