TD1050
TUNKIA
1. Summary

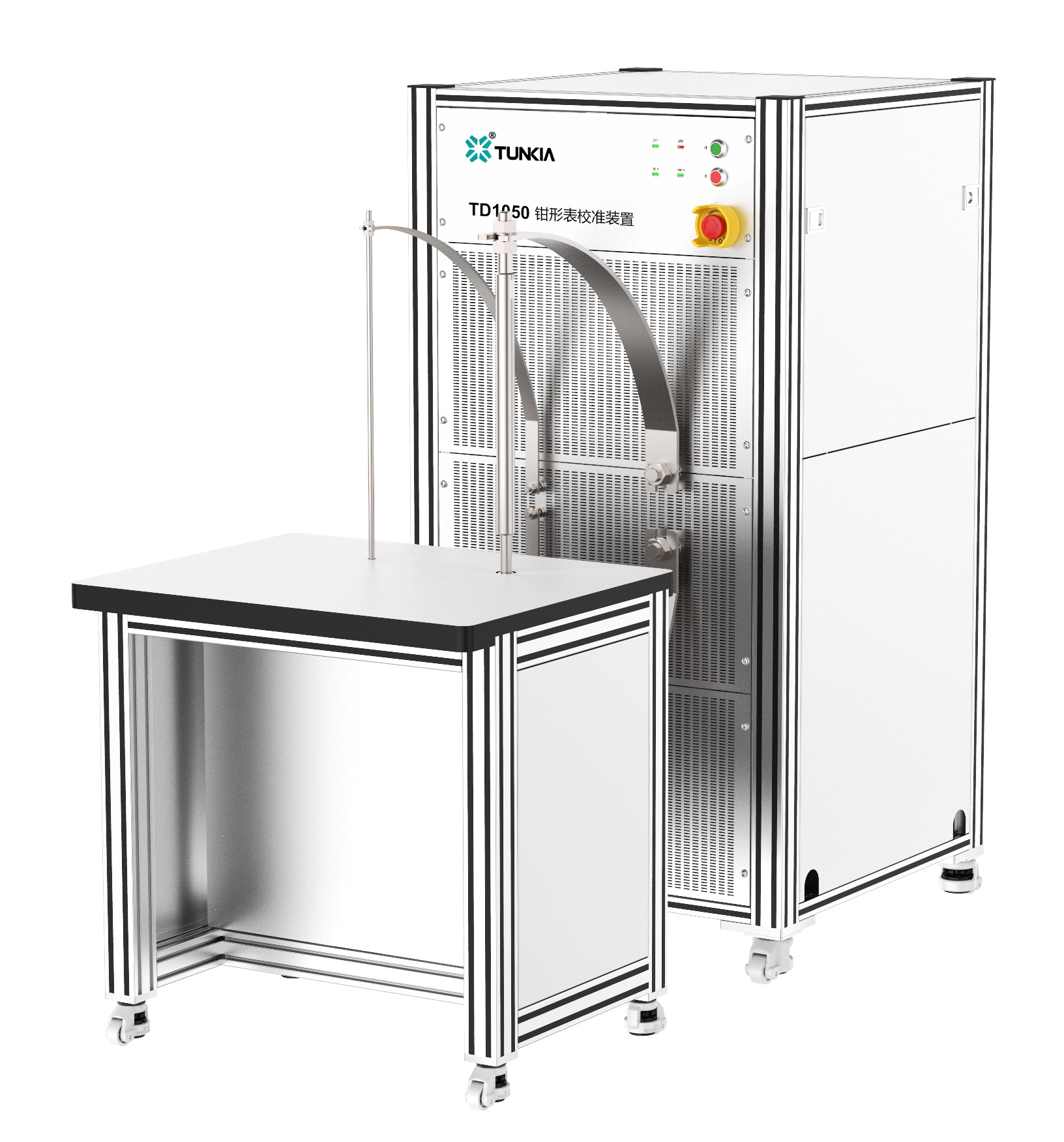

TD1050 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, and also has AC/DC power output function, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
2. Features
• Accuracy: Class 0.05
• DC current: 10 mA ~ 1050 A(2100 A is optional)
• AC current output: 10 mA ~ 1020 A(2050 A is optional)
• DC voltage output(optional): 20 mV ~ 1100 V
• AC voltage output(optional): 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz
• DC resistance output(optional): 10 Ω ~ 11 MΩ
• Two thickness copper rings
• AC/DC power output(optional)
3. Application
☆ Calibrate Clamp Meter by Single-turn Method |
• DCI output: 10 mA~1050 A(2100 A is optional) • ACI output: 10 mA~1020 A(2050 A is optional), 40 Hz ~ 400 Hz • Calibrate AC\DC clamp ammeters |
☆ Calibrate Clamp Power Meters(optional) |
• Integrates AC\DC current and voltage standard source, the U-I phase can be adjusted, which is suitable for calibrating clamp power meters. |
☆Calibrate Multi-function Clamp Meters(optional) |
• DCV output: 20 mV ~ 1100V • ACV output: 1 V ~ 825 V, 40 Hz ~ 400 Hz • RES output range: 10 Ω ~ 11 MΩ • Calibrate AC/DC voltmeter and DC resistance meter |
1. Summary
TD1050 is a calibration apparatus for multifunctional clamp meters, which integrates functions such as AC/DC high current standard source, AC/DC voltage standard source, and resistance standard source, and also has AC/DC power output function, which can meet the calibration needs of multifunctional clamp meters with different accuracy levels.
2. Features
• Accuracy: Class 0.05
• DC current: 10 mA ~ 1050 A(2100 A is optional)
• AC current output: 10 mA ~ 1020 A(2050 A is optional)
• DC voltage output(optional): 20 mV ~ 1100 V
• AC voltage output(optional): 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz
• DC resistance output(optional): 10 Ω ~ 11 MΩ
• Two thickness copper rings
• AC/DC power output(optional)
3. Application
☆ Calibrate Clamp Meter by Single-turn Method |
• DCI output: 10 mA~1050 A(2100 A is optional) • ACI output: 10 mA~1020 A(2050 A is optional), 40 Hz ~ 400 Hz • Calibrate AC\DC clamp ammeters |
☆ Calibrate Clamp Power Meters(optional) |
• Integrates AC\DC current and voltage standard source, the U-I phase can be adjusted, which is suitable for calibrating clamp power meters. |
☆Calibrate Multi-function Clamp Meters(optional) |
• DCV output: 20 mV ~ 1100V • ACV output: 1 V ~ 825 V, 40 Hz ~ 400 Hz • RES output range: 10 Ω ~ 11 MΩ • Calibrate AC/DC voltmeter and DC resistance meter |
4. Panel Features
Item | Description |
Current Source, Output AC\DC current. | |
Copper Ring 1, I≤110 A. | |
Copper Ring 2, I>100 A. | |
Workbench, used to settle the device. | |
Operate Panel, adjust electric parameter of the device. | |
Voltage Output terminals | |
Resistance Output terminals | |
Operate Panel terminal, connected to the control panel. | |
RS232 Interface,. | |
Power Switch | |
E-Stop, Used to stop the power supply in an emergency |
5. Characteristics
☆ Convenient Traceability |
• Calibrate the AC\DC current source through accessing the standard ammeter(TH0630 or TH0530)to the current loop. |
☆ Wide Output Range |
☆ Output and Adjustment |
• “Direct output”mode: the value output can be set directly by clicking the touch panel. |
• Calibration of the analog pointer meter usually needs to test scale by scale, especially "differences between rising and falling" (the change caused by the rise and fall of the calibration point). |
4. Panel Features
Item | Description |
Current Source, Output AC\DC current. | |
Copper Ring 1, I≤110 A. | |
Copper Ring 2, I>100 A. | |
Workbench, used to settle the device. | |
Operate Panel, adjust electric parameter of the device. | |
Voltage Output terminals | |
Resistance Output terminals | |
Operate Panel terminal, connected to the control panel. | |
RS232 Interface,. | |
Power Switch | |
E-Stop, Used to stop the power supply in an emergency |
5. Characteristics
☆ Convenient Traceability |
• Calibrate the AC\DC current source through accessing the standard ammeter(TH0630 or TH0530)to the current loop. |
☆ Wide Output Range |
☆ Output and Adjustment |
• “Direct output”mode: the value output can be set directly by clicking the touch panel. |
• Calibration of the analog pointer meter usually needs to test scale by scale, especially "differences between rising and falling" (the change caused by the rise and fall of the calibration point). |
6. Specifications
6.1 DC Current
Copper Ring | Range | Resolution | Output Range | Max Load |
Ring 1 | 100 mA | 1 μA | 10.000 mA ~ 110.000 mA | 8 V |
300 mA | 1 μA | 30.000 mA ~ 330.000 mA | 8 V | |
1 A | 10 μA | 0.10000 A ~ 1.10000 A | 8 V | |
3 A | 10 μA | 0.30000 A ~ 3.30000 A | 8 V | |
10 A | 100 μA | 1.0000 A ~ 11.0000 A | 8 V | |
30 A | 100 μA | 3.0000 A ~ 33.0000 A | 8 V | |
100 A | 1 mA | 10.000 A ~ 110.000 A | 8 V | |
Ring 2 | 250 A | 1 mA | 20.000 A ~ 275.000 A | 8 V |
500 A | 1 mA | 50.000 A ~ 550.000 A | 8 V | |
1000 A | 10 mA | 100.00 A ~ 1050.00 A | 8 V | |
2000 A [1] | 10 mA | 200.00 A ~ 2100.00 A | 8 V | |
Note[1]: 2000 A is Optional |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) [2] | Ripple Factor (%) |
100 mA | 0.01 | 300 + 100 | <0.5 |
300 mA | 0.01 | 300 + 100 | < 0.5 |
1 A | 0.01 | 300 + 100 | < 0.5 |
3 A | 0.01 | 300 + 100 | < 0.5 |
10 A | 0.01 | 300 + 100 | < 0.5 |
30 A | 0.01 | 300 + 100 | < 0.5 |
100 A | 0.01 | 300 + 100 | < 0.5 |
250 A | 0.01 | 300 + 100 | < 0.5 |
500 A | 0.01 | 300 + 100 | < 0.5 |
1000 A | 0.01 | 300 + 100 | < 0.5 |
2000 A | 0.01 | 300 + 100 | < 0.5 |
Note[2]: RD=Reading,RG=Range, unless otherwise noted; |
• Output range: 10 mA ~ 1050 A\2100 A
• Manual or automatic range switch.
• Adjustment fineness: 0.002%*RG
• 6 digits decimal display
• Protections: open-circuit protection, overload protection, over-heat protection
6.2 AC Current
Copper Ring | Range | Resolution | Output Range | Frequency | Max Compliance Voltage(rms) |
Ring 1 | 100 mA | 1 μA | 10.000 mA ~ 110.000 mA | 40 Hz ~ 400 Hz | 6 V |
300 mA | 1 μA | 30.000 mA ~ 330.000 mA | 40 Hz ~ 400 Hz | 6 V | |
1 A | 10 μA | 0.10000 A ~ 1.10000 A | 40 Hz ~ 400 Hz | 6 V | |
3 A | 10 μA | 0.30000 A ~ 3.30000 A | 40 Hz ~ 400 Hz | 6 V | |
10 A | 100 μA | 1.0000 A ~ 11.0000 A | 40 Hz ~ 400 Hz | 6 V | |
30 A | 100 μA | 3.0000 A ~ 33.0000 A | 40 Hz ~ 400 Hz | 6 V | |
100 A | 1 mA | 10.000 A ~ 110.000 A | 40 Hz ~ 400 Hz | 6 V | |
Ring 2 | 250 A | 1 mA | 20.000 A ~ 275.000 A | 40 Hz ~ 400 Hz | 6 V |
500 A | 1 mA | 50.000 A ~ 550.000 A | 40 Hz ~ 400 Hz | 6 V | |
1000 A | 10 mA | 100.00 A ~ 1020.00 A | 40 Hz ~ 400 Hz | 6 V | |
2000 A [3] | 10 mA | 200.00 A ~ 2050.00 A | 40 Hz ~ 400 Hz | 6 V |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Distortion (%) |
100 mA | 0.01 | 300 + 100 | <0.5 |
300 mA | 0.01 | 300 + 100 | <0.5 |
1 A | 0.01 | 300 + 100 | <0.5 |
3 A | 0.01 | 300 + 100 | <0.5 |
10 A | 0.01 | 300 + 100 | <0.5 |
30 A | 0.01 | 300 + 100 | <0.5 |
100 A | 0.01 | 300 + 100 | <0.5 |
250 A | 0.01 | 300 + 100 | <0.5 |
500 A | 0.01 | 300 + 100 | <0.5 |
1000 A | 0.01 | 300 + 100 | <0.5 |
2000 A [1] | 0.01 | 300 + 100 | <0.5 |
Note[3]: Range 2000 A is optional. |
• Output range: 10 mA ~ 1020 A (2050 A)
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz,accuracy ±0.01%。
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: open-circuit protection, overload protection, over-heat protection
6.3 DC Voltage(optional)
Range | Resolution | Output Range | Max Burden |
200 mV | 1 μV | 20.000 mV ~ 220.000 mV | 100 mA |
1 V | 10 μV | 0.10000 V ~ 1.00000 V | 100 mA |
10 V | 100 μV | 1.0000 V ~ 11.0000 V | 100 mA |
30 V | 100 μV | 3.0000 V ~ 33.0000 V | 600 mA |
100 V | 1 mV | 10.000 V ~ 110.000 V | 200 mA |
300 V | 1 mV | 30.000 V ~ 330.000 V | 60 mA |
600 V | 1 mV | 60.000 V ~ 660.000 V | 25 mA |
1000 V | 10 mV | 100.00 V ~ 1100.00 V | 20 mA |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Ripple Factor (%) |
200 mV | 0.01 | 300 + 200 | <0.5 |
1 V | 0.01 | 300 + 200 | < 0.5 |
10 V | 0.01 | 300 + 200 | < 0.5 |
30 V | 0.01 | 300 + 200 | < 0.5 |
100 V | 0.01 | 300 + 200 | < 0.5 |
300 V | 0.01 | 300 + 200 | < 0.5 |
600 V | 0.01 | 300 + 200 | < 0.5 |
1000 V | 0.01 | 300 + 200 | < 0.5 |
• Output range: 20 mV ~ 1100 V
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.4 AC Voltage(optional)
Range | Resolution | Output Range | Frequency | Max Burden(rms) |
10 V | 100 μV | 1.0000 V ~ 11.0000 V | 40 Hz ~ 400 Hz | 800 mA |
30 V | 100 μV | 3.0000 V ~ 33.0000 V | 40 Hz ~ 400 Hz | 700 mA |
100 V | 1 mV | 10.000 V ~ 110.000 V | 40 Hz ~ 400 Hz | 200 mA |
300 V | 1 mV | 30.000 V ~ 330.000 V | 40 Hz ~ 400 Hz | 70 mA |
750 V | 1 mV | 75.000 V ~ 825.000 V | 40 Hz ~ 400 Hz | 30 mA |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Distortion Factor (%) |
10 V | 0.01 | 300 + 200 | <0.5 |
30 V | 0.01 | 300 + 200 | <0.5 |
100 V | 0.01 | 300 + 200 | <0.5 |
300 V | 0.01 | 300 + 200 | <0.5 |
750 V | 0.01 | 300 + 200 | <0.5 |
• Output range: 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz, accuracy ±0.01%。
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.5 DC Resistance(optional)
Range | Resolution | Output Range | Accuracy ± (ppm*RD+ppm*RG) | Allowable Current |
100 Ω | 1 mΩ | 10.000 Ω ~ 110.000 Ω | 300 + 200 | 1 mA ~ 50 mA |
1 kΩ | 10 mΩ | 0.10000 kΩ ~ 1.10000 kΩ | 300 + 200 | 100 μA ~ 5 mA |
10 kΩ | 100 mΩ | 1.0000 kΩ ~ 11.0000 kΩ | 300 + 200 | 10 μA ~ 500 μA |
100 kΩ | 1 Ω | 10.000 kΩ ~ 110.000 kΩ | 300 + 200 | 10 μA ~ 50 μA |
1 MΩ | 10 Ω | 0.10000 MΩ ~ 1.10000 MΩ | 300 + 200 | 1 μA ~ 5 μA |
10 MΩ | 100 Ω | 1.0000 MΩ ~ 11.0000 MΩ | 600 + 400 | 100 nA ~ 500 nA |
• Output range: 10 Ω ~ 11 MΩ
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
6.6 AC\DC Power(optional)
Type | Current Range | Combination of Voltage and Current | Accuracy ± (%*Power Output)[1] [2] |
DC | 1000 A | (20 mV~1100 V) × (10 mA~1050 A) | 0.07~0.29 |
2000 A [3] | (20 mV~1100 V) × (10 mA~2100 A) | 0.07~0.29 | |
AC | 1000 A | (1 V~825 V) × (10 mA~1020 A) | 0.07~0.42 |
2000 A[3] | (1 V~825 V) × (10 mA~2050 A) | 0.07~0.42 | |
6.7 Phase and Power Factor(45 Hz~65 Hz)(optional)
Type | Range | Adjustment fineness | Accuracy[1] |
φ | 0.000°~359.999° | 0.005° | 0.1° |
λ | -1 … 0 … +1 | 0.0001 | 0.30% @ (λ=0.5) |
7. General Specifications
Power supply | AC (380 ± 38)V,( 50 ± 2 ) Hz | |||||
Max Power Consumption | 16 kVA @ 1000 A Model,32 kVA @ 2000 A Model | |||||
Operating Condition | 0°C~40°C,(20%~85%) R·H,non-condensing | |||||
Storage Condition | -20°C~70°C,(10%~95%) R·H,non-condensing | |||||
Standard Interfaces | RS232×1 | |||||
Dimensions | Range | Width(W) | Depth(D) | Height(H) | Diameter of the copper ring | |
Ring 1(Ø1) | Ring 2(Ø2) | |||||
1000 A | 740 mm | 1723 mm | 1467 mm | 10 mm | 19 mm | |
2000 A | 1480 mm | 1723 mm | 1467 mm | 10 mm | 27 mm | |
8. Ordering information
Function | AC/DC Current Output ( ACI & DCI ) | AC/DC Voltage Output ( ACV & DCV ) | Resistance Output (Res ) | Power Output (Power) |
TD1050-X | ★ | — | — | — |
TD1050-X-M | ★ | ★ | ★ | ★ |
6. Specifications
6.1 DC Current
Copper Ring | Range | Resolution | Output Range | Max Load |
Ring 1 | 100 mA | 1 μA | 10.000 mA ~ 110.000 mA | 8 V |
300 mA | 1 μA | 30.000 mA ~ 330.000 mA | 8 V | |
1 A | 10 μA | 0.10000 A ~ 1.10000 A | 8 V | |
3 A | 10 μA | 0.30000 A ~ 3.30000 A | 8 V | |
10 A | 100 μA | 1.0000 A ~ 11.0000 A | 8 V | |
30 A | 100 μA | 3.0000 A ~ 33.0000 A | 8 V | |
100 A | 1 mA | 10.000 A ~ 110.000 A | 8 V | |
Ring 2 | 250 A | 1 mA | 20.000 A ~ 275.000 A | 8 V |
500 A | 1 mA | 50.000 A ~ 550.000 A | 8 V | |
1000 A | 10 mA | 100.00 A ~ 1050.00 A | 8 V | |
2000 A [1] | 10 mA | 200.00 A ~ 2100.00 A | 8 V | |
Note[1]: 2000 A is Optional |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) [2] | Ripple Factor (%) |
100 mA | 0.01 | 300 + 100 | <0.5 |
300 mA | 0.01 | 300 + 100 | < 0.5 |
1 A | 0.01 | 300 + 100 | < 0.5 |
3 A | 0.01 | 300 + 100 | < 0.5 |
10 A | 0.01 | 300 + 100 | < 0.5 |
30 A | 0.01 | 300 + 100 | < 0.5 |
100 A | 0.01 | 300 + 100 | < 0.5 |
250 A | 0.01 | 300 + 100 | < 0.5 |
500 A | 0.01 | 300 + 100 | < 0.5 |
1000 A | 0.01 | 300 + 100 | < 0.5 |
2000 A | 0.01 | 300 + 100 | < 0.5 |
Note[2]: RD=Reading,RG=Range, unless otherwise noted; |
• Output range: 10 mA ~ 1050 A\2100 A
• Manual or automatic range switch.
• Adjustment fineness: 0.002%*RG
• 6 digits decimal display
• Protections: open-circuit protection, overload protection, over-heat protection
6.2 AC Current
Copper Ring | Range | Resolution | Output Range | Frequency | Max Compliance Voltage(rms) |
Ring 1 | 100 mA | 1 μA | 10.000 mA ~ 110.000 mA | 40 Hz ~ 400 Hz | 6 V |
300 mA | 1 μA | 30.000 mA ~ 330.000 mA | 40 Hz ~ 400 Hz | 6 V | |
1 A | 10 μA | 0.10000 A ~ 1.10000 A | 40 Hz ~ 400 Hz | 6 V | |
3 A | 10 μA | 0.30000 A ~ 3.30000 A | 40 Hz ~ 400 Hz | 6 V | |
10 A | 100 μA | 1.0000 A ~ 11.0000 A | 40 Hz ~ 400 Hz | 6 V | |
30 A | 100 μA | 3.0000 A ~ 33.0000 A | 40 Hz ~ 400 Hz | 6 V | |
100 A | 1 mA | 10.000 A ~ 110.000 A | 40 Hz ~ 400 Hz | 6 V | |
Ring 2 | 250 A | 1 mA | 20.000 A ~ 275.000 A | 40 Hz ~ 400 Hz | 6 V |
500 A | 1 mA | 50.000 A ~ 550.000 A | 40 Hz ~ 400 Hz | 6 V | |
1000 A | 10 mA | 100.00 A ~ 1020.00 A | 40 Hz ~ 400 Hz | 6 V | |
2000 A [3] | 10 mA | 200.00 A ~ 2050.00 A | 40 Hz ~ 400 Hz | 6 V |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Distortion (%) |
100 mA | 0.01 | 300 + 100 | <0.5 |
300 mA | 0.01 | 300 + 100 | <0.5 |
1 A | 0.01 | 300 + 100 | <0.5 |
3 A | 0.01 | 300 + 100 | <0.5 |
10 A | 0.01 | 300 + 100 | <0.5 |
30 A | 0.01 | 300 + 100 | <0.5 |
100 A | 0.01 | 300 + 100 | <0.5 |
250 A | 0.01 | 300 + 100 | <0.5 |
500 A | 0.01 | 300 + 100 | <0.5 |
1000 A | 0.01 | 300 + 100 | <0.5 |
2000 A [1] | 0.01 | 300 + 100 | <0.5 |
Note[3]: Range 2000 A is optional. |
• Output range: 10 mA ~ 1020 A (2050 A)
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz,accuracy ±0.01%。
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: open-circuit protection, overload protection, over-heat protection
6.3 DC Voltage(optional)
Range | Resolution | Output Range | Max Burden |
200 mV | 1 μV | 20.000 mV ~ 220.000 mV | 100 mA |
1 V | 10 μV | 0.10000 V ~ 1.00000 V | 100 mA |
10 V | 100 μV | 1.0000 V ~ 11.0000 V | 100 mA |
30 V | 100 μV | 3.0000 V ~ 33.0000 V | 600 mA |
100 V | 1 mV | 10.000 V ~ 110.000 V | 200 mA |
300 V | 1 mV | 30.000 V ~ 330.000 V | 60 mA |
600 V | 1 mV | 60.000 V ~ 660.000 V | 25 mA |
1000 V | 10 mV | 100.00 V ~ 1100.00 V | 20 mA |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Ripple Factor (%) |
200 mV | 0.01 | 300 + 200 | <0.5 |
1 V | 0.01 | 300 + 200 | < 0.5 |
10 V | 0.01 | 300 + 200 | < 0.5 |
30 V | 0.01 | 300 + 200 | < 0.5 |
100 V | 0.01 | 300 + 200 | < 0.5 |
300 V | 0.01 | 300 + 200 | < 0.5 |
600 V | 0.01 | 300 + 200 | < 0.5 |
1000 V | 0.01 | 300 + 200 | < 0.5 |
• Output range: 20 mV ~ 1100 V
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.4 AC Voltage(optional)
Range | Resolution | Output Range | Frequency | Max Burden(rms) |
10 V | 100 μV | 1.0000 V ~ 11.0000 V | 40 Hz ~ 400 Hz | 800 mA |
30 V | 100 μV | 3.0000 V ~ 33.0000 V | 40 Hz ~ 400 Hz | 700 mA |
100 V | 1 mV | 10.000 V ~ 110.000 V | 40 Hz ~ 400 Hz | 200 mA |
300 V | 1 mV | 30.000 V ~ 330.000 V | 40 Hz ~ 400 Hz | 70 mA |
750 V | 1 mV | 75.000 V ~ 825.000 V | 40 Hz ~ 400 Hz | 30 mA |
Range | Stability (± %/min) | Accuracy ± (ppm*RD+ppm*RG) | Distortion Factor (%) |
10 V | 0.01 | 300 + 200 | <0.5 |
30 V | 0.01 | 300 + 200 | <0.5 |
100 V | 0.01 | 300 + 200 | <0.5 |
300 V | 0.01 | 300 + 200 | <0.5 |
750 V | 0.01 | 300 + 200 | <0.5 |
• Output range: 1 V ~ 825 V
• Frequency: 40 Hz ~ 400 Hz, adjustment fineness 0.001 Hz, accuracy ±0.01%。
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
• Protections: short-circuit protection, overload protection, over-heat protection
6.5 DC Resistance(optional)
Range | Resolution | Output Range | Accuracy ± (ppm*RD+ppm*RG) | Allowable Current |
100 Ω | 1 mΩ | 10.000 Ω ~ 110.000 Ω | 300 + 200 | 1 mA ~ 50 mA |
1 kΩ | 10 mΩ | 0.10000 kΩ ~ 1.10000 kΩ | 300 + 200 | 100 μA ~ 5 mA |
10 kΩ | 100 mΩ | 1.0000 kΩ ~ 11.0000 kΩ | 300 + 200 | 10 μA ~ 500 μA |
100 kΩ | 1 Ω | 10.000 kΩ ~ 110.000 kΩ | 300 + 200 | 10 μA ~ 50 μA |
1 MΩ | 10 Ω | 0.10000 MΩ ~ 1.10000 MΩ | 300 + 200 | 1 μA ~ 5 μA |
10 MΩ | 100 Ω | 1.0000 MΩ ~ 11.0000 MΩ | 600 + 400 | 100 nA ~ 500 nA |
• Output range: 10 Ω ~ 11 MΩ
• Manual or automatic range switch
• Adjustment fineness: 0.002%*RG
• 6 digits display
6.6 AC\DC Power(optional)
Type | Current Range | Combination of Voltage and Current | Accuracy ± (%*Power Output)[1] [2] |
DC | 1000 A | (20 mV~1100 V) × (10 mA~1050 A) | 0.07~0.29 |
2000 A [3] | (20 mV~1100 V) × (10 mA~2100 A) | 0.07~0.29 | |
AC | 1000 A | (1 V~825 V) × (10 mA~1020 A) | 0.07~0.42 |
2000 A[3] | (1 V~825 V) × (10 mA~2050 A) | 0.07~0.42 | |
6.7 Phase and Power Factor(45 Hz~65 Hz)(optional)
Type | Range | Adjustment fineness | Accuracy[1] |
φ | 0.000°~359.999° | 0.005° | 0.1° |
λ | -1 … 0 … +1 | 0.0001 | 0.30% @ (λ=0.5) |
7. General Specifications
Power supply | AC (380 ± 38)V,( 50 ± 2 ) Hz | |||||
Max Power Consumption | 16 kVA @ 1000 A Model,32 kVA @ 2000 A Model | |||||
Operating Condition | 0°C~40°C,(20%~85%) R·H,non-condensing | |||||
Storage Condition | -20°C~70°C,(10%~95%) R·H,non-condensing | |||||
Standard Interfaces | RS232×1 | |||||
Dimensions | Range | Width(W) | Depth(D) | Height(H) | Diameter of the copper ring | |
Ring 1(Ø1) | Ring 2(Ø2) | |||||
1000 A | 740 mm | 1723 mm | 1467 mm | 10 mm | 19 mm | |
2000 A | 1480 mm | 1723 mm | 1467 mm | 10 mm | 27 mm | |
8. Ordering information
Function | AC/DC Current Output ( ACI & DCI ) | AC/DC Voltage Output ( ACV & DCV ) | Resistance Output (Res ) | Power Output (Power) |
TD1050-X | ★ | — | — | — |
TD1050-X-M | ★ | ★ | ★ | ★ |
