TS4100 Single Sheet Tester

The single sheet tester can be used as an accessory for magnetic property measurement systems for electrical steel, measuring the magnetic properties of single sheet specimens of various dimensions.

Model:
TS4100
Brand:
TUNKIA


Availability:



Inquire

TS4100 Single Sheet Tester

(Original model: TS7500/TS7510)

*Reference only, actual product can vary slightly.

1. Summary

The single sheet tester can be used as an accessory for magnetic property measurement systems for electrical steel, measuring the magnetic properties of single sheet specimens of various dimensions.
A range of single sheet testers is available, including basic models, upgraded models, and various sizes.
The upgraded single sheet tester is additionally equipped with a yoke loss winding and a demagnetization winding.
Specimen sampling shall follow the relevant product standards; cutting and loading of specimens shall comply with the requirements of GB/T 13789-2022.
The magnetic field measurement method can be selected to support either the current method (M.C method) or the field coil method (H-Coil method), or both.

2. Specifications

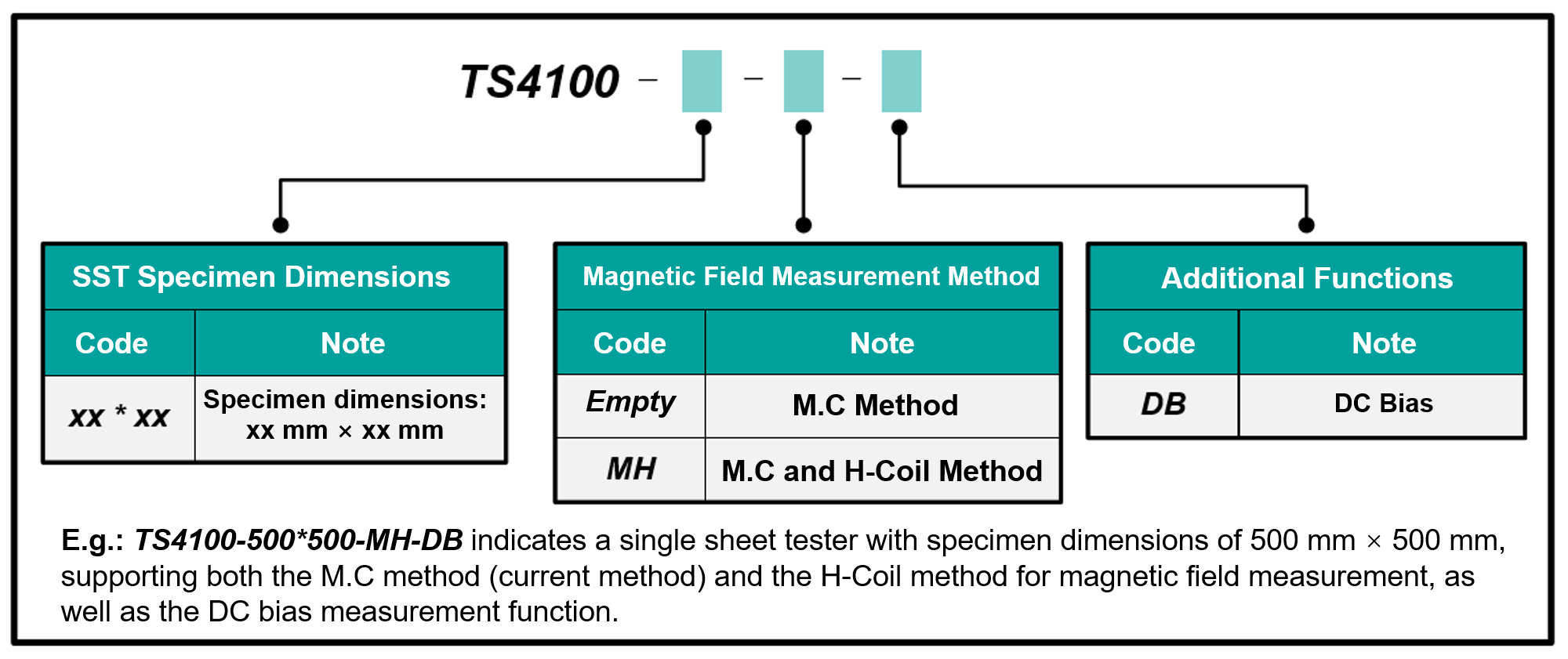

Model	Specimen Dimensions (W × L)	Specimen Thickness	Magnetic Field Measurement Method	Maximum Magnetizing Field Strength	Frequency Range	Remarks
TS4100-500*500	500 mm × 500 mm	0.1 mm~0.5 mm	M.C	10 kA/m	≤100 Hz
TS4100-500*500-MH	500 mm × 500 mm	0.1 mm~0.5 mm	M.C / H-Coil	10 kA/m	≤100 Hz
TS4100-500*500-DB	500 mm × 500 mm	0.1 mm~0.5 mm	M.C	10 kA/m	≤100 Hz	DC Bias
TS4100-500*500-MH-DB	500 mm × 500 mm	0.1 mm~0.5 mm	M.C / H-Coil	10 kA/m	≤100 Hz	DC Bias
TS4100-300*300	300 mm × 300 mm	0.1 mm~0.5 mm	M.C	10 kA/m	≤100 Hz
TS4100-300*300-MH	300 mm × 300 mm	0.1 mm~0.5 mm	M.C / H-Coil	10 kA/m	≤100 Hz
TS4100-100*300	100 mm × 300 mm	0.1 mm~0.5 mm	M.C	10 kA/m	≤100 Hz
TS4100-100*300-MH	100 mm × 300 mm	0.1 mm~0.5 mm	M.C / H-Coil	10 kA/m	≤100 Hz
TS4100-30*300	30 mm × 300 mm	0.1 mm~0.5 mm	M.C	10 kA/m	≤100 Hz
