Bending Radius

5 mm

Bending Angle

± 90°

Counting Range

0 ~ 9999

Specimens Size

30 mm × ( 280 ~ 320 ) mm (width × length)

Power Supply

AC ( 220 ± 22 ) V, ( 50 ± 2 ) Hz

Temperature Performance

Working temperature: 0°C ~ 40°C；

Storage temperature: -20°C ~ 70°C

Humidity Performance

Working humidity: 40% ~ 80% R·H，No condensation

Store humidity: < 95% R·H，No condensation

Dimension

255 mm(W) ×180 mm(D) × 565 mm(H)

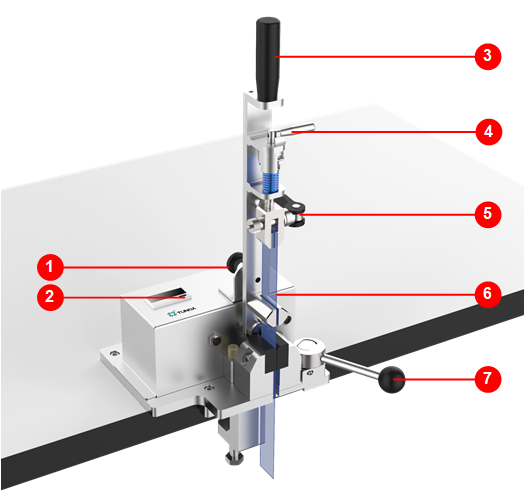

Step

Position

Description

1

Insert the fixing pin to keep the device vertical

2

Insert the silicon steel sheet to be tested and keep it in position

3

Turn the upper clamping handle to clamp the upper part of the silicon steel sheet

4

Turn the spring clamping handle to compress the spring

5

Turn the lower clamping handle to clamp the lower part of the silicon steel sheet

6

Turn the clamping handle in the opposite direction, the spring is released, and the silicon steel sheet is tightened.

7

Press the RESET button below the digital counter display to reset the digital counter to zero.

8

Pull out the fixing pin and prepare to start the repeated bending test.

9

Hold the upper handle and start the repeated bending test. When turning ±90 degrees, the digital counter will automatically count.
