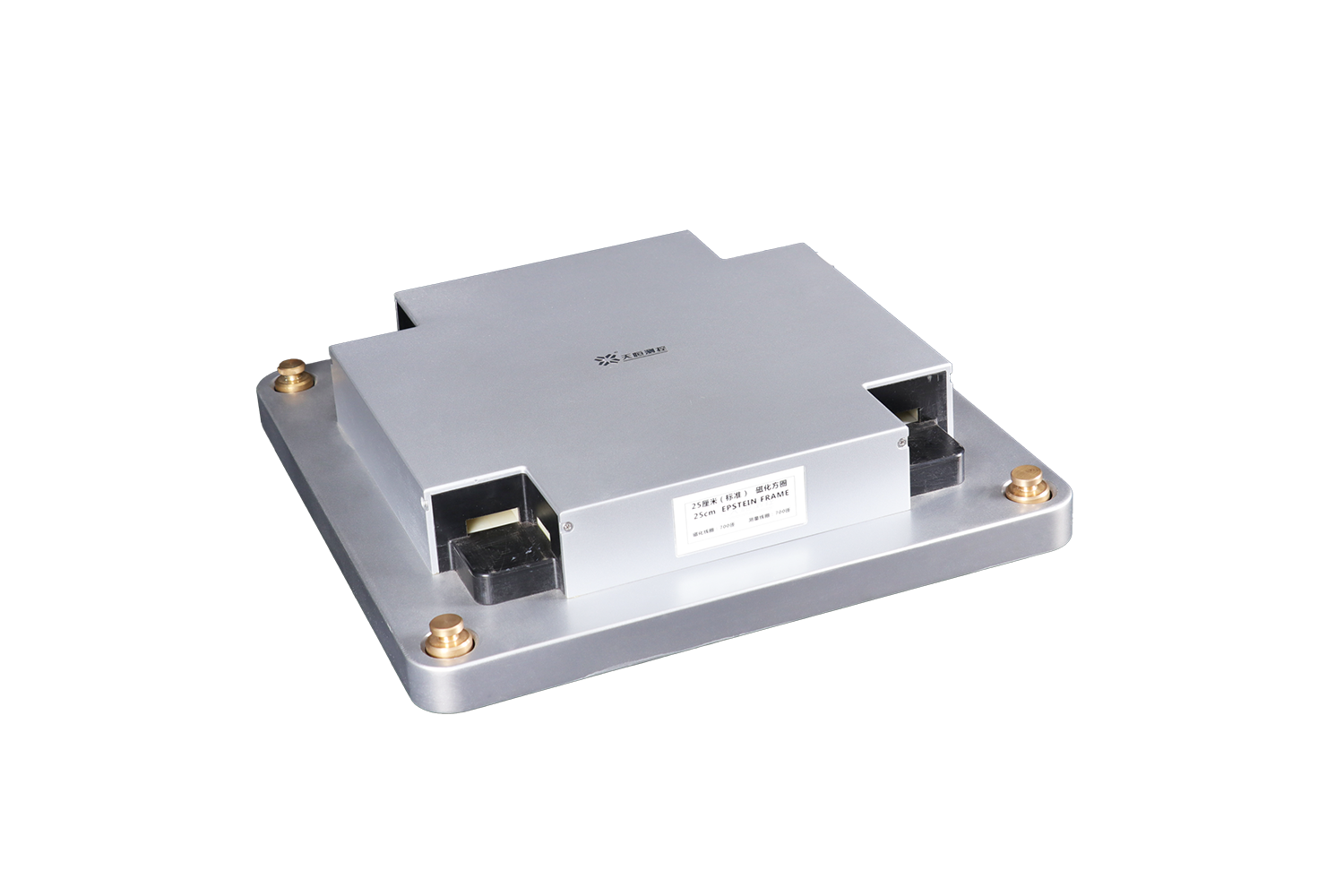

TS7000 / TS7010 /TS 7020 / TS7100 Epstein Frame

The Epstein frame is an accessory of magnetic properties measuring system for electrical steel , E.g. TS1000 / TS1020 / TS1100 / TS1200 / TS1300 / TS3000.The size of the tested specimens is 30 mm (W) × (280 ~ 320) mm (L) .There are regular, medium frequency, high frequency, high temperature and other Epstein frame.Magnetic field measurement methods: M.C and H-coil.
The built-in coil of air flux compensation conforms to IEC60404-2 or IEC60404-10 standards.
The cutting and placement of specimens shall comply with IEC60404-2.
Availability:
Quantity:
  • TS7000 / TS7010 /TS 7020 / TS7100

  • TUNKIA

TS7000 /TS 7010 / TS7020 / TS7100 Epstein Frame

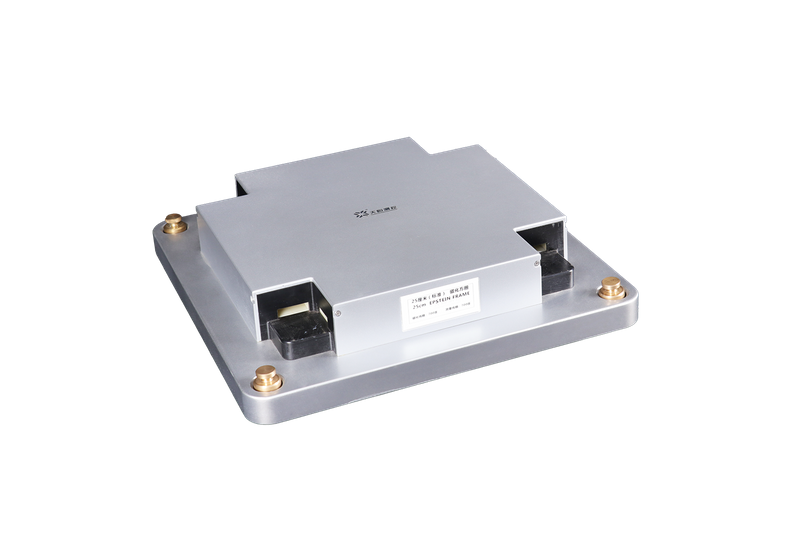

 TS7000 Epstein Frame

1. Summary

The Epstein frame is an accessory of magnetic properties measuring system for electrical steel , E.g. TS1000 / TS1020 / TS1100 / TS1200 / TS1300 / TS3000.

The size of the tested specimens is 30 mm (W) × (280 ~ 320) mm (L) .

There are regular, medium frequency, high frequency, high temperature and other Epstein frame.

Magnetic field measurement methods: M.C and H-coil.

The built-in coil of air flux compensation conforms to IEC60404-2 or IEC60404-10 standards.

The cutting and placement of specimens shall comply with IEC60404-2.

2. Specifications

Type

Model

Length

Turns

Lumen

height

Measurement method

Maximum magnetization field

Working

temperature

Frequency

Regular Epstein Frame

TS7000-A

25 cm

700 T

10 mm

M.C

10 kA/m

0℃~45

400 Hz

TS7000-B

25 cm

700 T

10 mm

M.C

30 kA/m

0℃~45

400 Hz

TS7000-A-HM

25 cm

700 T

10 mm

M.C / H-Coil

10 kA/m

0℃~45

400 Hz

TS7000-B-HM

25 cm

700 T

10 mm

M.C / H-Coil

30 kA/m

0℃~45

400 Hz

Medium Frequency Epstein Frame

TS7010

25 cm

200 T

5 mm

M.C

800 A/m

0℃~45

400 Hz10 kHz

High Frequency Epstein Frame

TS7020

25 cm

100 T

5 mm

M.C

100 A/m

0℃~45

10 kHz20 kHz

High Temperature Epstein Frame

TS7100-A

25 cm

700 T

10 mm

M.C

10 kA/m

-55~220

400 Hz

TS7100-B

25 cm

700 T

10 mm

M.C

30 kA/m

-55~220

400 Hz

TS7100-B-HM

25 cm

700 T

10 mm

M.C / H-Coil

30 kA/m

-55~220

400 Hz
