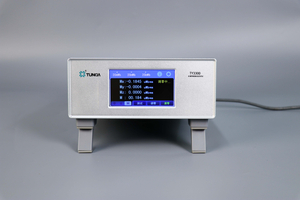

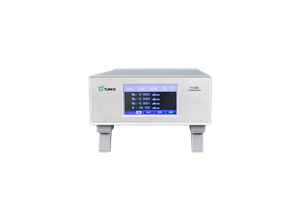

TY3000 Magnetic Moment Tester

TY3000 is a precision magnetic moment measuring tester designed with a high-speed microprocessor and a low-drift electronic integrator. It can be paired with various specifications of magnetic moment measurement coils to measure the magnetic moment M and magnetic flux Φ of magnetic components such as permanent magnet ferrite, AlNiCo, NdFeB, and Samarium Cobalt (SmCo) Magnets. It provides a good test for analyzing and evaluating the magnetizing performance of permanent magnets.Reference Standard IEC 60404-14:2002 "Methods of measurement of the magnetic dipole moment of a ferromagnetic material specimen by the withdrawal or rotation method".
Availability:
Quantity:
  • TY3000

  • TUNKIA

TY3000 Magnetic Moment Tester

TY3000 Magnetic Moment Tester


1.Summary

TY3000 is a precision magnetic moment measuring tester designed with a high-speed microprocessor and a low-drift electronic integrator. It can be paired with various specifications of magnetic moment measurement coils to measure the magnetic moment M and magnetic flux Φ of magnetic components such as permanent magnet ferrite, AlNiCo, NdFeB, and Samarium Cobalt (SmCo) Magnets. It provides a good test for analyzing and evaluating the magnetizing performance of permanent magnets.

Reference Standard IEC 60404-14:2002 "Methods of measurement of the magnetic dipole moment of a ferromagnetic material specimen by the withdrawal or rotation method".



2. Feature

Measurement Range: 0.2 m Wb~2 Wb.

Accuracy: 0.2 %/ 0.5 %.

The drift after zero adjustment is very small, the typical value is lower than 1μWb/min.

5-digit display, the minimum resolution is as low as 0.1μWb.

Optional units: Wb, Vs, Wb·cm, Vs·cm, etc.

Automatically calculate the magnetic moment M according to the set coil constant.

With the function of holding the maximum value.

Support exceeding upper limit/lower limit alarm.

Support one-key reset and zero drift.

Support test parameter correction function.

Adopt the combination operation mode of touch screen and button.

Support digital and analog signal (option) output mode.

Support a variety of measuring coils to suit different application scenarios.

Small size, light weight, suitable for field use.


3.Specifications

Range

2 mWb

20 mWb

200 mWb

2 Wb

Resolution

0.1 μWb

1 μWb

10 μWb

0.1 mWb

Measurement Range

0.2 mWb2 Wb

Magnetic Moment Measuring Range

M=K*Ф

( K: Coil Constant for Magnetic Moment Measurement)

Measurement Uncertainty

(k=2)

0.5 %

0.5%*RD + 10 μWb

0.2 %

0.2%*RD + 10 μWb

Zero Drift

1 μWb/min or 0.05%*RG /min

(take the larger value)

Analog Output

0~± 5 V or 4~20 mA

Note

① RD is the reading value, ② RG is the range value

③ The analog output function is an option, whether it is needed or not must be specified when ordering



4.General Specifications

Power Supply

AC ( 220 ± 22 ) V( 50 ± 2 ) Hz

Temperature Performance

Working temperature: 0°C40°C;

storage temperature: -20°C70°C

Humidity Performance

Working humidity: 40%85% R·H non-condensing

Storage humidity: < 95% R·H, non-condensing

Weight

About 5 kg

Communication Interface

Coil Input Interface, RS232 Interface, Analog Output Interface

Dimensions

225 mm(W) × 295 mm(D) × 135 mm(H)



5. Ordering Information

TY3000 Magnetic Moment Tester Ordering Information
