TUNKIA TS2600 Iron loss Fast Tester for Electrical Steel Sheets

TS2600 Iron Loss Fast Tester for Electrical Steel Sheets

TS2600 is an instrument used to quickly measure the AC magnetic properties of electrical steel sheets. It can quickly measure Ps of electrical steel sheets.

Model:
TS2600
Brand:
TUNKIA


Availability:



Inquire

TS2600 Iron Loss Fast Tester for Electrical Steel Sheets

TS2600 Iron loss Fast Tester 2

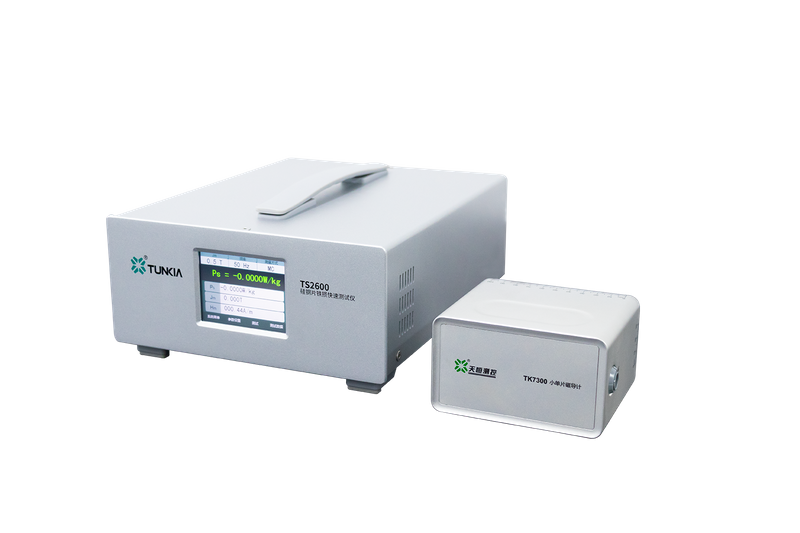

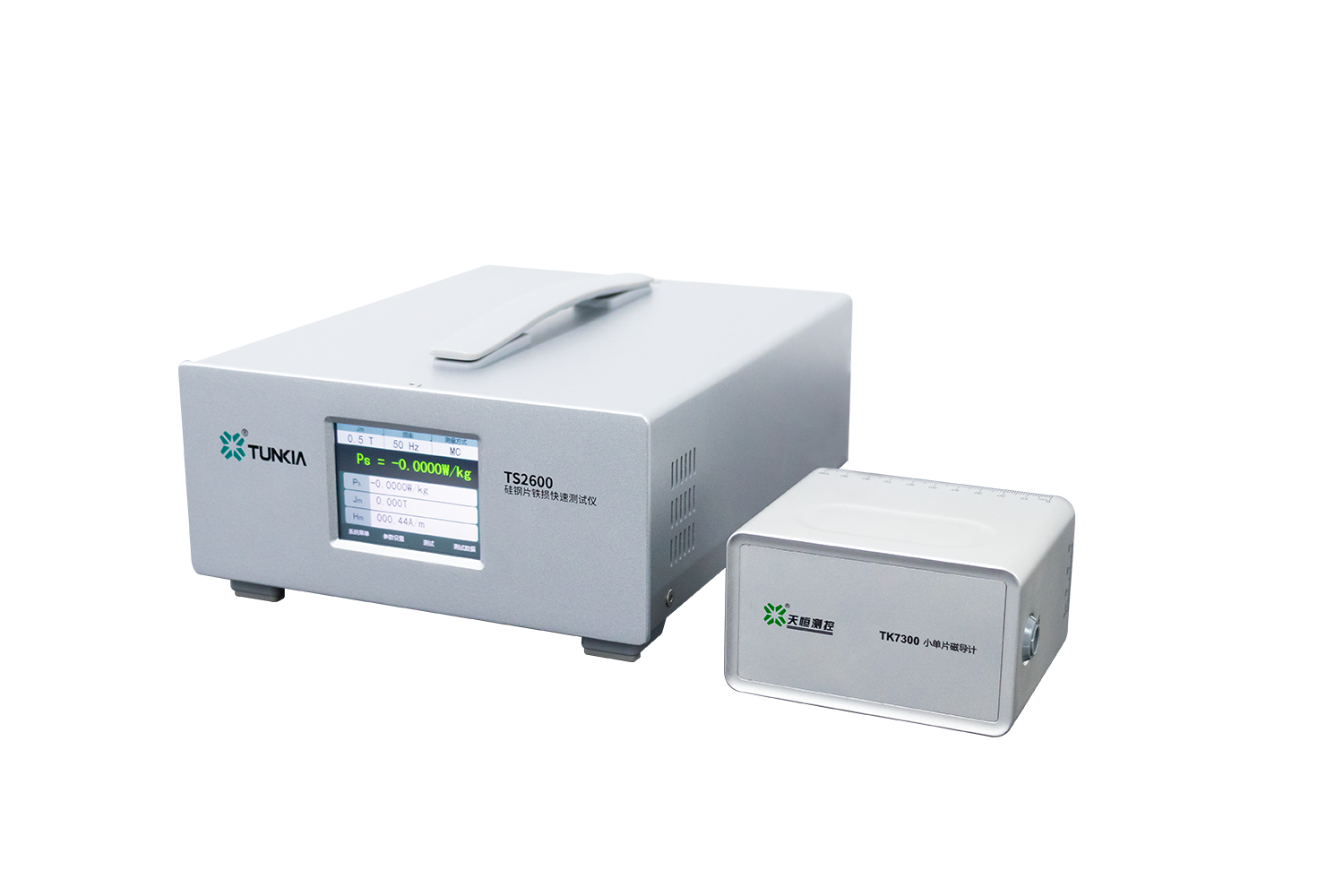

*Above picture is only for reference, subject to actual delivery

1. Summary

TS2600 is an instrument used to quickly measure the AC magnetic properties of electrical steel sheets. It can quickly measure Ps of electrical steel sheets.

2. Features

Enables fast loss measurements at multiple loss test points.
Displays various magnetic parameters, including Ps, Jm, and Hm.
The Basic and Standard versions measure magnetic field strength using the current method, ensuring high accuracy.
The Advanced version features an integrated H-coil for magnetic field strength measurement, delivering high precision.
Simple operation: users can acquire measurement data by pressing the compact single-sheet permeameter against the specimen.
Supports one-click storage and real-time viewing of measurement data, including test date and time.
Equipped with a large color LCD touchscreen for intuitive value display and easier operation.

3. Specifications

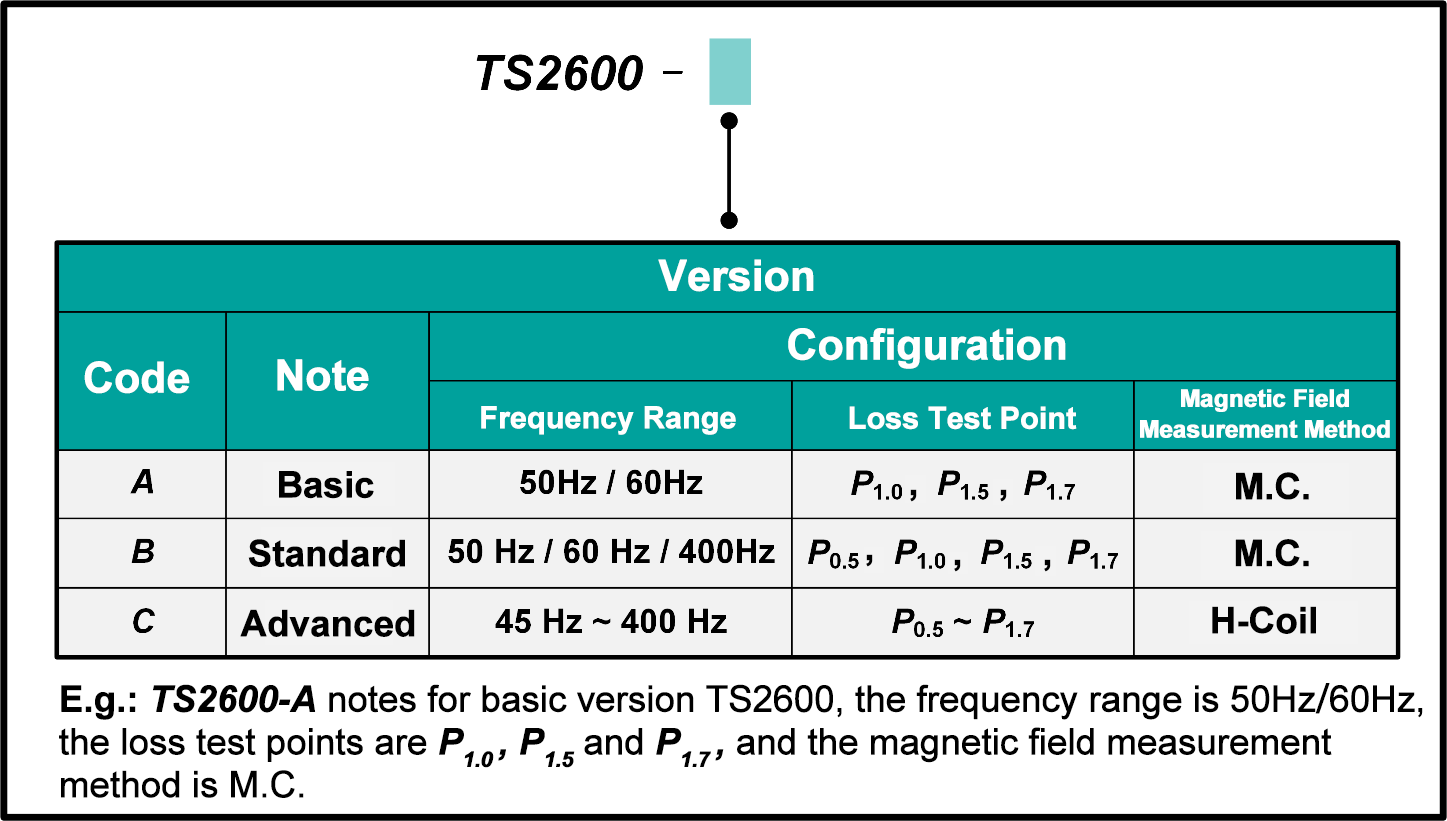

Testing Capability	Iron Loss Test Point Setting	P_1.0, P_1.5, P_1.7 ^[1](See ordering information)
	Frequency	50 Hz / 60 Hz … 400Hz (See ordering information)
	Optimal Measurement Uncertainty of Voltage and Current (k=2)	0.2%*RG ^[2]
	Optimal Measurement Uncertainty of Active Power	0.5%*FS ^[3]
	Optimal Measurement Uncertainty of Ps (k=2)	10%
	Optimal Repeatability of Ps	2%
Specimens	Size (L × W)	≥ 30 mm × 100 mm
	Thickness	0.2 mm ~ 0.65 mm
	Other Requirements	The surface should be clean, flat, free from spots and scratches

Note: [1] P_1.7 is the test point of orientation steel；

Note: [2] RG is range；

Note: [3] FS= Voltage range x current range, when the phase Angle is within 75 degrees.

Repeatability: put the same specimens in the specified position and keep it from moving, and measure it repeatedly for 10 times. Take the maximum or minimum value of 10 measurements minus the average value divided by the average value, and the maximum value of the two represents repeatability.

4. General specifications

Power supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Temperature performance	Working temperature：0°C～40°C； Storage temperature：-20°C～70°C
Humidity performance	Working humidity：40%～80% R·H，No condensation Store humidity：< 95% R·H，No condensation
Weight	About 3kg
Size	230 mm(W) ×290 mm(D) × 130 mm(H)
