TUNKIA TS1800 Bending Testing System for Electrical Steel Sheets

TS1800 Bending Testing System for Electrical Steel Sheets

Name: TS1800 Bending Testing System for Electrical Steel Sheets
Brand: TUNKIA
Rating: 5.0 (52 reviews)

TS1800 is a dedicated testing device for performing bending and reverse flat bending tests on electrical steel sheets. It is equipped with a specialized clamping fixture for sheet specimens, and is designed to evaluate the ability of individual electrical steel sheets to withstand plastic deformation under repeated bending, as well as to reveal any resulting defects.

Model:
TS1800
Brand:
TUNKIA


Availability:



Inquire

TS1800 Bending Testing System for Electrical Steel Sheets

TS1800 Bending Testing System for Electrical Steel Sheets 2

*Above picture is only for reference, subject to actual delivery

1. Summary

TS1800 is a dedicated testing device for performing bending and reverse flat bending tests on electrical steel sheets.
It is equipped with a specialized clamping fixture for sheet specimens, and is designed to evaluate the ability of individual electrical steel sheets to withstand plastic deformation under repeated bending, as well as to reveal any resulting defects.

Reference standard: YB/T 4731-2019 (Tunkia participated in drafting).

2. Features

Quick clamping of electrical steel sheet.
The device can be easily fixed on the desktop by tightening screws and a vise at the bottom.
The bending radius of the lower clamp is 5 mm, and the bending radius is not less than ±90°.
The upper spring can exert stable tension on electrical steel sheet.
The number of bends can be displayed.

TS1700 Surface Insulation Resistance Measuring System for Electrical Steel

TD9100 Online Testing System for Magnetic Properties of Silicon Strip

TS1000 DC Magnetic Properties Measuring System for Electrical Steel

TS1020 DC Magnetic Properties Measuring System for Yoke Steel

TS1100 AC Magnetic Properties Measuring System for Electrical Steel

TS1200 AC Magnetic Properties Measuring System for Electrical Steel

TS1300 AC/DC Magnetic Properties Measuring System for Electrical Steel

TS2000 Rotational Magnetic Properties Measuring System for Electrical Steel

TS3000 Magnetic Properties Multifunction Measuring System for Electrical Steel

TS2600 Iron Loss Fast Tester for Electrical Steel Sheets

TS1710 Surface Insulation Resistance Automatic Measuring System for Electrical Steel

TS1780 Stacking Factor Measuring System for Electrical Steel Sheets

Bending Radius	5 mm
Bending Angle	± 90°
Counting Range	0～9999
Tension of Specimens	≥ 70 N
Specimens Size	30 mm × ( 280～320 ) mm (width × length)

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Temperature Performance	Working temperature：0°C～40°C； Storage temperature：-20°C～70°C
Humidity Performance	Working humidity：40%～80% R·H，No condensation Store humidity：< 95% R·H，No condensation
Overall Dimension	255 mm(W) x 180 mm(D) x 565 mm(H)

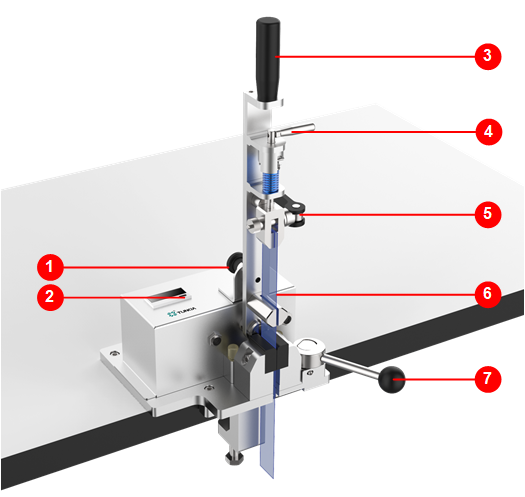

Step	Position	Description
1		Insert the fixing pin to keep the device vertical
2		Insert the silicon steel sheet to be tested and keep it in position
3		Turn the upper clamping handle to clamp the upper part of the silicon steel sheet
4		Turn the spring clamping handle to compress the spring
5		Turn the lower clamping handle to clamp the lower part of the silicon steel sheet
6		Turn the clamping handle in the opposite direction, the spring is released, and the silicon steel sheet is tightened.
7		Press the RESET button below the digital counter display to reset the digital counter to zero.
8		Pull out the fixing pin and prepare to start the repeated bending test.
9		Hold the upper handle and start the repeated bending test. When turning ±90 degrees, the digital counter will automatically count.

Bending Radius	5 mm
Bending Angle	± 90°
Counting Range	0～9999
Tension of Specimens	≥ 70 N
Specimens Size	30 mm × ( 280～320 ) mm (width × length)

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Temperature Performance	Working temperature：0°C～40°C； Storage temperature：-20°C～70°C
Humidity Performance	Working humidity：40%～80% R·H，No condensation Store humidity：< 95% R·H，No condensation
Overall Dimension	255 mm(W) x 180 mm(D) x 565 mm(H)

TS1800 Bending Testing System for Electrical Steel Sheets

TS1800 Bending Testing System for Electrical Steel Sheets

TS1800 Bending Testing System for Electrical Steel Sheets
